TOSHIBA
T B 6 2 7 2 5 P / F / FN
TOSHIBA Bi-CMOS INTEGRATED CIRCIUTS SILICON MONOLITHIC
TB62725P/F/FN
8BIT CONSTANT CURRENT LED DRIVER OF OPERATING VOLTAGE 3.3V
TB62725 series is the constant current driver designed
for LED and the LED display. Output current value is
set with one resistor with the outside.
Then, all the output becomes the about same current.

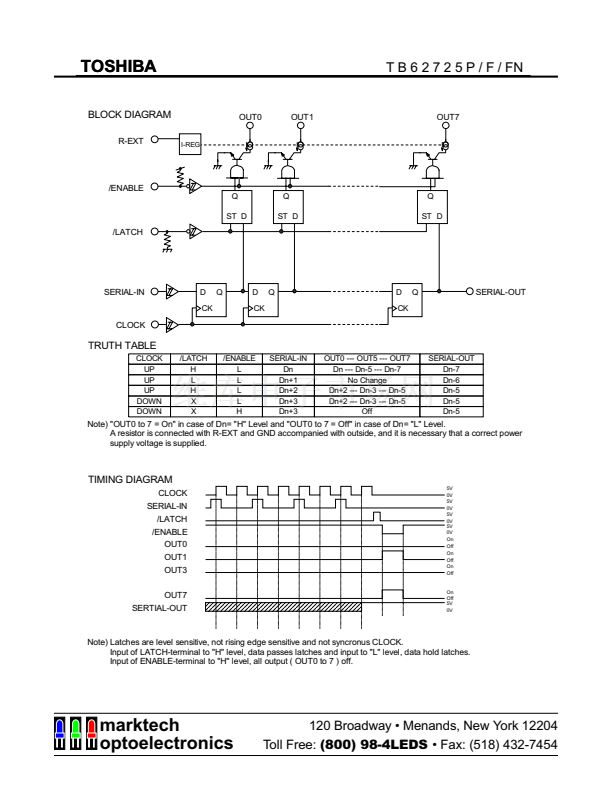

This driver builds in the constant current output of
eight bits, the shift register of eight bits, the latch of
eight bits and gate circuit.
This driver is designed by using the BI-CMOS process.
FEATURE
*Output Current Capability and the number of the output :
90mA X 8 outputs
*Constant Current Range : 5 to 90mA
*Application Output Voltage :
0.7V (output current 40 to 80 mA)
0.4V (output current 5 to 40 mA)
*For Annode Common LED
*Input Signal Voltage Level :
3.3V CMOS Level (Shmitt Triggered Input)
*Power Supply Voltage Range VDD=3.0 to 3.6V
*Muximum output terminal voltage 17V
*Serial and Pararell Data Transfer Rate :
20MHz (max, Cascade Connection)
*Operation Temperature Range :
Topr= -40 to 85 degrees
*Package :
Type P : DIP16-P-300-2.56A
Type F : SSOP16-P-225-1.00
Type FN : SSOP16-P-225-0.65
*Package and Pin Layout : Same as the TB62705 series.
*Constant Current Error bitween bits ( All Output On )
Output
Voltage
>= 0.4V
>= 0.7V
Current
Error
between bits
+/- 6%
Current
Error
between ICs
+/- 15%
Output
Current
2 to 40 mA
2 to 90 mA
Weight :
1.11 g(Typ.) - - - Type P
0.14 g(Typ.) - - - Type F
0.07 g(Typ.) - - - Type FN
TB62725P
DIP16-P-300-2.56A
TB62725F
SSOP16-P-225-1.00
TB62725FN
SSOP16-P-225-0.65

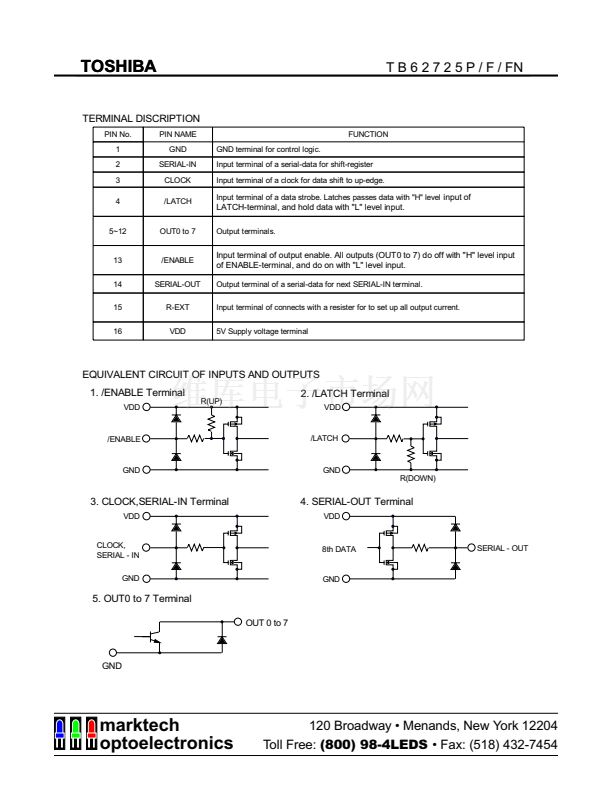

Pin layout (TOP VIEW)
GND
SERIAL-IN
CLOCK
/LATCH
OUT0
OUT1
OUT2
OUT3
VDD
R-EXT
SERIAL-OUT
/ENABLE
OUT7
OUT6
OUT5
OUT4
marktech
optoelectronics
120 Broadway 聲 Menands, New York 12204
Toll Free:
(800) 98-4LEDS聲
Fax: (518) 432-7454
