TA78DL06AS Datasheet

  • TA78DL06AS

  • Three-Terminal Low Dropout Voltage Regulator

  • 9頁

  • TOSHIBA

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

TA78DL05,06,08,09,10,12,15AS
TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic
TA78DL05AS,TA78DL06AS,TA78DL08AS,TA78DL09AS,
TA78DL10AS,TA78DL12AS,TA78DL15AS
5 V, 6 V, 8 V, 9 V, 10 V, 12 V, 15 V
Three-Terminal Low Dropout Voltage Regulator
The TA78DL脳脳AS series consists of positive fixed output voltage
regulator IC capable of sourcing current up to 250 mA.
Due to the features of low dropout voltage and low standby
current, these devices are useful for battery powered equipment.
This series includes current limiting, thermal shutdown,
overvoltage protection, input fault protection and excessive
transient protection circuits internally.
Features
l
Low standby current of 500 碌A typical.
l
Maximum output current up to 250 mA.
l
Low dropout voltage of less than 0.6 V (@ I
OUT
= 0.2 A).
l
Multi-protection:
Reverse connection of power supply, 60 V load dump, thermal shut down and current limiting.
l
Metal fin (tab) is fully covered with mold resin. (TO-220 NIS package)

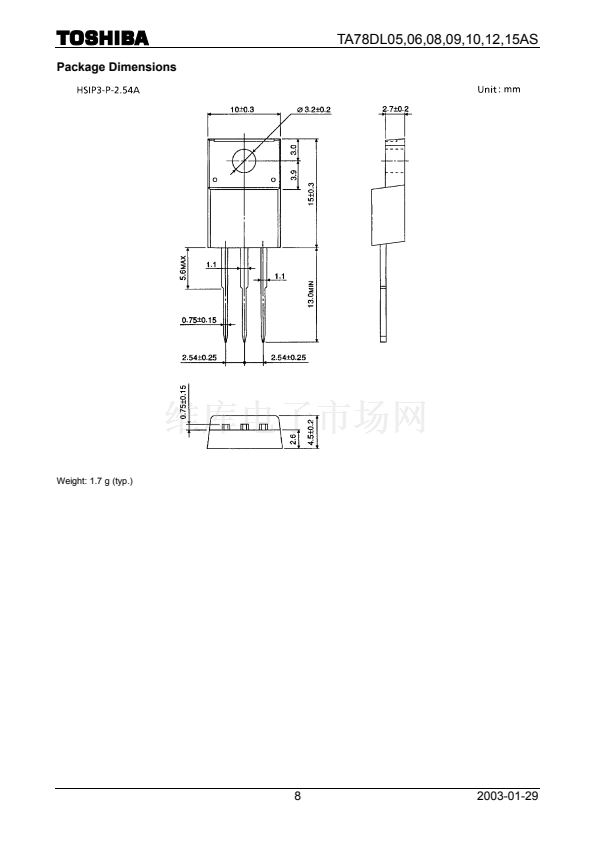

Weight: 1.7 g (typ.)
Pin Assignment
Marking side
1
IN
3
GND
2
OUT
Block Diagram
1
2003-01-29
