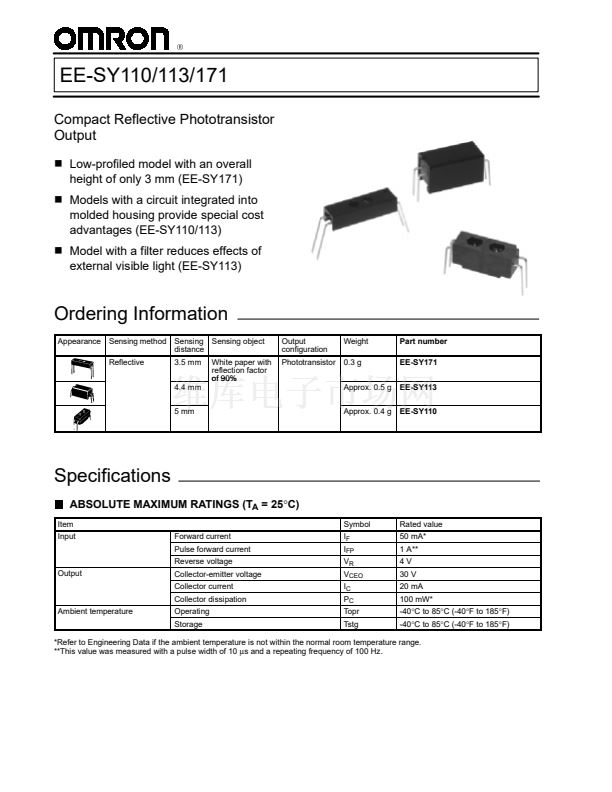

EE-SY110/113/171

Compact Reflective Phototransistor

Output

Low-profiled model with an overall

height of only 3 mm (EE-SY171)

Models with a circuit integrated into

molded housing provide special cost

advantages (EE-SY110/113)

Model with a filter reduces effects of

external visible light (EE-SY113)

Ordering Information

Appearance Sensing method Sensing Sensing object

distance

Reflective

3.5 mm

4.4 mm

5 mm

White paper with

reflection factor

of 90%

Output

configuration

Weight

Part number

EE-SY171

EE-SY113

EE-SY110

Phototransistor 0.3 g

Approx. 0.5 g

Approx. 0.4 g

Specifications

ABSOLUTE MAXIMUM RATINGS (T

A

= 25擄C)

Item

Input

Forward current

Pulse forward current

Reverse voltage

Output

Collector-emitter voltage

Collector current

Collector dissipation

Ambient temperature

Operating

Storage

Symbol

I

F

I

FP

V

R

V

CEO

I

C

P

C

Topr

Tstg

Rated value

50 mA*

1 A**

4V

30 V

20 mA

100 mW*

-40擄C to 85擄C (-40擄F to 185擄F)

-40擄C to 85擄C (-40擄F to 185擄F)

*Refer to Engineering Data if the ambient temperature is not within the normal room temperature range.

**This value was measured with a pulse width of 10

碌s

and a repeating frequency of 100 Hz.

next

SY171相關型號PDF文件下載

• 型號
  版本
  描述
  廠商
  下載
• SY171
  英文版
  Compact Reflective Phototransistor Output
  OMRON
  SY171
• SY171
  英文版
  Compact Reflective Phototransistor Output
  OMRON [Omr...
  SY171
