Ordering number :EN2617B
SVC342
Diffused Junction Type Sillicon Diode
Varactor Diode
for AM Receiver Electronic Tuning Use
Features
路 Twin type varactor diode for low-voltage AM
electronic tuning use.
路 High capacitance ratio.
路 Excellent linearity of C-V characteristic.
路 High Q.
Package Dimensions
unit:mm
1074B
[SVC342]
JEDEC:TO-92
EIAJ:SC-43
SANYO:NP
1,3:Anode
2:Cathode
Specifications
Absolute Maximum Ratings
at Ta = 25藲C
Parameter
Reverse Voltage
Junction Temperature
Storage Temperature
Symbol
VR
Tj
Tstg
Conditions
Ratings
16
100
鈥?5 to +100
Unit
V
藲C
藲C

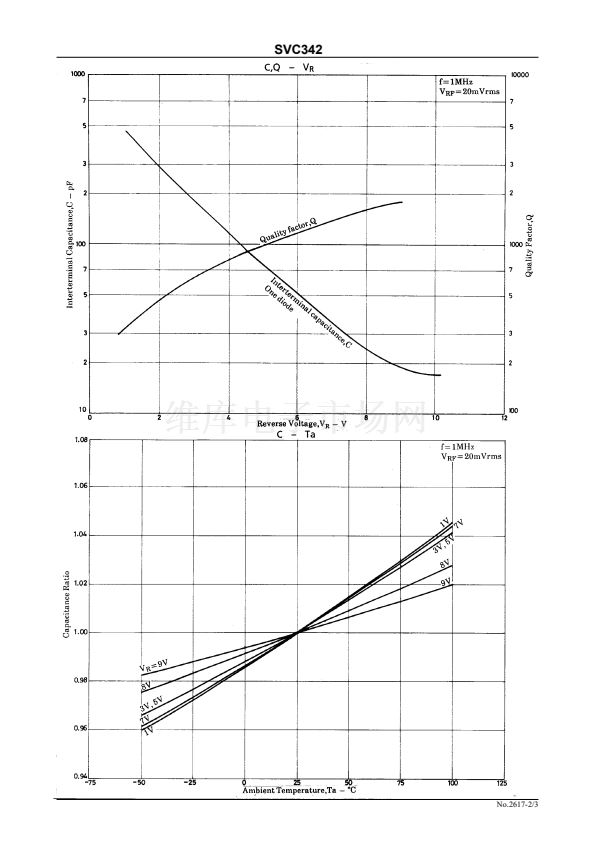

Electrical Characteristics
at Ta = 25藲C
Parameter
Breakdown Voltage
Reverse Current
Interterminal Capacitance*
Symbol
V(BR) R
IR
C1V
C6V
C9V
Quality Factor
Capacitance Ratio
Matching Tolerance
Q
CR
鈭咰
m
IR=10碌A(chǔ)
VR=9V
VR=1V, f=1MHz
VR=6V, f=1MHz
VR=9V, f=1MHz
VR=1V, f=1MHz
C1V/C9V
(Cmax鈥揅min)/Cmin,
(Between D1 to D2) VR=1V to 9V
423.0
46.0
17.5
200
19.5
0.02
Conditions
Ratings
min
16
100
503.0
61.0
23.5
typ
max
Unit
V
nA
pF
pF
pF
Note)*:The value of interterminal capacitance represent the average of measurements for tow elements.
Note)*:The SVC342 is classified by C1V as follows:
Electrical Connection
Rank
K
L
M
C1V(pF)
423.0 to 455.0
445.0 to 478.0
468.0 to 503.0
1,3:Anode
2:Cathode
