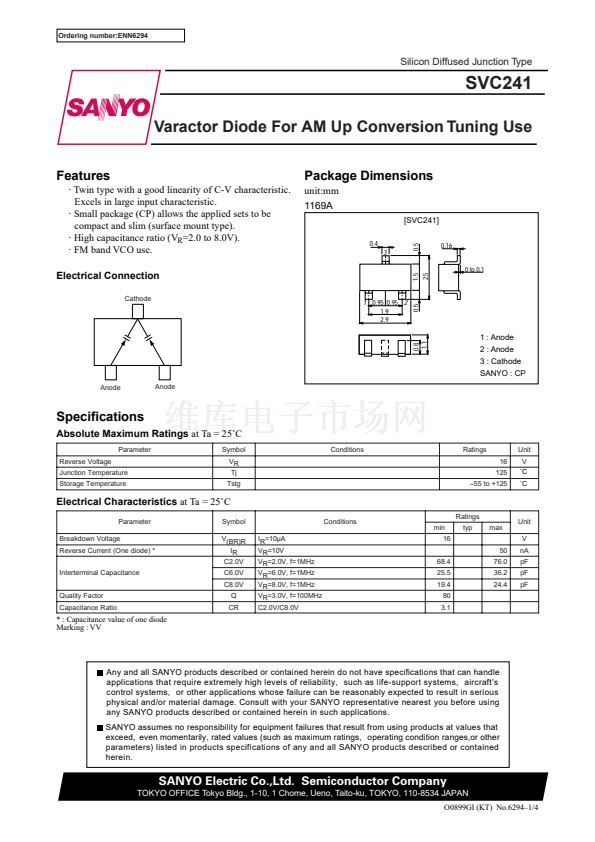

Ordering number:ENN6294
Silicon Diffused Junction Type
SVC241
Varactor Diode For AM Up Conversion Tuning Use
Features
路 Twin type with a good linearity of C-V characteristic.
Excels in large input characteristic.
路 Small package (CP) allows the applied sets to be
compact and slim (surface mount type).
路 High capacitance ratio (V
R
=2.0 to 8.0V).
路 FM band VCO use.
Electrical Connection
Cathode
1
0.95 0.95
2
1.9
2.9
Package Dimensions
unit:mm
1169A
[SVC241]
0.5
0.4
3
0.16
0 to 0.1
0.5
1.5
2.5
0.8
1.1
1 : Anode
2 : Anode
3 : Cathode
SANYO : CP
Anode
Anode
Specifications
Absolute Maximum Ratings
at Ta = 25藲C
Parameter
Reverse Voltage
Junction Temperature
Storage Temperature
Symbol
VR
Tj
Tstg
Conditions
Ratings
16
125
鈥?5 to +125
Unit
V
藲C
藲C
Electrical Characteristics
at Ta = 25藲C
Parameter
Breakdown Voltage
Reverse Current (One diode) *
Interterminal Capacitance
Quality Factor
Capacitance Ratio
Symbol
V(BR)R
IR
C2.0V
C6.0V
C8.0V
Q
CR
IR=10碌A(chǔ)
VR=10V
VR=2.0V, f=1MHz
VR=6.0V, f=1MHz
VR=8.0V, f=1MHz
VR=3.0V, f=100MHz
C2.0V/C8.0V
68.4
25.5
19.4
80
3.1
Conditions
Ratings
min
16
50
76.0
36.2
24.4
typ
max
Unit
V
nA
pF
pF
pF
* : Capacitance value of one diode
Marking : VV
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft鈥檚
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges,or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
O0899GI (KT) No.6294鈥?/4
