EFFICIENT AND RELIABLE MOUNTING
THROUGH CLIP
鹵
30V GATE TO SOURCE VOLTAGE RATING
REPETITIVE AVALANCHE TESTED
LOW INTRINSIC CAPACITANCE
100% AVALANCHE TESTED
GATE CHARGE MINIMIZED
REDUCED THRESHOLD VOLTAGE SPREAD
TM
1
2
3

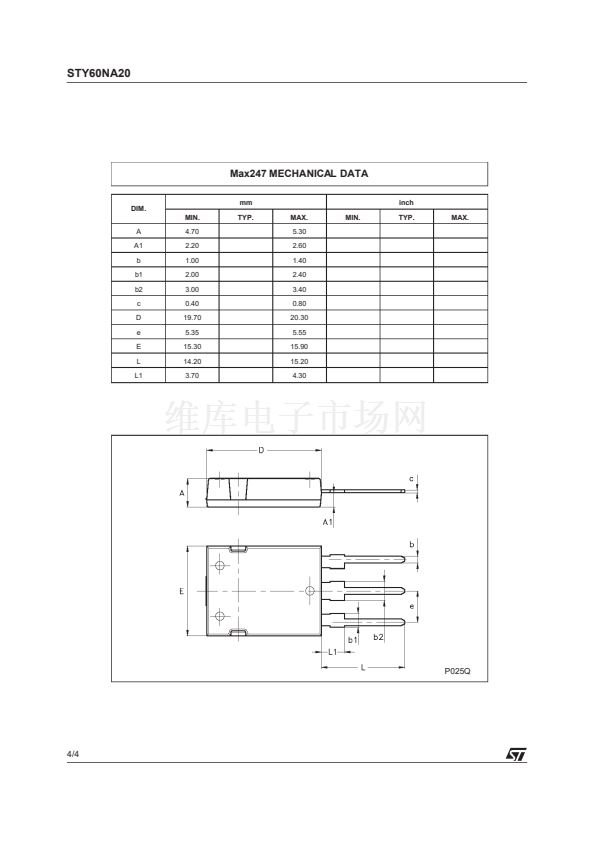

Max247
TM
DESCRIPTION
T he Max247
package is a new high volume
power package exibiting the same footprint as the
industr y standard T O-247, but designed to
accomodate much larger silicon chips, normally
supplied in bigger packages such as T O-264. The
increased die capacity makes the device ideal to
reduce component count in multiple paralleled
designs and save board space with respect to
larger packages.
INTERNAL SCHEMATIC DIAGRAM
APPLICATIONS
s
HIGH CURRENT, HIGH SPEED SWITCHING
s
SWITCH MODE POWER SUPPLIES (SMPS)
s
DC-AC CONVERTERS FOR WELDING
EQUIPMENT AND UNINTERRUPTIBLE
POWER SUPPLIES (UPS)
ABSOLUTE MAXIMUM RATINGS
Symbol
V
DS
V
DGR
V
GS
I
D
I
D
I
DM
(鈥?
P
t ot
Parameter
Drain-source Voltage (V
GS
= 0)
Drain- gate Voltage (R
GS
= 20 k鈩?
Gate-source Voltage
Drain Current (continuous) at T
c
= 25
o
C
Drain Current (continuous) at T
c
= 100
o
C
Drain Current (pulsed)
Total Dissipation at T
c
= 25 C
Derating Factor
T
stg
T
j
St orage Temperature
Max. Operating Junction T emperature
o
Value
200
200
鹵
30
60
40
240
300
2.4
-65 to 150
150
Uni t
V
V
V
A
A
A
W
W/ C
o
o
o
C
C
(鈥? Pulse width limited by safe operating area
August 1998
1/4
