STV9432TA Datasheet

  • STV9432TA

  • 100MHz OSD FOR MONITOR INCLUDING BEAM CURRENTS & VIDEO TIMIN...

  • 24頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

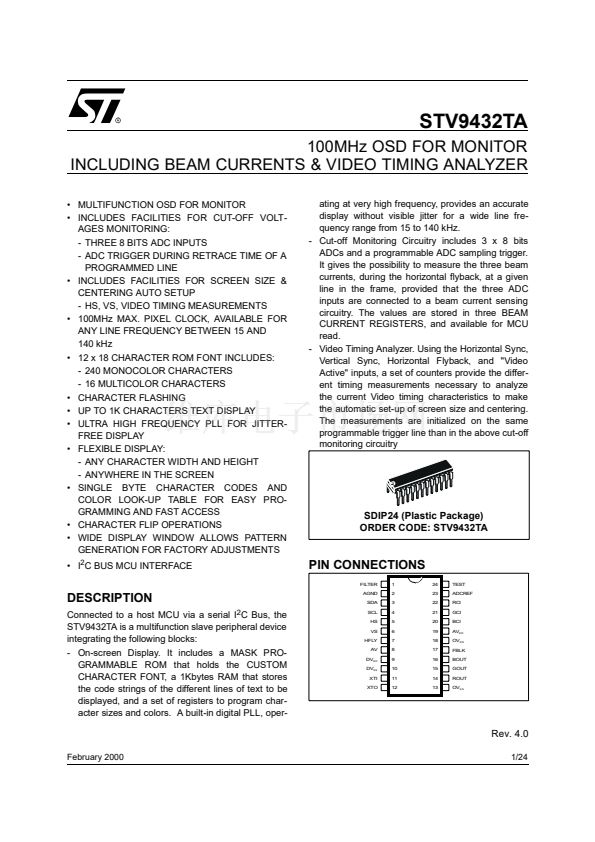

STV9432TA
100MHz OSD FOR MONITOR
INCLUDING BEAM CURRENTS & VIDEO TIMING ANALYZER
鈥?MULTIFUNCTION OSD FOR MONITOR
鈥?INCLUDES FACILITIES FOR CUT-OFF VOLT-
AGES MONITORING:
- THREE 8 BITS ADC INPUTS
- ADC TRIGGER DURING RETRACE TIME OF A
PROGRAMMED LINE
鈥?INCLUDES FACILITIES FOR SCREEN SIZE &
CENTERING AUTO SETUP
- HS, VS, VIDEO TIMING MEASUREMENTS
鈥?100MHz MAX. PIXEL CLOCK, AVAILABLE FOR
ANY LINE FREQUENCY BETWEEN 15 AND
140 kHz
鈥?12 x 18 CHARACTER ROM FONT INCLUDES:
- 240 MONOCOLOR CHARACTERS
- 16 MULTICOLOR CHARACTERS
鈥?CHARACTER FLASHING
鈥?UP TO 1K CHARACTERS TEXT DISPLAY
鈥?ULTRA HIGH FREQUENCY PLL FOR JITTER-
FREE DISPLAY
鈥?FLEXIBLE DISPLAY:
- ANY CHARACTER WIDTH AND HEIGHT
- ANYWHERE IN THE SCREEN
鈥?SINGLE BYTE CHARACTER CODES AND
COLOR LOOK-UP TABLE FOR EASY PRO-
GRAMMING AND FAST ACCESS
鈥?CHARACTER FLIP OPERATIONS
鈥?WIDE DISPLAY WINDOW ALLOWS PATTERN
GENERATION FOR FACTORY ADJUSTMENTS
鈥?I
2
C BUS MCU INTERFACE
ating at very high frequency, provides an accurate
display without visible jitter for a wide line fre-
quency range from 15 to 140 kHz.
- Cut-off Monitoring Circuitry includes 3 x 8 bits
ADCs and a programmable ADC sampling trigger.
It gives the possibility to measure the three beam
currents, during the horizontal flyback, at a given
line in the frame, provided that the three ADC
inputs are connected to a beam current sensing
circuitry. The values are stored in three BEAM
CURRENT REGISTERS, and available for MCU
read.

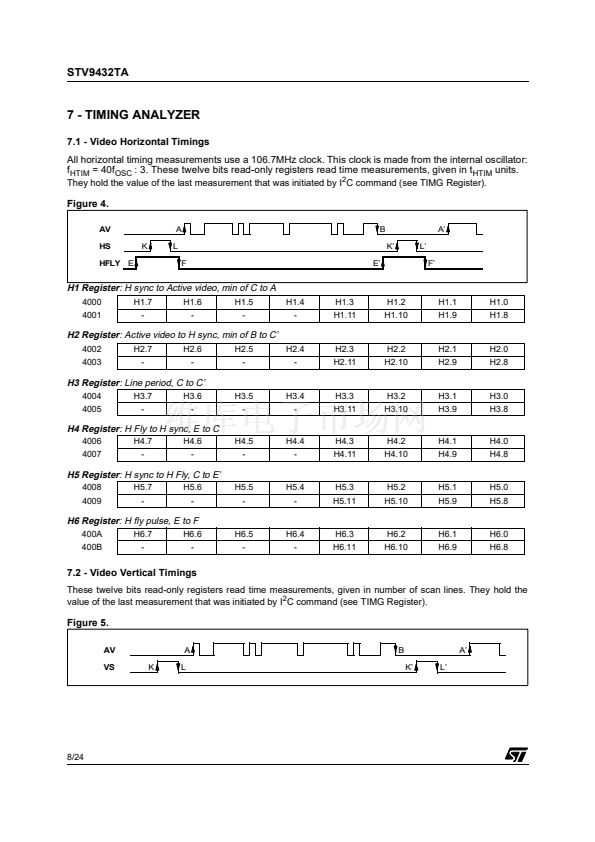

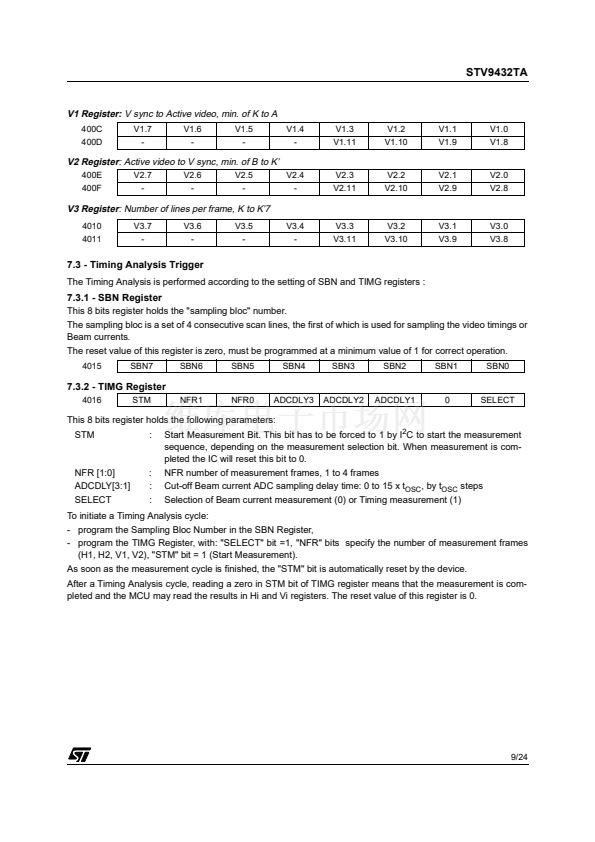

- Video Timing Analyzer. Using the Horizontal Sync,
Vertical Sync, Horizontal Flyback, and "Video
Active" inputs, a set of counters provide the differ-
ent timing measurements necessary to analyze
the current Video timing characteristics to make
the automatic set-up of screen size and centering.
The measurements are initialized on the same
programmable trigger line than in the above cut-off
monitoring circuitry
SDIP24 (Plastic Package)
ORDER CODE: STV9432TA

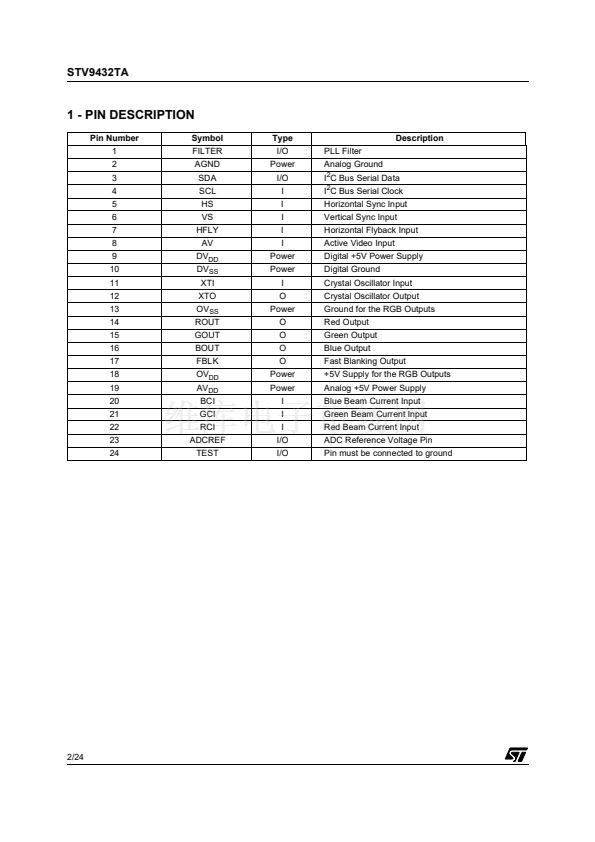

PIN CONNECTIONS
FILTER
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
19
18
17
16
15
14
13
TEST
ADCREF
RCI
GCI
BCI
AV
DD
OV
DD
FBLK
BOUT
GOUT
ROUT
OV
S S
AGND
SDA
SCL
HS
VS
HFLY
AV
DV
DD
DV
S S
XTI
XTO

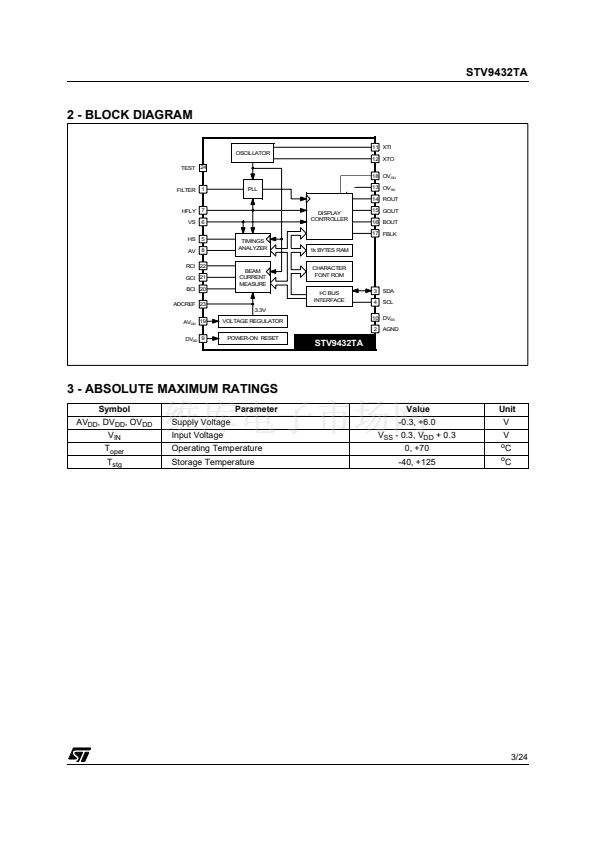

DESCRIPTION

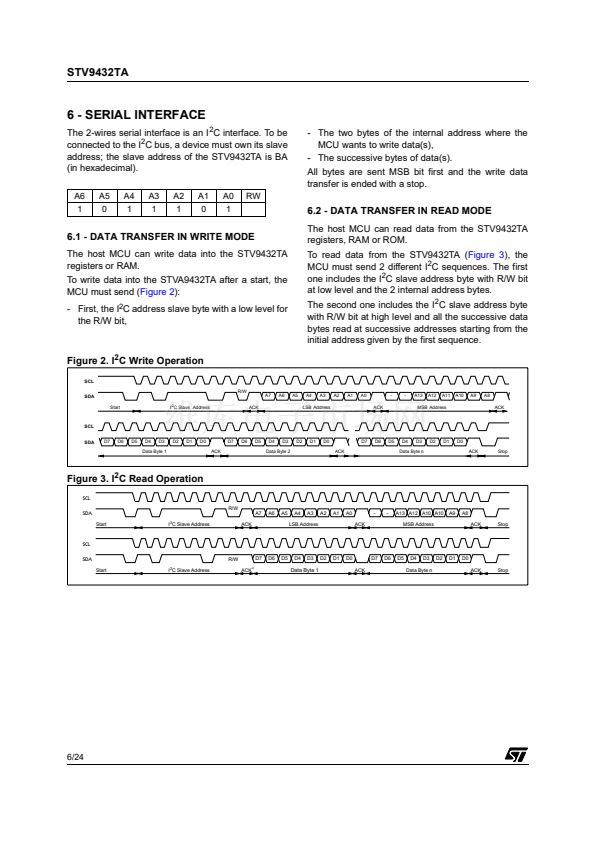

Connected to a host MCU via a serial I
2
C Bus, the
STV9432TA is a multifunction slave peripheral device
integrating the following blocks:
- On-screen Display. It includes a MASK PRO-
GRAMMABLE ROM that holds the CUSTOM
CHARACTER FONT, a 1Kbytes RAM that stores
the code strings of the different lines of text to be
displayed, and a set of registers to program char-
acter sizes and colors. A built-in digital PLL, oper-
Rev. 4.0
February 2000
This is preliminary information on a new product in development or undergoing evaluation. Details are subject to change without notice.
1/24
1
