STV6432 Datasheet

  • STV6432

  • Audio/Video Output Buffers for STB and DVD Devices

  • 15頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬

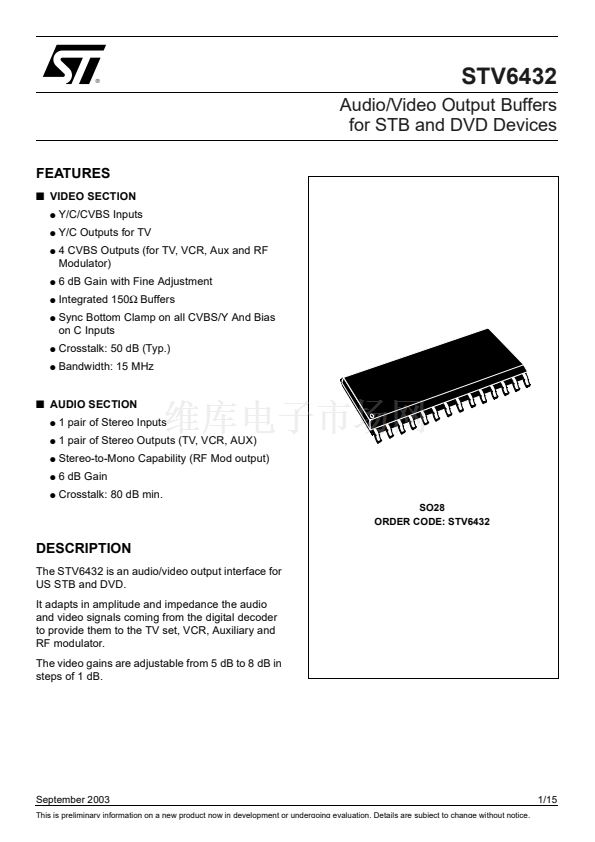

STV6432
Audio/Video Output Buffers
for STB and DVD Devices
FEATURES
s
VIDEO SECTION
q
q
q
Y/C/CVBS Inputs
Y/C Outputs for TV
4 CVBS Outputs (for TV, VCR, Aux and RF
Modulator)
6 dB Gain with Fine Adjustment
Integrated 150鈩?Buffers
Sync Bottom Clamp on all CVBS/Y And Bias
on C Inputs
Crosstalk: 50 dB (Typ.)
Bandwidth: 15 MHz
q
q
q
q
q
s

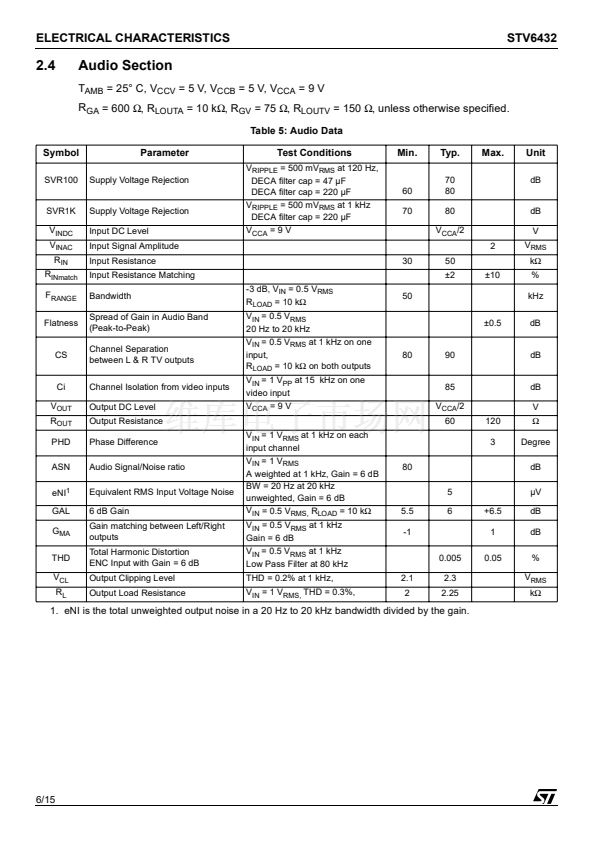

AUDIO SECTION
q
q
q
q
q
1 pair of Stereo Inputs
1 pair of Stereo Outputs (TV, VCR, AUX)
Stereo-to-Mono Capability (RF Mod output)
6 dB Gain
Crosstalk: 80 dB min.
SO28
ORDER CODE: STV6432
DESCRIPTION
The STV6432 is an audio/video output interface for
US STB and DVD.
It adapts in amplitude and impedance the audio
and video signals coming from the digital decoder
to provide them to the TV set, VCR, Auxiliary and
RF modulator.
The video gains are adjustable from 5 dB to 8 dB in
steps of 1 dB.
September 2003
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change without notice.
1/15
