STUDIOWORKS995U(CB995BU) Datasheet

  • STUDIOWORKS995U(CB995BU)

  • Monitor_ICs:VPS13 M62501P UPC1884ACT PQ6RD083

  • 45頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

SPECIFICATIONS
1. PICTURE TUBE
Size
DefIection Angle
Neck Diameter
Transmission
Dot Pitch
Face Treatment
: 19 inch (Flat Square Tube)
: 90擄
: 29.1mm
: 46%
: 0.26mm
: AR-ASC (Anti-Reflection and
Anti-Static Coating)
3. POWER SUPPLY
3-1. Power Range
AC 90~264V (Free Voltage), 50/60Hz, 2.0A Max.
3-2. Power Consumption
MODE
NORMAL (ON)
STAND-BY
SUSPEND
OFF
H/V SYNC
ON/ON
OFF/ON
ON/OFF
OFF/OFF
POWER CONSUMPTION
LED COLOR
GREEN
less than 140W (150W)
less than 8W (30W)
ORANGE
2. SIGNAL
2-1. Horizontal & Vertical Sync
1) Input Voltage Level : Low=0~1.2V, High=2.5~5.5V
2) Sync Polarity
: Positive or Negative
3) Composite Sync Signal
Vertical Sync Width :1H~10H.
Serration Pulse
: NON, 0.5H, 1H, EX-OR
Equalize Pulse
: Max 5H
* REMARK
: H=Horizontal Period
4) SOG (Sync On Green)
2-2. Video Input Signal
1) Voltage Level
a) Color 0, 0
b) Color 7, 0
c) Color 15, 0
2) Input Impedance
3) Video Color
4) Signal Format
less than 8W (30W)
less than 3W (20W)
*(
) : USB
ORANGE
4. DISPLAY AREA
4-1. Active Video Area : 365.8 x 274.3mm(13.78" x 10.31")
(Available for Full Screen)
4-2. Display Color
: Full Colors
4-3. Display Resolution : 1600 x 1200 / 80Hz
(Non-Interlace)
4-4. Video Bandwidth : 216MHz
5. ENVIRONMENT
5-1. Operating Temperature: 15擄C ~ 30擄C (Ambient)
5-2. Relative Humidity
: 8%~ 80%
(Non-condensing)
5-3. Altitude
: 5,000m
6. DIMENSIONS (with TILT/SWIVEL)
Width
: 448.0mm (17.64 inch)
Depth
: 476.0mm (18.74 inch)
Height
: 468.5mm (18.44 inch)
7. WEIGHT (with TILT/SWIVEL)
Net Weight
: 23.0kg (50.71 lbs.)
Gross Weight
: 28.0kg (61.74 lbs.)
: 0 ~ 0.7 Vp-p
: 0 Vp-p
: 0.467 Vp-p
: 0.7 Vp-p
: 75
鈩?/div>
: R, G, B Analog

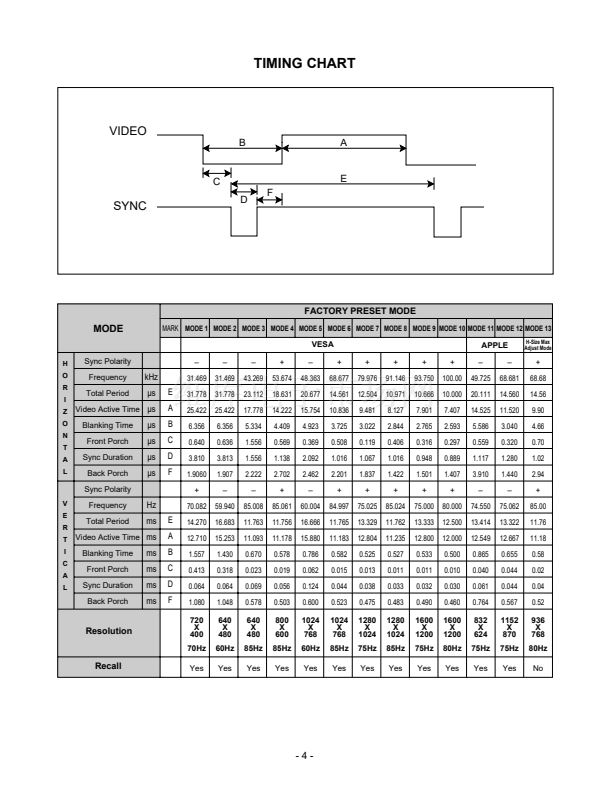

: Refer to the Timing Chart
2-3. Signal Connector
15-pin D-Sub Connector
2-4. Scanning Frequency
Horizontal
Vertical
: 30 ~ 100kHz
: 50 ~ 200Hz
-2-
