鈥滲鈥? ULTRA-FAST HIGH VOLTAGE DIODE
MAIN PRODUCTS CHARACTERISTICS
I
F(AV)
V
RRM
t
rr
(typ)
V
F
(max)
FEATURES AND BENEFITS
SPECIFIC TO THE FOLLOWING OPERA-
TIONS: Snubbing or clamping, demagnetization
and rectification.
ULTRA-FAST, SOFT AND NOISE-FREE
RECOVERY.
VERY LOW OVERALL POWER LOSSES AND
PARTICULARY LOW FORWARD VOLTAGE.
DESIGNED FOR HIGH PULSED CURRENT
OPERATIONS.
CECC APPROVED.
DESCRIPTION
The TURBOSWITCH is a very high performance
series of ultra-fast high voltage power diodes from
600V to 1200V.

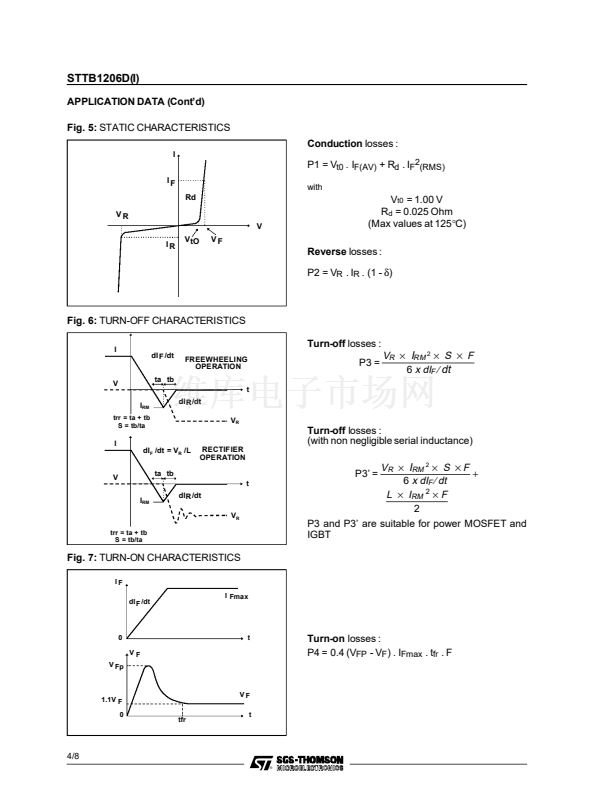

TURBOSWITCH, B family, drastically cuts losses
in all high voltage operations which require
extremely fast, soft and noise-free power diodes.
They are particularly suitable in the primary circuit

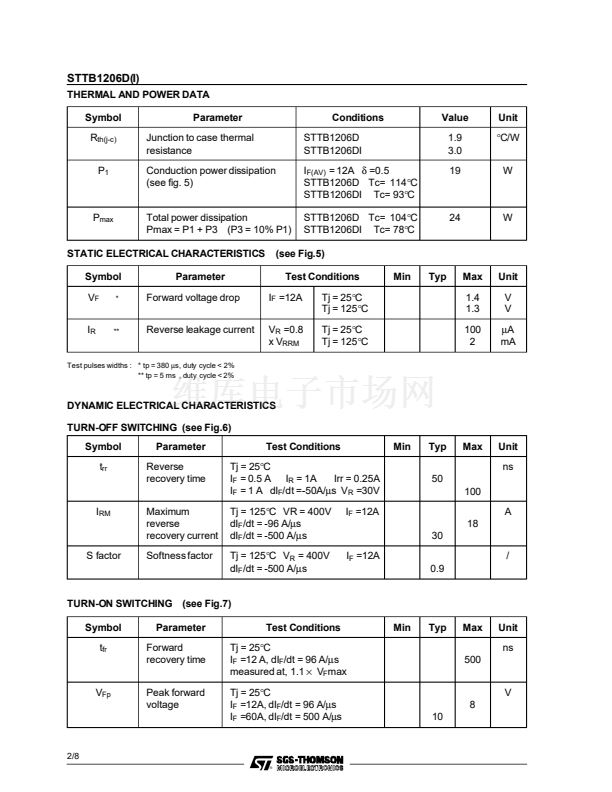

ABSOLUTE MAXIMUM RATINGS
Symbol
V
RRM
V
RSM
I
F(RMS)
I
FRM
T
j
T
stg
Parameter
Repetitive peak reverse voltage
Non repetitive peak reverse voltage
RMS forward current
Repetitive peak forward current
(tp = 5
碌s,
f = 1kHz)
Max operating junction temperature
Storage temperature
STTB1206D
STTB1206DI
STTB1206D
STTB1206DI
Value
600
600
30
20
420
280
-65 to 150
-65 to 150
Unit
V
V
A
A
擄C
擄C
of an SMPS as snubber, clamping or
demagnetizing diodes, and also in most power
converters as high performance rectifier diodes.
Packaged in TO220AC and in isolated TO220AC,
these 600V devices are particularly intended for
use on 240V domestic mains.
A
K
K
A
12A
600V
50ns
1.3V
A
K

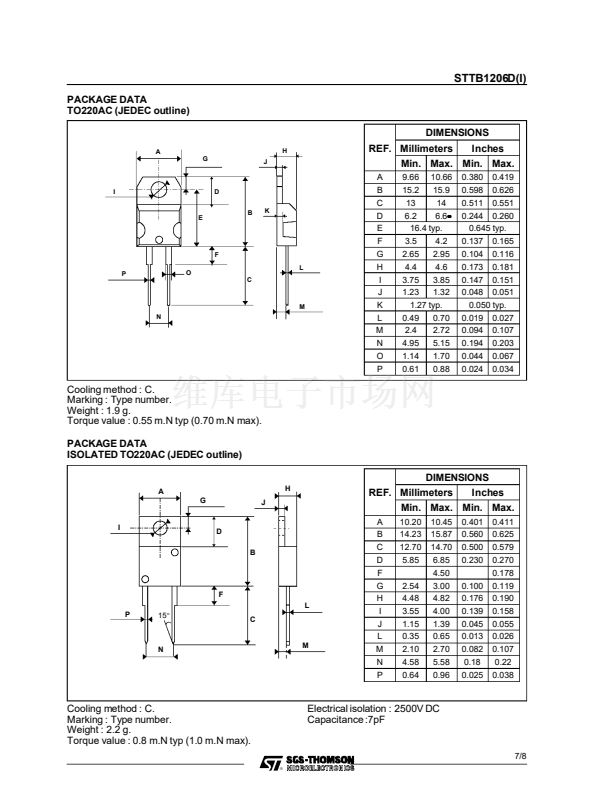

TO220AC
(Plastic)
STTB1206D
Isolated
TO220AC
(Plastic)
STTB1206DI
TM : TURBOSWITCH is a trademark of
SGS-THOMSON MICROELECTRONICS.
May 1995 - Ed : 2B
1/8
