STPS30L60CG Datasheet

  • STPS30L60CG

  • POWER SCHOTTKY RECTIFIER

  • 6頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬

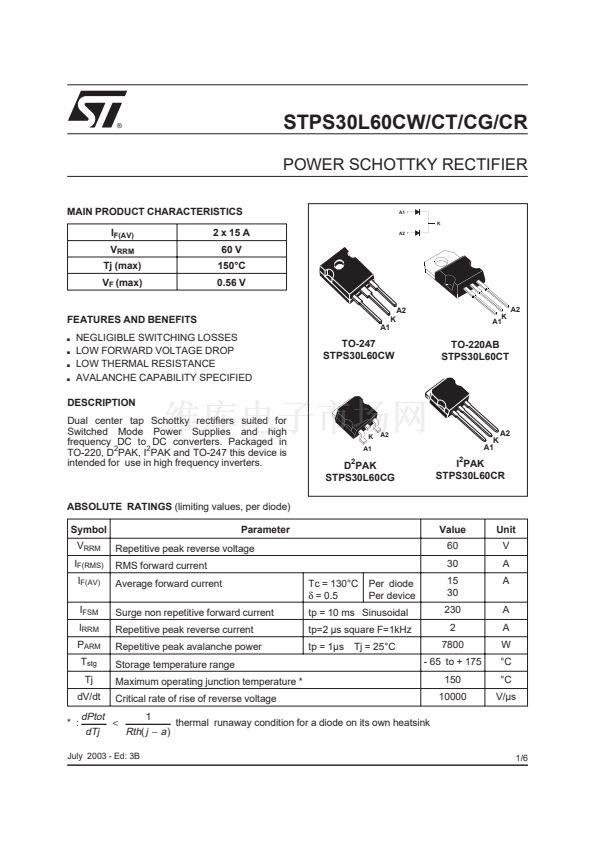

STPS30L60CW/CT/CG/CR
POWER SCHOTTKY RECTIFIER
MAIN PRODUCT CHARACTERISTICS
I
F(AV)
V
RRM
Tj (max)
V
F
(max)
2 x 15 A
60 V
150擄C
0.56 V
A1
K
A2
A2
FEATURES AND BENEFITS
A1
s
s
K
K
A1
A2
s
s
NEGLIGIBLE SWITCHING LOSSES
LOW FORWARD VOLTAGE DROP
LOW THERMAL RESISTANCE
AVALANCHE CAPABILITY SPECIFIED
TO-247
STPS30L60CW
TO-220AB
STPS30L60CT
DESCRIPTION
Dual center tap Schottky rectifiers suited for
Switched Mode Power Supplies and high
frequency DC to DC converters. Packaged in
TO-220, D
2
PAK, I
2
PAK and TO-247 this device is
intended for use in high frequency inverters.
A2
K
A1
K
A1
A2
D
2
PAK
STPS30L60CG
I
2
PAK
STPS30L60CR
ABSOLUTE RATINGS
(limiting values, per diode)
Symbol
V
RRM
I
F(RMS)
I
F(AV)
I
FSM
I
RRM
P
ARM
T
stg
Tj
dV/dt
* :
Parameter
Repetitive peak reverse voltage
RMS forward current
Average forward current
Surge non repetitive forward current
Repetitive peak reverse current
Repetitive peak avalanche power
Storage temperature range
Maximum operating junction temperature *
Critical rate of rise of reverse voltage
Tc = 130擄C
未
= 0.5
Per diode
Per device
Value
60
30
15
30
230
2
7800
- 65 to + 175
150
10000
Unit
V
A
A
A
A
W
擄C
擄C
V/碌s
tp = 10 ms Sinusoidal
tp=2 碌s square F=1kHz
tp = 1碌s
Tj = 25擄C
dPtot
1
thermal runaway condition for a diode on its own heatsink
<
dTj
Rth
(
j
鈭?/div>
a
)
1/6
July 2003 - Ed: 3B

STPS30L60CG 產品屬性

  • STMicroelectronics

  • 肖特基（二極管與整流器）

  • Schottky Rectifiers

  • 60 V

  • 30 A

  • 230 A

  • Dual Common Cathode

  • 0.75 V

  • 480 uA

  • + 150 C

  • SMD/SMT

  • D2PAK

  • Tube

  • 50
