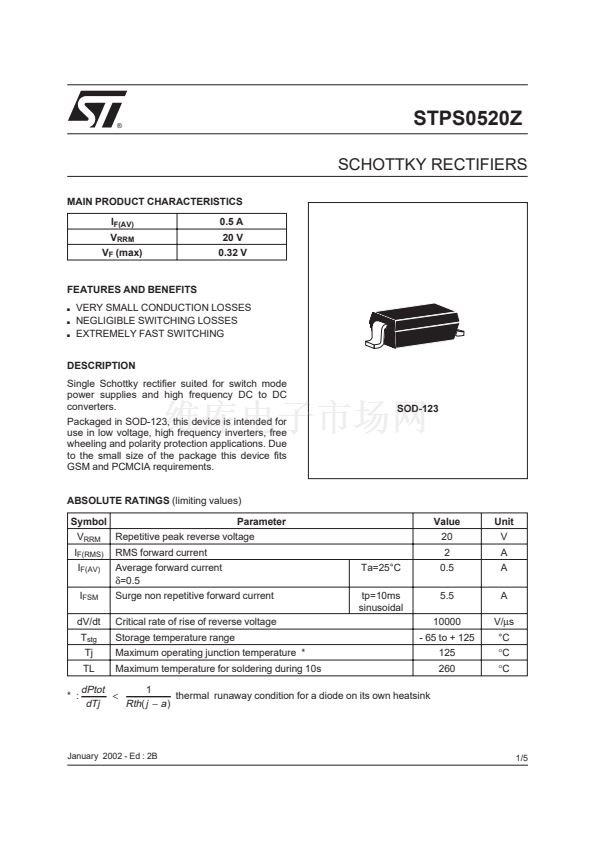

STPS0520Z
SCHOTTKY RECTIFIERS
MAIN PRODUCT CHARACTERISTICS
I
F(AV)
V
RRM
V
F
(max)
0.5 A
20 V
0.32 V
FEATURES AND BENEFITS
s
s
s
VERY SMALL CONDUCTION LOSSES
NEGLIGIBLE SWITCHING LOSSES
EXTREMELY FAST SWITCHING
DESCRIPTION
Single Schottky rectifier suited for switch mode
power supplies and high frequency DC to DC
converters.
Packaged in SOD-123, this device is intended for
use in low voltage, high frequency inverters, free
wheeling and polarity protection applications. Due
to the small size of the package this device fits
GSM and PCMCIA requirements.
SOD-123
ABSOLUTE RATINGS
(limiting values)
Symbol
V
RRM
I
F(RMS)
I
F(AV)
I
FSM
dV/dt
T
stg
Tj
TL
* :
RMS forward current
Average forward current
未=0.5
Surge non repetitive forward current
Critical rate of rise of reverse voltage
Storage temperature range
Maximum operating junction temperature *
Maximum temperature for soldering during 10s
Ta=25擄C
tp=10ms
sinusoidal
Parameter
Repetitive peak reverse voltage
Value
20
2
0.5
5.5
10000
- 65 to + 125
125
260
Unit
V
A
A
A
V/碌s
擄C
擄C
擄C
dPtot
1
thermal runaway condition for a diode on its own heatsink
<
dTj
Rth
(
j
鈭?/div>
a
)
January 2002 - Ed : 2B
1/5
