LITE-ON
SEMICONDUCTOR

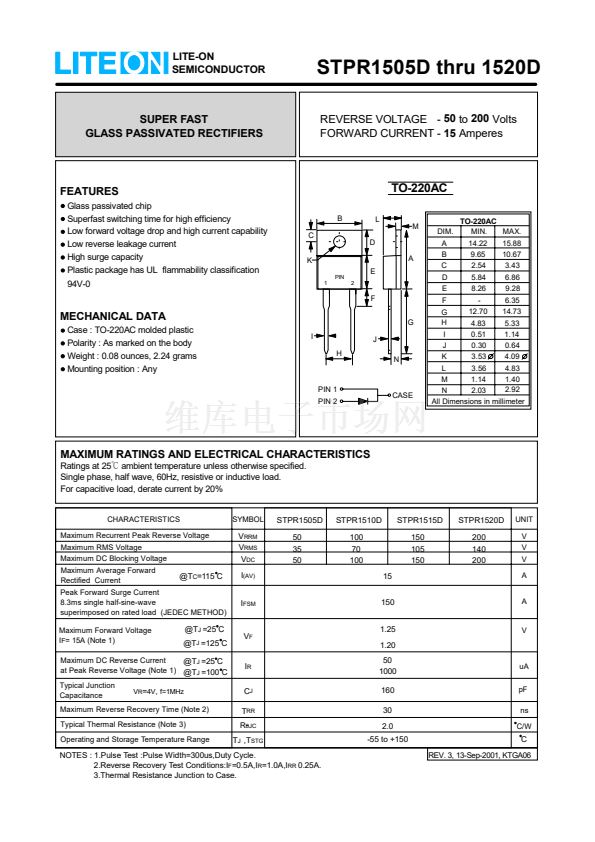

STPR1505D thru 1520D
REVERSE VOLTAGE -
50
to
200
Volts
FORWARD CURRENT -
15
Amperes
SUPER FAST
GLASS PASSIVATED RECTIFIERS
FEATURES
Glass passivated chip
Superfast switching time for high efficiency
Low forward voltage drop and high current capability
Low reverse leakage current
High surge capacity
Plastic package has UL flammability classification
94V-0
B
C
K
PIN
1
2
TO-220AC
L
M
D
A
E
TO-220AC
MIN.
DIM.
MAX.
14.22
15.88
A
10.67
B
9.65
3.43
C
2.54
D
6.86
5.84
9.28
8.26
E
6.35
-
14.73
12.70
G
H
5.33
4.83
0.51
1.14
I
J
0.30
0.64
K
3.53
4.09
L
3.56
4.83
M
1.14
1.40
2.92
N
2.03
All Dimensions in millimeter
F
F
MECHANICAL DATA
Case : TO-220AC molded plastic
Polarity : As marked on the body
Weight : 0.08 ounces, 2.24 grams
Mounting position : Any
I
H
J
N
G
PIN 1
PIN 2
CASE
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
鈩?/div>
ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
CHARACTERISTICS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward
Rectified Current
SYMBOL
STPR1505D
50
35
50
STPR1510D
100
70
100
15
150
1.25
1.20
STPR1515D
150
105
150
STPR1520D
200
140
200
UNIT
V
V
V
A
V
RRM
V
RMS
V
DC
I
(AV)
@T
C
=
115 C
Peak Forward Surge Current
8.3ms single half-sine-wave
superimposed on rated load (JEDEC METHOD)
Maximum Forward Voltage
I
F
= 15A (Note 1)
I
FSM
A
@T
J
=25 C
@T
J
=125 C
V
F
V
Maximum DC Reverse Current
@T
J
=25 C
at Peak Reverse Voltage (Note 1)
@T
J
=100 C
Typical Junction
Capacitance
V
R
=
4V
,
f=1MHz
I
R
C
J
T
RR
R
0JC
50
1000
160
30
2.0
-55 to +150
uA
pF
ns
C/W
Maximum Reverse Recovery Time (Note 2)
Typical Thermal Resistance (Note 3)
Operating and Storage Temperature Range
T
J
,T
STG
C
REV. 3, 13-Sep-2001, KTGA06
NOTES : 1.Pulse Test :Pulse Width=300us,Duty Cycle.
2.Reverse Recovery Test Conditions:I
F
=0.5A,I
R
=1.0A,I
RR
0.25A.
3.Thermal Resistance Junction to Case.
