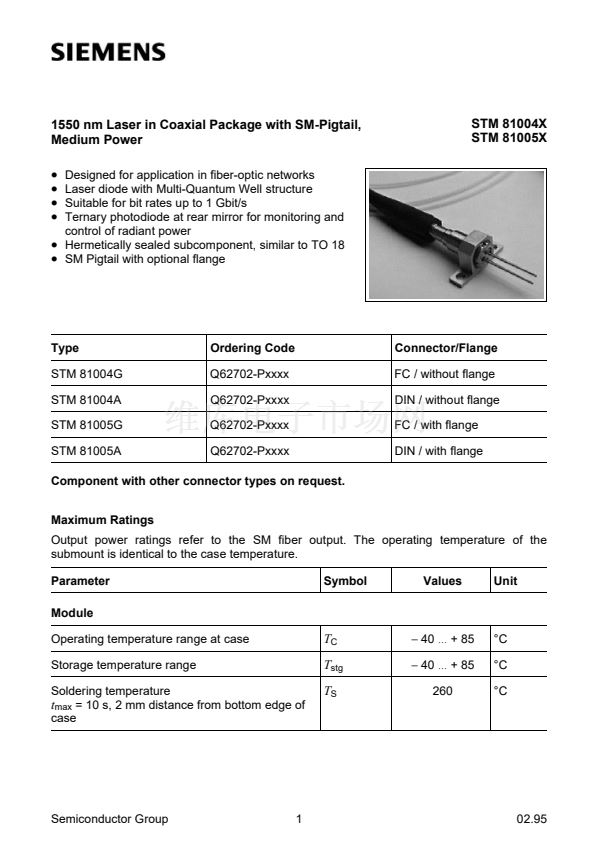

SM Pigtail with optional flange
Type
STM 81004G
STM 81004A
STM 81005G
STM 81005A
Ordering Code
Q62702-Pxxxx
Q62702-Pxxxx
Q62702-Pxxxx
Q62702-Pxxxx
Connector/Flange
FC / without flange
DIN / without flange
FC / with flange
DIN / with flange
Component with other connector types on request.
Maximum Ratings
Output power ratings refer to the SM fiber output. The operating temperature of the
submount is identical to the case temperature.
Parameter
Module
Operating temperature range at case
Storage temperature range
Soldering temperature
t
max
= 10 s, 2 mm distance from bottom edge of
case
Symbol
Values
Unit
T
C
T
stg
T
S
鈭?/div>
40
鈥?/div>
+ 85
鈭?/div>
40
鈥?/div>
+ 85
260
擄C
擄C
擄C
Semiconductor Group
1
02.95
