STLC30R80 Datasheet

IC型號：
STLC30R80
PDF描述：
INTEGRATED RINGING SLIC FOR SHORT LOOP APPLICATIONS
文件大小：
175.15KB
PDF頁數：
13頁
芯片廠家：
STMICROELECTRONICS

閱覽下載糾錯 0

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬

STLC30R80

INTEGRATED RINGING SLIC

FOR SHORT LOOP APPLICATIONS

MONOCHIP SLIC SUITABLE FOR SHORT

LOOP APPLICATIONS

IMPLEMENTES ALL KEY FEATURES OF

THE BORSHT FUNCTION

INTEGRATED RINGING

SOFT BATTERY REVERSAL WITH PRO-

GRAMMABLE TRANSITION TIME

ON HOOK TRANSMISSION

LOW POWER DISSIPATION IN ALL OPER-

ATING MODES

AUTOMATIC DUAL BATTERY OPERATION

INTEGRATED RING TRIP DETECTION

METERING PULSE INJECTION

LOOP START, GROUND START FEATURES

SURFACE MOUNT PACKAGE

-40 TO +85擄C OPERATING RANGE

DESCRIPTION

The STLC30R80 is a SLIC device suitable for

short loop applications. The SLIC provides the

BLOCK DIAGRAM

TQFP44 (10 x 10)

ORDERING NUMBER:

STLC30R80

generation of the ringing signal and the standard

battery feeding with full programmability of the DC

characteristic.

In particular two external resistors allow to set the

limiting current value (up to 50mA) and the value

of the resistive feeding when not in constant cur-

rent region.

CRT RT1 RT2

DET

GDK/AL

CSIN

CSOUT

RES

LOGIC

INTERFACE

DECODER

LINE STATUS

ILT

SUPERVISION

COMMANDS

ILL

LINE

INTERFACE

TIP

RING

AC+

TTXIN

PROCESSOR

REFERENCE

BIAS SWITCHING

PROCESSOR

BGND

VREG

ILTF

RLIM

RTH

ZAC1

ZAC

CAC

IREF

AGND CREV CSVR VBAT BASE

RDC

D99TL431AMOD

November 2001

1/13

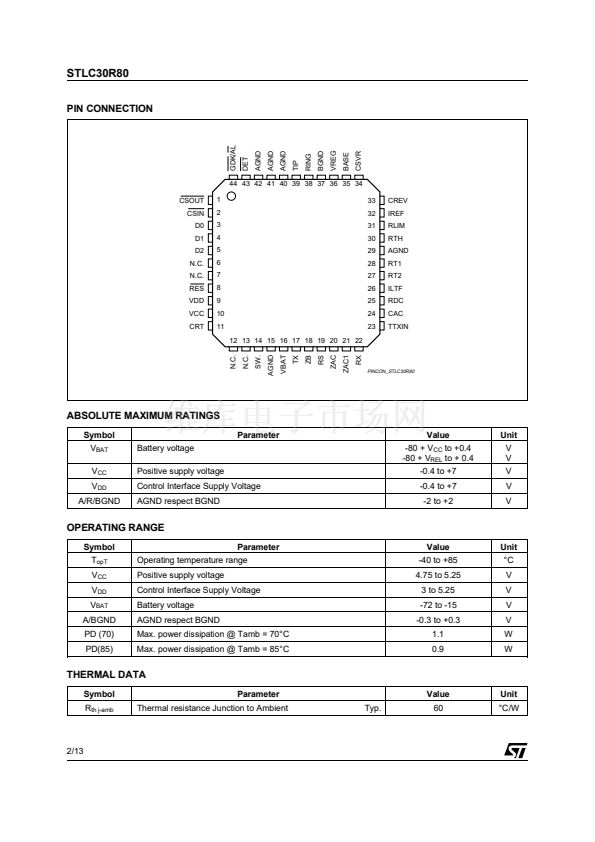

標準包裝
160
類別
集成電路 (IC)
家庭
接口 - 電信
系列
-
功能
用戶線路接口概念（SLIC）
接口
-
電路數
1
電源電壓
4.75 V ~ 5.25 V
電流 - 電源
5mA
功率（瓦特）
1.1W
工作溫度
-40°C ~ 85°C
安裝類型
表面貼裝
封裝/外殼
44-LQFP
供應商設備封裝
44-TQFP
包裝
托盤
包括
BORSCHT 功能，振鈴?fù)禉z測
