STLC2410B Datasheet

  • STLC2410B

  • BLUETOOTH BASEBAND

  • 20頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

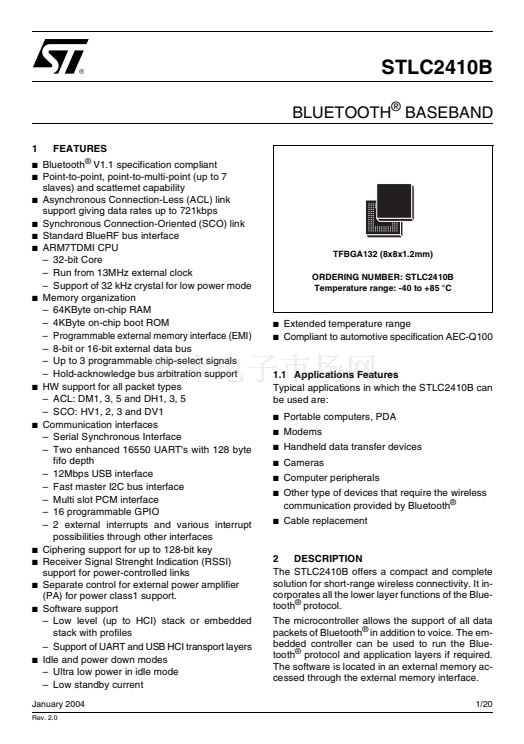

STLC2410B
BLUETOOTH
廬
BASEBAND
1
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
FEATURES
Bluetooth
廬
V1.1 specification compliant
Point-to-point, point-to-multi-point (up to 7
slaves) and scatternet capability
Asynchronous Connection-Less (ACL) link
support giving data rates up to 721kbps
Synchronous Connection-Oriented (SCO) link
Standard BlueRF bus interface
ARM7TDMI CPU
鈥?32-bit Core
鈥?Run from 13MHz external clock
鈥?Support of 32 kHz crystal for low power mode
Memory organization
鈥?64KByte on-chip RAM
鈥?4KByte on-chip boot ROM
鈥?Programmable external memory interface (EMI)
鈥?8-bit or 16-bit external data bus
鈥?Up to 3 programmable chip-select signals
鈥?Hold-acknowledge bus arbitration support
HW support for all packet types
鈥?ACL: DM1, 3, 5 and DH1, 3, 5
鈥?SCO: HV1, 2, 3 and DV1
Communication interfaces

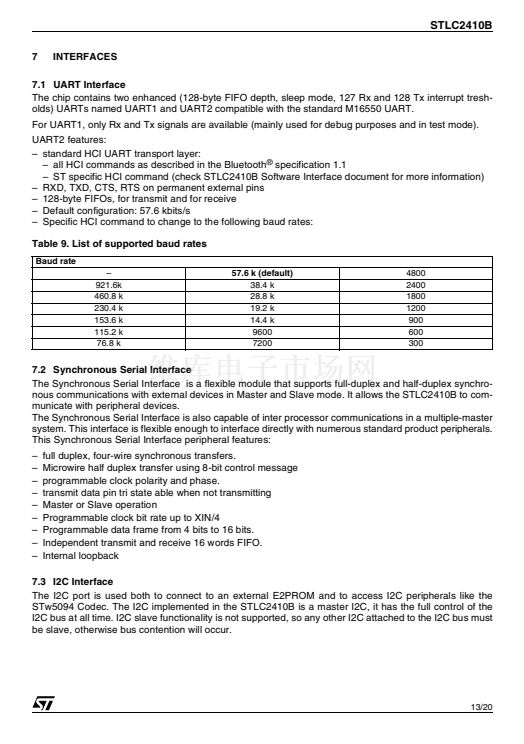

鈥?Serial Synchronous Interface
鈥?Two enhanced 16550 UART's with 128 byte
fifo depth
鈥?12Mbps USB interface

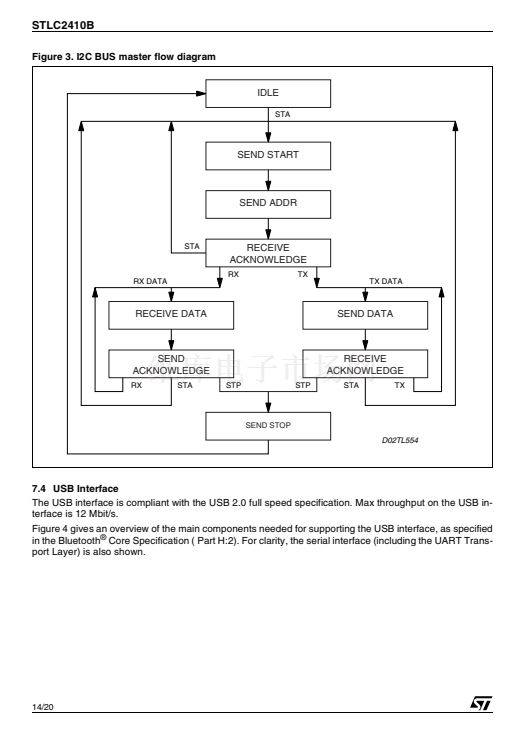

鈥?Fast master I2C bus interface

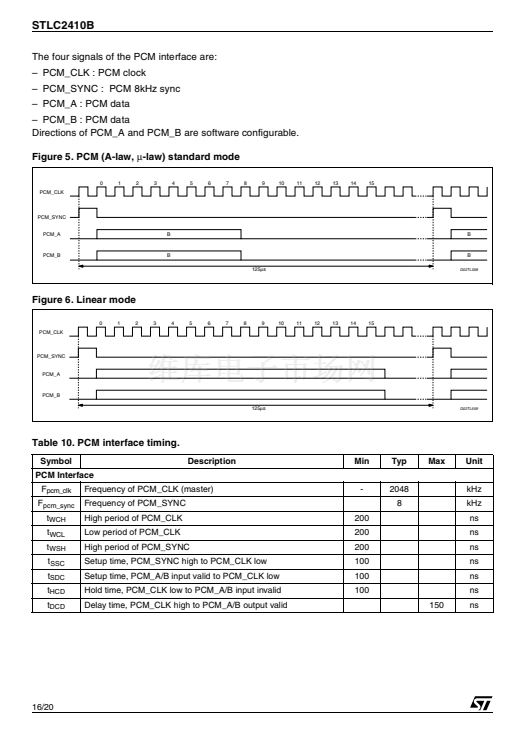

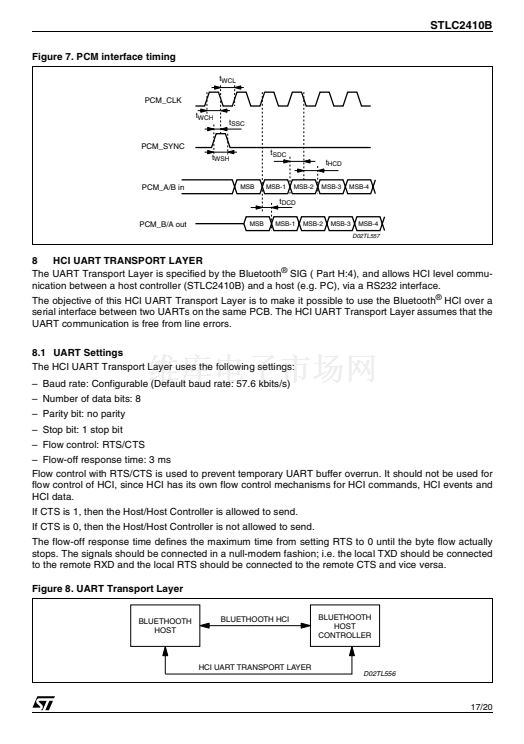

鈥?Multi slot PCM interface
鈥?16 programmable GPIO
鈥?2 external interrupts and various interrupt
possibilities through other interfaces
Ciphering support for up to 128-bit key
Receiver Signal Strenght Indication (RSSI)
support for power-controlled links

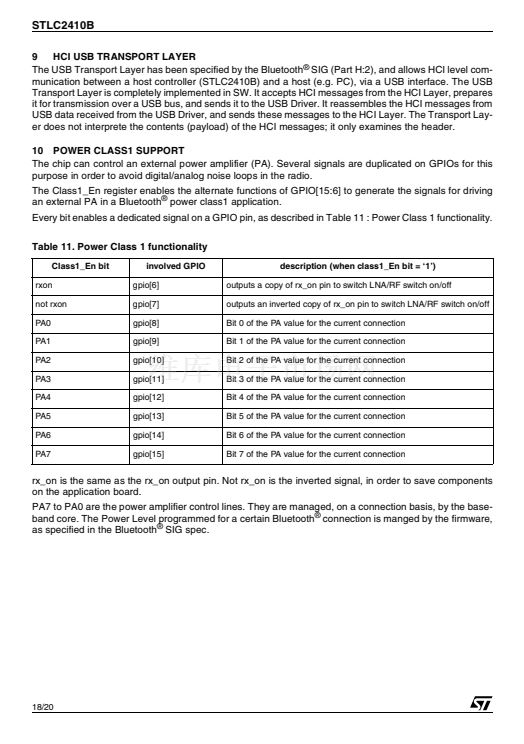

Separate control for external power amplifier
(PA) for power class1 support.
Software support
鈥?Low level (up to HCI) stack or embedded
stack with profiles
鈥?Support of UART and USB HCI transport layers
Idle and power down modes
鈥?Ultra low power in idle mode
鈥?Low standby current

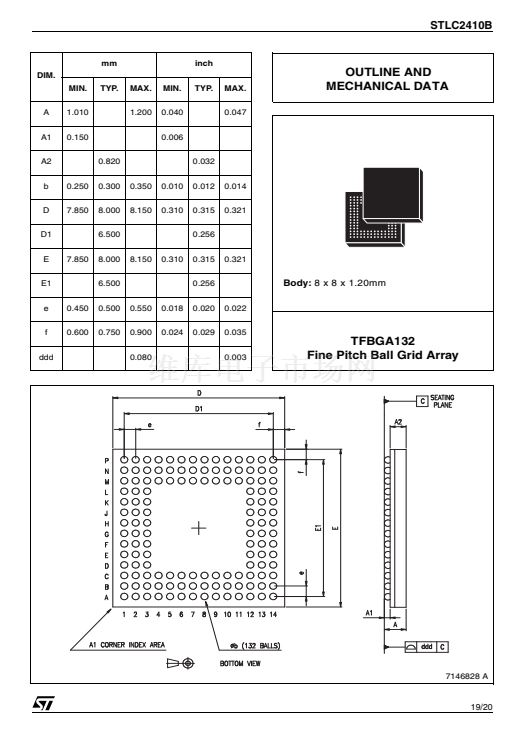

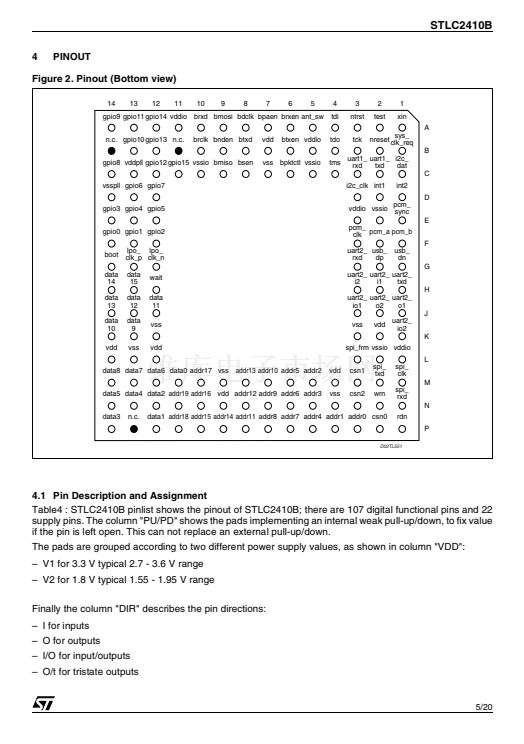

TFBGA132 (8x8x1.2mm)
ORDERING NUMBER: STLC2410B
Temperature range: -40 to +85 擄C
鈻?/div>
鈻?/div>
鈻?/div>
Extended temperature range
Compliant to automotive specification AEC-Q100
鈻?/div>
1.1 Applications Features
Typical applications in which the STLC2410B can
be used are:
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
Portable computers, PDA
Modems
Handheld data transfer devices
Cameras
Computer peripherals
Other type of devices that require the wireless
communication provided by Bluetooth
廬
Cable replacement
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
2
DESCRIPTION
The STLC2410B offers a compact and complete
solution for short-range wireless connectivity. It in-
corporates all the lower layer functions of the Blue-
tooth
廬
protocol.
The microcontroller allows the support of all data
packets of Bluetooth
廬
in addition to voice. The em-
bedded controller can be used to run the Blue-
tooth
廬
protocol and application layers if required.
The software is located in an external memory ac-
cessed through the external memory interface.
1/20
鈻?/div>
January 2004
Rev. 2.0
