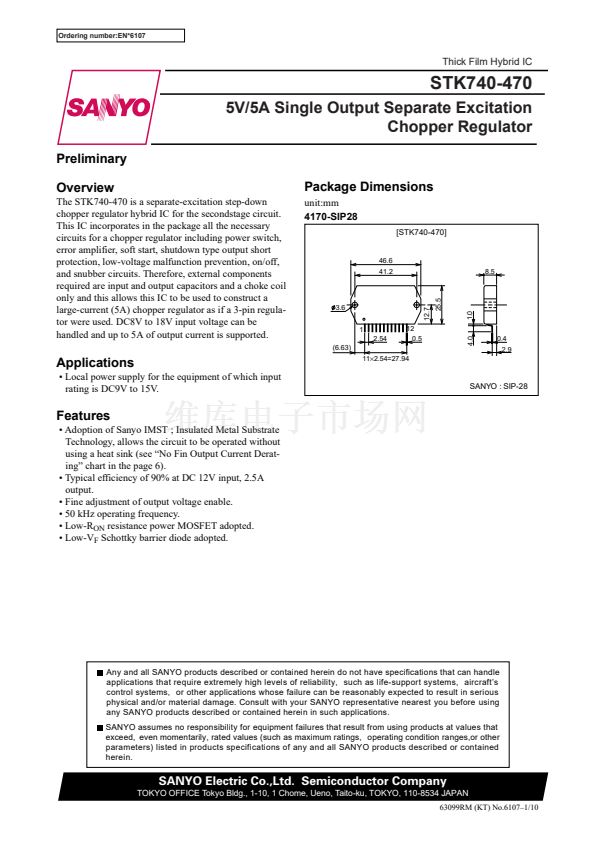

Ordering number:EN*6107
Thick Film Hybrid IC
STK740-470
5V/5A Single Output Separate Excitation
Chopper Regulator
Preliminary
Overview
The STK740-470 is a separate-excitation step-down
chopper regulator hybrid IC for the secondstage circuit.

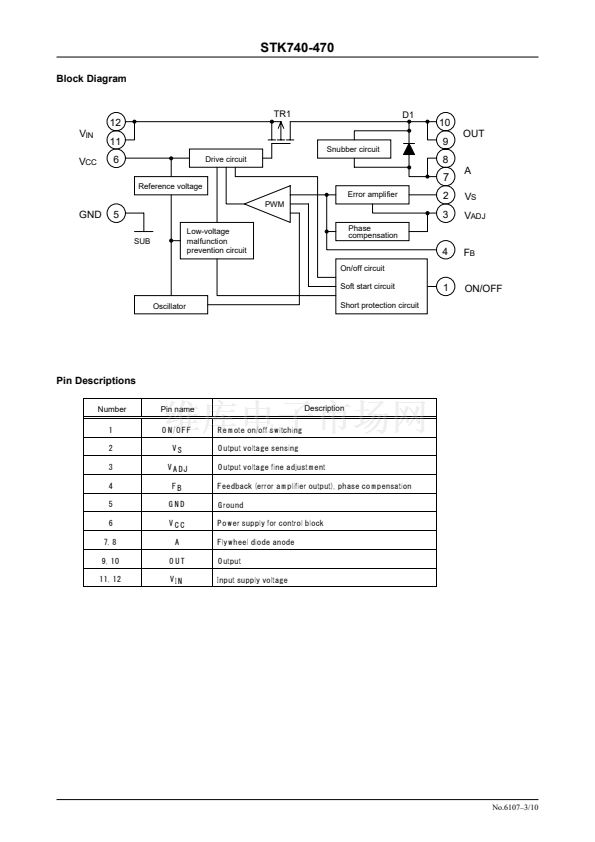

This IC incorporates in the package all the necessary
circuits for a chopper regulator including power switch,
error amplifier, soft start, shutdown type output short
protection, low-voltage malfunction prevention, on/off,

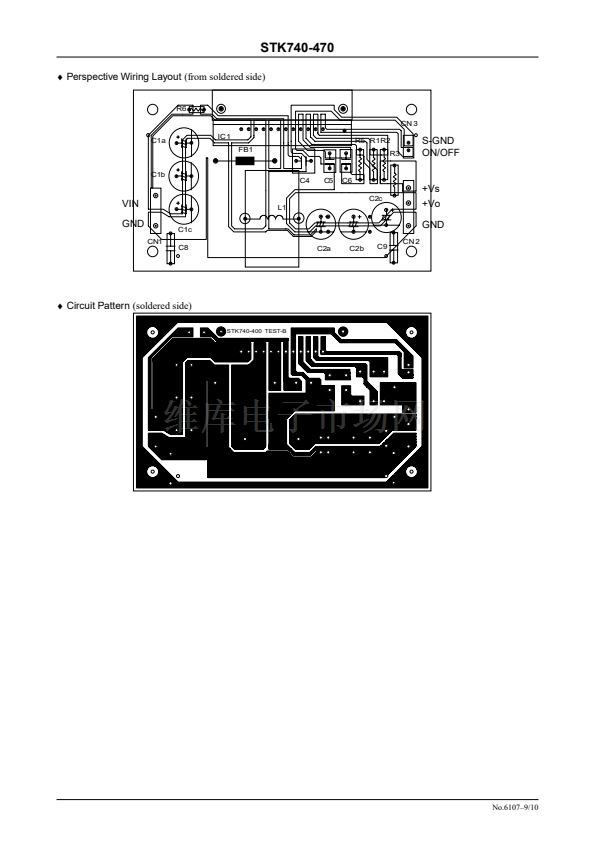

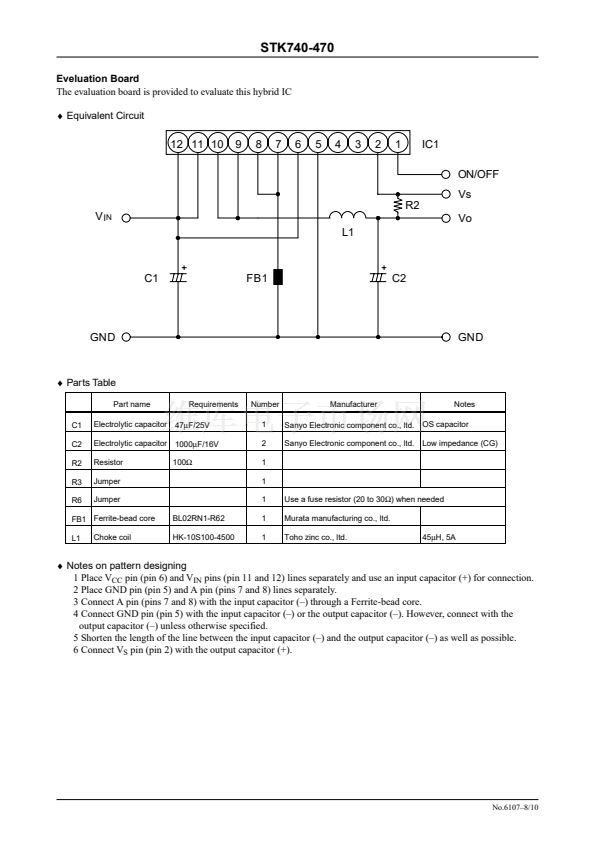

and snubber circuits. Therefore, external components
required are input and output capacitors and a choke coil
only and this allows this IC to be used to construct a
large-current (5A) chopper regulator as if a 3-pin regula-

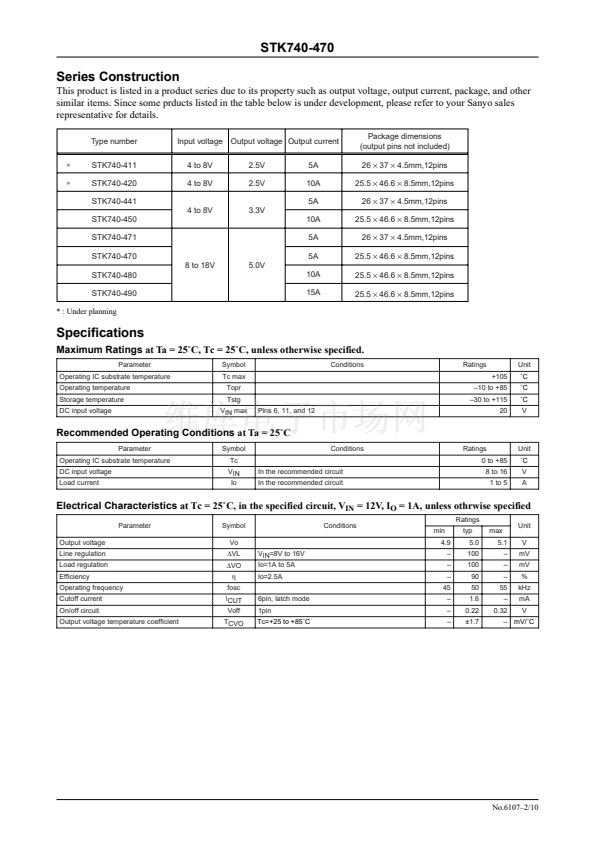

tor were used. DC8V to 18V input voltage can be
handled and up to 5A of output current is supported.
Package Dimensions
unit:mm
4170-SIP28
[STK740-470]
46.6
41.2
8.5
12.7
1
2.54
(6.63)
4.0
12
0.5
1.0
3.6
25.5
0.4
2.9
Applications
鈥?Local power supply for the equipment of which input
rating is DC9V to 15V.
11脳2.54=27.94
SANYO : SIP-28
Features
鈥?Adoption of Sanyo IMST ; Insulated Metal Substrate
Technology, allows the circuit to be operated without

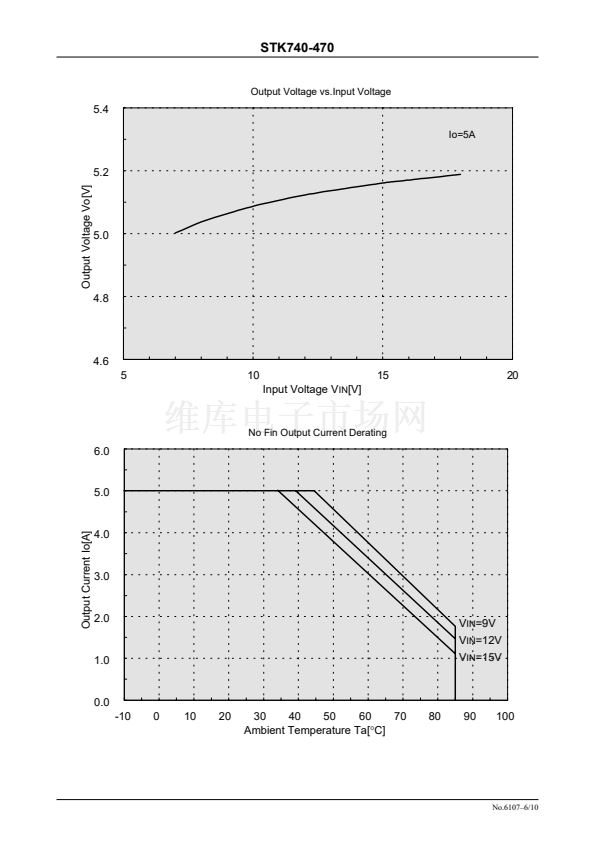

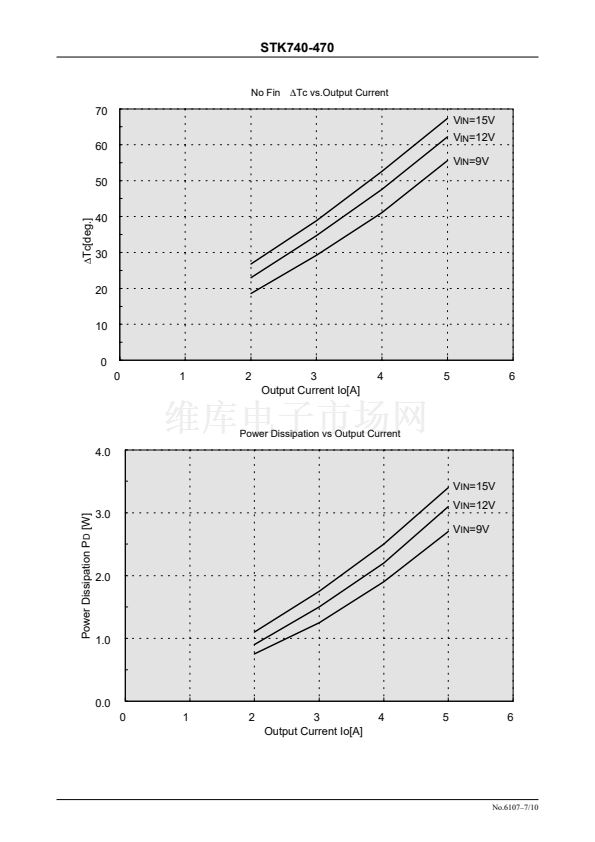

using a heat sink (see 鈥淣o Fin Output Current Derat-
ing鈥?chart in the page 6).

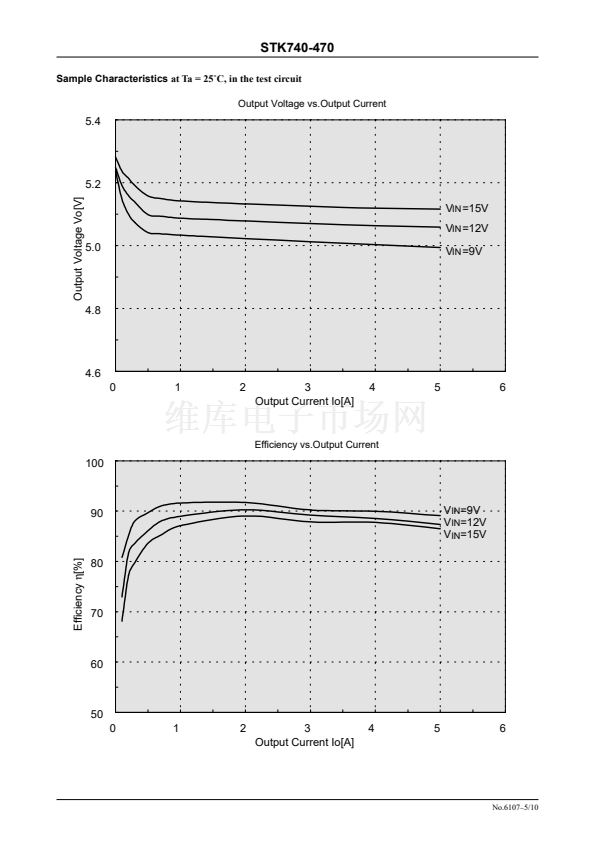

鈥?Typical efficiency of 90% at DC 12V input, 2.5A
output.
鈥?Fine adjustment of output voltage enable.
鈥?50 kHz operating frequency.
鈥?Low-R
ON
resistance power MOSFET adopted.
鈥?Low-V
F
Schottky barrier diode adopted.
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft鈥檚
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges,or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
63099RM (KT) No.6107鈥?/10
