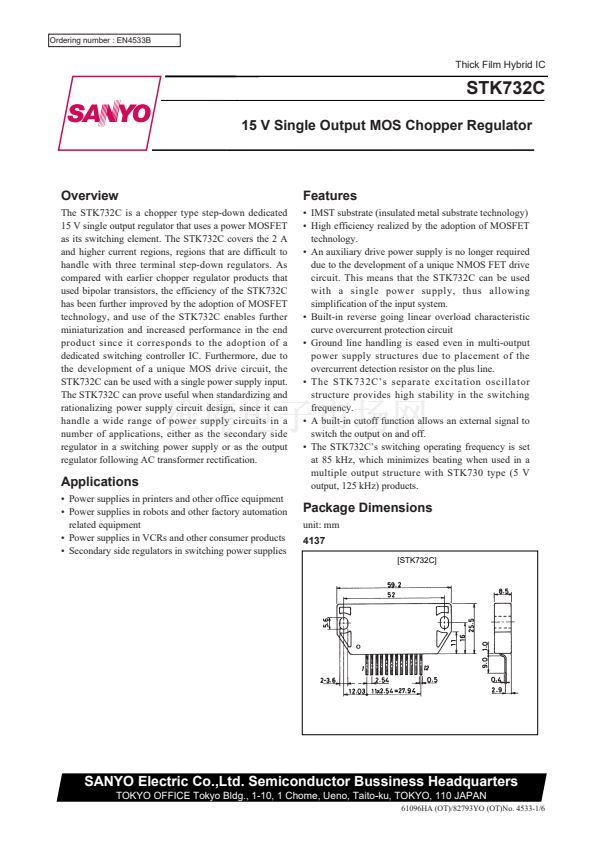

Ordering number : EN4533B
Thick Film Hybrid IC
STK732C
15 V Single Output MOS Chopper Regulator
Overview
The STK732C is a chopper type step-down dedicated
15 V single output regulator that uses a power MOSFET
as its switching element. The STK732C covers the 2 A
and higher current regions, regions that are difficult to
handle with three terminal step-down regulators. As
compared with earlier chopper regulator products that
used bipolar transistors, the efficiency of the STK732C
has been further improved by the adoption of MOSFET
technology, and use of the STK732C enables further
miniaturization and increased performance in the end
product since it corresponds to the adoption of a
dedicated switching controller IC. Furthermore, due to
the development of a unique MOS drive circuit, the
STK732C can be used with a single power supply input.
The STK732C can prove useful when standardizing and
rationalizing power supply circuit design, since it can
handle a wide range of power supply circuits in a
number of applications, either as the secondary side
regulator in a switching power supply or as the output
regulator following AC transformer rectification.
Features
鈥?IMST substrate (insulated metal substrate technology)
鈥?High efficiency realized by the adoption of MOSFET
technology.
鈥?An auxiliary drive power supply is no longer required
due to the development of a unique NMOS FET drive
circuit. This means that the STK732C can be used
with a single power supply, thus allowing
simplification of the input system.
鈥?Built-in reverse going linear overload characteristic
curve overcurrent protection circuit
鈥?Ground line handling is eased even in multi-output
power supply structures due to placement of the
overcurrent detection resistor on the plus line.
鈥?The STK732C鈥檚 separate excitation oscillator
structure provides high stability in the switching
frequency.
鈥?A built-in cutoff function allows an external signal to
switch the output on and off.
鈥?The STK732C鈥檚 switching operating frequency is set
at 85 kHz, which minimizes beating when used in a
multiple output structure with STK730 type (5 V
output, 125 kHz) products.
Applications
鈥?Power supplies in printers and other office equipment
鈥?Power supplies in robots and other factory automation
related equipment
鈥?Power supplies in VCRs and other consumer products
鈥?Secondary side regulators in switching power supplies
Package Dimensions
unit: mm
4137
[STK732C]
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN
61096HA (OT)/82793YO (OT)No. 4533-1/6
