STK3NA50 Datasheet

  • STK3NA50

  • N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR

  • 182.61KB

  • 10頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

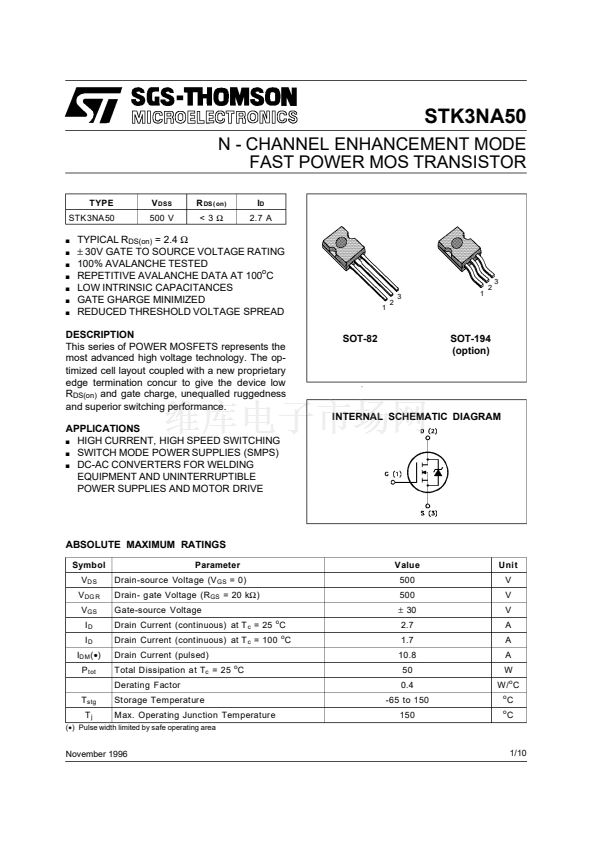

STK3NA50
N - CHANNEL ENHANCEMENT MODE
FAST POWER MOS TRANSISTOR
TYPE
STK3NA50
s
s
s
s
s
s
s
V
DSS
500 V
R
DS( on)
< 3
鈩?/div>
I
D
2.7 A
TYPICAL R
DS(on)
= 2.4
鈩?/div>
鹵
30V GATE TO SOURCE VOLTAGE RATING
100% AVALANCHE TESTED
REPETITIVE AVALANCHE DATA AT 100
o
C
LOW INTRINSIC CAPACITANCES
GATE GHARGE MINIMIZED
REDUCED THRESHOLD VOLTAGE SPREAD

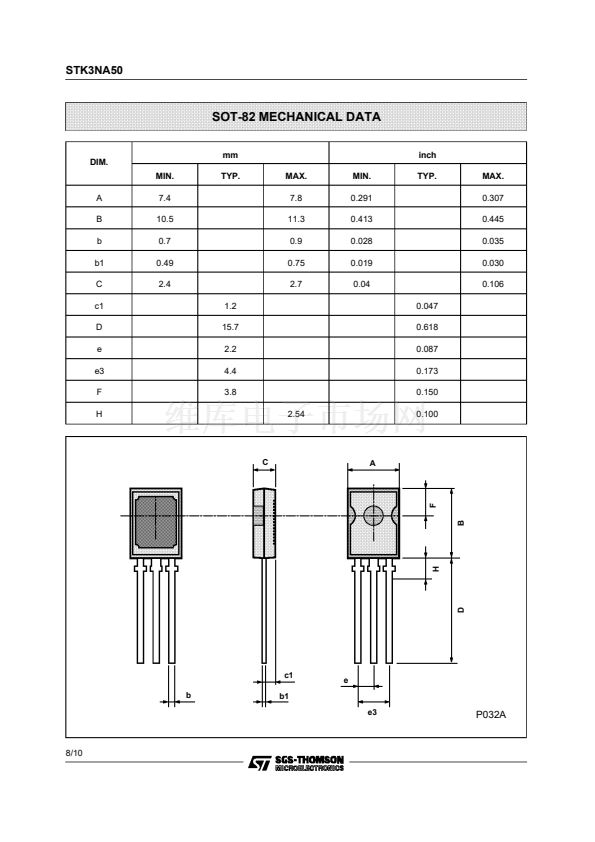

SOT-82
1
2
3
1
2
3
DESCRIPTION
This series of POWER MOSFETS represents the
most advanced high voltage technology. The op-
timized cell layout coupled with a new proprietary
edge termination concur to give the device low
R
DS(on)
and gate charge, unequalled ruggedness
and superior switching performance.
APPLICATIONS
s
HIGH CURRENT, HIGH SPEED SWITCHING
s
SWITCH MODE POWER SUPPLIES (SMPS)
s
DC-AC CONVERTERS FOR WELDING
EQUIPMENT AND UNINTERRUPTIBLE
POWER SUPPLIES AND MOTOR DRIVE
SOT-194
(option)
INTERNAL SCHEMATIC DIAGRAM
ABSOLUTE MAXIMUM RATINGS
Symbol
V
D S
V
DG R
V
GS
I
D
I
D
I
D M
(鈥?
P
tot
T
stg
T
j
Parameter
Drain-source Voltage (V
GS
= 0)
Drain- gate Voltage (R
GS
= 20 k鈩?
Gate-source Voltage
Drain Current (continuous) at T
c
= 25
o
C
Drain Current (continuous) at T
c
= 100 C
Drain Current (pulsed)
Total Dissipation at T
c
= 25
o
C
Derating Factor
Storage Temperature
Max. Operating Junction Temperature
o
Value
500
500
鹵
30
2.7
1.7
10.8
50
0.4
-65 to 150
150
Unit
V
V
V
A
A
A
W
W/
o
C
o
o
C
C
(鈥? Pulse width limited by safe operating area
November 1996
1/10
