STK17T88 Datasheet

  • STK17T88

  • nvTime Event Data Recorder 32K x 8 AutoStore nvSRAM With R...

  • 25頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

STK17T88
nvTime
Event Data Recorder
TM
32K x 8
AutoStore
nvSRAM
With Real-Time Clock
鈥?/div>
Data Integrity of Simtek nvSRAM Combined
with Full-Featured Real-Time Clock
o
Low Power, 300 nA Max, RTC current
o
Capacitor or battery backup for RTC
鈥?/div>
Watchdog Timer
鈥?/div>
Clock Alarm with programmable Interrupts
鈥?/div>
25ns, 35ns and 45ns Access Times
鈥?/div>

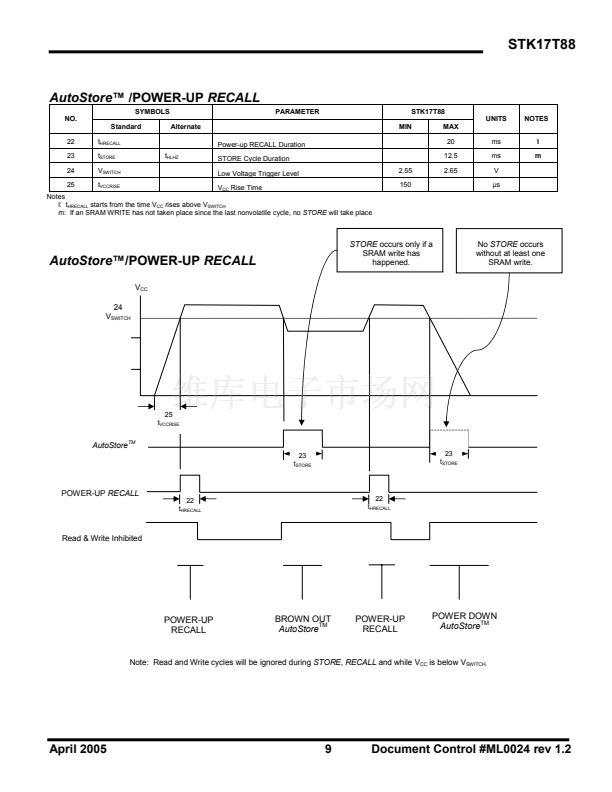

鈥淗ands-off鈥?Automatic
STORE
on Power Down
with only a small capacitor
鈥?/div>
STORE
to
QuantumTrap鈩?/div>
Initiated by
Software , device pin, or on Power Down
鈥?/div>
RECALL
to SRAM Initiated by Software or
Power Up
鈥?/div>
Unlimited
READ, WRITE
and
RECALL
Cycles
鈥?/div>
High-reliability
o
Endurance to 1 Million Cycles
o
Retention to 100 years at 125 潞C
鈥?/div>
5mA Typical I
CC
at 200ns Cycle Time
鈥?/div>
Single 3V +20%, -10% Operation
鈥?/div>

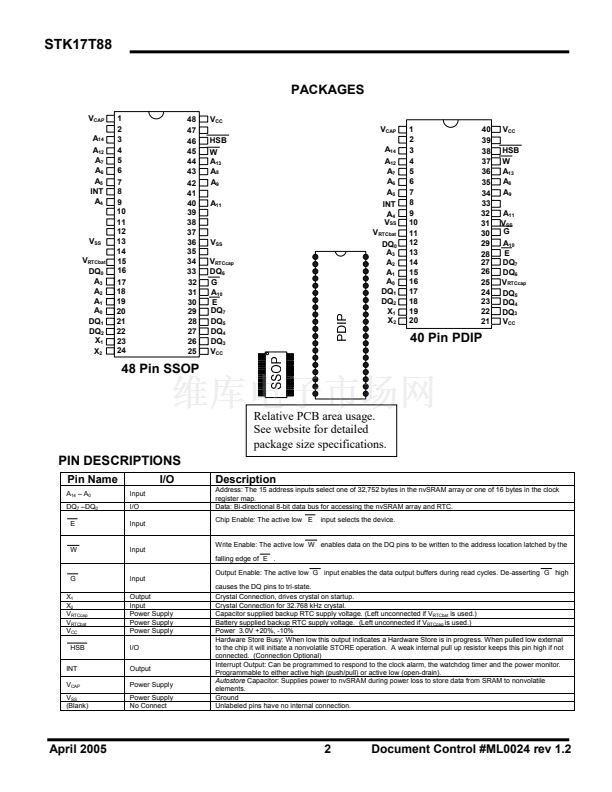

SSOP and DIP Packages, (ROHS compliant)
TM
FEATURES
DESCRIPTION
The Simtek STK17T88 combines a 256 Kbit
nonvolatile static RAM with a full-featured real-time
clock in a reliable, monolithic integrated circuit. The
embedded
nonvolatile
elements
incorporate
Simtek鈥檚
QuantumTrap鈩?/div>
technology producing the
world鈥檚 most reliable nonvolatile memory. The
SRAM can be read and written an unlimited number
of times, while independent, nonvolatile data resides
in the nonvolatile elements.

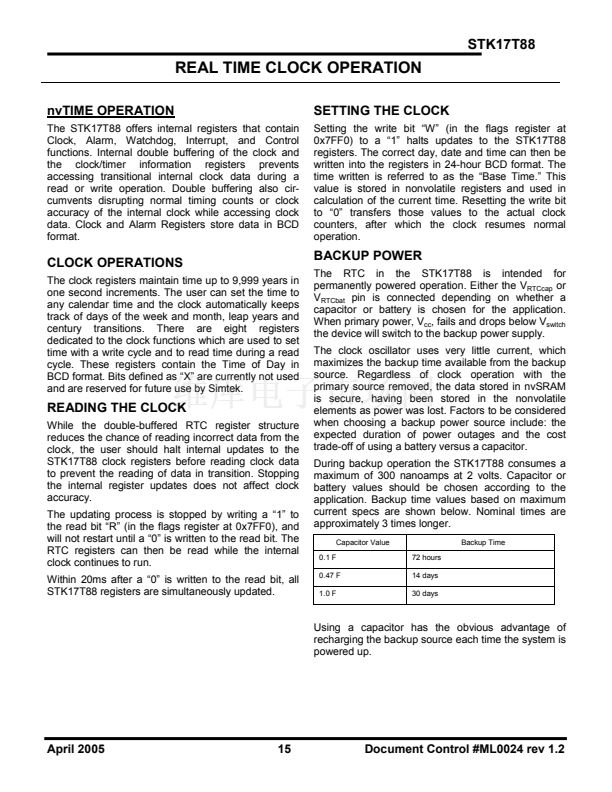

The Real-Time Clock function provides an accurate
clock with leap year tracking and a programmable,
high accuracy oscillator. The Alarm function is pro-
grammable for one-time alarms or periodic seconds,
minutes, hours, or days. There is also a programma-
ble Watchdog Timer for process control.

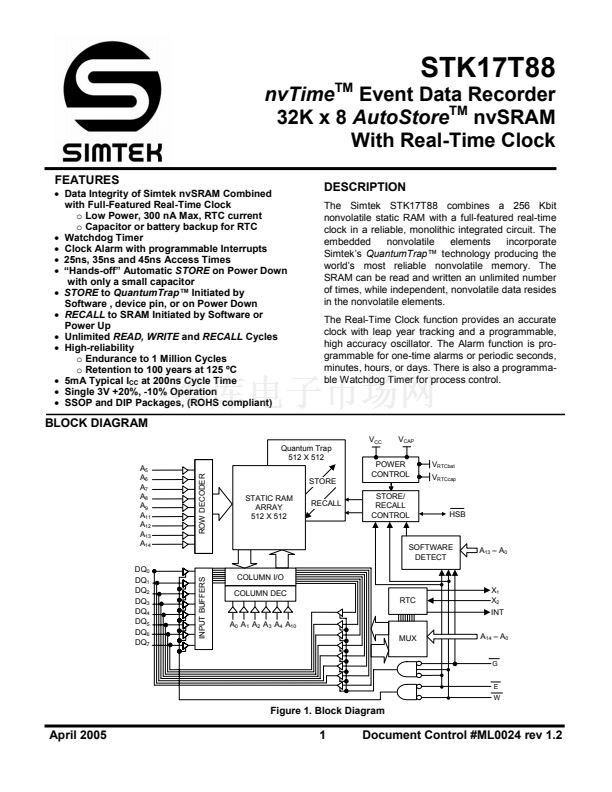

BLOCK DIAGRAM
Quantum Trap
512 X 512
A
5
A
6
A
7
A
8
A
9
A
11
A
12
A
13
A
14
DQ
0
DQ
1
DQ
2
DQ
3
DQ
4
DQ
5
DQ
6
DQ
7
ROW DECODER
STORE
STATIC RAM
ARRAY
512 X 512
RECALL
V
CC
V
CAP
V
RTCbat
V
RTCcap
POWER
CONTROL
STORE/
RECALL
CONTROL
HSB
SOFTWARE
DETECT
INPUT BUFFERS
COLUMN I/O
COLUMN DEC
RTC
A
13
鈥?A
0
X
1
X
2
INT
A
14
鈥?A
0
G
E
W
A
0
A
1
A
2
A
3
A
4
A
10
MUX
Figure 1. Block Diagram
April 2005
1
Document Control #ML0024 rev 1.2
