STGP7NB60F Datasheet

  • STGP7NB60F

  • N-CHANNEL 7A - 600V - T0-220 / DPAK PowerMESH IGBT

  • 332.32KB

  • 8頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

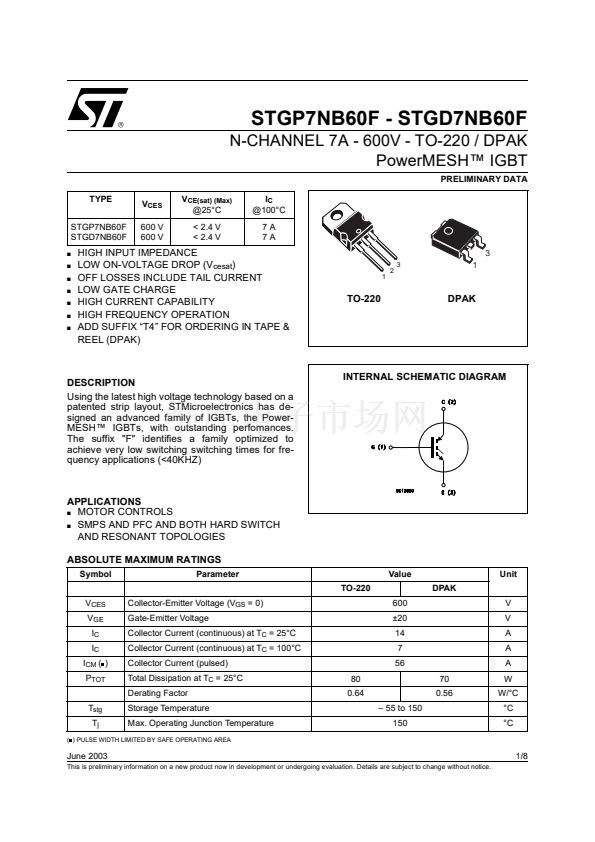

STGP7NB60F - STGD7NB60F
N-CHANNEL 7A - 600V - TO-220 / DPAK
PowerMESH鈩?IGBT
PRELIMINARY DATA
TYPE
STGP7NB60F
STGD7NB60F
s
s
s
s
s
s
s
V
CES
600 V
600 V
V
CE(sat) (Max)
@25擄C
< 2.4 V
< 2.4 V
I
C
@100擄C
7A
7A
3
3
1
2
HIGH INPUT IMPEDANCE
LOW ON-VOLTAGE DROP (V
cesat
)
OFF LOSSES INCLUDE TAIL CURRENT
LOW GATE CHARGE
HIGH CURRENT CAPABILITY
HIGH FREQUENCY OPERATION
ADD SUFFIX 鈥淭4鈥?FOR ORDERING IN TAPE &
REEL (DPAK)
1
TO-220
DPAK
DESCRIPTION
Using the latest high voltage technology based on a
patented strip layout, STMicroelectronics has de-
signed an advanced family of IGBTs, the Power-
MESH鈩?IGBTs, with outstanding perfomances.
The suffix "F" identifies a family optimized to
achieve very low switching switching times for fre-
quency applications (<40KHZ)
INTERNAL SCHEMATIC DIAGRAM
APPLICATIONS
MOTOR CONTROLS
s
SMPS AND PFC AND BOTH HARD SWITCH
AND RESONANT TOPOLOGIES
s
ABSOLUTE MAXIMUM RATINGS
Symbol
V
CES
V
GE
I
C
I
C
I
CM
( )
P
TOT
T
stg
T
j
Parameter
TO-220
Collector-Emitter Voltage (V
GS
= 0)
Gate-Emitter Voltage
Collector Current (continuous) at T
C
= 25擄C
Collector Current (continuous) at T
C
= 100擄C
Collector Current (pulsed)
Total Dissipation at T
C
= 25擄C
Derating Factor
Storage Temperature
Max. Operating Junction Temperature
80
0.64
鈥?55 to 150
150
600
鹵20
14
7
56
70
0.56
Value
DPAK
V
V
A
A
A
W
W/擄C
擄C
擄C
Unit
( ) PULSE WIDTH LIMITED BY SAFE OPERATING AREA
June 2003
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change without notice.
1/8
