STGP7NB60FD Datasheet

  • STGP7NB60FD

  • N-CHANNEL 7A - 600V TO-220 / D2PAK PowerMESH? IGBT

  • 11頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

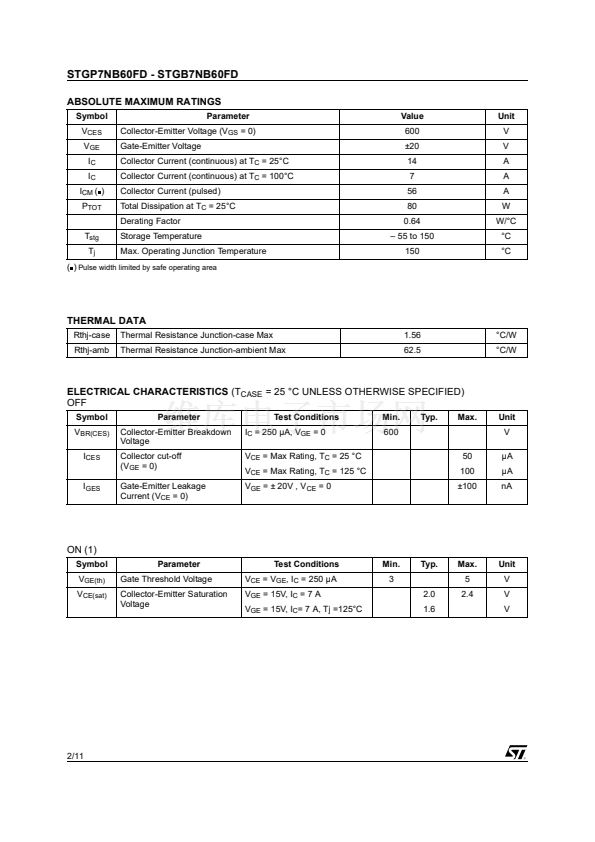

STGP7NB60FD - STGB7NB60FD
N-CHANNEL 7A - 600V TO-220 / D
2
PAK
PowerMESH鈩?IGBT
TYPE
STGP7NB60FD
STGB7NB60FD
s
s
s
s
s
s
s
V
CES
600 V
600 V
V
CE(sat) (Max)
@25擄C
< 2.4 V
< 2.4 V
I
C
@100擄C
7A
7A
3
1
2
HIGH INPUT IMPEDANCE
LOW ON-VOLTAGE DROP (V
cesat
)
OFF LOSSES INCLUDE TAIL CURRENT
LOW GATE CHARGE
HIGH CURRENT CAPABILITY
HIGH FREQUENCY OPERATION
CO-PACKAGED WITH TURBOSWITCH鈩?/div>
ANTIPARALLEL DIODE
3
1
TO-220
D
2
PAK
DESCRIPTION
Using the latest high voltage technology based on a
patented strip layout, STMicroelectronics has de-
signed an advanced family of IGBTs, the Power-
MESH鈩?IGBTs, with outstanding perfomances.
The suffix "F" identifies a family optimized to
achieve very low switching switching times for high
frequency applications (<40KHZ)
INTERNAL SCHEMATIC DIAGRAM
APPLICATIONS
MOTOR CONTROLS
s
SMPS AND PFC AND BOTH HARD SWITCH
AND RESONANT TOPOLOGIES
s
ORDERING INFORMATION
SALES TYPE
STGP7NB60FD
STGB7NB60FDT4
MARKING
GP7NB60FD
GB7NB60FD
PACKAGE
TO-220
D
2
PAK
PACKAGING
TUBE
TAPE & REEL
June 2003
1/11
