STGP7NB120SD Datasheet

  • STGP7NB120SD

  • N-CHANNEL 7A - 1200V - TO-220 PowerMESH⑩ IGBT

  • 246.86KB

  • 8頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

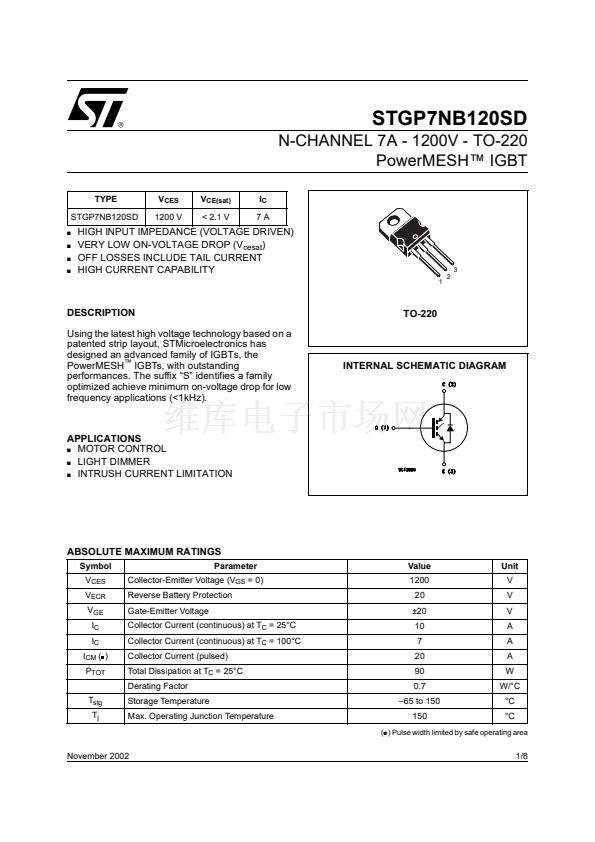

STGP7NB120SD
N-CHANNEL 7A - 1200V - TO-220
PowerMESH鈩?IGBT
TYPE
STGP7NB120SD
s
s
s
s
V
CES
1200 V
V
CE(sat)
< 2.1 V
I
C
7A
HIGH INPUT IMPEDANCE (VOLTAGE DRIVEN)
VERY LOW ON-VOLTAGE DROP (V
cesat
)
OFF LOSSES INCLUDE TAIL CURRENT
HIGH CURRENT CAPABILITY
1
3
2
DESCRIPTION
Using the latest high voltage technology based on a
patented strip layout, STMicroelectronics has
designed an advanced family of IGBTs, the
PowerMESH
鈩?/div>
IGBTs, with outstanding
performances. The suffix 鈥淪鈥?identifies a family
optimized achieve minimum on-voltage drop for low
frequency applications (<1kHz).
TO-220
INTERNAL SCHEMATIC DIAGRAM
APPLICATIONS
s
MOTOR CONTROL
s
LIGHT DIMMER
s
INTRUSH CURRENT LIMITATION
ABSOLUTE MAXIMUM RATINGS
Symbol
V
CES
V
ECR
V
GE
I
C
I
C
I
CM
( )
P
TOT
T
stg
T
j
Parameter
Collector-Emitter Voltage (V
GS
= 0)
Reverse Battery Protection
Gate-Emitter Voltage
Collector Current (continuous) at T
C
= 25擄C
Collector Current (continuous) at T
C
= 100擄C
Collector Current (pulsed)
Total Dissipation at T
C
= 25擄C
Derating Factor
Storage Temperature
Max. Operating Junction Temperature
Value
1200
20
鹵20
10
7
20
90
0.7
鈥?5 to 150
150
Unit
V
V
V
A
A
A
W
W/擄C
擄C
擄C
(
q
) Pulse width limited by safe operating area
November 2002
1/8

STGP7NB120SD 產品屬性

  • STMicroelectronics

  • IGBT 晶體管

  • Single

  • 1200 V

  • +/- 20 V

  • + 150 C

  • TO-220-3

  • Tube

  • 10 A

  • - 65 C

  • Through Hole

  • 1000
