STE100 Datasheet

  • STE100

  • PCI 10/100 ETHERNET CONTROLLER WITH INTEGRATED PHY 5V

  • 66頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

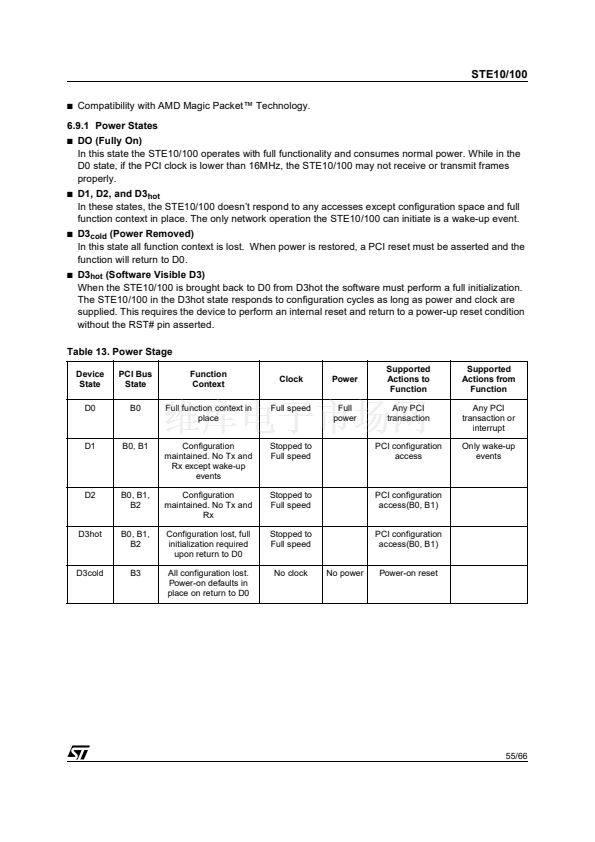

PDF預覽

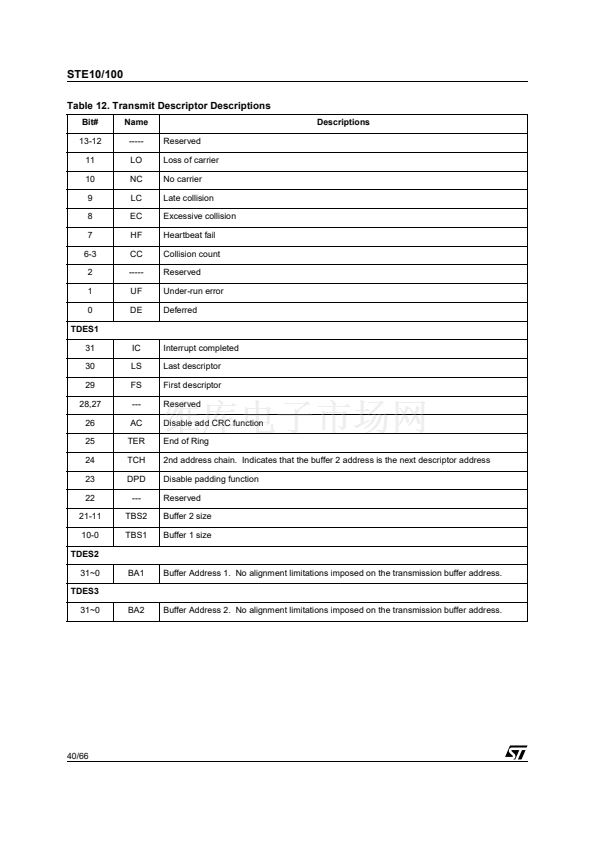

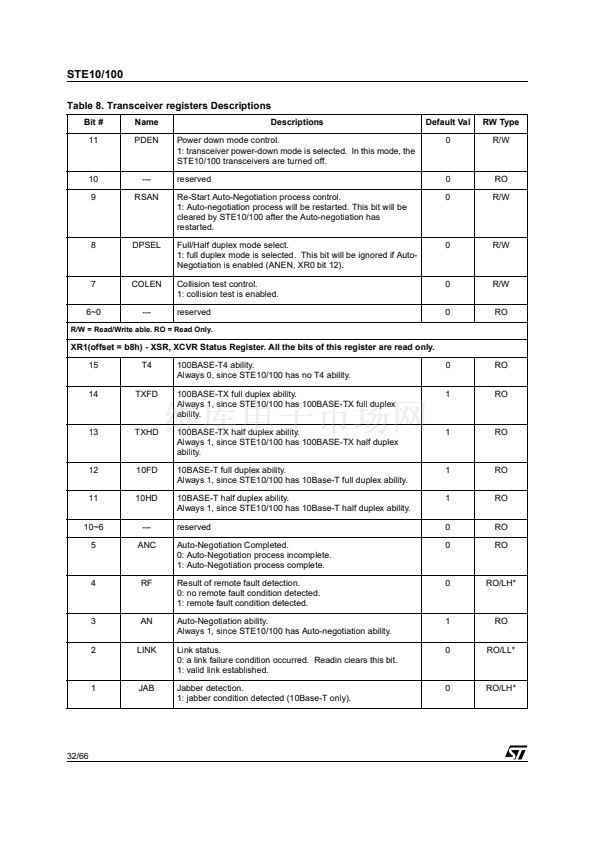

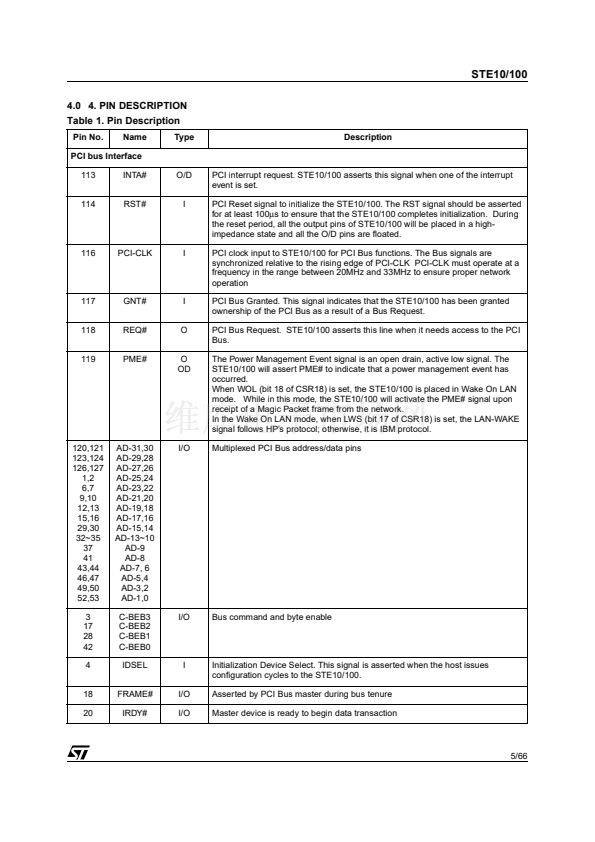

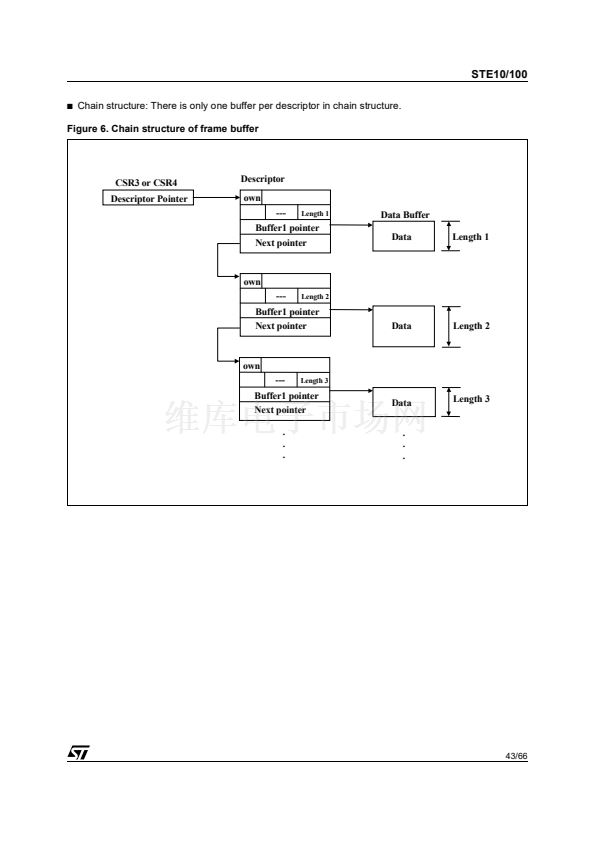

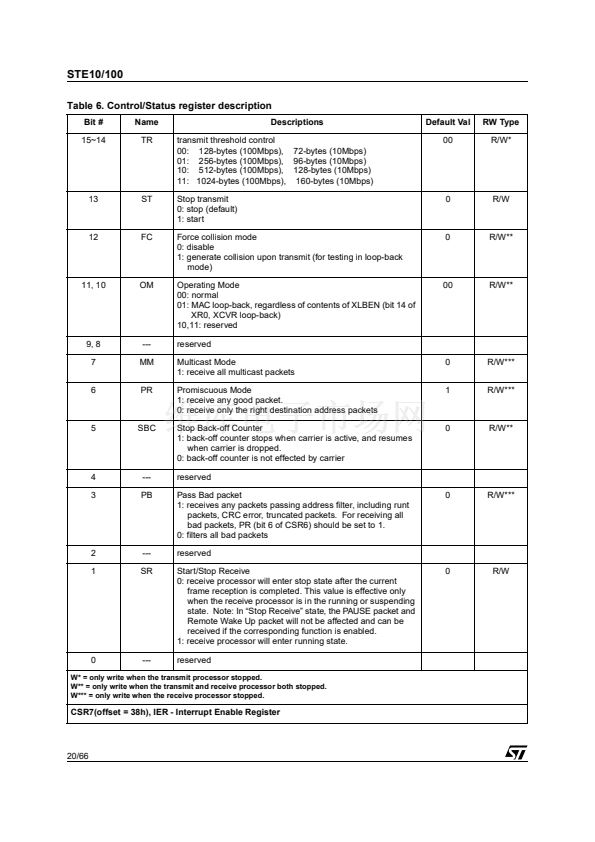

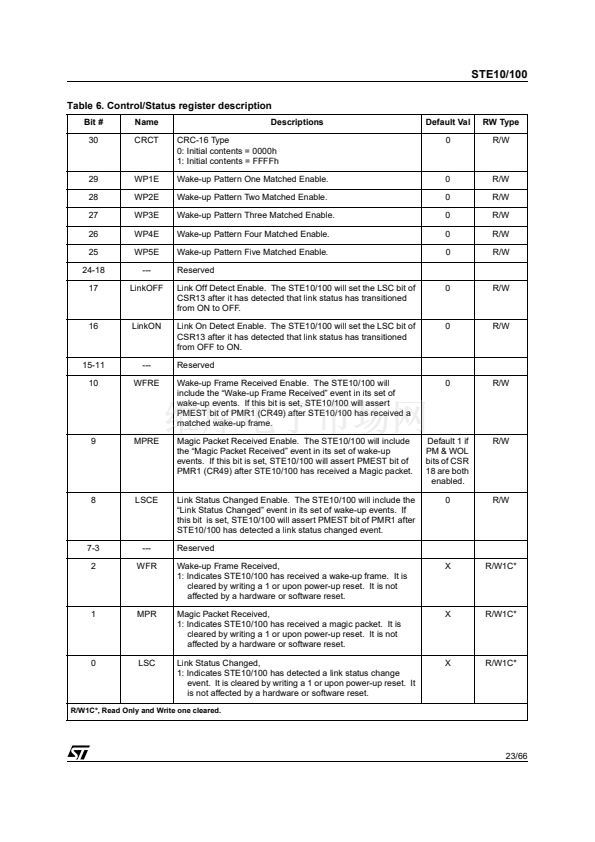

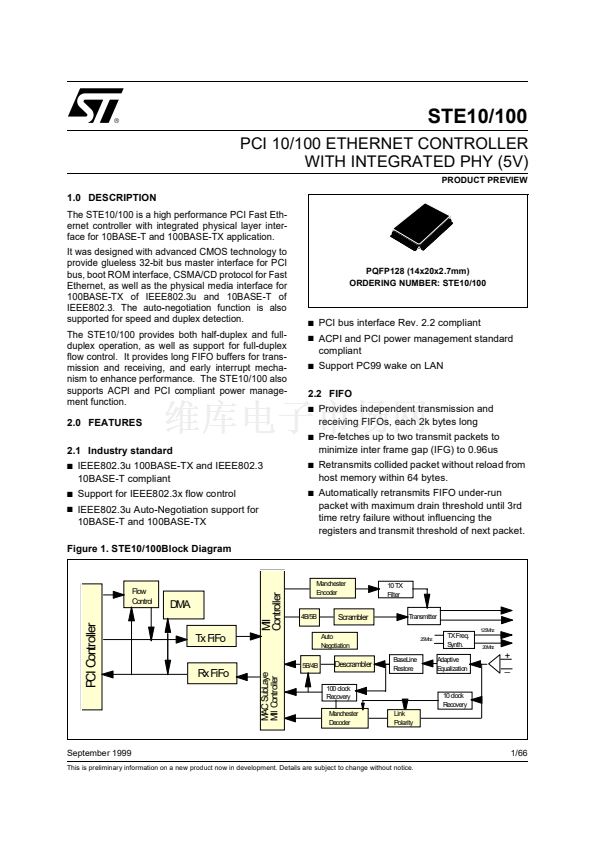

STE10/100
PCI 10/100 ETHERNET CONTROLLER
WITH INTEGRATED PHY (5V)
PRODUCT PREVIEW
1.0 DESCRIPTION
The STE10/100 is a high performance PCI Fast Eth-
ernet controller with integrated physical layer inter-
face for 10BASE-T and 100BASE-TX application.
It was designed with advanced CMOS technology to
provide glueless 32-bit bus master interface for PCI

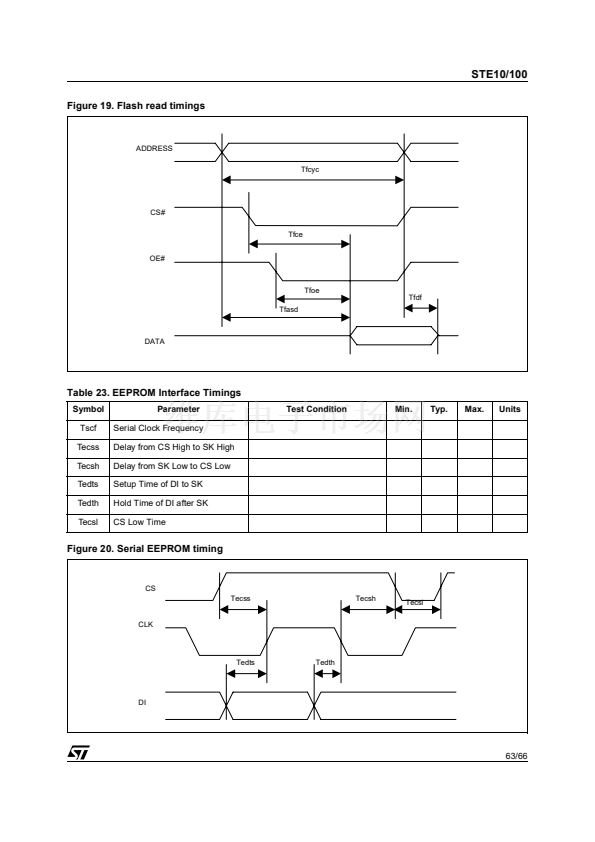

bus, boot ROM interface, CSMA/CD protocol for Fast
Ethernet, as well as the physical media interface for
100BASE-TX of IEEE802.3u and 10BASE-T of
IEEE802.3. The auto-negotiation function is also
supported for speed and duplex detection.
The STE10/100 provides both half-duplex and full-
duplex operation, as well as support for full-duplex

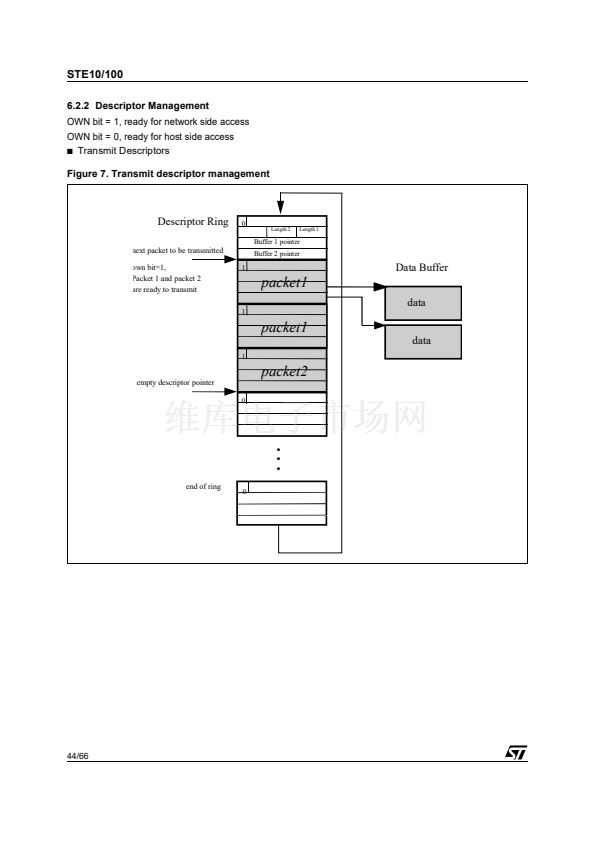

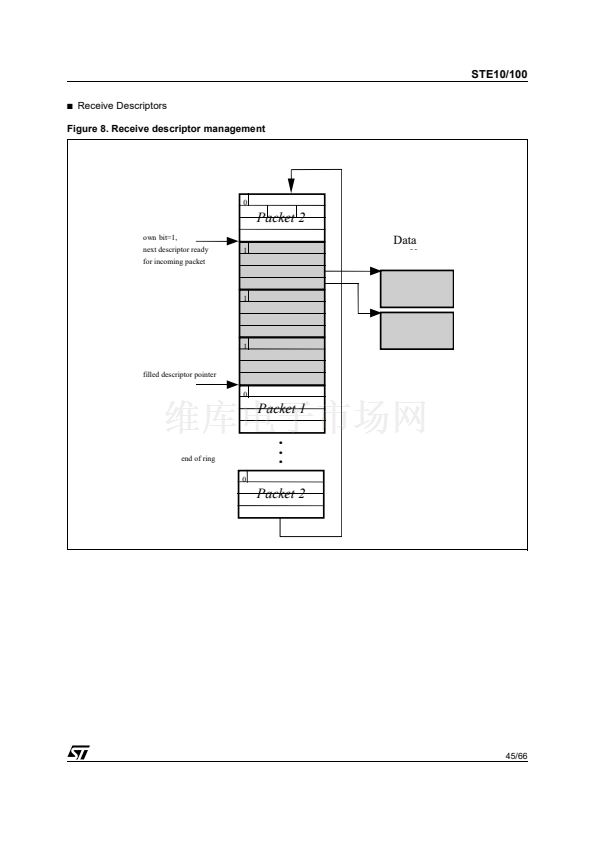

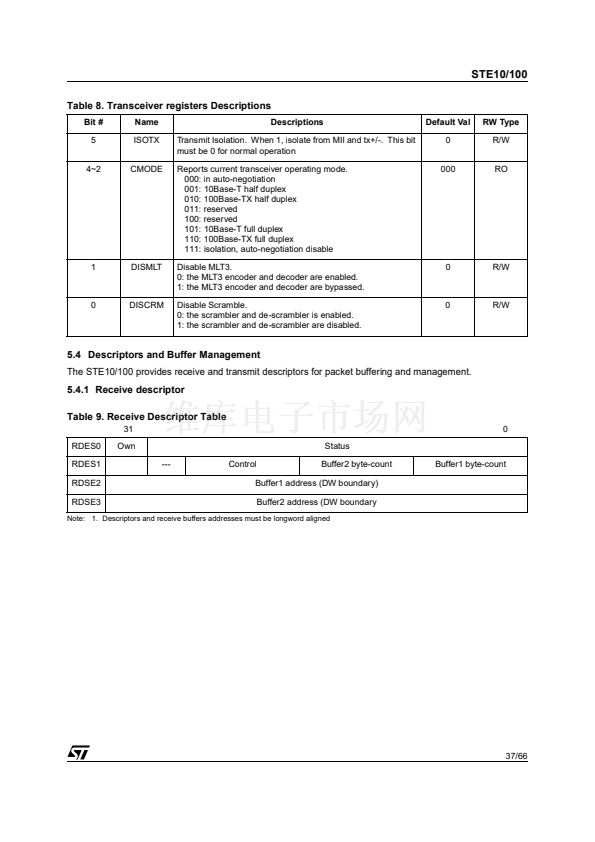

flow control. It provides long FIFO buffers for trans-
mission and receiving, and early interrupt mecha-

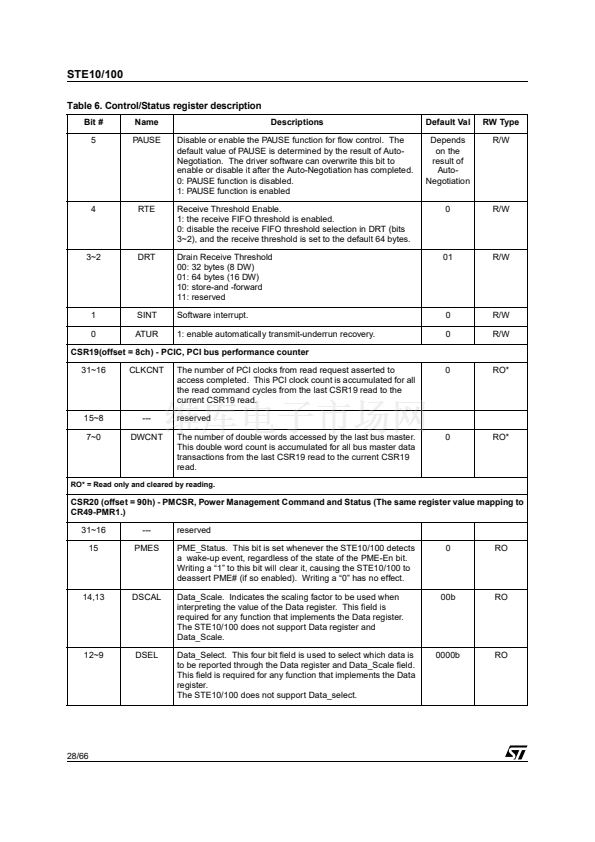

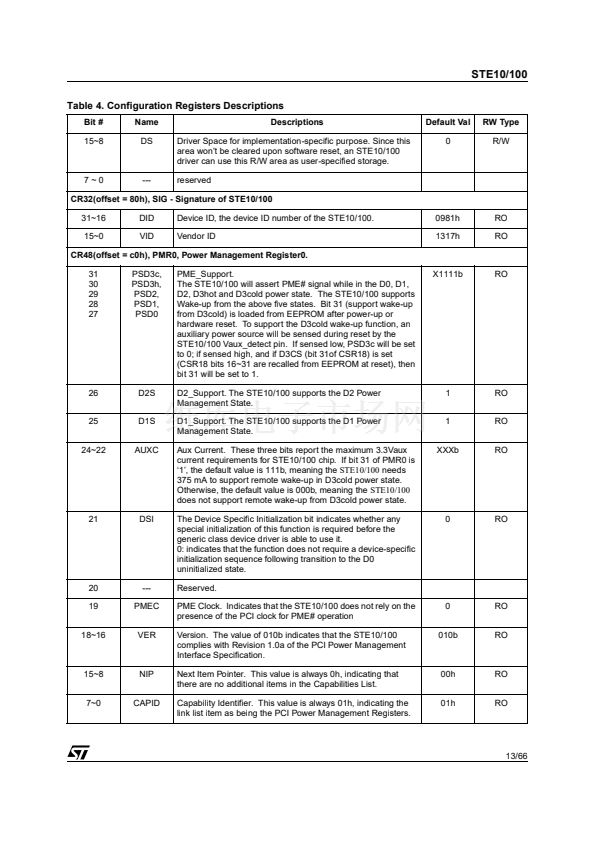

nism to enhance performance. The STE10/100 also
supports ACPI and PCI compliant power manage-
ment function.
2.0 FEATURES
s

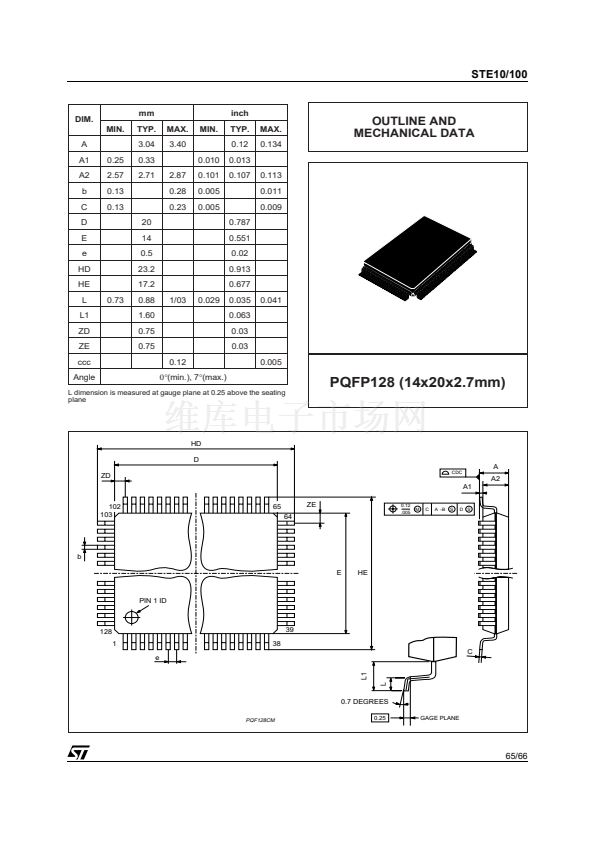

PQFP128 (14x20x2.7mm)
ORDERING NUMBER: STE10/100
s
s

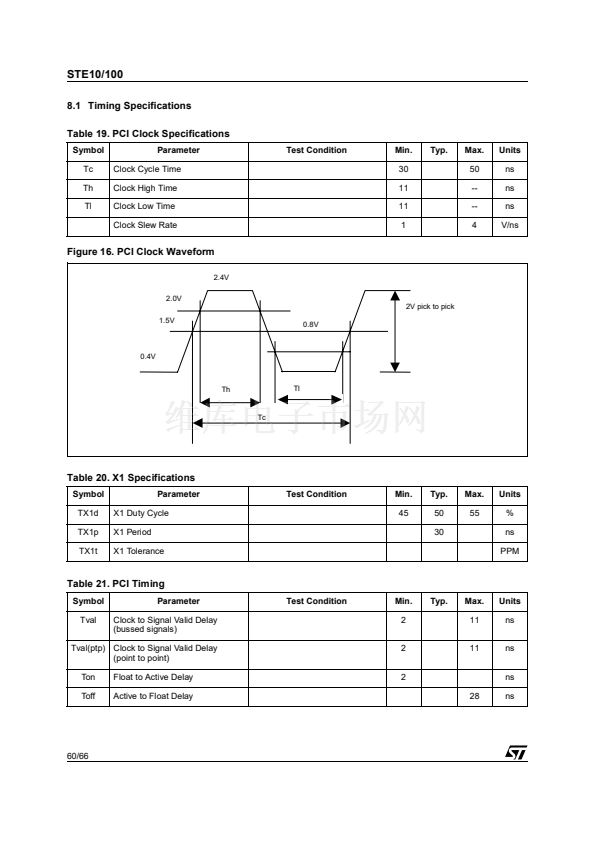

PCI bus interface Rev. 2.2 compliant
ACPI and PCI power management standard
compliant

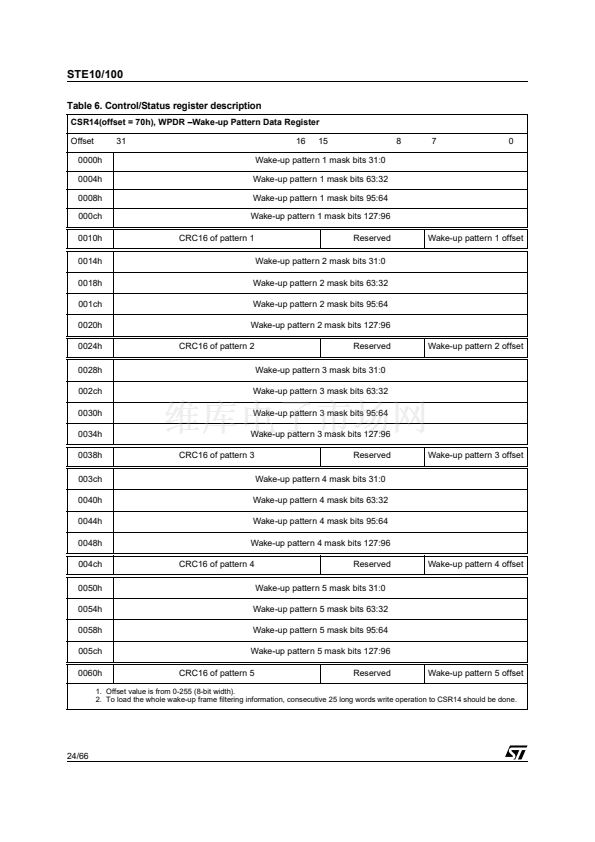

Support PC99 wake on LAN
s
2.2 FIFO
s
Provides independent transmission and
receiving FIFOs, each 2k bytes long
Pre-fetches up to two transmit packets to
minimize inter frame gap (IFG) to 0.96us
Retransmits collided packet without reload from
host memory within 64 bytes.
Automatically retransmits FIFO under-run
packet with maximum drain threshold until 3rd
time retry failure without influencing the
registers and transmit threshold of next packet.
2.1 Industry standard
s
IEEE802.3u 100BASE-TX and IEEE802.3
10BASE-T compliant

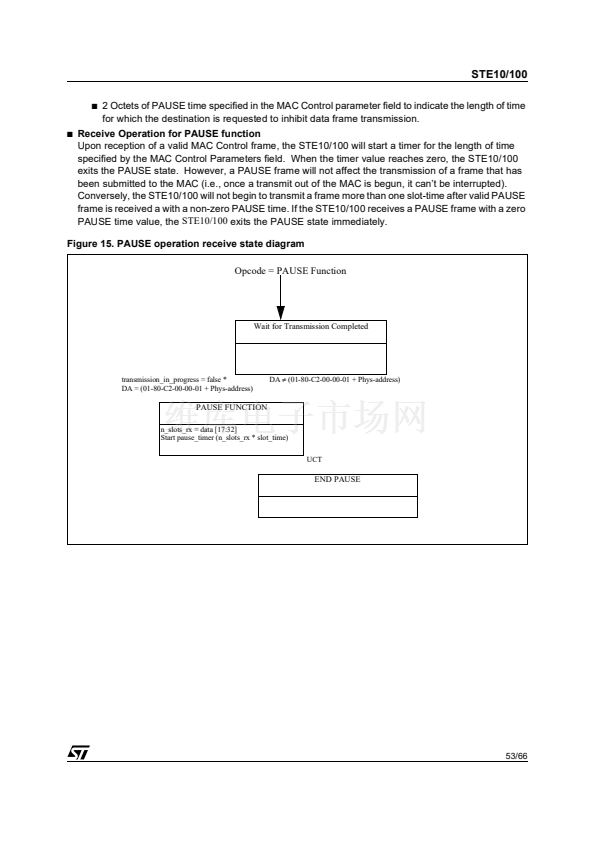

Support for IEEE802.3x flow control

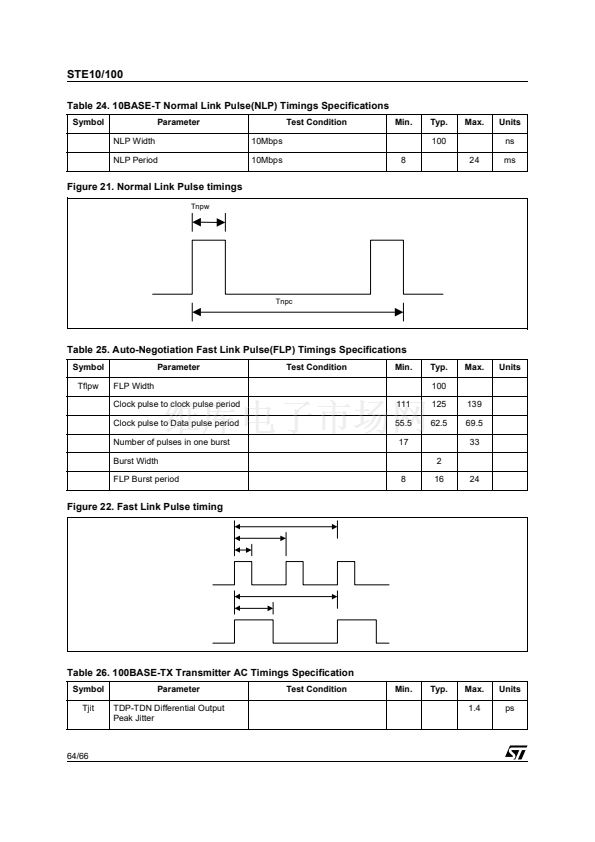

IEEE802.3u Auto-Negotiation support for
10BASE-T and 100BASE-TX
s
s
s
s
Figure 1. STE10/100Block Diagram
DMA
MII
Controller
Flow
Control
Manchester
Encoder
10 TX
Filter
Transmitter
125Mhz
25Mhz
4B/5B
Scrambler
Auto
Negotiation
PCI Controller
Tx FiFo
Rx FiFo
5B/4B
TX Freq.
Synth.
Adaptive
Equalization
20Mhz
Descrambler
100 clock
Recovery
Manchester
Decoder
MAC SubLaye
MII Controller
BaseLine
Restore
+
_
10 clock
Recovery
Link
Polarity
September 1999
This is preliminary information on a new product now in development. Details are subject to change without notice.
1/66
