STBS528 Datasheet

  • STBS528

  • SURFACE MOUNT BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR

  • 4頁

  • EIC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

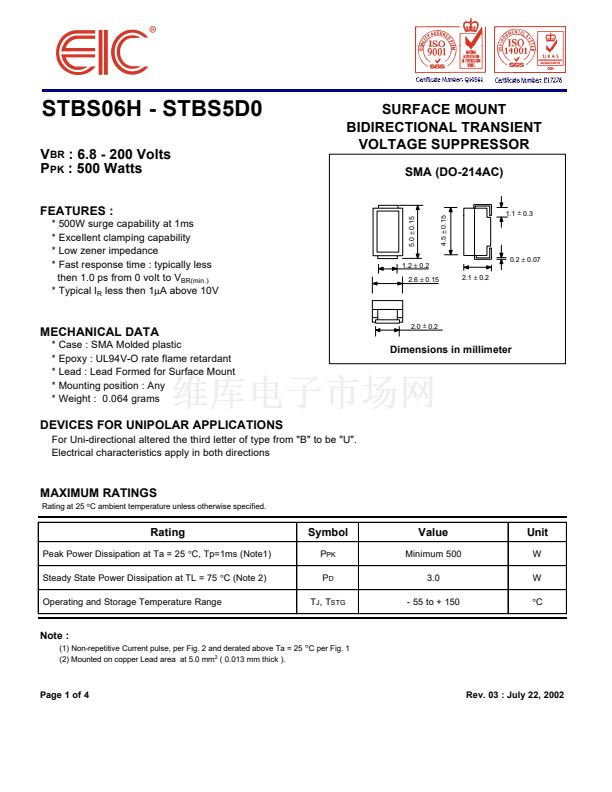

STBS06H - STBS5D0
V
BR
: 6.8 - 200 Volts
P
PK
: 500 Watts
FEATURES :
* 500W surge capability at 1ms
* Excellent clamping capability
* Low zener impedance
* Fast response time : typically less
then 1.0 ps from 0 volt to V
BR(min.)
* Typical I
R
less then 1碌A(chǔ) above 10V
SURFACE MOUNT
BIDIRECTIONAL TRANSIENT
VOLTAGE SUPPRESSOR
SMA (DO-214AC)
5.0
鹵
0.15
4.5
鹵
0.15
1.1
鹵
0.3
1.2
鹵
0.2
2.6
鹵
0.15
2.1
鹵
0.2
0.2
鹵
0.07
MECHANICAL DATA
* Case : SMA Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Lead Formed for Surface Mount
* Mounting position : Any
* Weight : 0.064 grams
2.0
鹵
0.2
Dimensions in millimeter
DEVICES FOR UNIPOLAR APPLICATIONS
For Uni-directional altered the third letter of type from "B" to be "U".
Electrical characteristics apply in both directions
MAXIMUM RATINGS
Rating at 25
擄
C ambient temperature unless otherwise specified.
Rating
Peak Power Dissipation at Ta = 25
擄C,
Tp=1ms (Note1)
Steady State Power Dissipation at TL = 75
擄C
(Note 2)
Operating and Storage Temperature Range
Symbol
P
PK
P
D
T
J
, T
STG
Value
Minimum 500
3.0
- 55 to + 150
Unit
W
W
擄C
Note :
(1) Non-repetitive Current pulse, per Fig. 2 and derated above Ta = 25
擄
C per Fig. 1
(2) Mounted on copper Lead area at 5.0 mm
2
( 0.013 mm thick ).
Page 1 of 4
Rev. 03 : July 22, 2002
