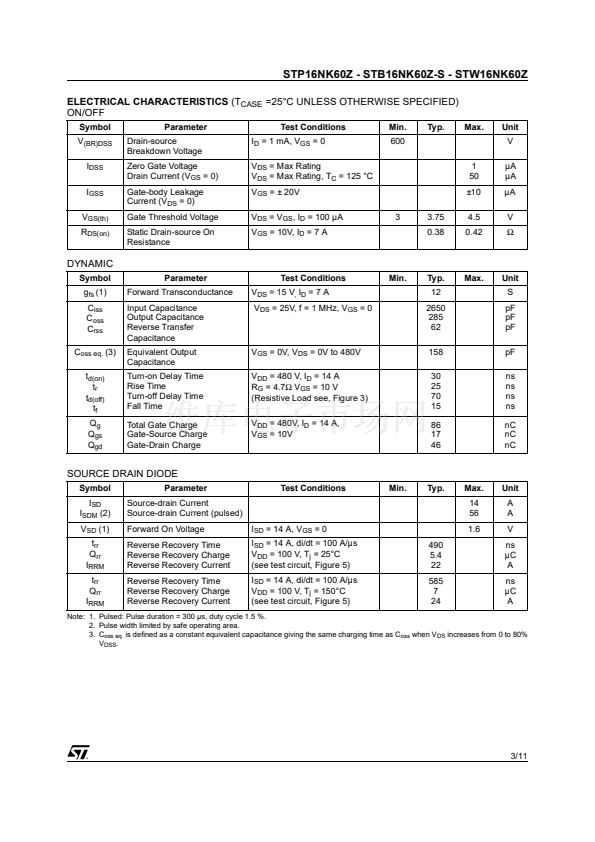

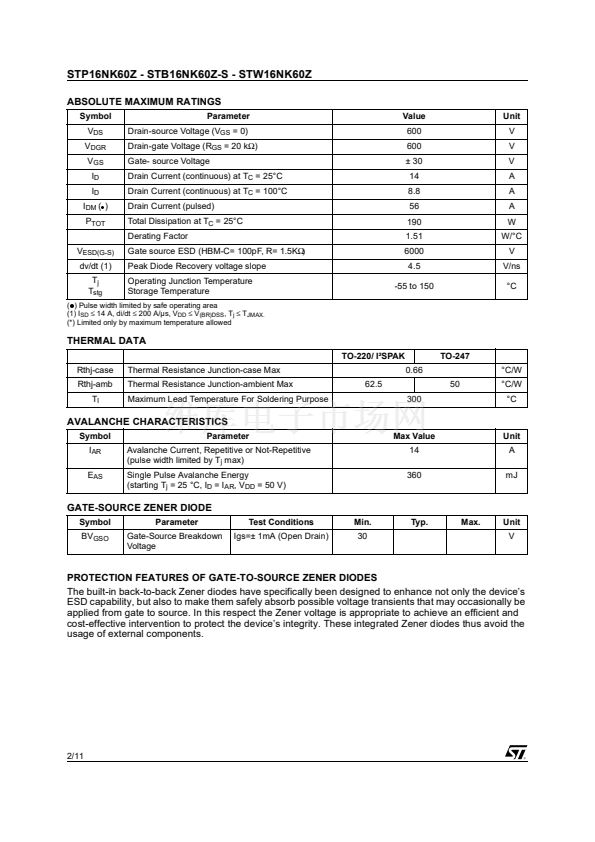

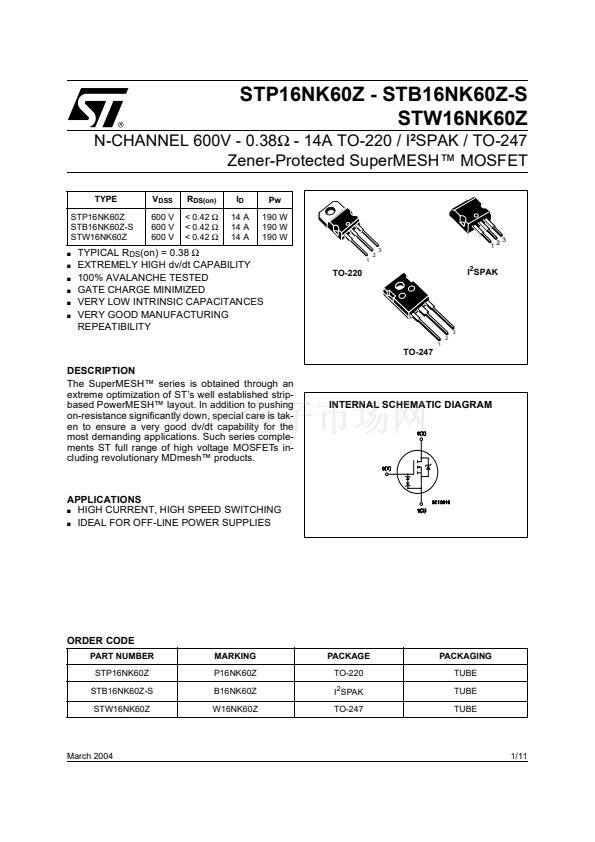

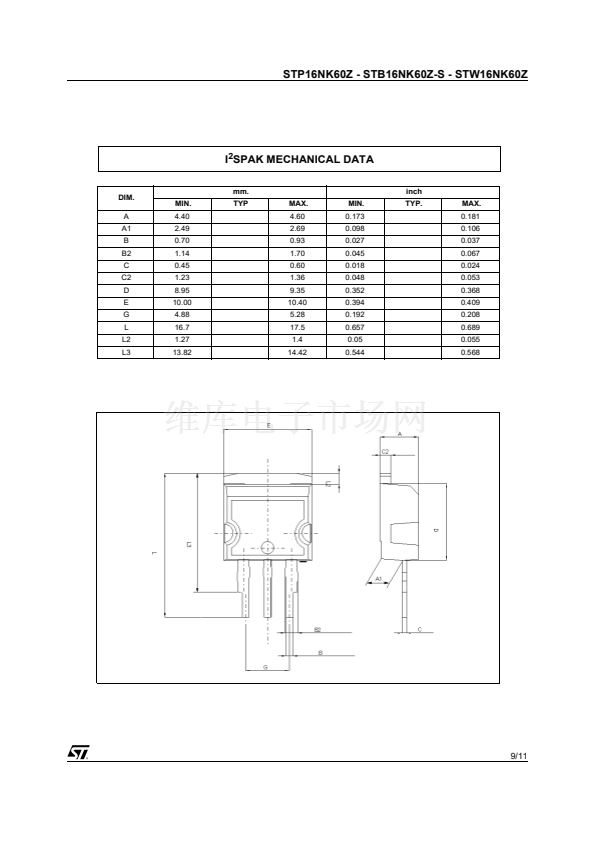

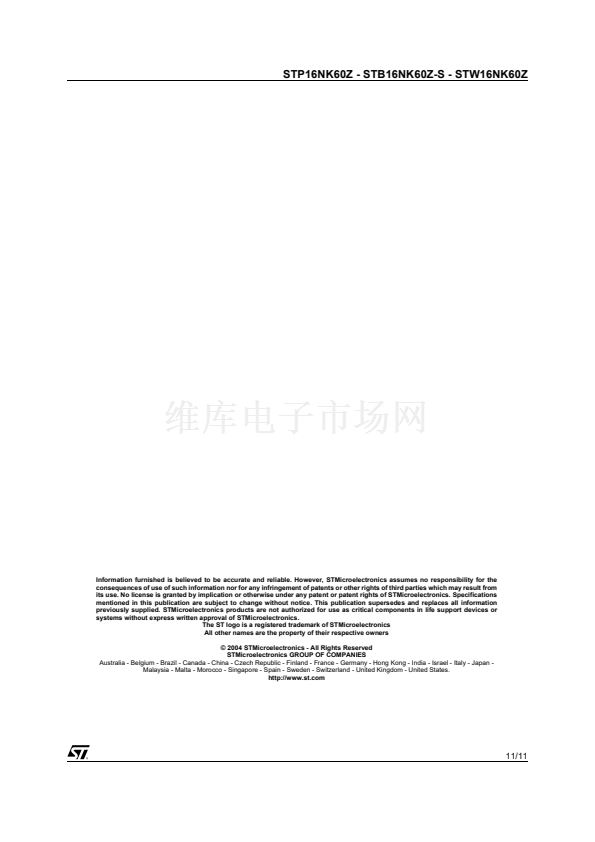

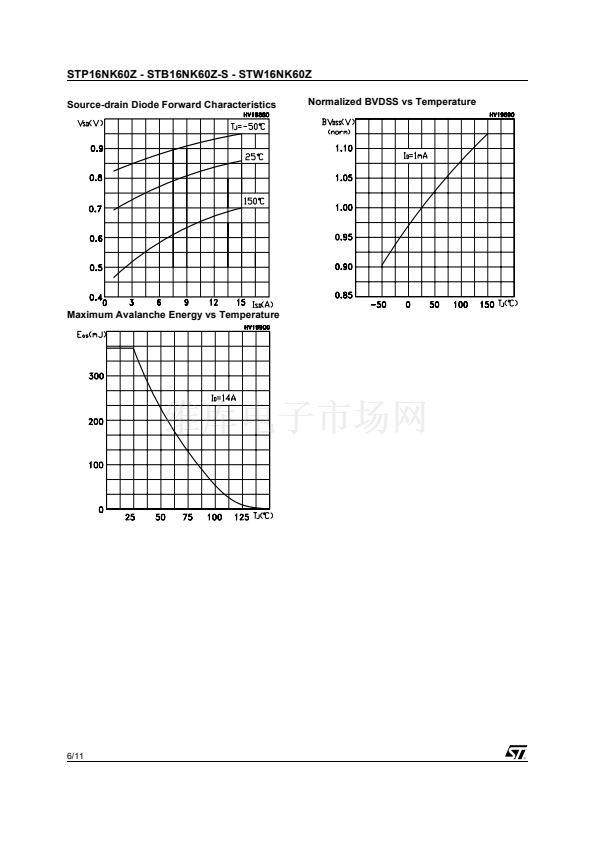

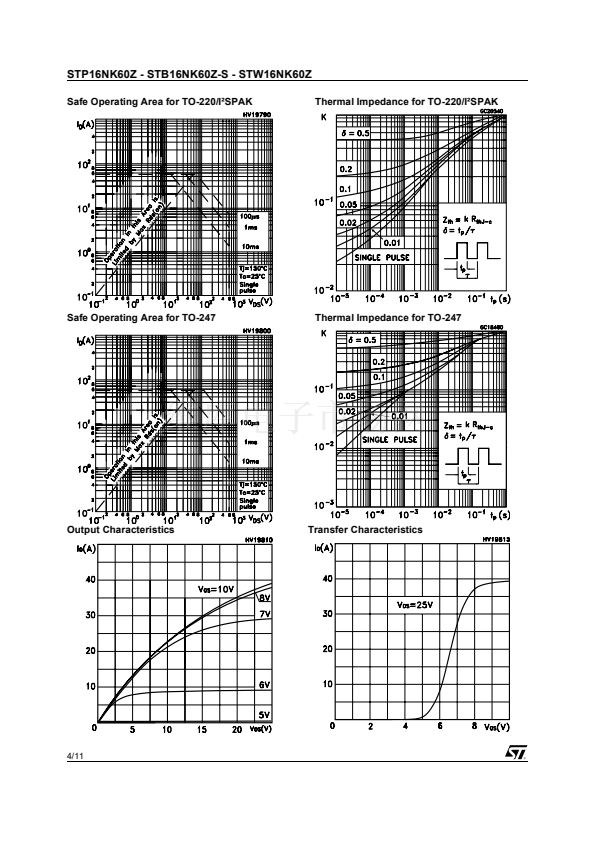

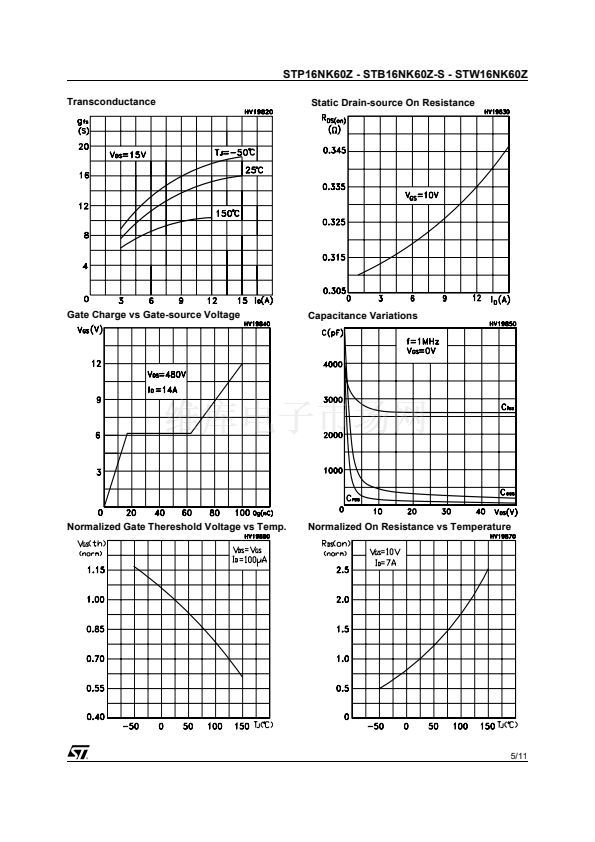

STP16NK60Z - STB16NK60Z-S
STW16NK60Z
N-CHANNEL 600V - 0.38鈩?- 14A TO-220 / I
2
SPAK / TO-247
Zener-Protected SuperMESH鈩?MOSFET
TYPE
STP16NK60Z
STB16NK60Z-S
STW16NK60Z
s
s
s
s
s
s
V
DSS
600 V
600 V
600 V
R
DS(on)
< 0.42
鈩?/div>
< 0.42
鈩?/div>
< 0.42
鈩?/div>
I
D
14 A
14 A
14 A
Pw
190 W
190 W
190 W
3
1
2
TYPICAL R
DS
(on) = 0.38
鈩?/div>
EXTREMELY HIGH dv/dt CAPABILITY
100% AVALANCHE TESTED
GATE CHARGE MINIMIZED
VERY LOW INTRINSIC CAPACITANCES
VERY GOOD MANUFACTURING
REPEATIBILITY
3
12
TO-220
I
2
SPAK
3
2
1
TO-247
DESCRIPTION
The SuperMESH鈩?series is obtained through an
extreme optimization of ST鈥檚 well established strip-
based PowerMESH鈩?layout. In addition to pushing
on-resistance significantly down, special care is tak-
en to ensure a very good dv/dt capability for the
most demanding applications. Such series comple-
ments ST full range of high voltage MOSFETs in-
cluding revolutionary MDmesh鈩?products.
INTERNAL SCHEMATIC DIAGRAM
APPLICATIONS
s
HIGH CURRENT, HIGH SPEED SWITCHING
s
IDEAL FOR OFF-LINE POWER SUPPLIES
ORDER CODE
PART NUMBER
STP16NK60Z
STB16NK60Z-S
STW16NK60Z
MARKING
P16NK60Z
B16NK60Z
W16NK60Z
PACKAGE
TO-220
I
2
SPAK
TO-247
PACKAGING
TUBE
TUBE
TUBE
March 2004
1/11
