STA323W_06 Datasheet

  • STA323W_06

  • 2.1 high efficiency digital audio system

  • 813.27KB

  • 71頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

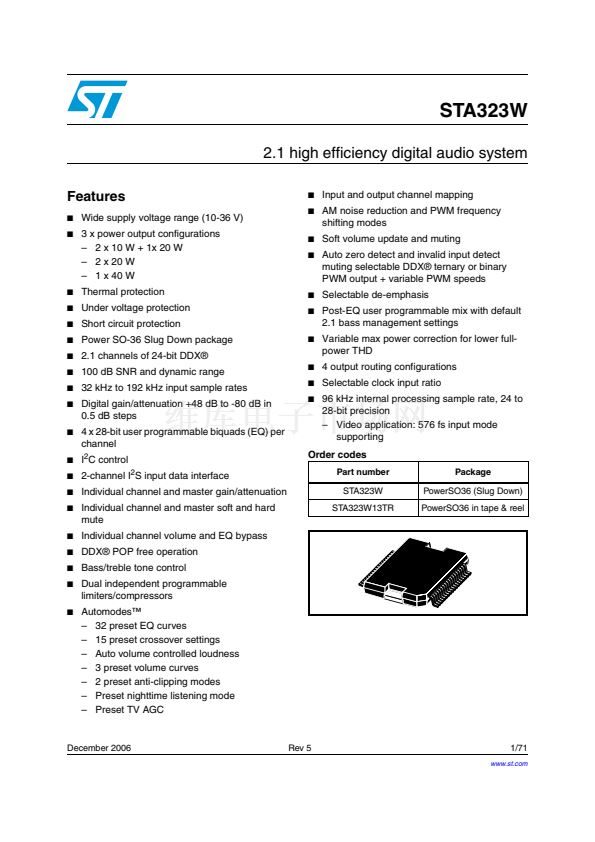

STA323W
2.1 high efficiency digital audio system
Features
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
Input and output channel mapping
AM noise reduction and PWM frequency
shifting modes
Soft volume update and muting
Auto zero detect and invalid input detect
muting selectable DDX廬 ternary or binary
PWM output + variable PWM speeds
Selectable de-emphasis
Post-EQ user programmable mix with default
2.1 bass management settings

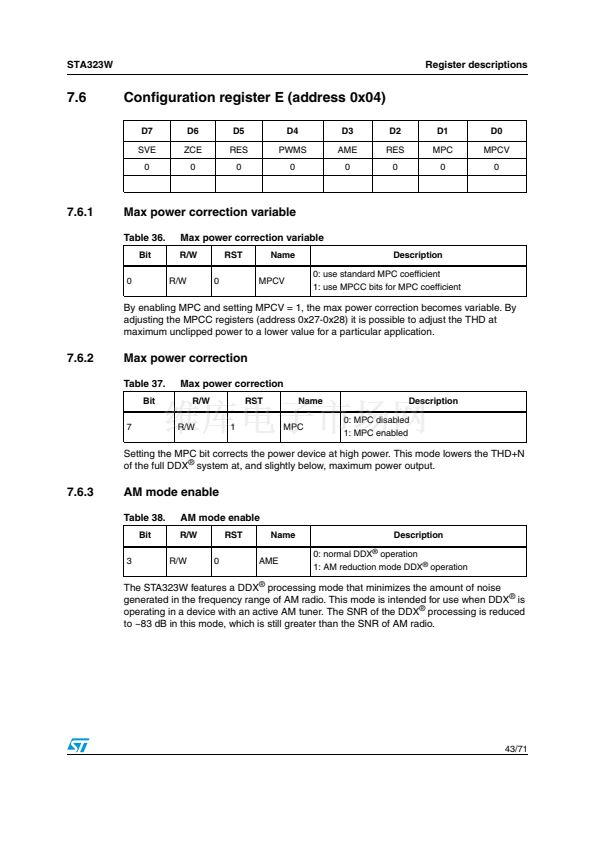

Variable max power correction for lower full-
power THD
4 output routing configurations
Selectable clock input ratio
96 kHz internal processing sample rate, 24 to
28-bit precision
鈥?Video application: 576 fs input mode
supporting
Wide supply voltage range (10-36 V)

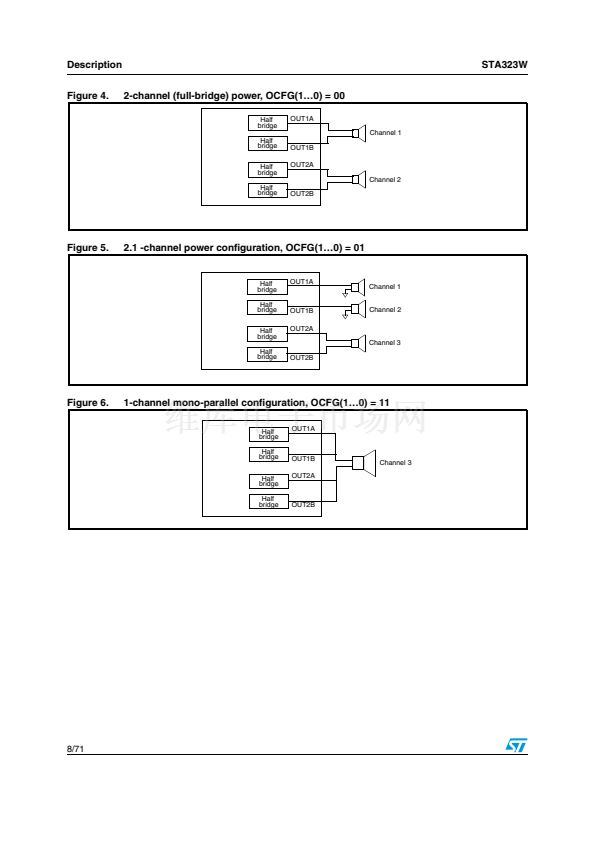

3 x power output configurations
鈥?2 x 10 W + 1x 20 W
鈥?2 x 20 W
鈥?1 x 40 W
Thermal protection
Under voltage protection
Short circuit protection

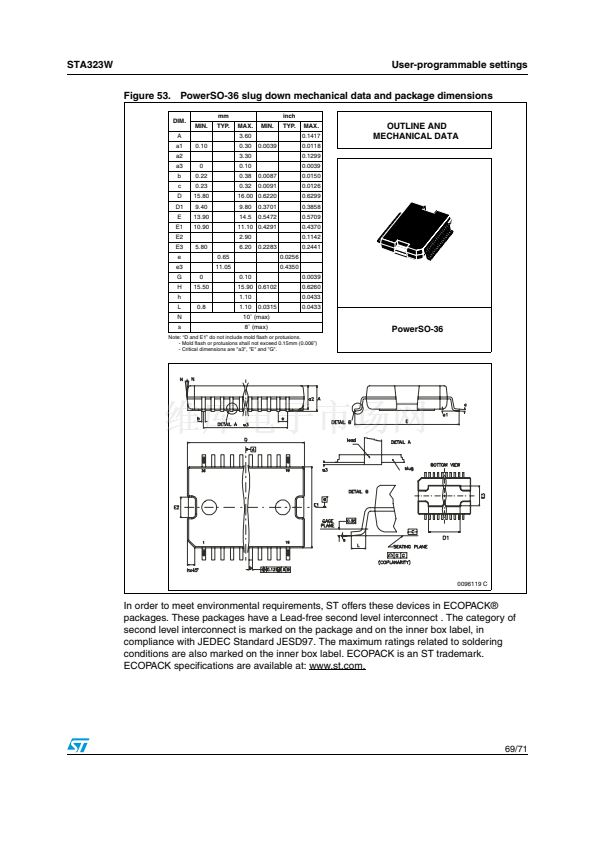

Power SO-36 Slug Down package
2.1 channels of 24-bit DDX廬
100 dB SNR and dynamic range
32 kHz to 192 kHz input sample rates
Digital gain/attenuation +48 dB to -80 dB in
0.5 dB steps
4 x 28-bit user programmable biquads (EQ) per
channel

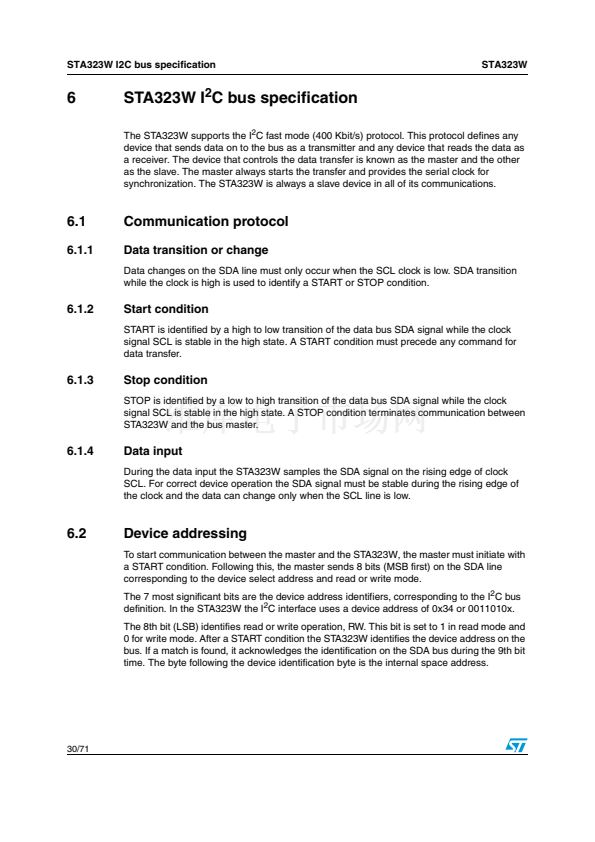

I
2
C control

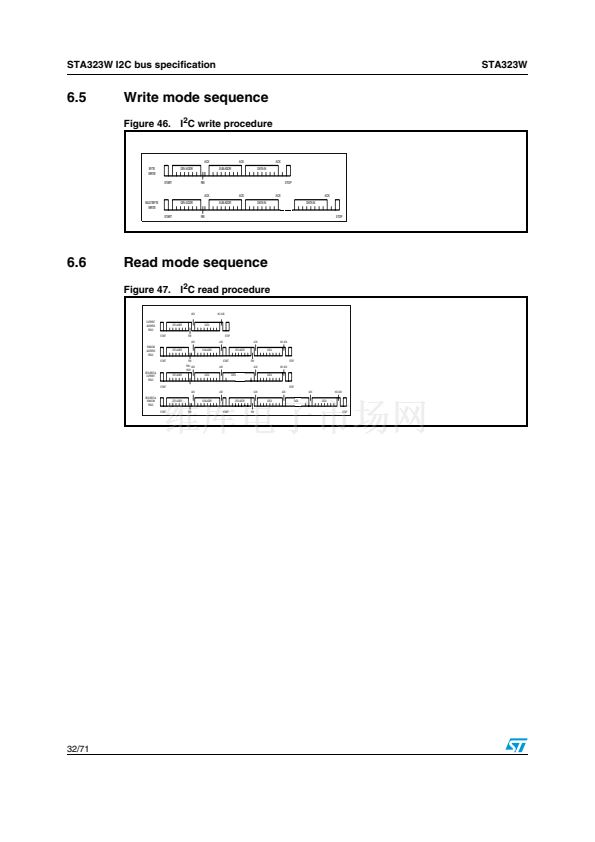

2-channel I
2
S input data interface
Individual channel and master gain/attenuation
Individual channel and master soft and hard
mute
Individual channel volume and EQ bypass
DDX廬 POP free operation
Bass/treble tone control
Dual independent programmable
limiters/compressors
Automodes鈩?/div>

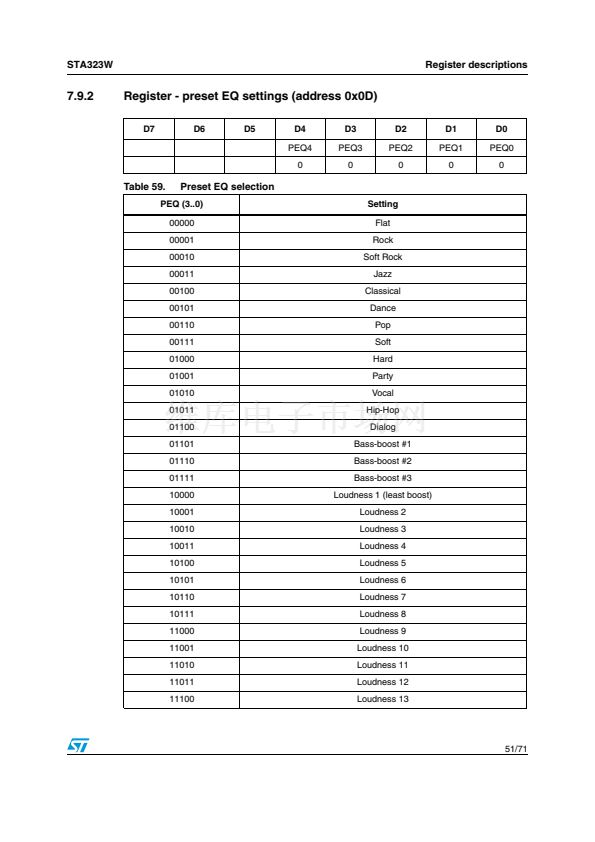

鈥?32 preset EQ curves
鈥?15 preset crossover settings
鈥?Auto volume controlled loudness
鈥?3 preset volume curves
鈥?2 preset anti-clipping modes
鈥?Preset nighttime listening mode
鈥?Preset TV AGC
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
鈻?/div>
Order codes
Part number
STA323W
STA323W13TR
Package
PowerSO36 (Slug Down)
PowerSO36 in tape & reel
December 2006
Rev 5
1/71
www.st.com
1
