STA310 Datasheet

  • STA310

  • 6+2-CH. MULTISTANDARD AUDIO DECODER

  • 90頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

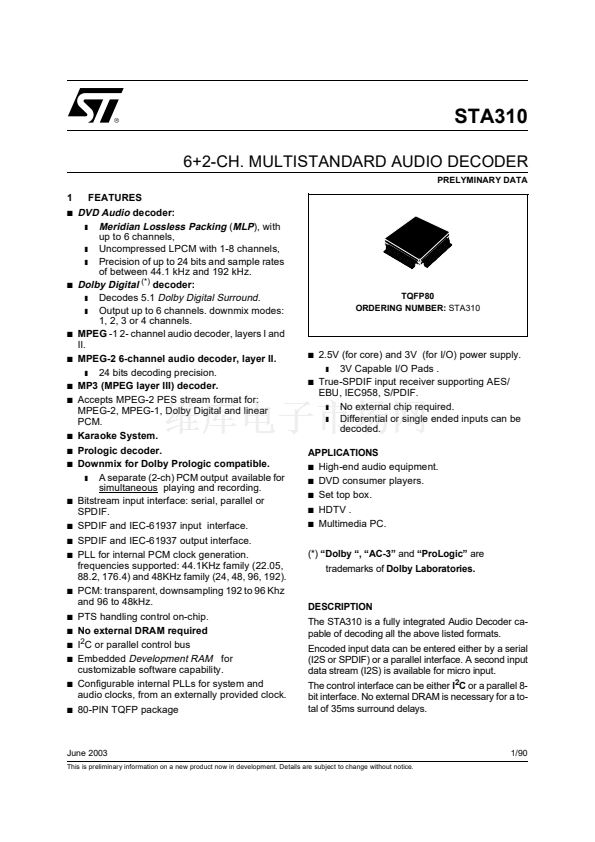

STA310
6+2-CH. MULTISTANDARD AUDIO DECODER
PRELYMINARY DATA
1
s
FEATURES
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
DVD Audio
decoder:
聞
Meridian Lossless Packing
(
MLP
), with
up to 6 channels,
聞
Uncompressed LPCM with 1-8 channels,
聞
Precision of up to 24 bits and sample rates
of between 44.1 kHz and 192 kHz.
Dolby Digital
(*)
decoder:
聞
Decodes 5.1
Dolby Digital Surround.
聞
Output up to 6 channels. downmix modes:
1, 2, 3 or 4 channels.
MPEG
-1 2- channel audio decoder, layers I and
II.
MPEG-2 6-channel audio decoder, layer II.
聞
24 bits decoding precision.
MP3 (MPEG layer III) decoder.
Accepts MPEG-2 PES stream format for:
MPEG-2, MPEG-1, Dolby Digital and linear
PCM.
Karaoke System.
Prologic decoder.
Downmix for Dolby Prologic compatible.
聞
A separate (2-ch) PCM output available for
simultaneous playing and recording.
Bitstream input interface: serial, parallel or
SPDIF.
SPDIF and IEC-61937 input interface.
SPDIF and IEC-61937 output interface.
PLL for internal PCM clock generation.
frequencies supported: 44.1KHz family (22.05,
88.2, 176.4) and 48KHz family (24, 48, 96, 192).
PCM: transparent, downsampling 192 to 96 Khz
and 96 to 48kHz.
PTS handling control on-chip.
No external DRAM required
I
2
C or parallel control bus
Embedded
Development RAM
for
customizable software capability.
Configurable internal PLLs for system and
audio clocks, from an externally provided clock.
80-PIN TQFP package
TQFP80
ORDERING NUMBER:
STA310
s
s
2.5V (for core) and 3V (for I/O) power supply.
聞
3V Capable I/O Pads .
True-SPDIF input receiver supporting AES/
EBU, IEC958, S/PDIF.
聞
No external chip required.
聞
Differential or single ended inputs can be
decoded.
APPLICATIONS
s
High-end audio equipment.
s
DVD consumer players.
s
Set top box.
s
HDTV .
s
Multimedia PC.
(*)
鈥淒olby 鈥? 鈥淎C-3鈥?/div>
and
鈥淧roLogic鈥?/div>
are
trademarks of
Dolby Laboratories.
DESCRIPTION
The STA310 is a fully integrated Audio Decoder ca-
pable of decoding all the above listed formats.
Encoded input data can be entered either by a serial
(I2S or SPDIF) or a parallel interface. A second input
data stream (I2S) is available for micro input.
The control interface can be either
I
2
C
or a parallel 8-
bit interface. No external DRAM is necessary for a to-
tal of 35ms surround delays.
June 2003
This is preliminary information on a new product now in development. Details are subject to change without notice.
1/90
