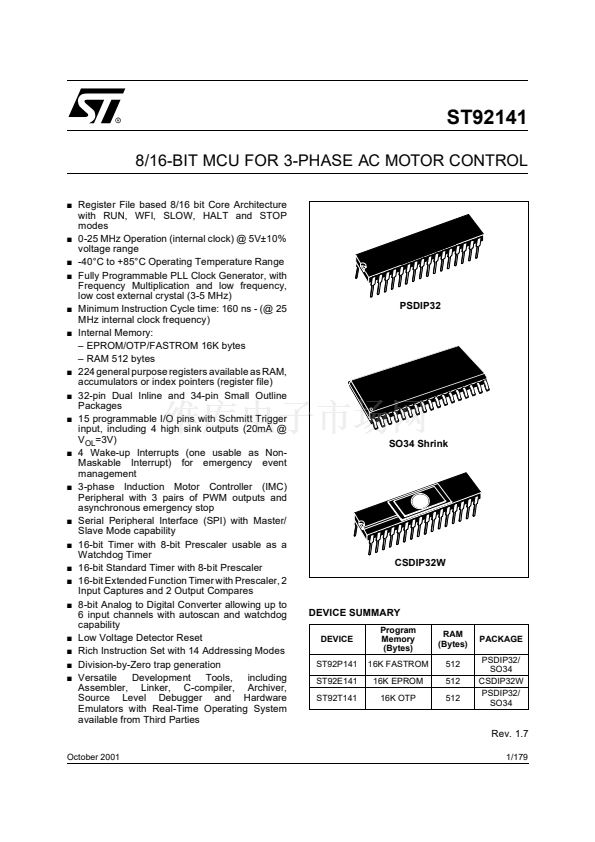

ST92141

8/16-BIT MCU FOR 3-PHASE AC MOTOR CONTROL

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

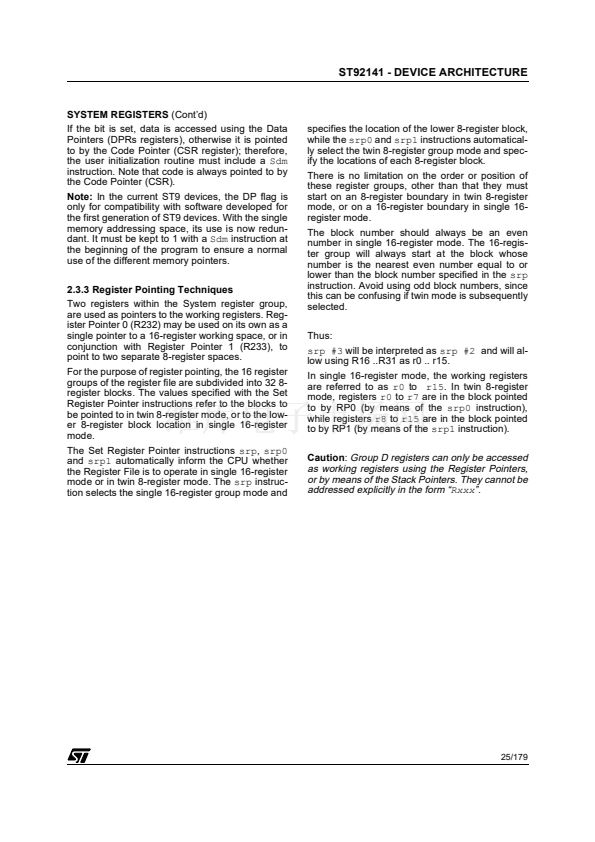

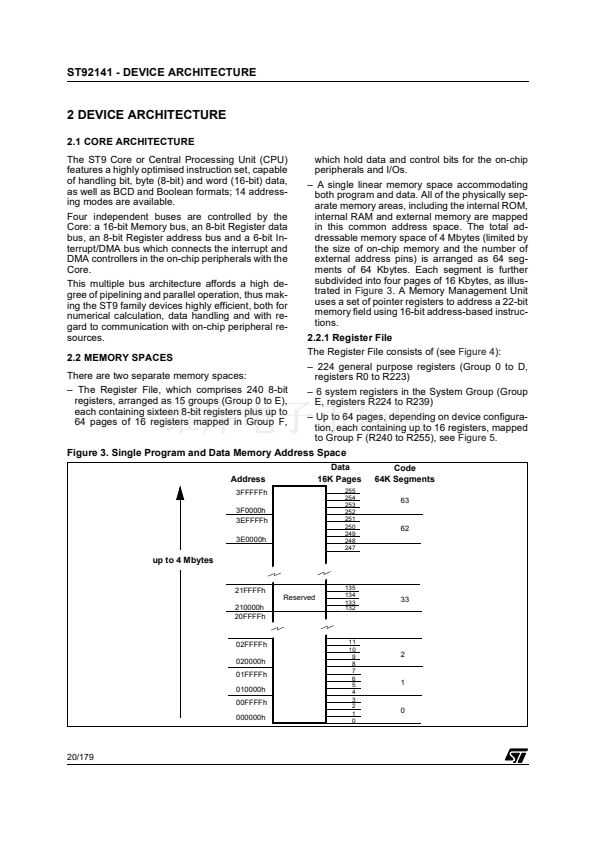

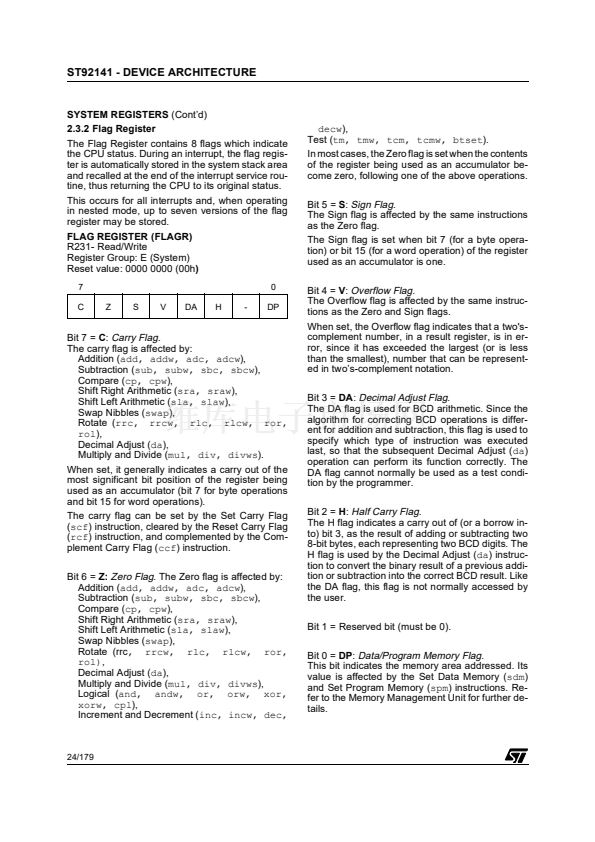

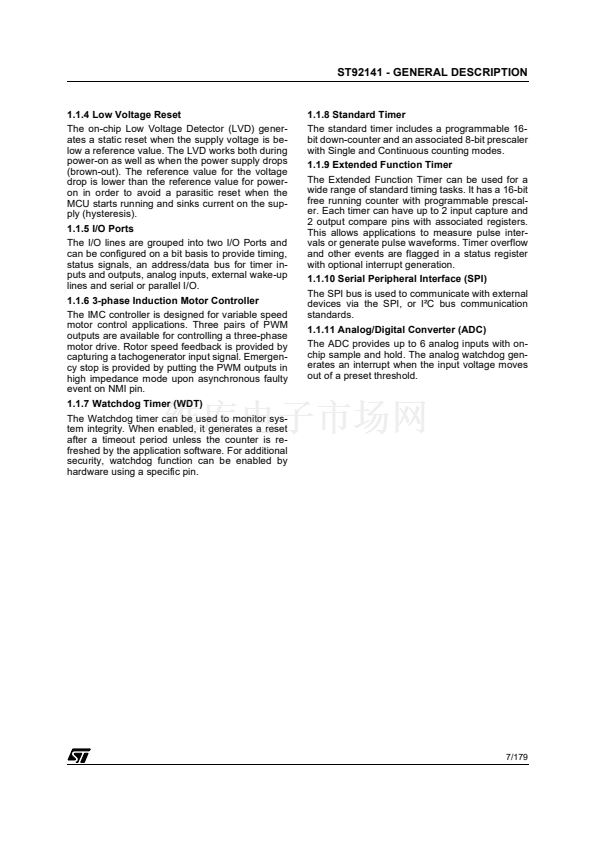

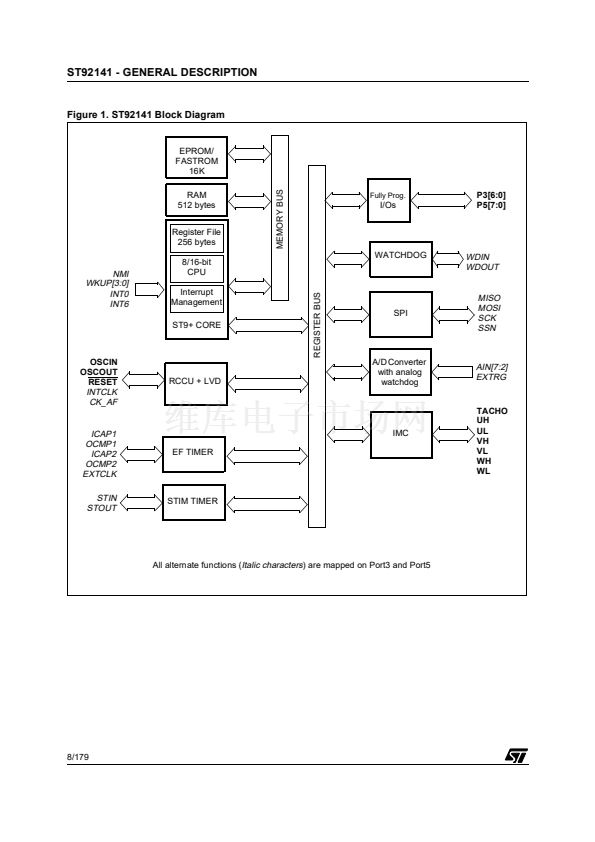

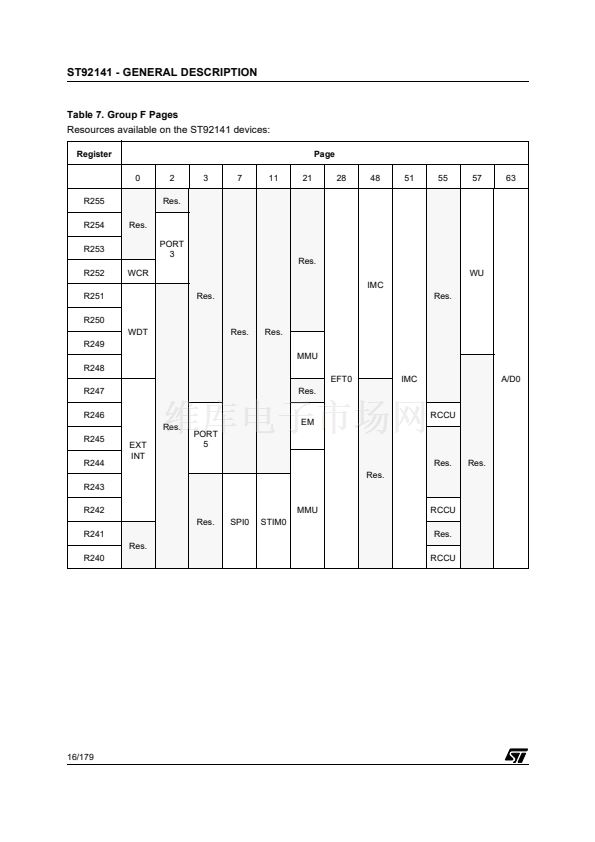

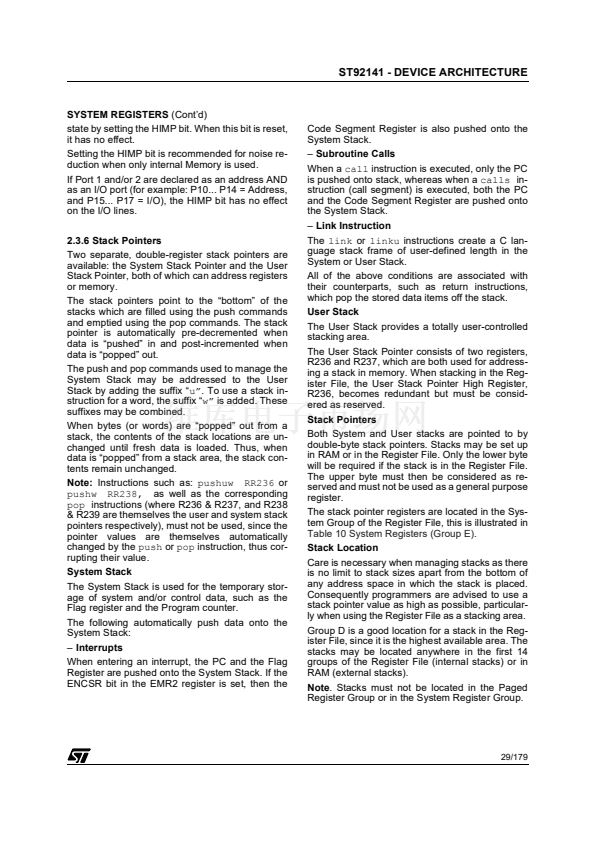

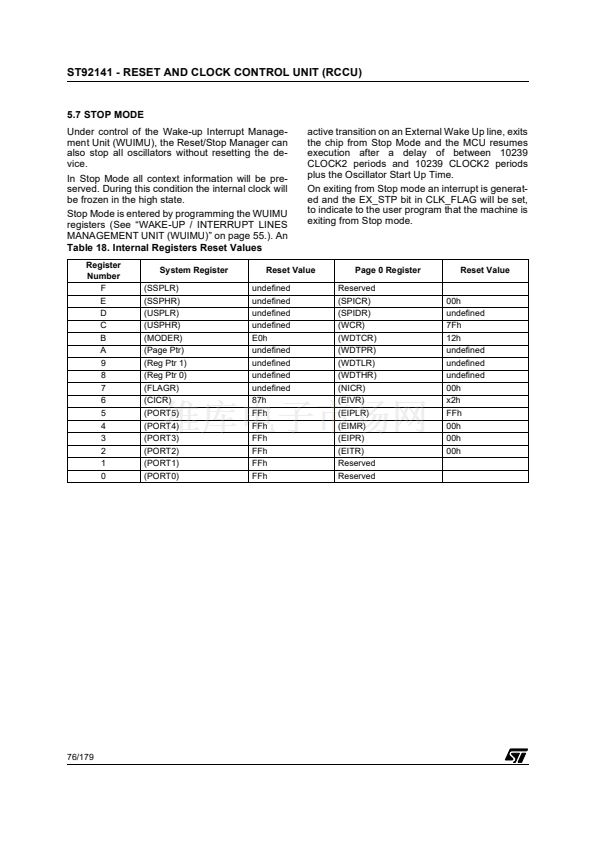

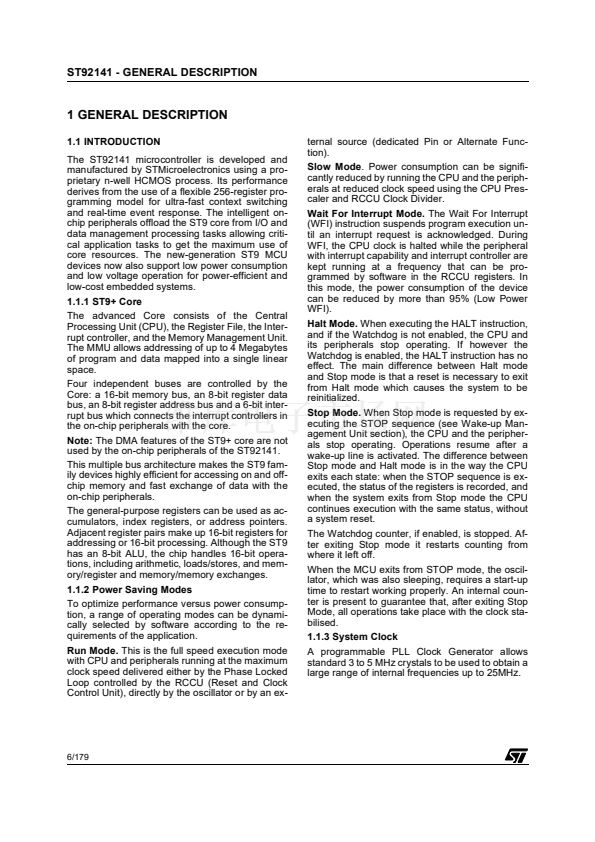

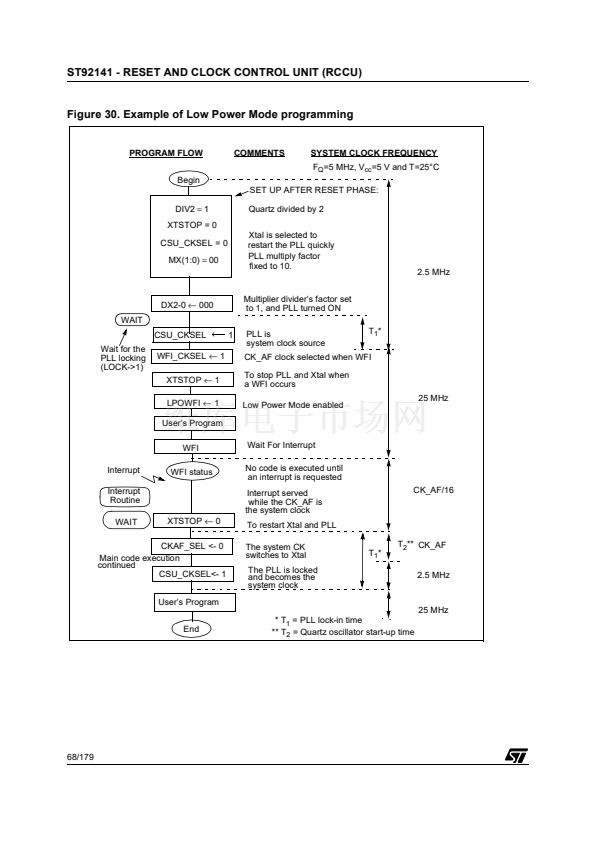

Register File based 8/16 bit Core Architecture

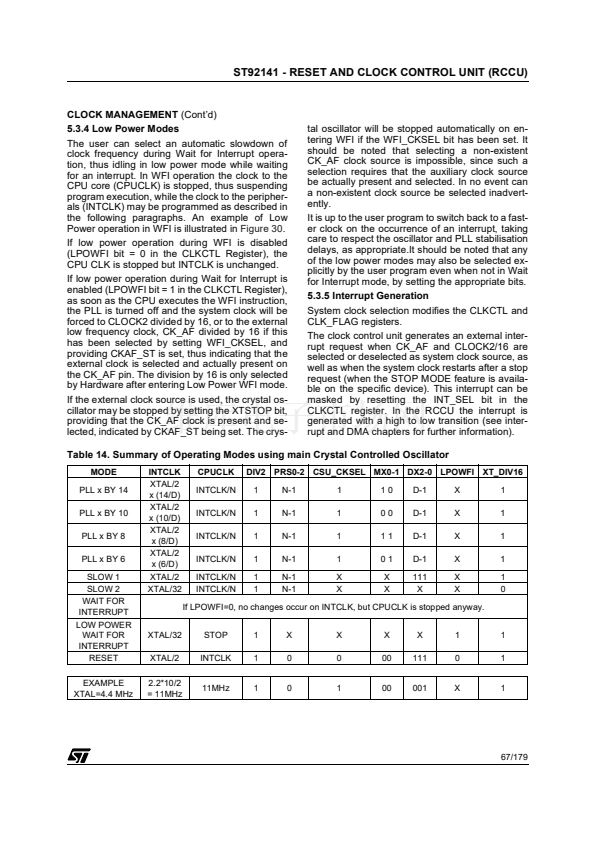

with RUN, WFI, SLOW, HALT and STOP

modes

0-25 MHz Operation (internal clock) @ 5V鹵10%

voltage range

-40擄C to +85擄C Operating Temperature Range

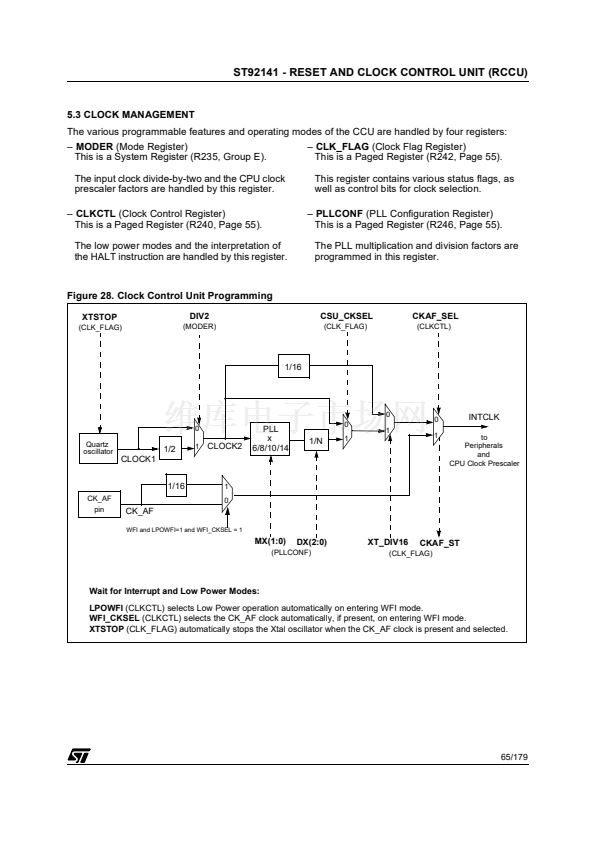

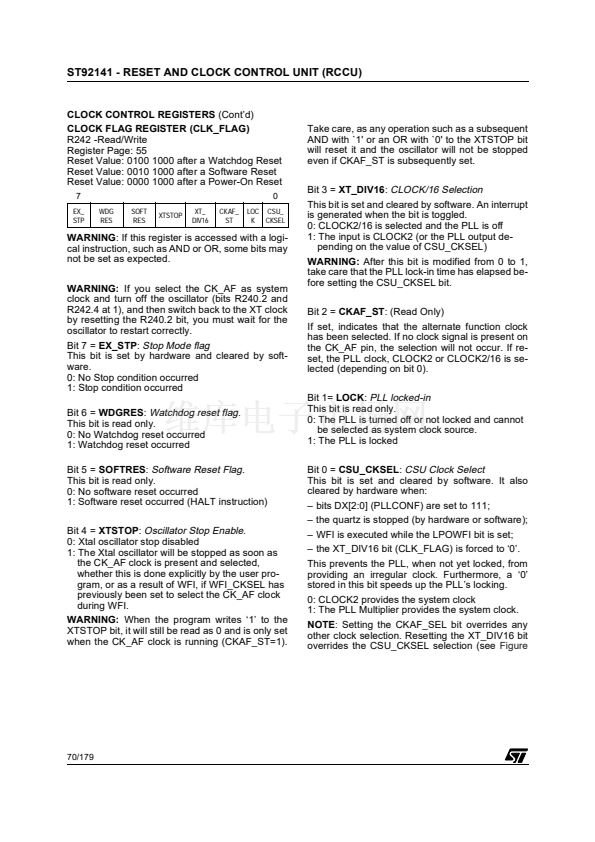

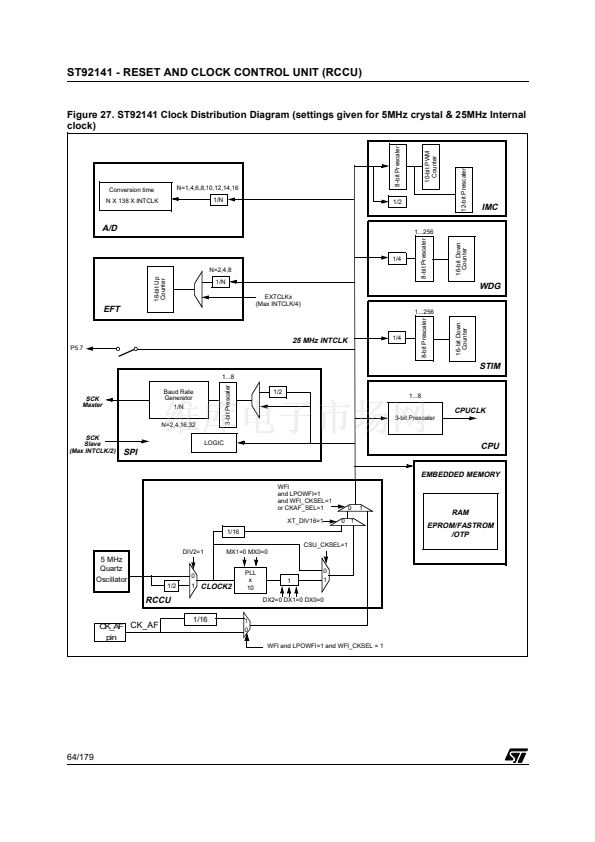

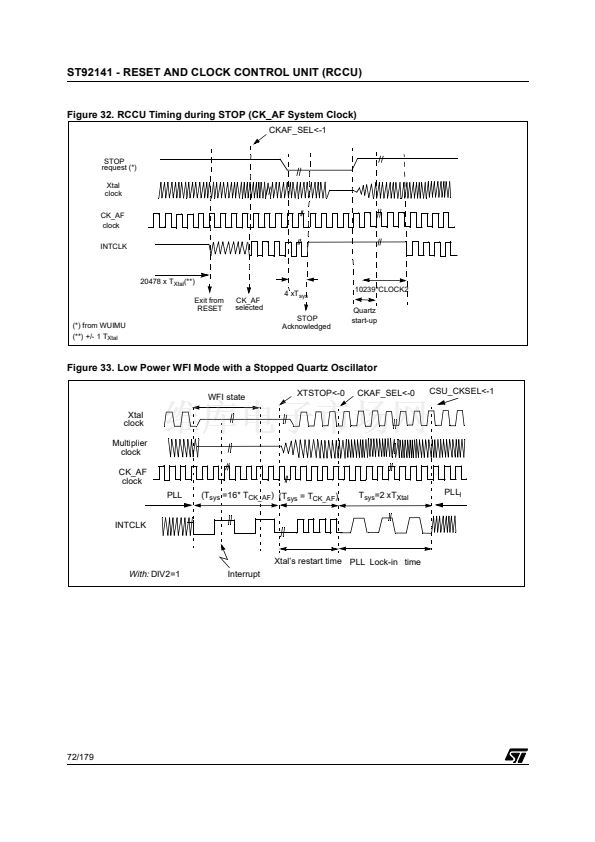

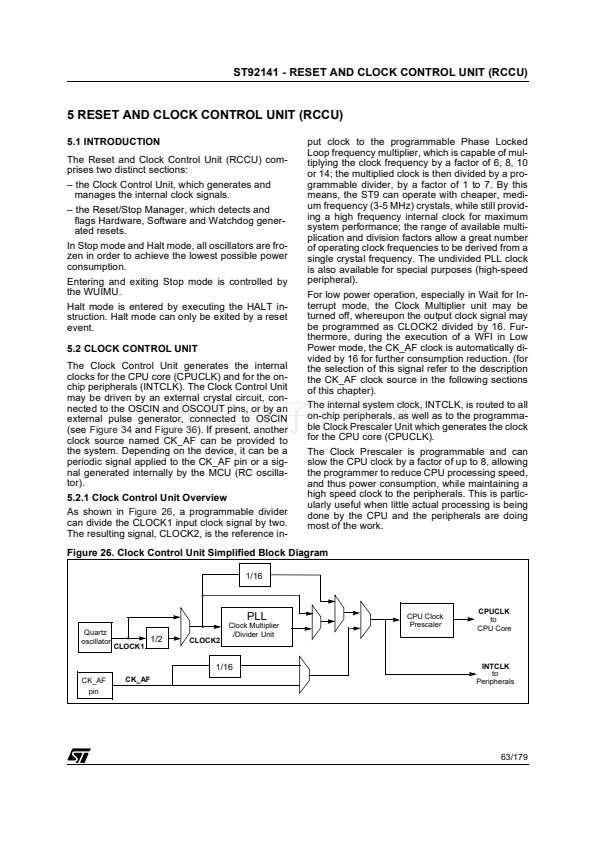

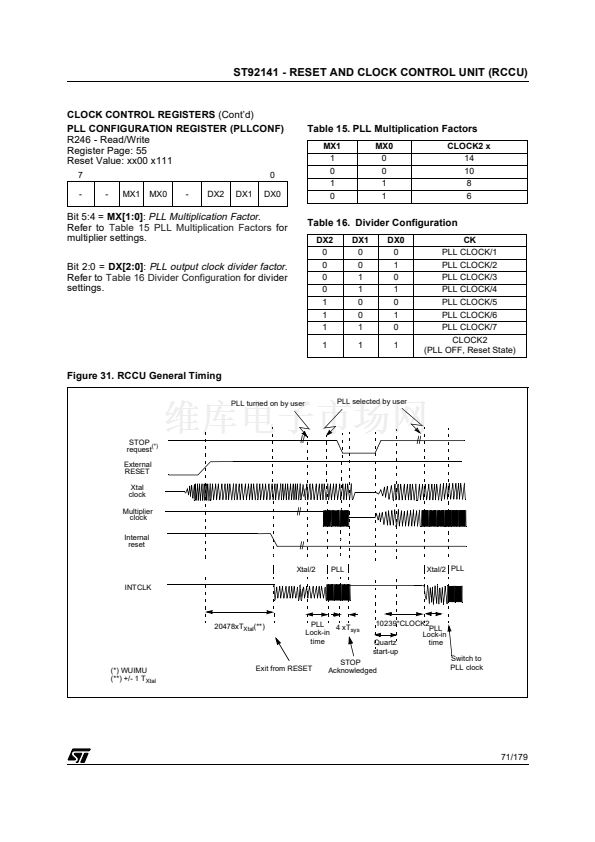

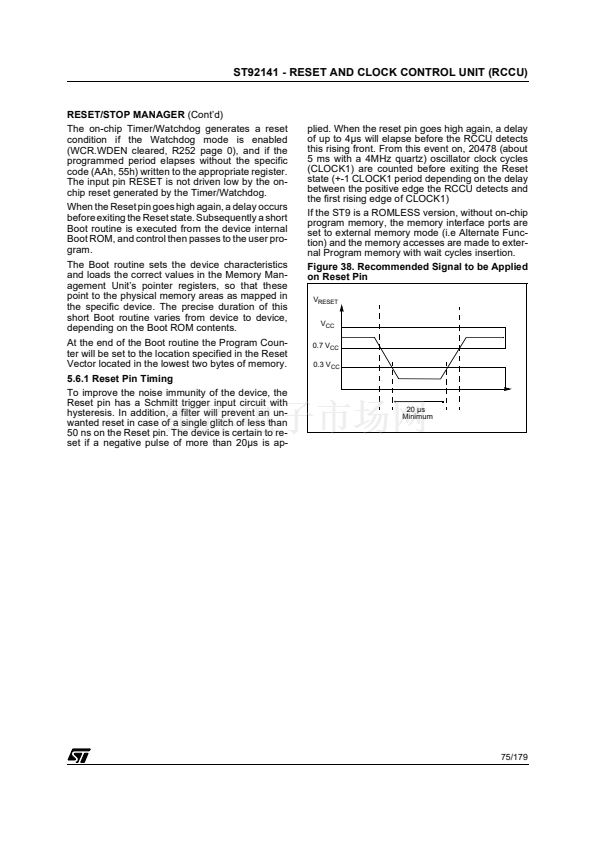

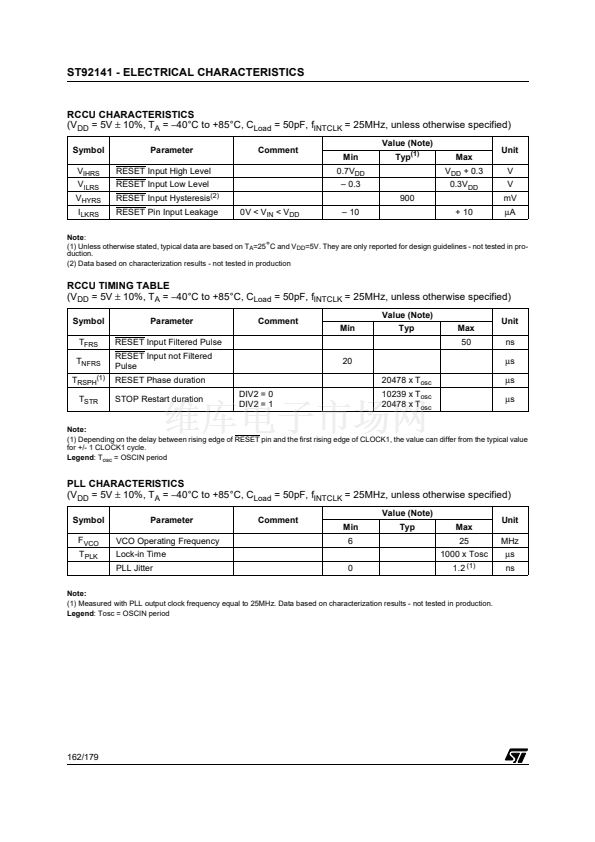

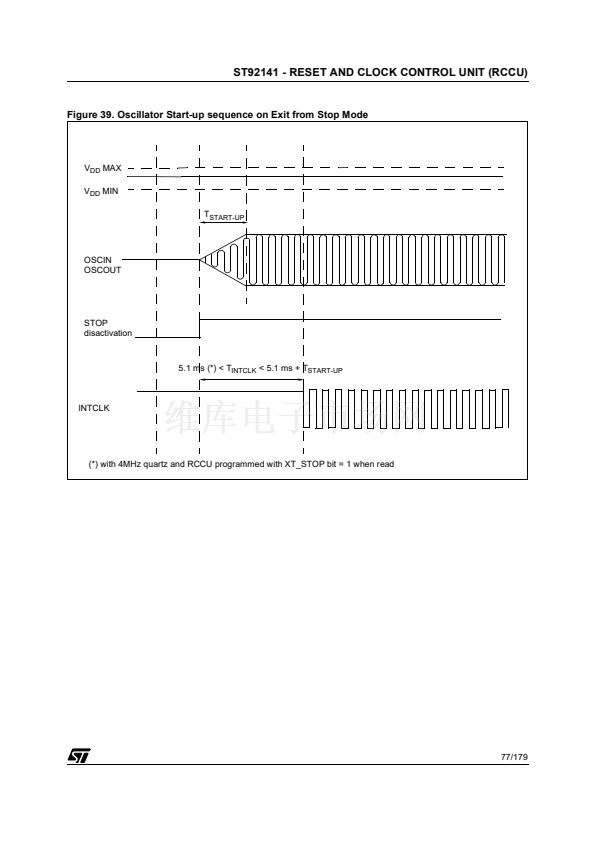

Fully Programmable PLL Clock Generator, with

Frequency Multiplication and low frequency,

low cost external crystal (3-5 MHz)

Minimum Instruction Cycle time: 160 ns - (@ 25

MHz internal clock frequency)

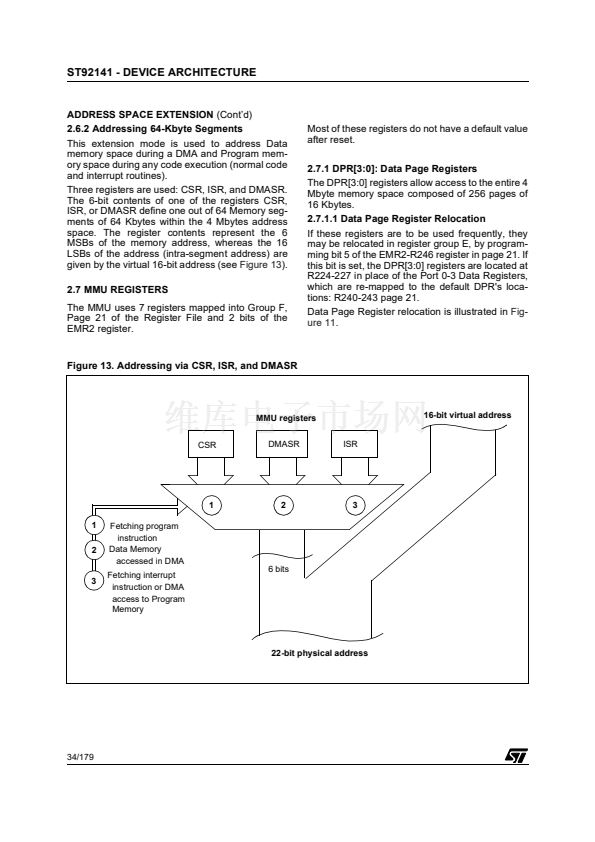

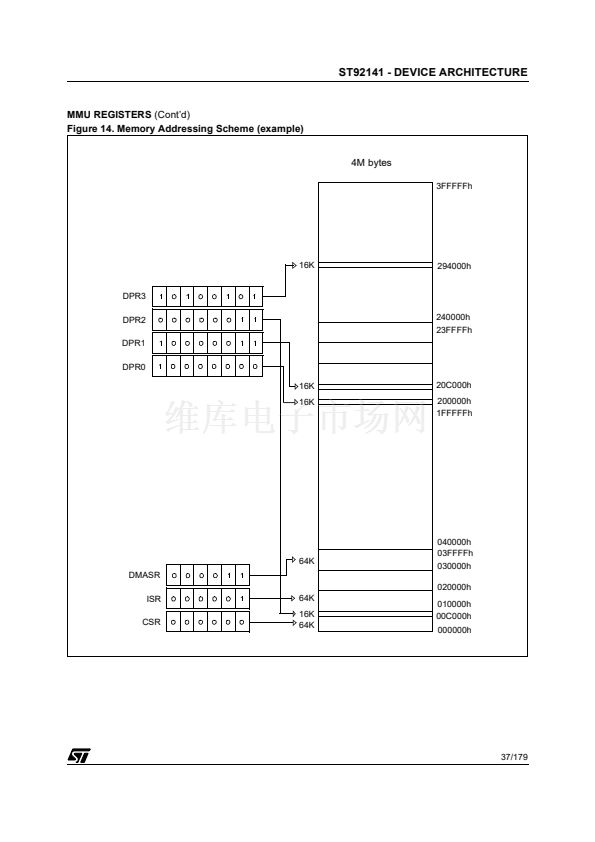

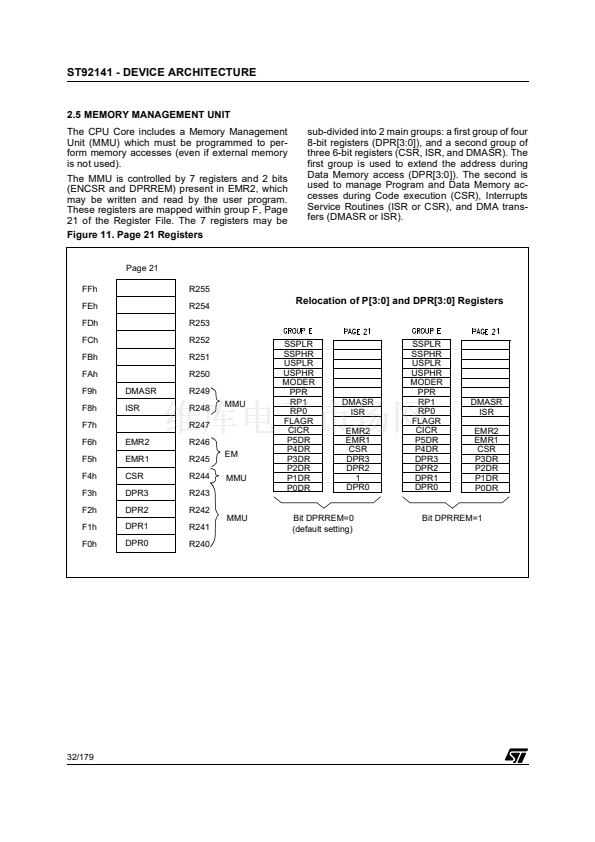

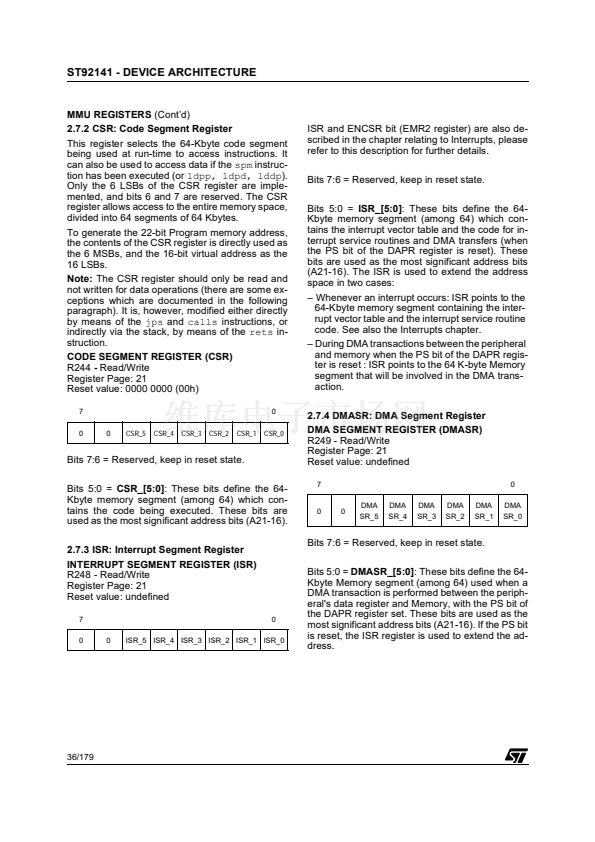

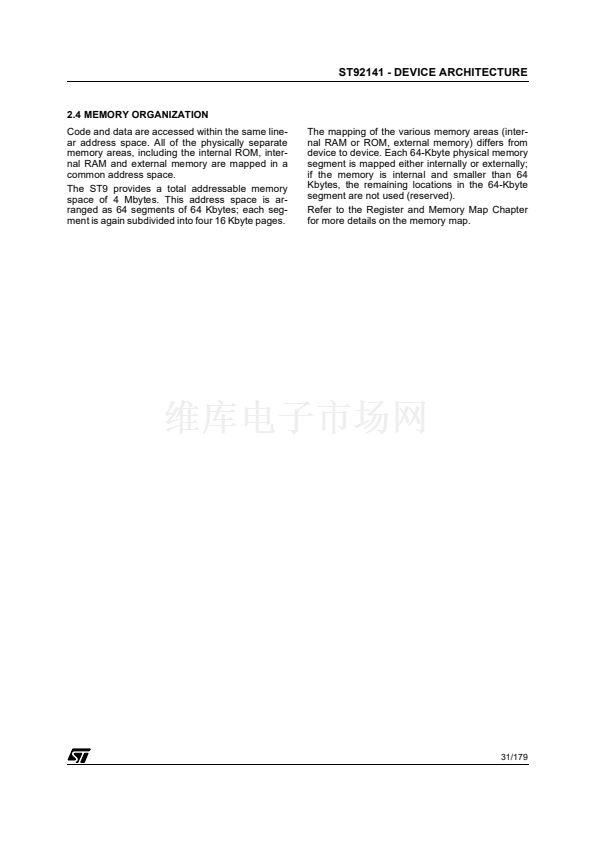

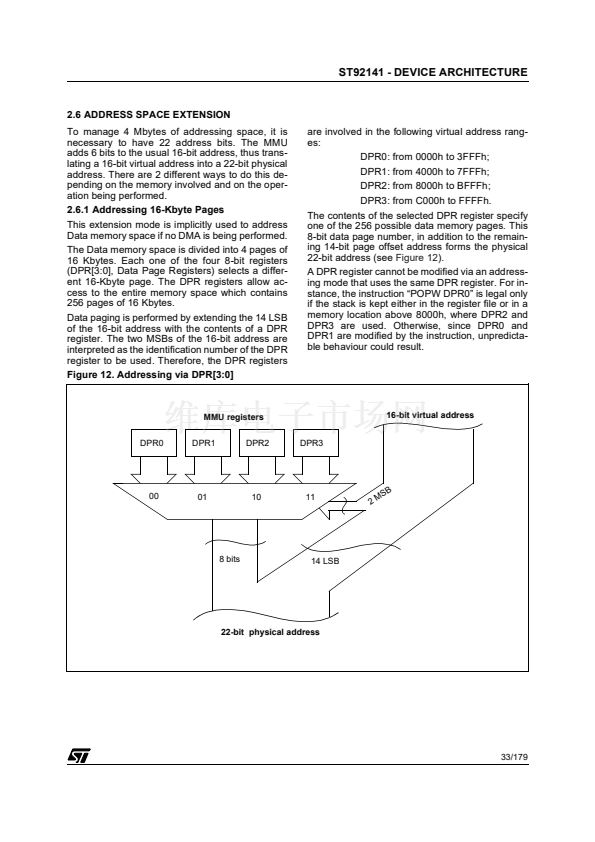

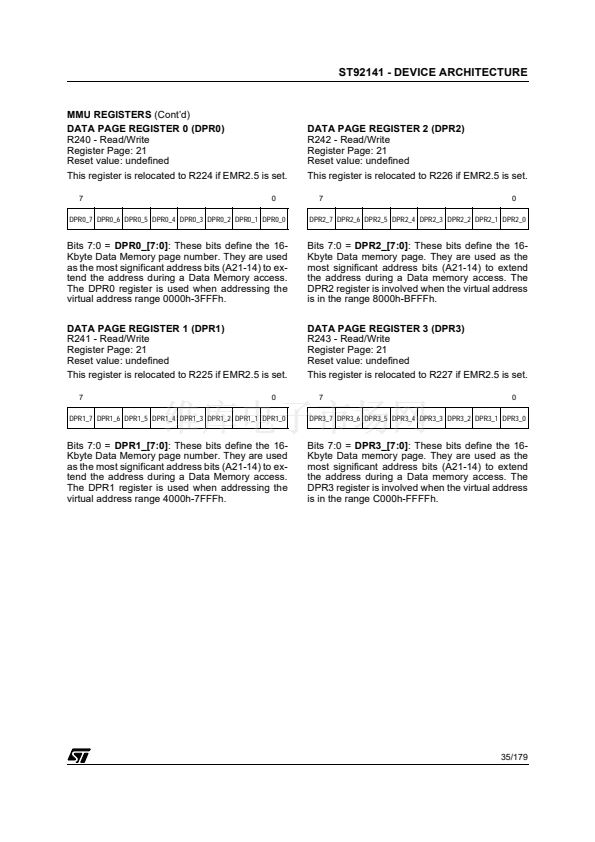

Internal Memory:

鈥?EPROM/OTP/FASTROM 16K bytes

鈥?RAM 512 bytes

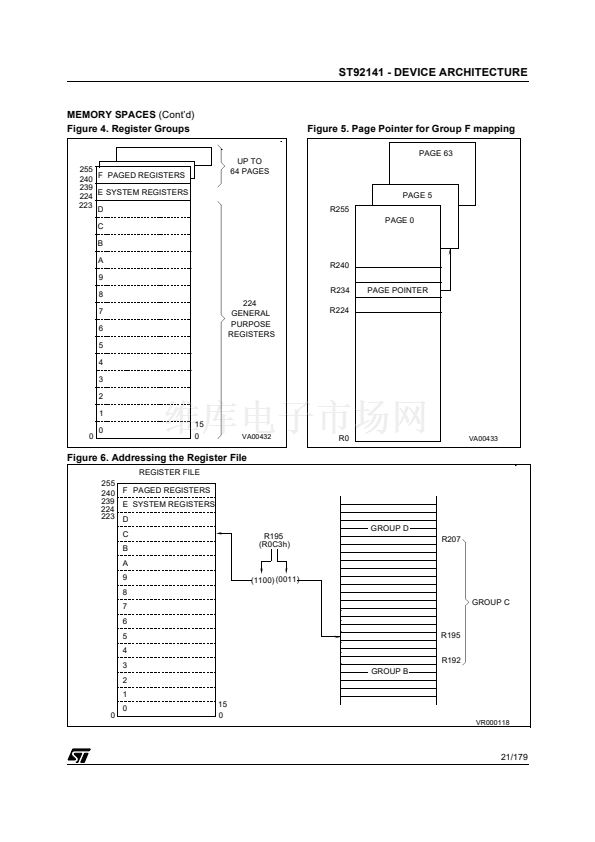

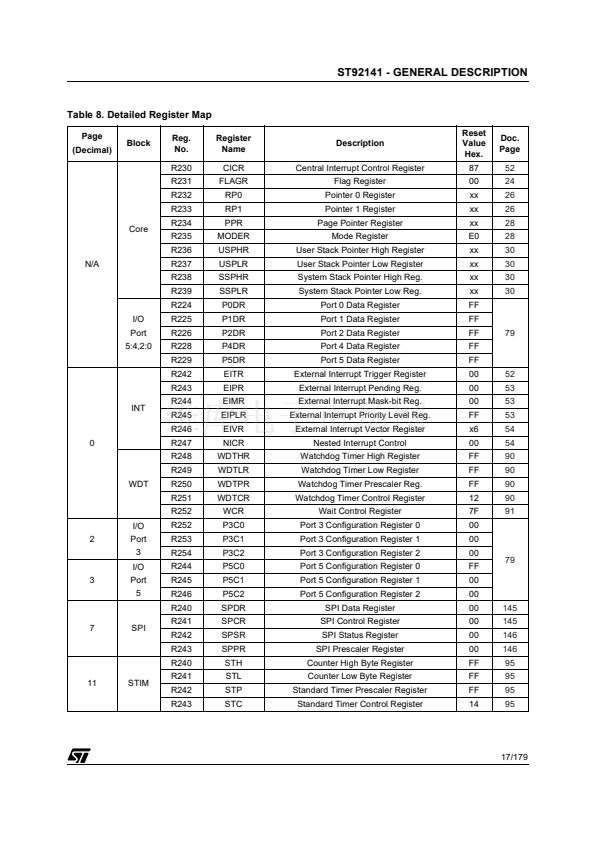

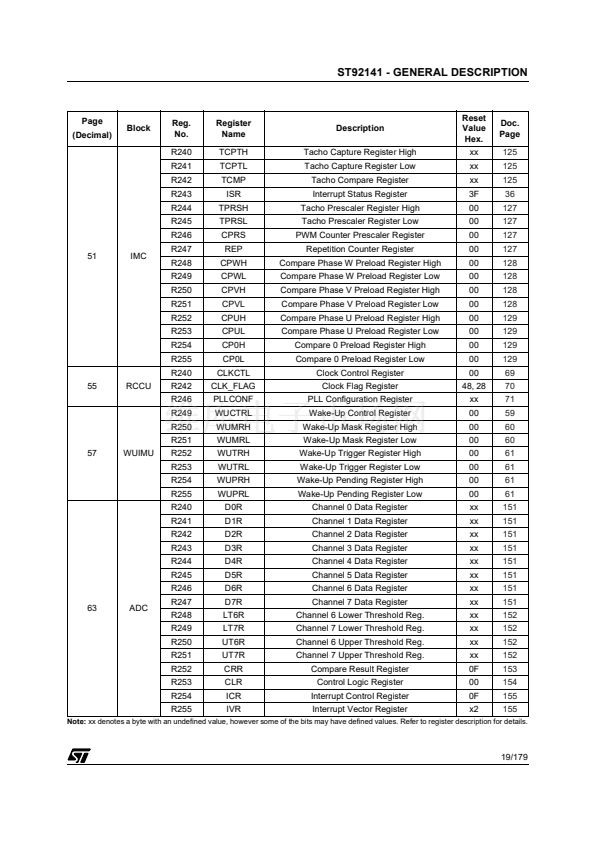

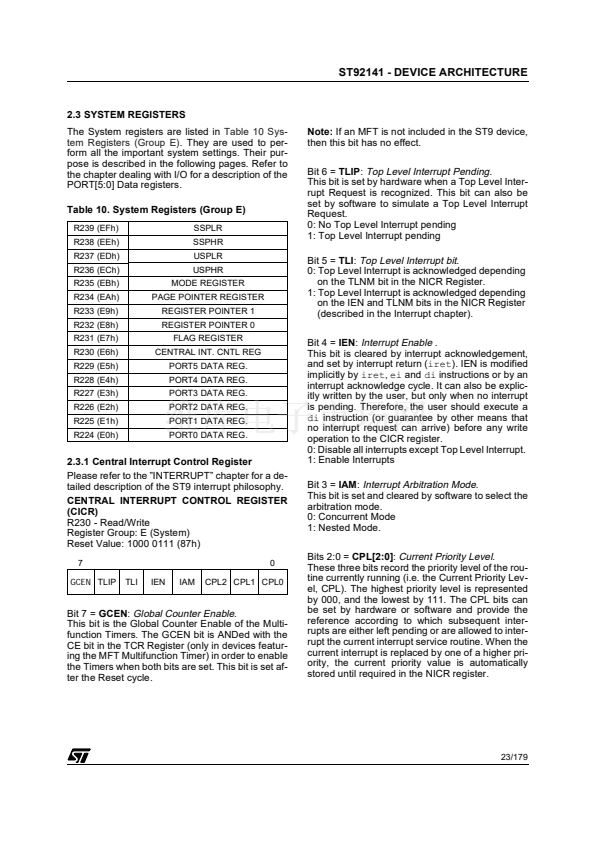

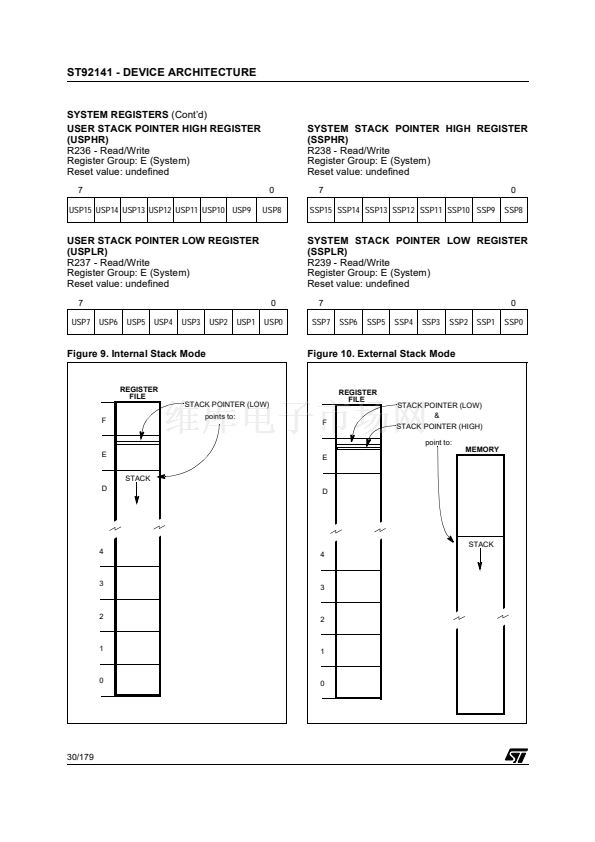

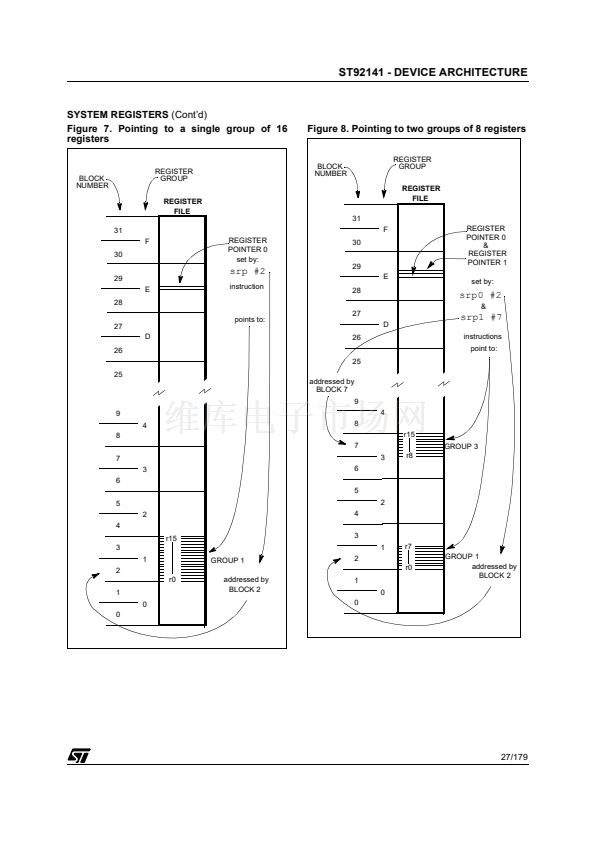

224 general purpose registers available as RAM,

accumulators or index pointers (register file)

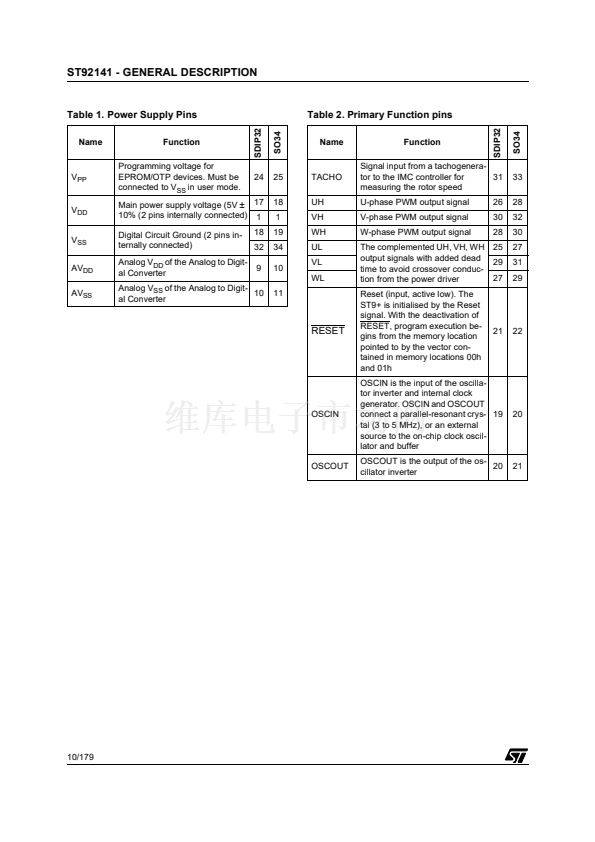

32-pin Dual Inline and 34-pin Small Outline

Packages

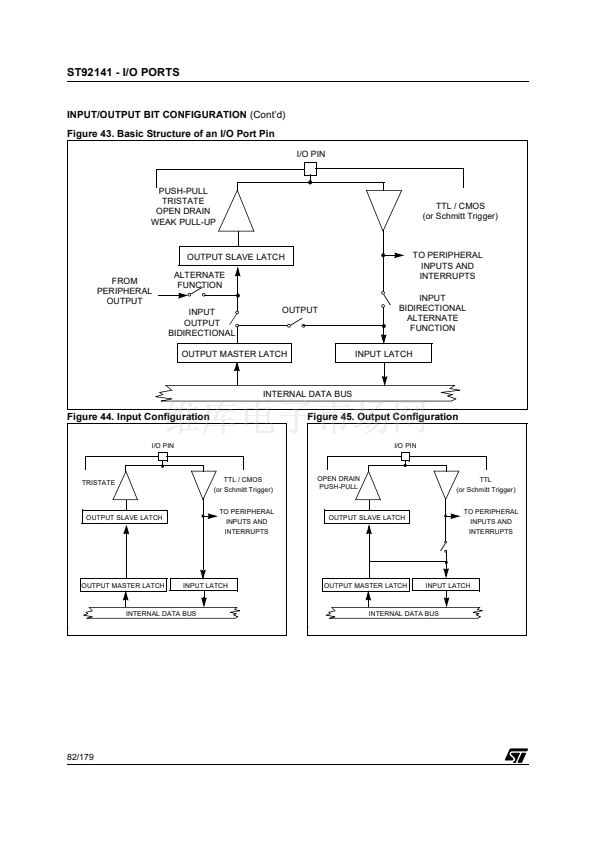

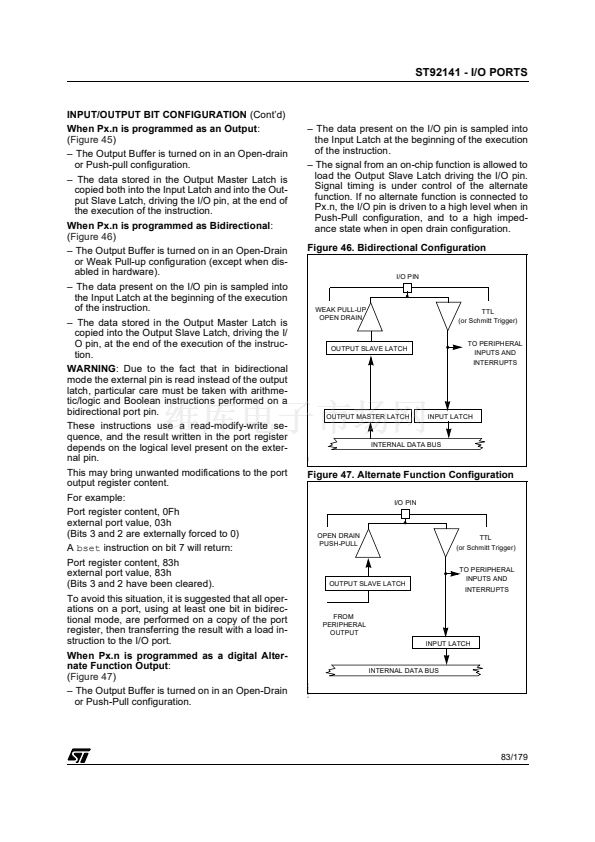

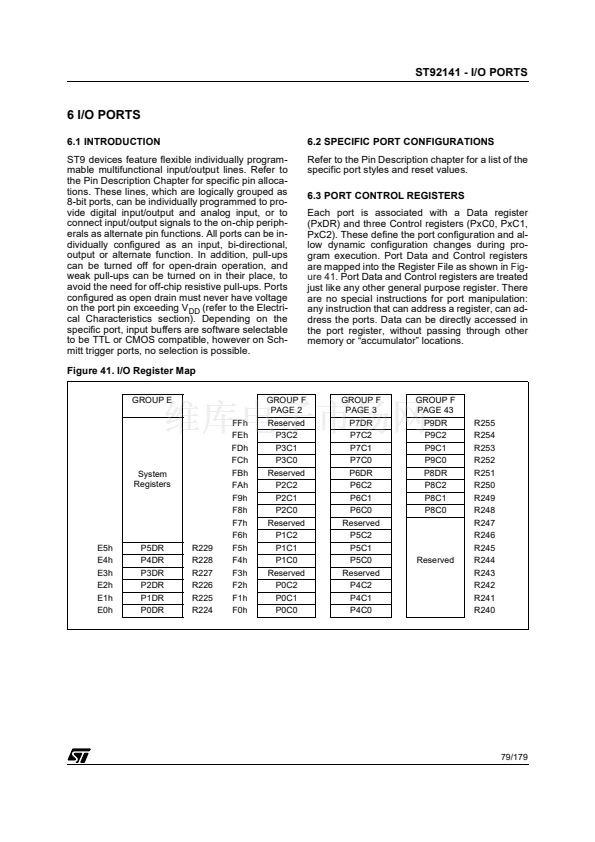

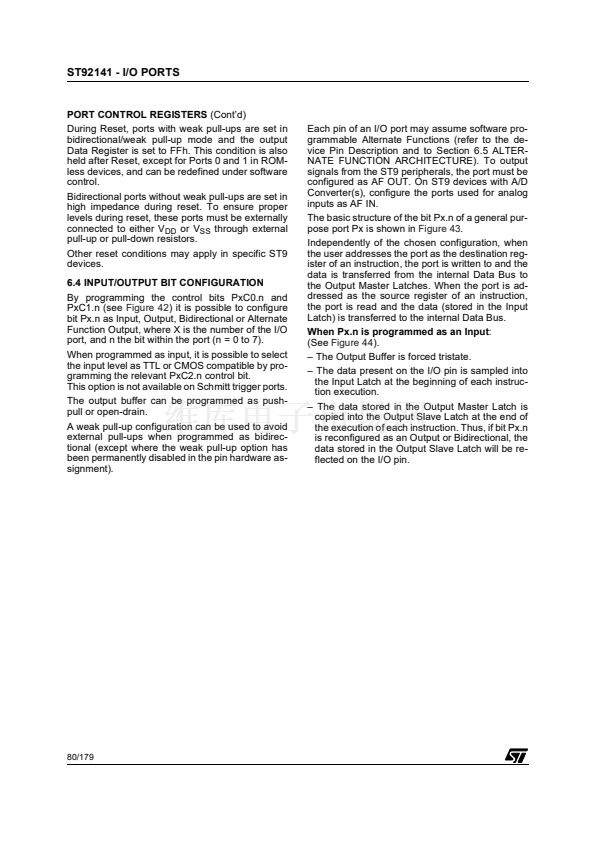

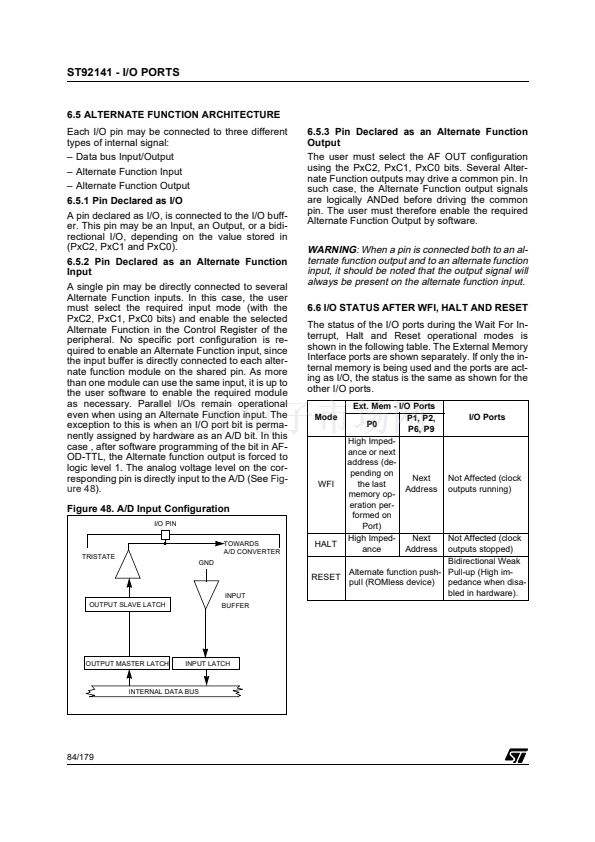

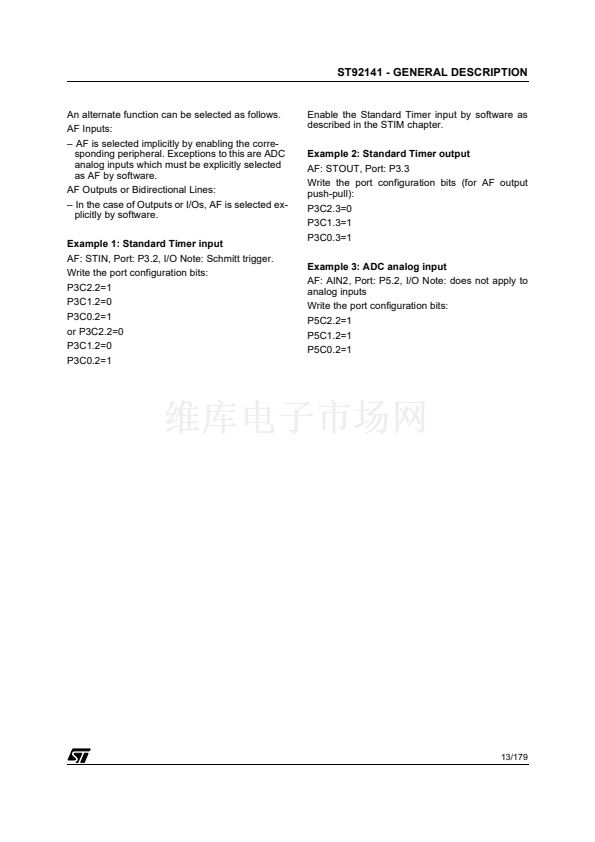

15 programmable I/O pins with Schmitt Trigger

input, including 4 high sink outputs (20mA @

V

OL

=3V)

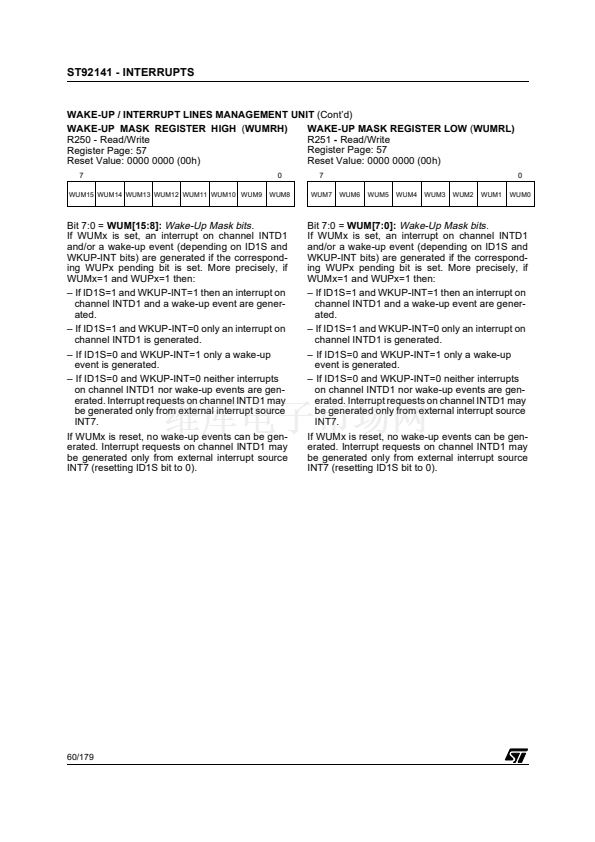

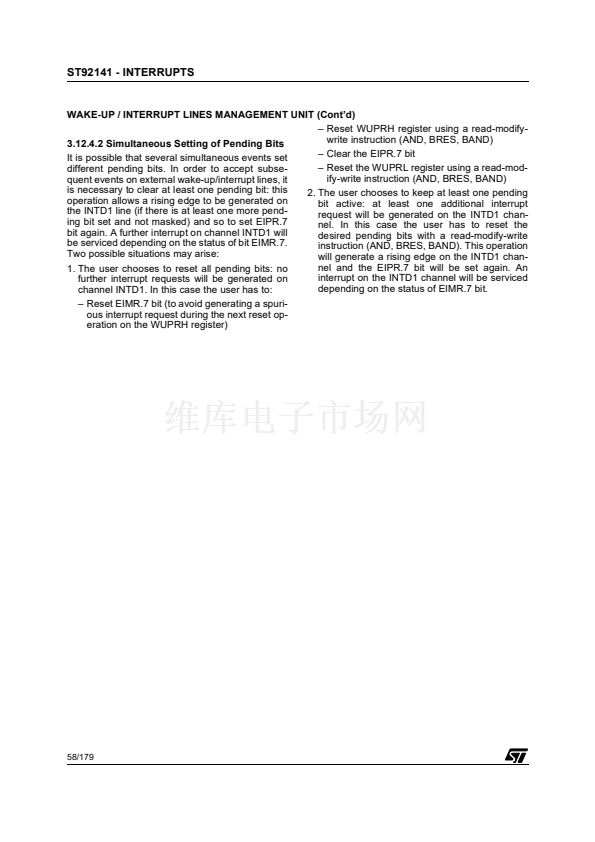

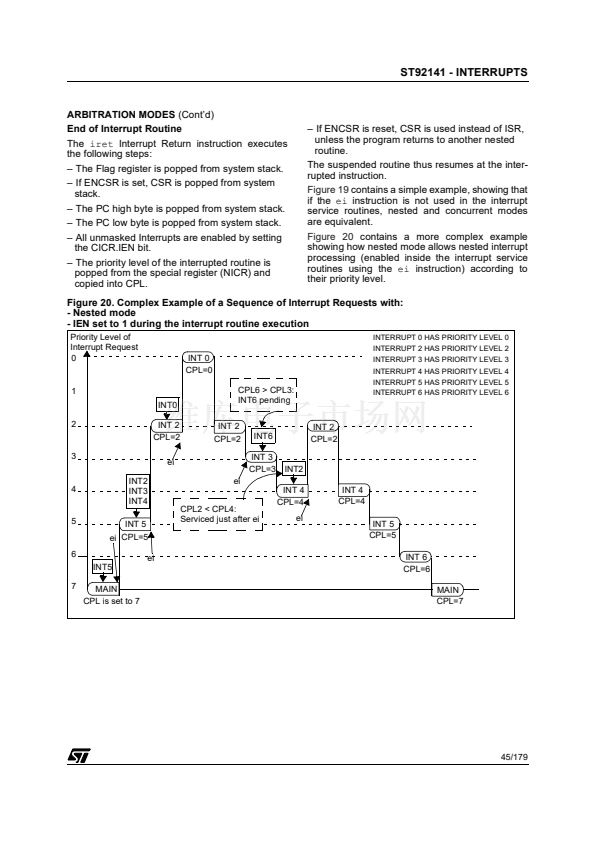

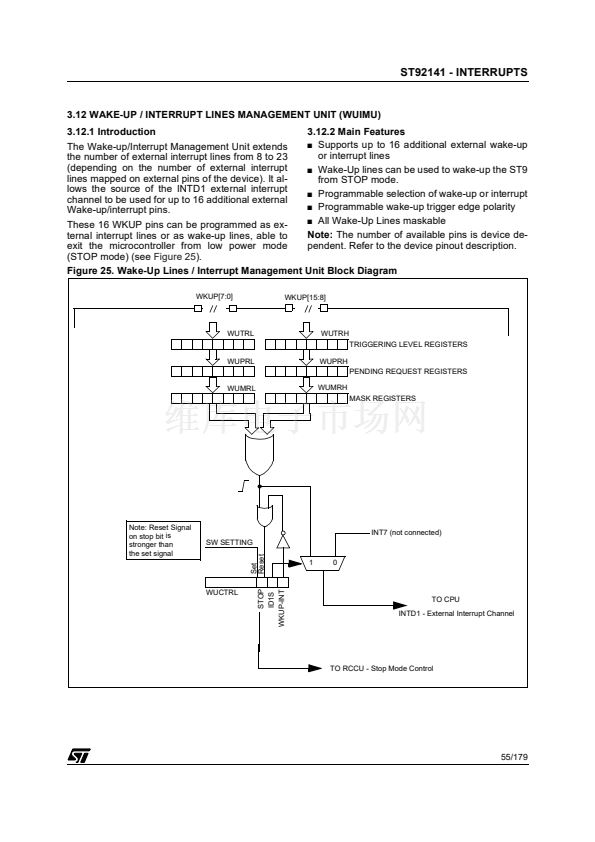

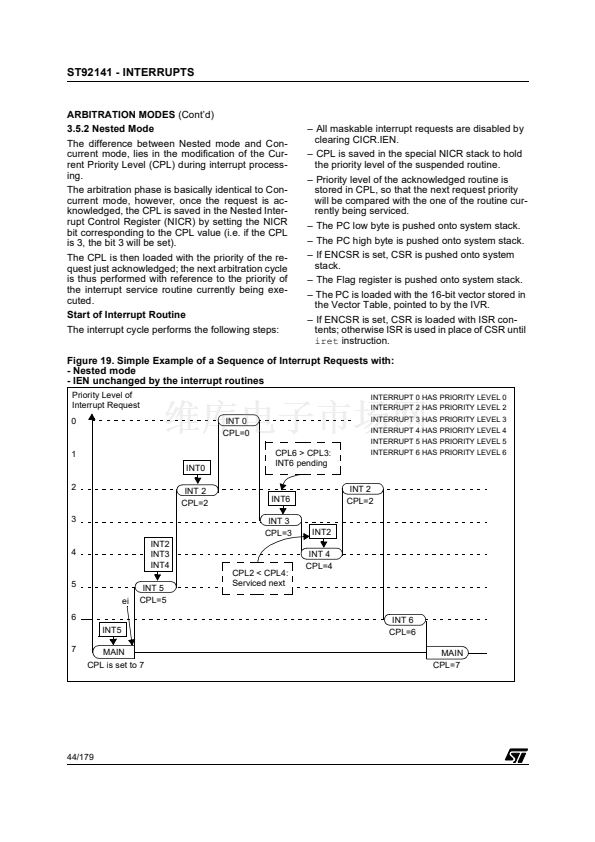

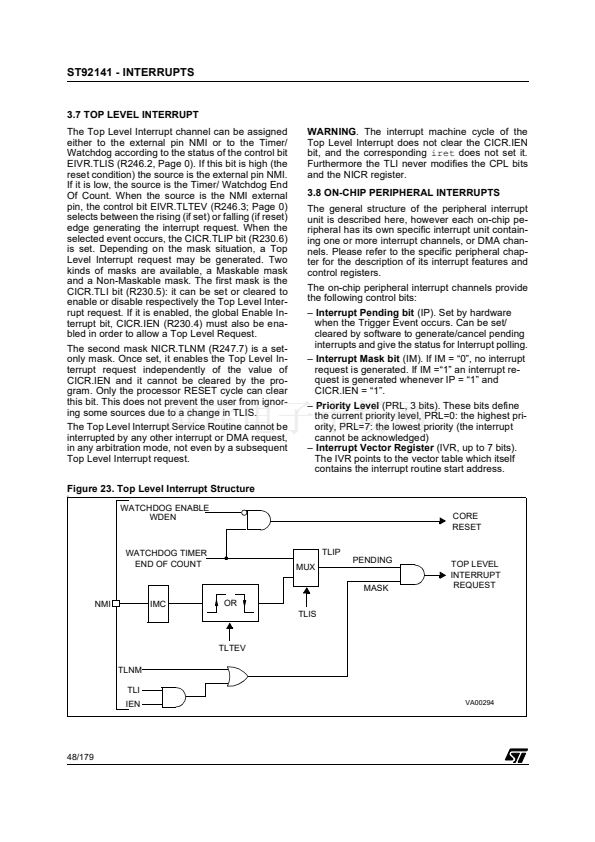

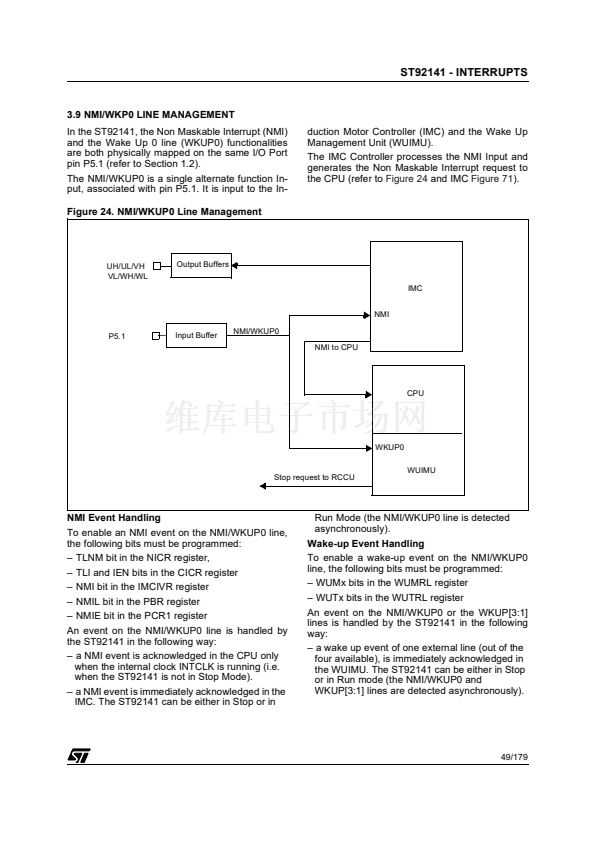

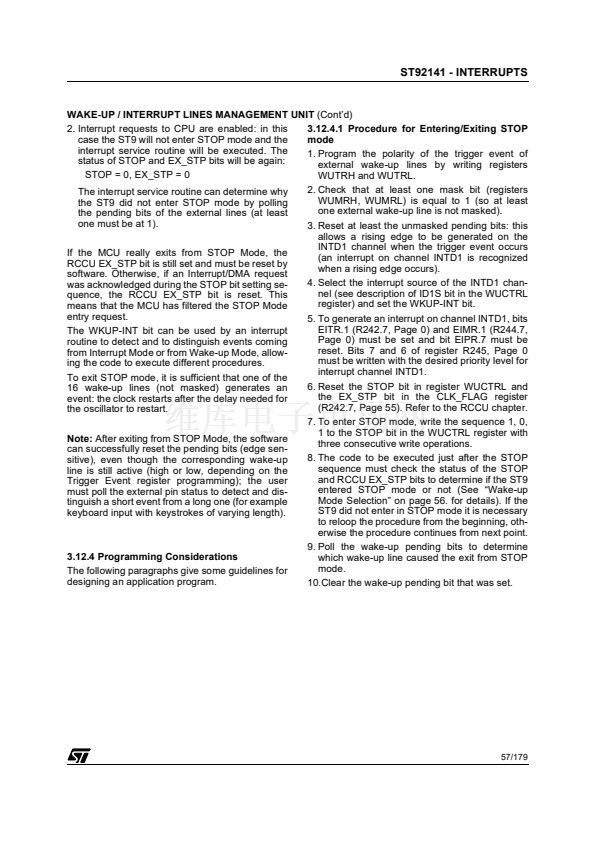

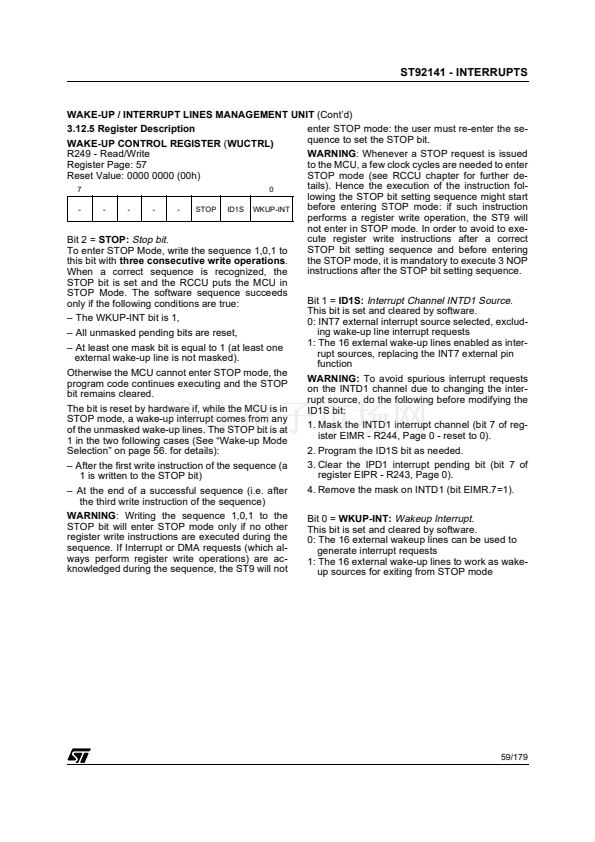

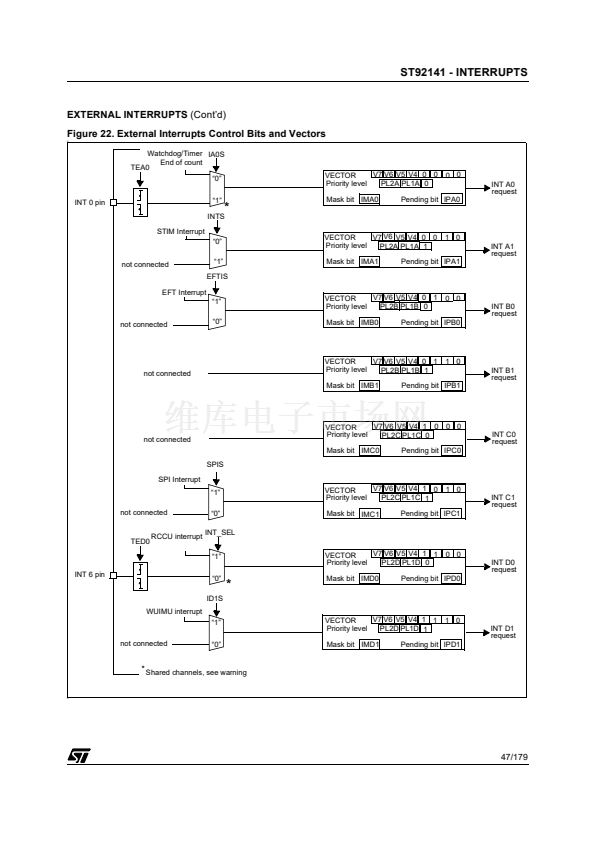

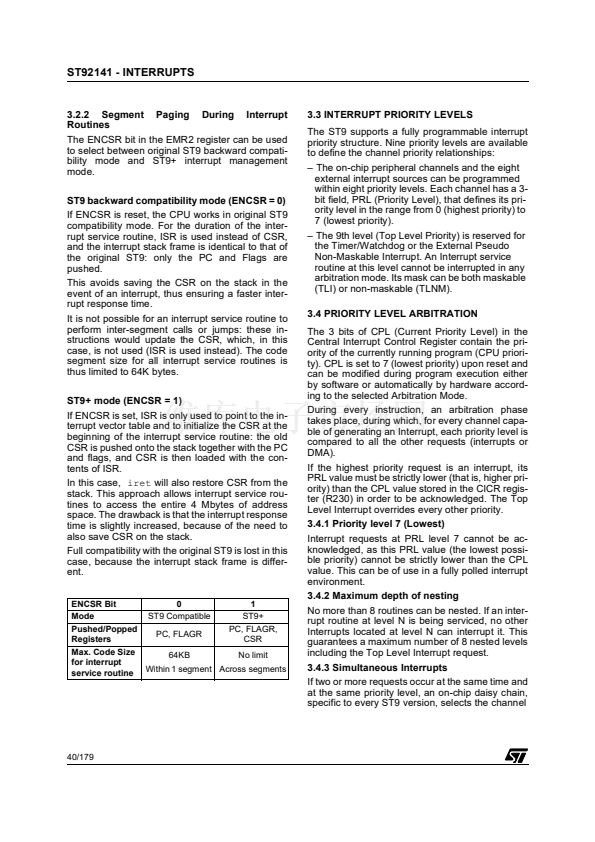

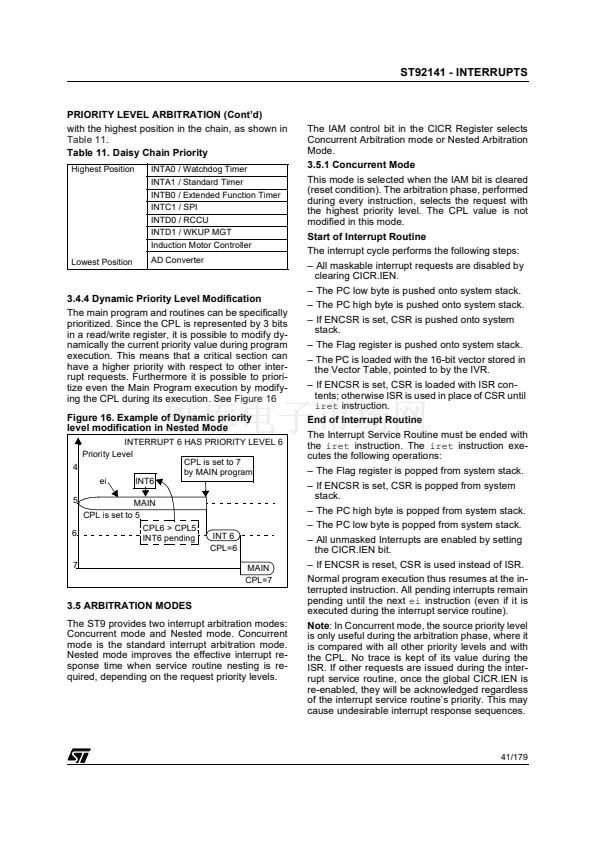

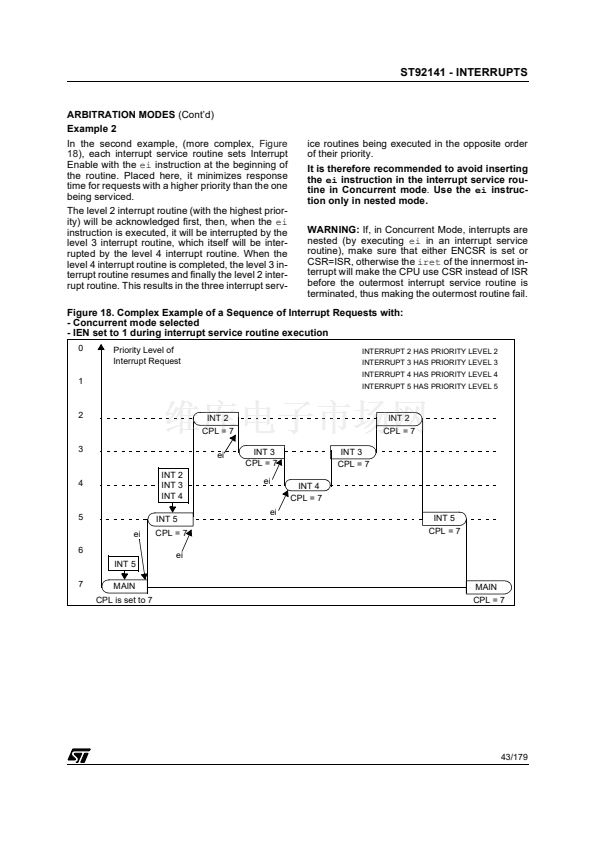

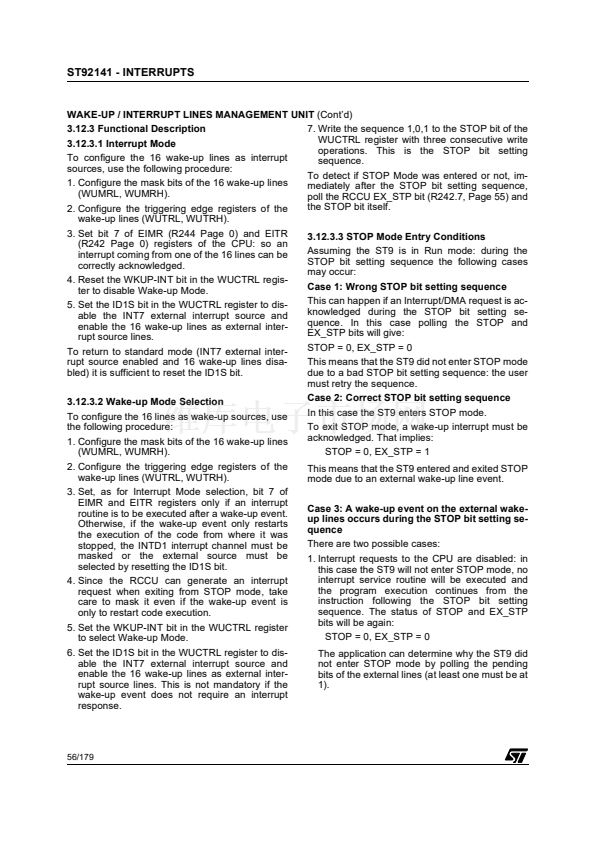

4 Wake-up Interrupts (one usable as Non-

Maskable Interrupt) for emergency event

management

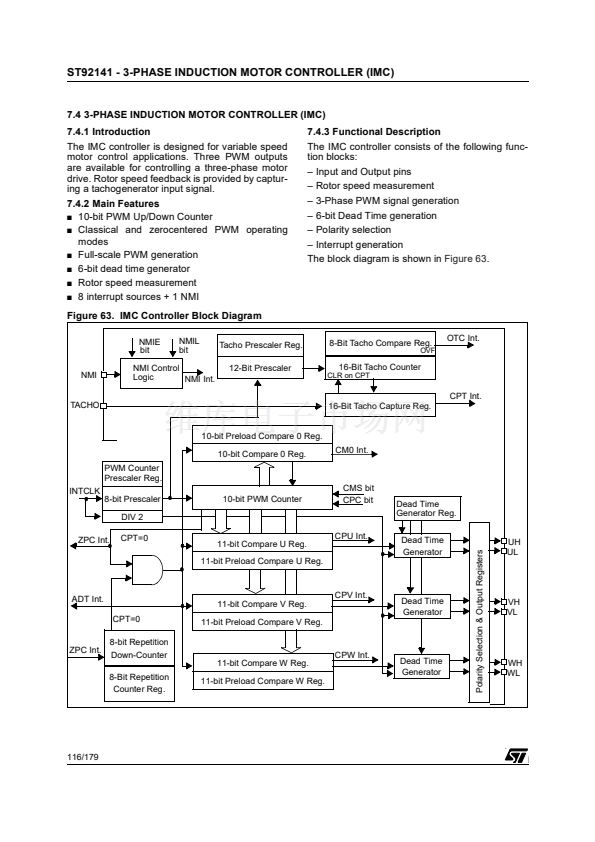

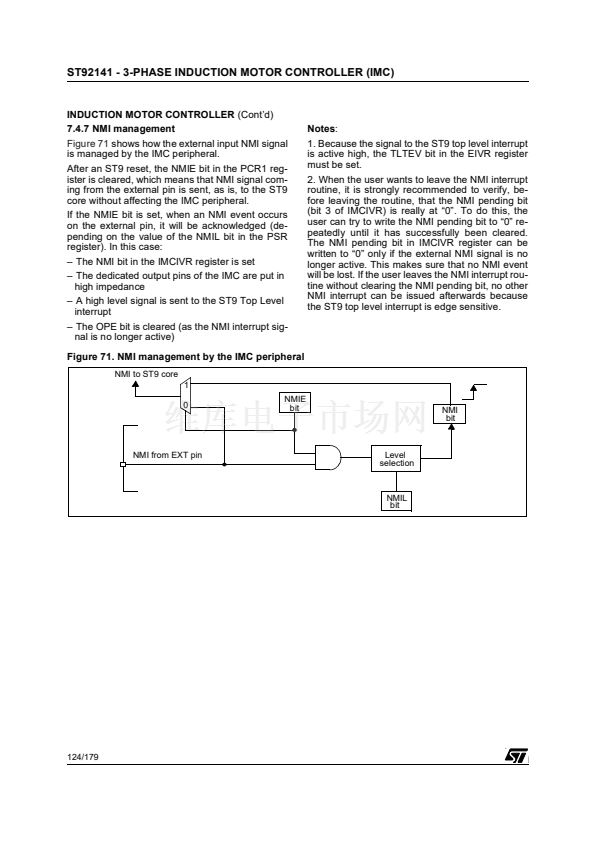

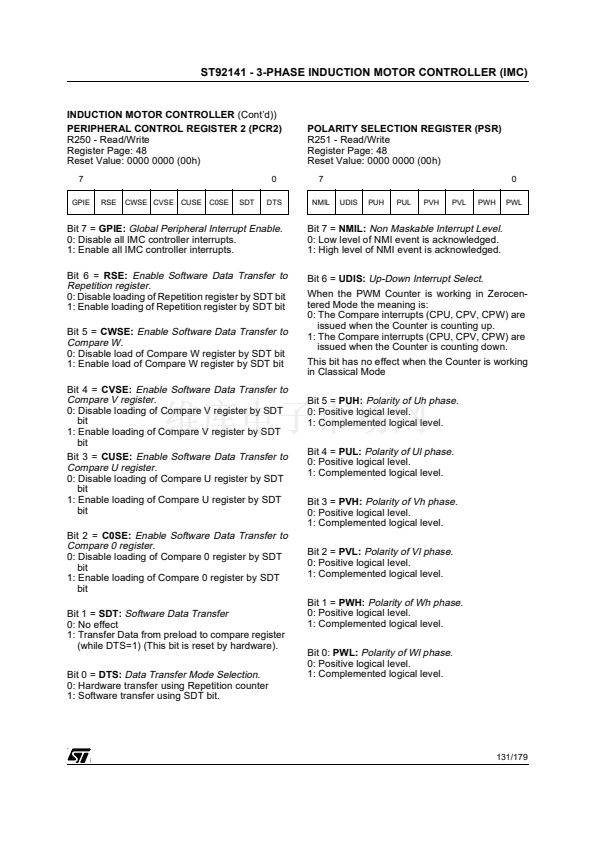

3-phase Induction Motor Controller (IMC)

Peripheral with 3 pairs of PWM outputs and

asynchronous emergency stop

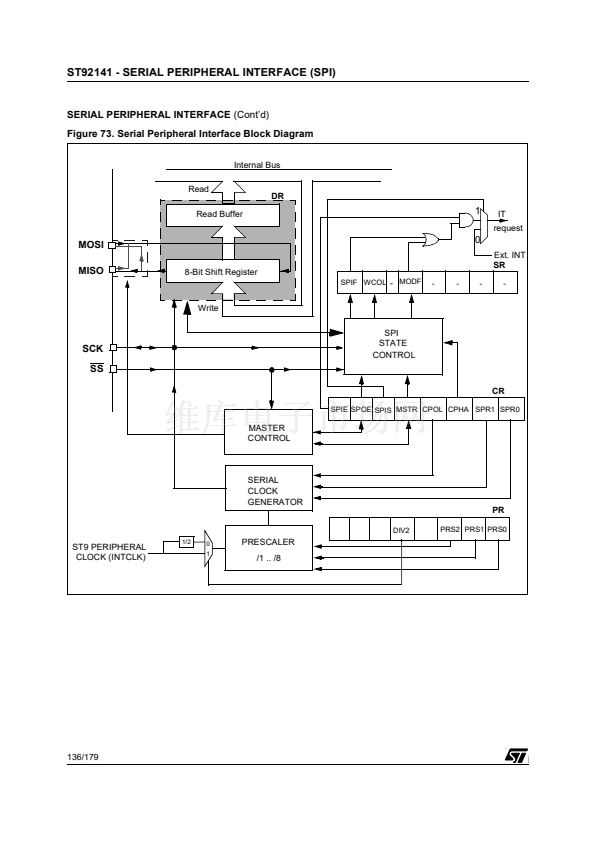

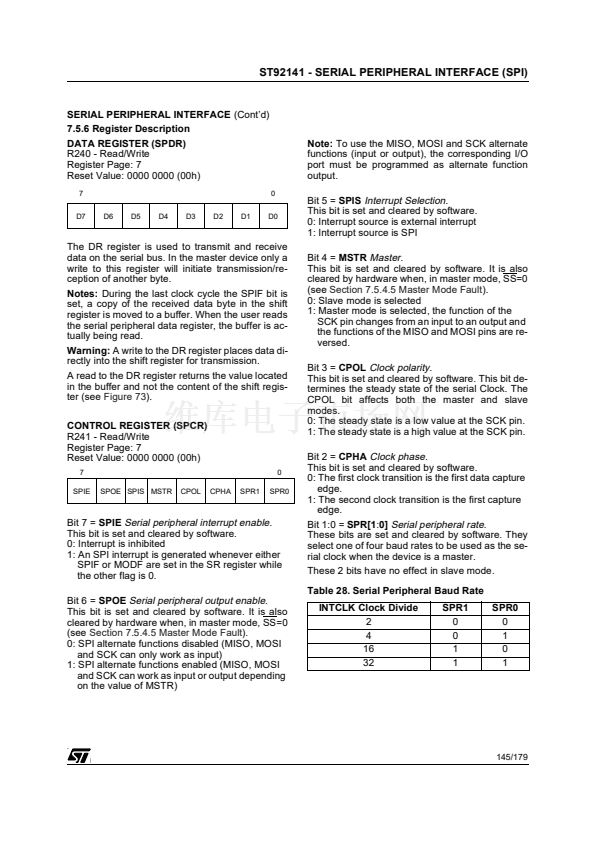

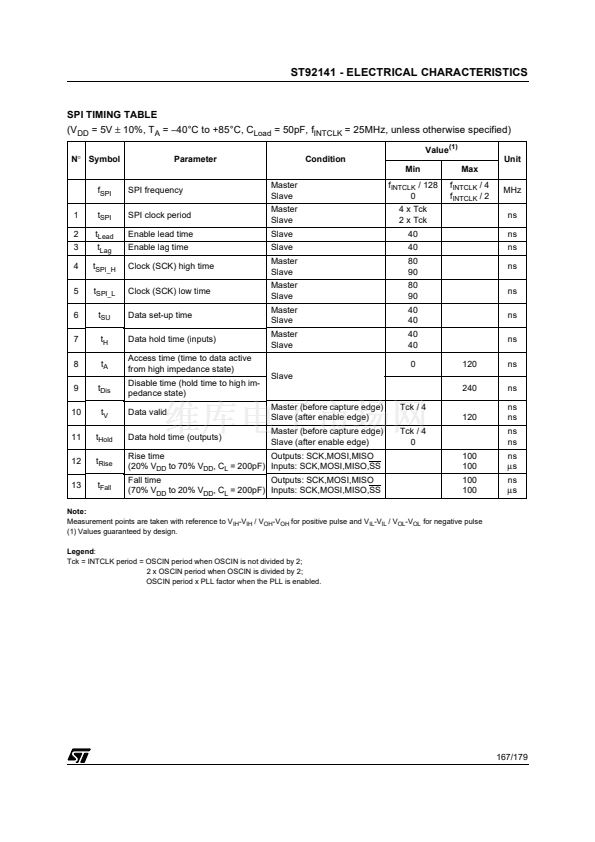

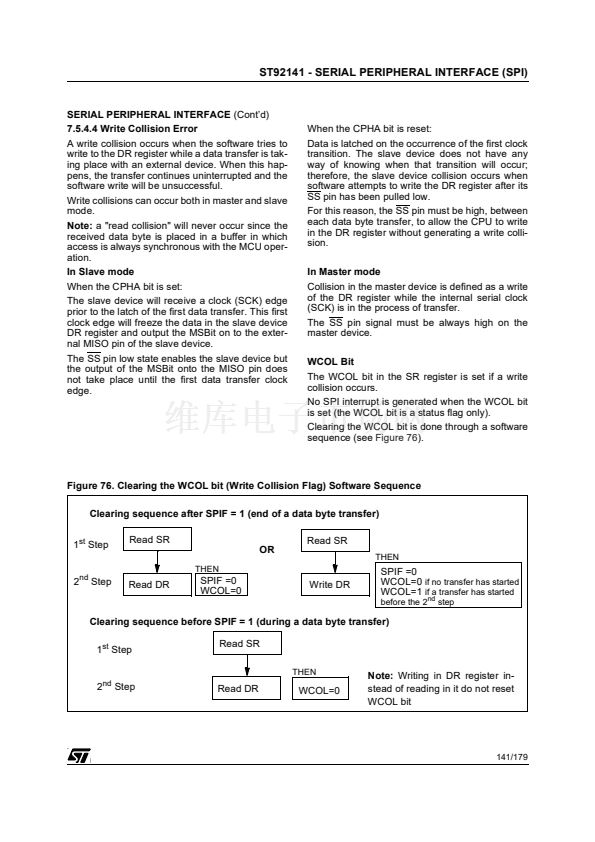

Serial Peripheral Interface (SPI) with Master/

Slave Mode capability

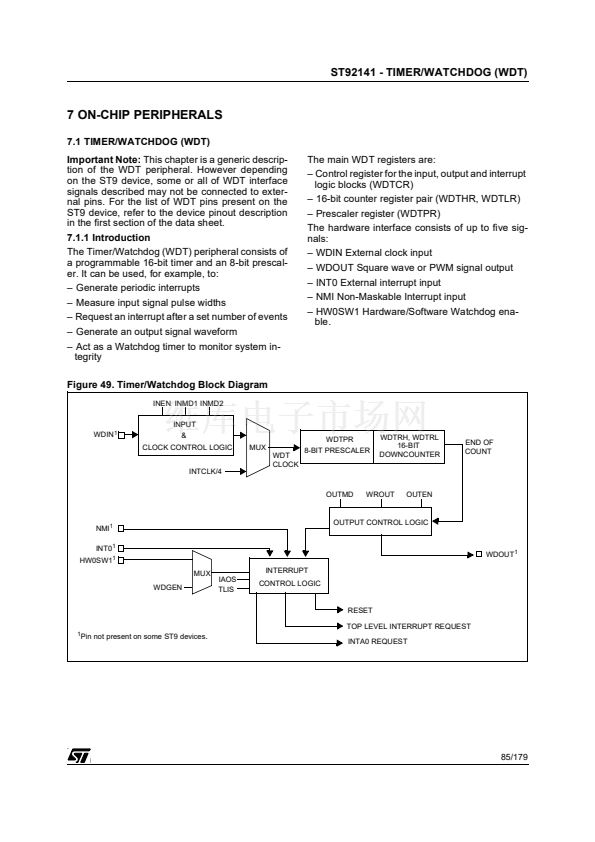

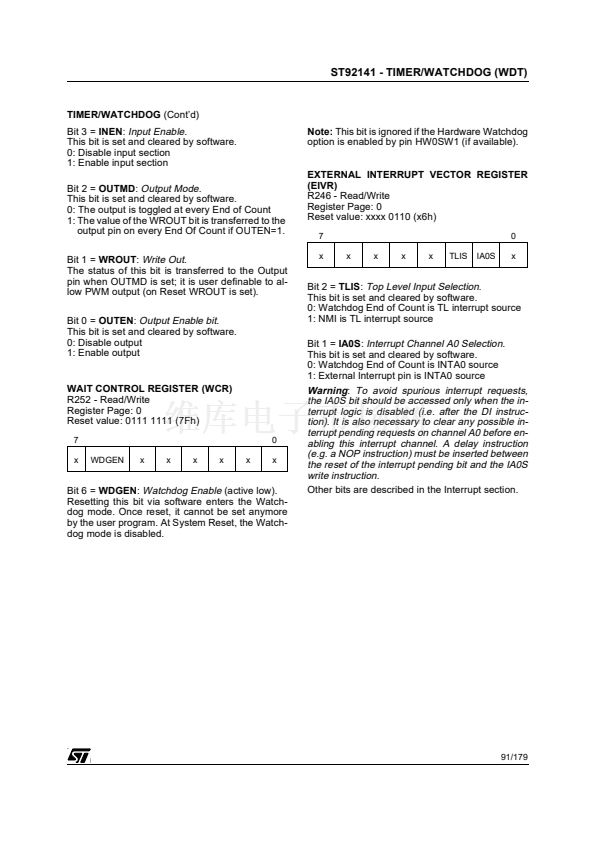

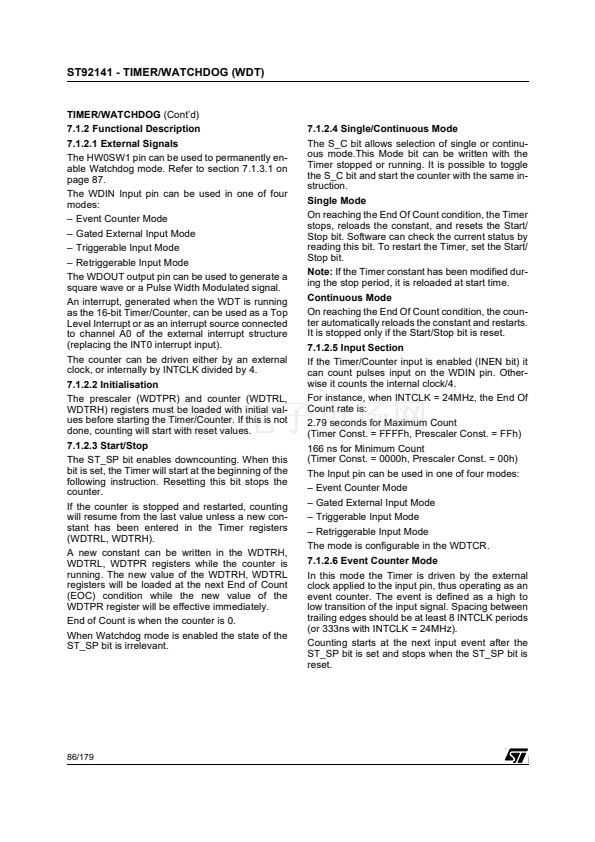

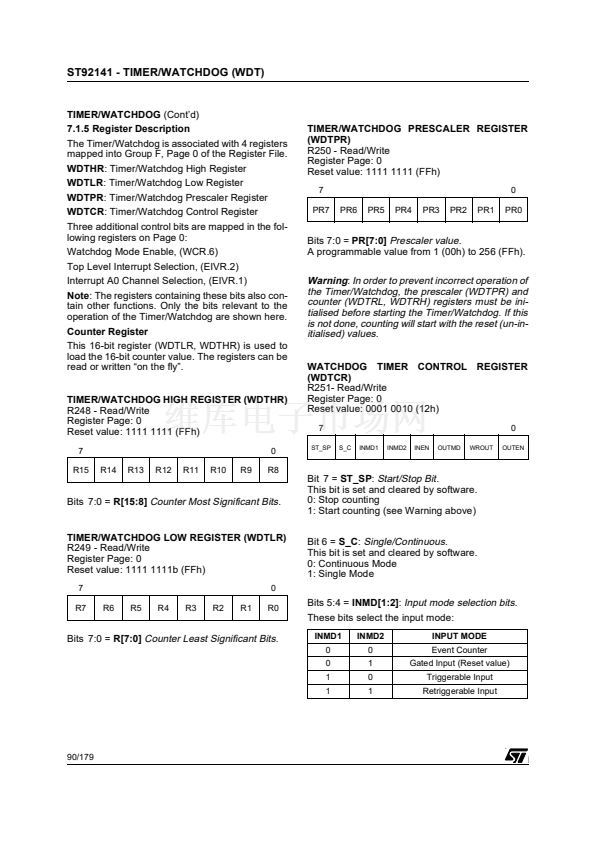

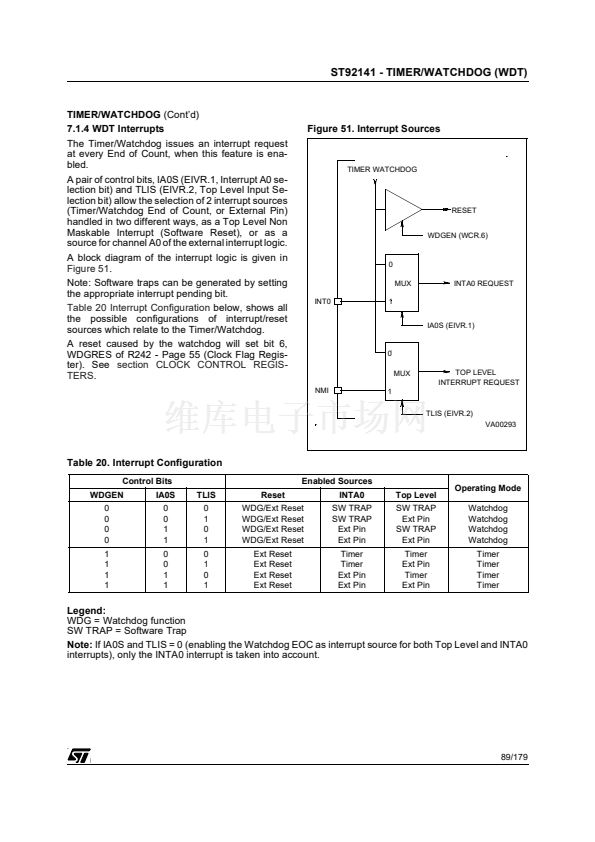

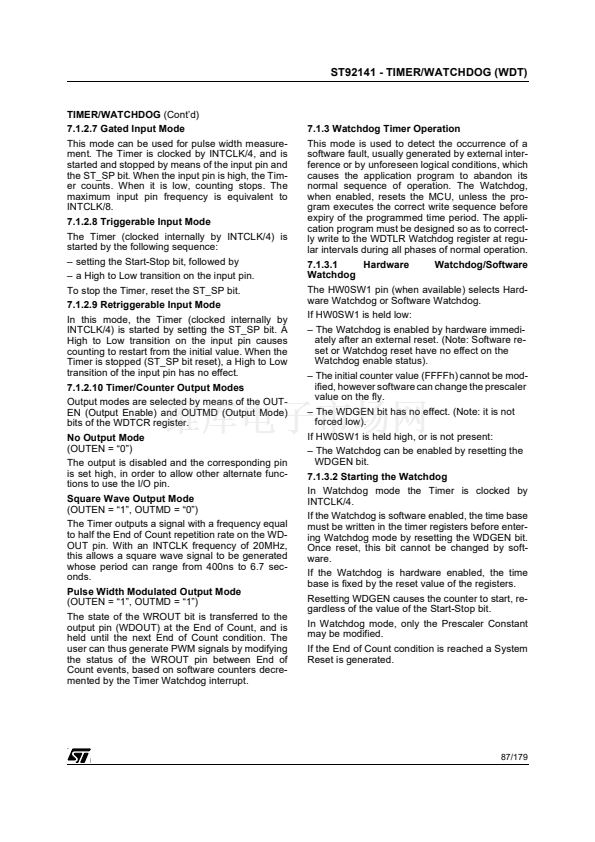

16-bit Timer with 8-bit Prescaler usable as a

Watchdog Timer

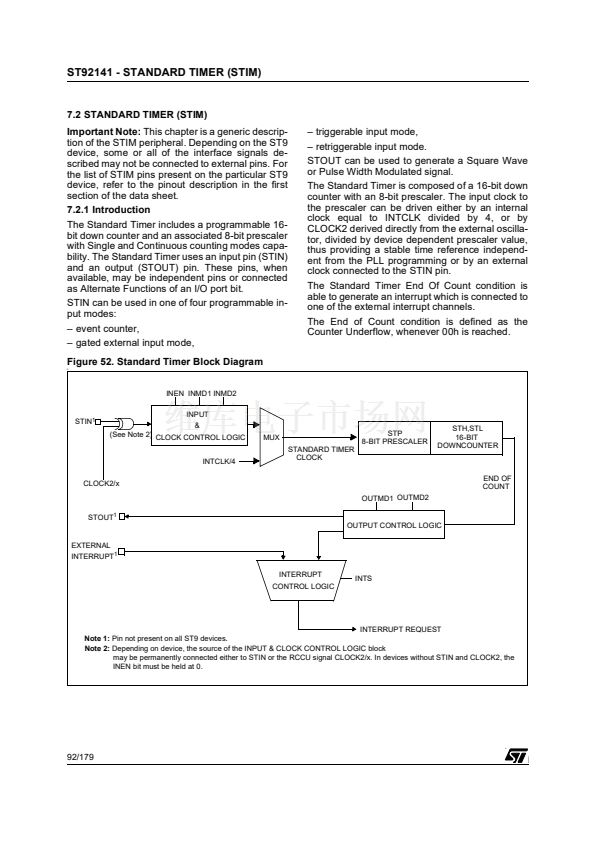

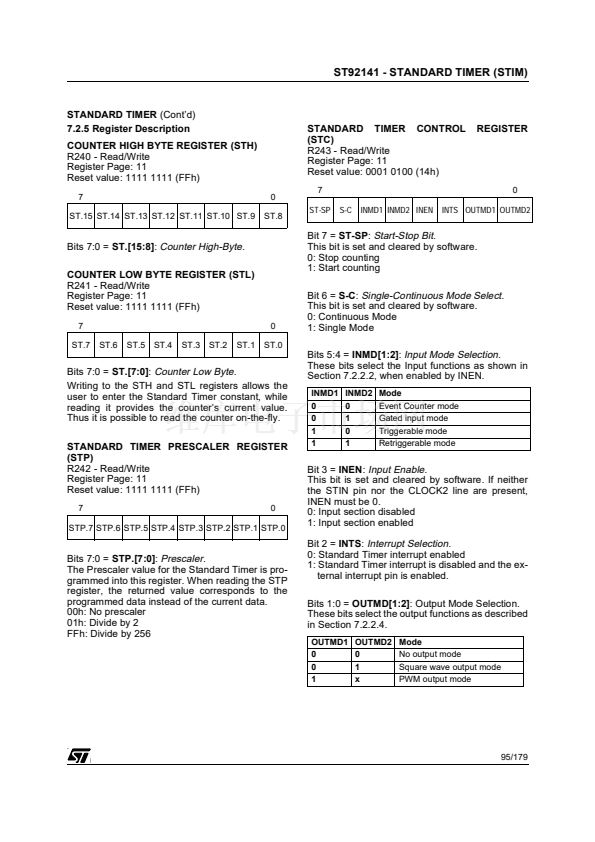

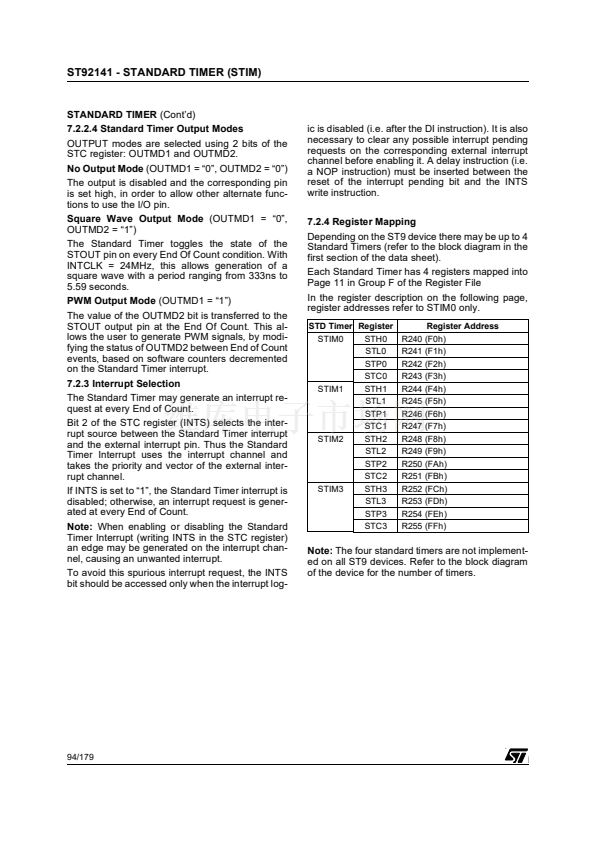

16-bit Standard Timer with 8-bit Prescaler

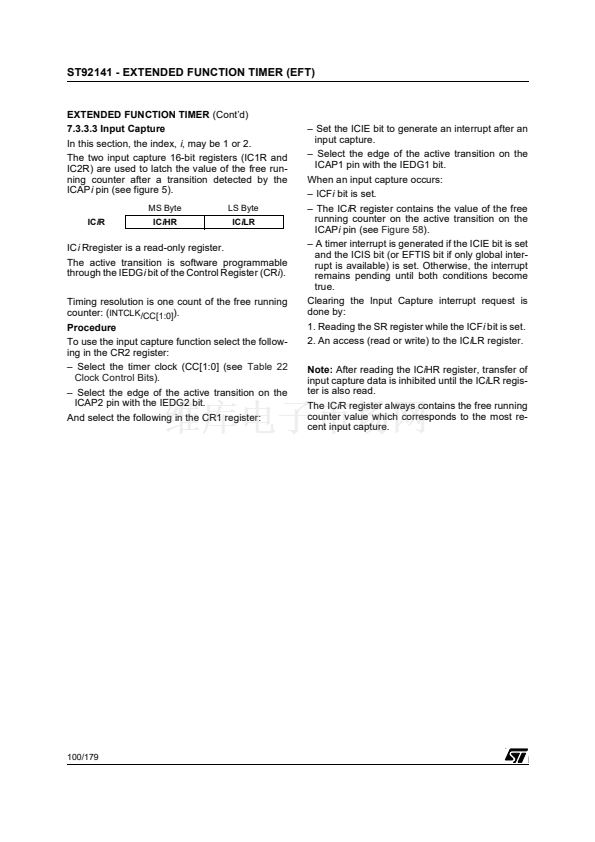

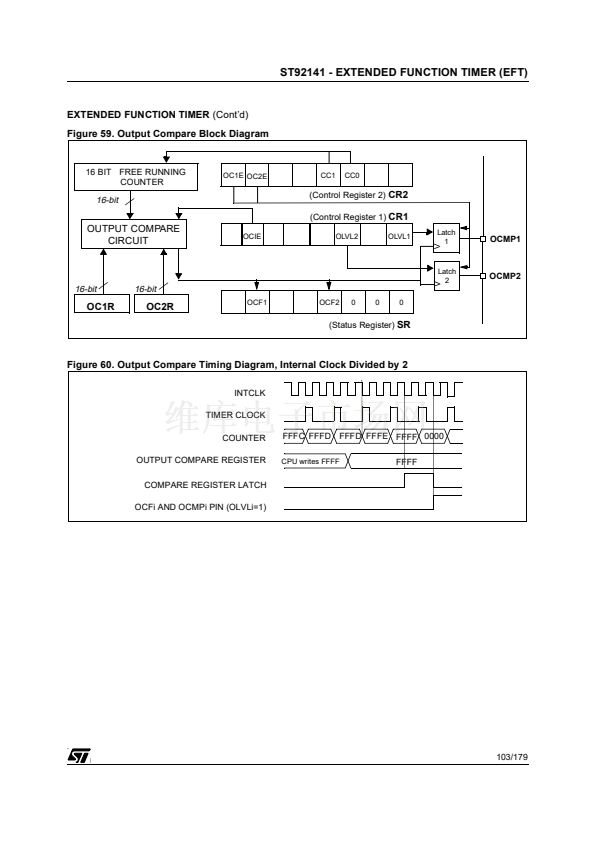

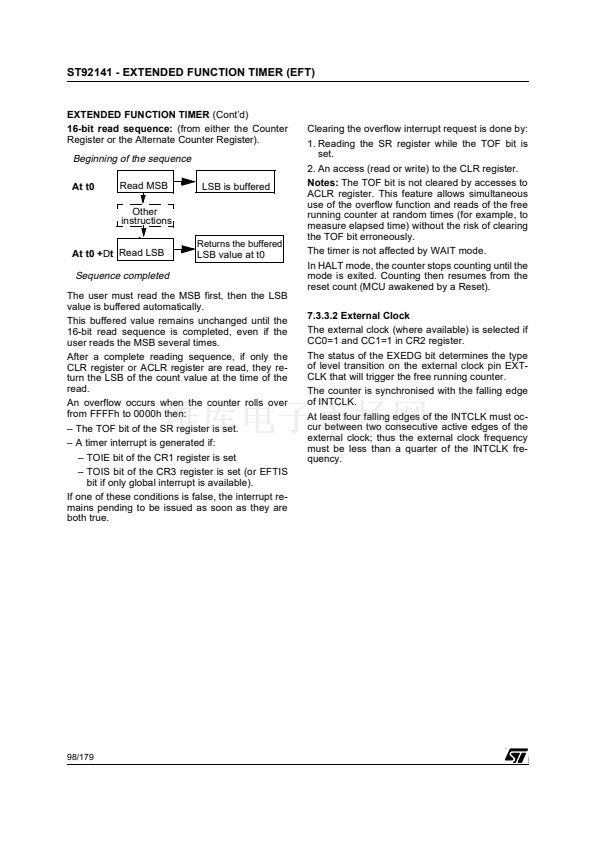

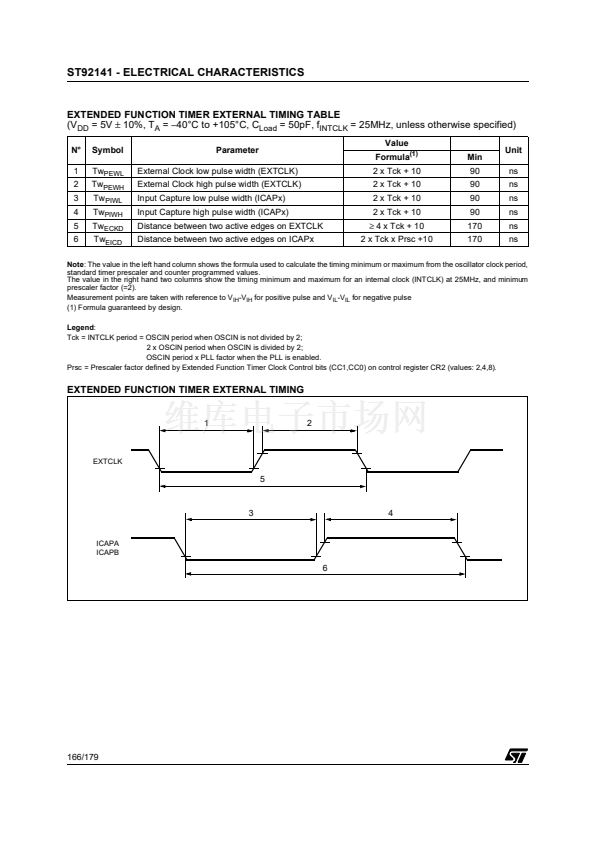

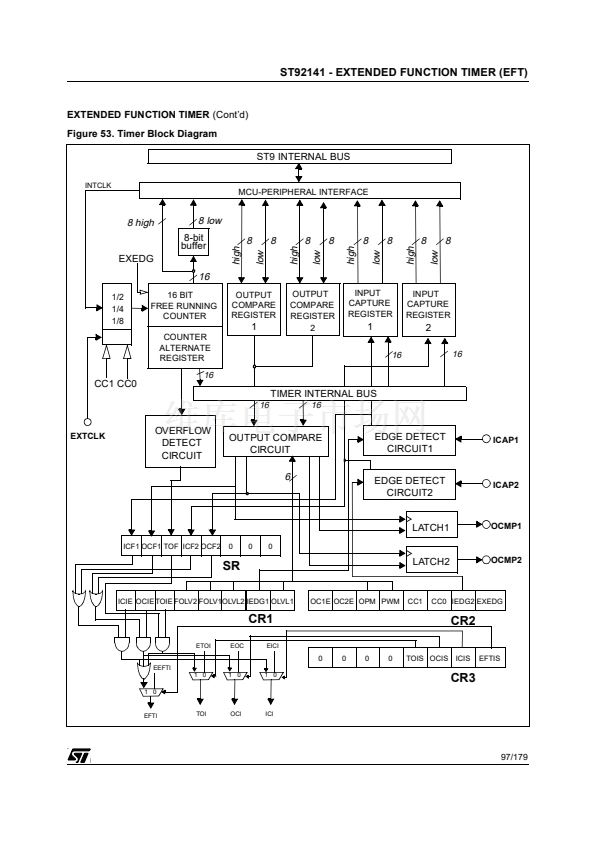

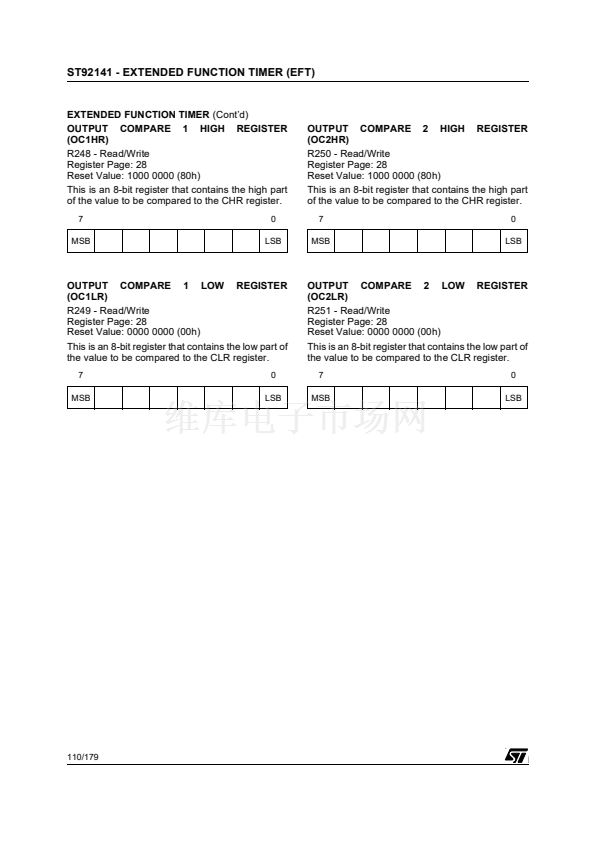

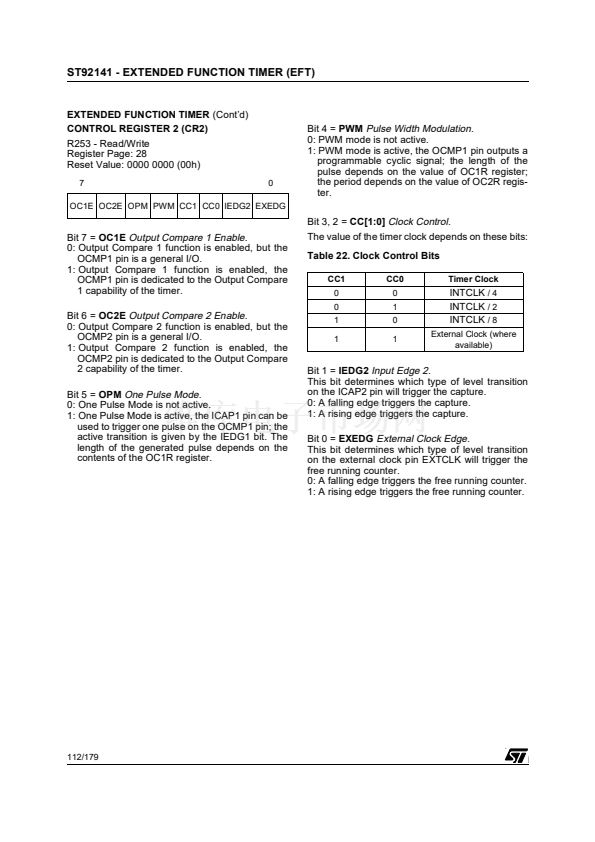

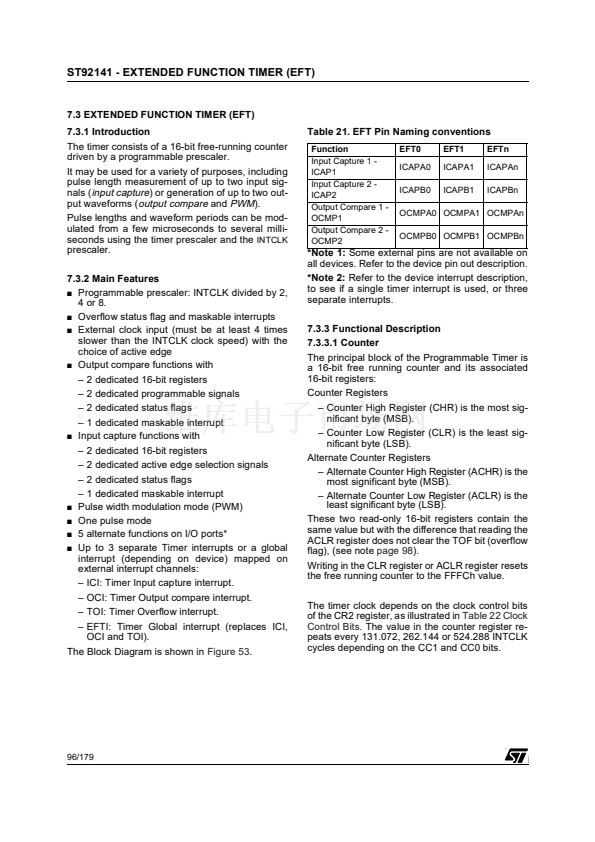

16-bit Extended Function Timer with Prescaler, 2

Input Captures and 2 Output Compares

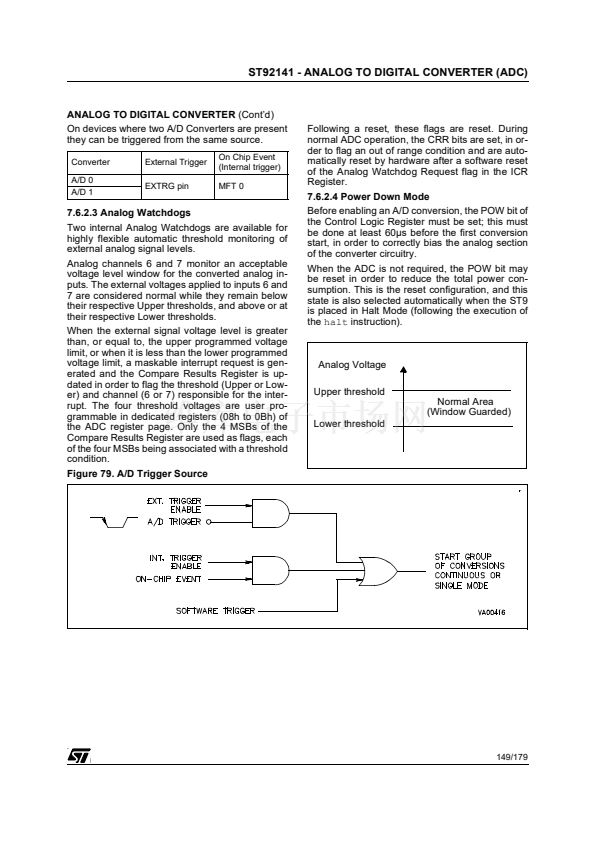

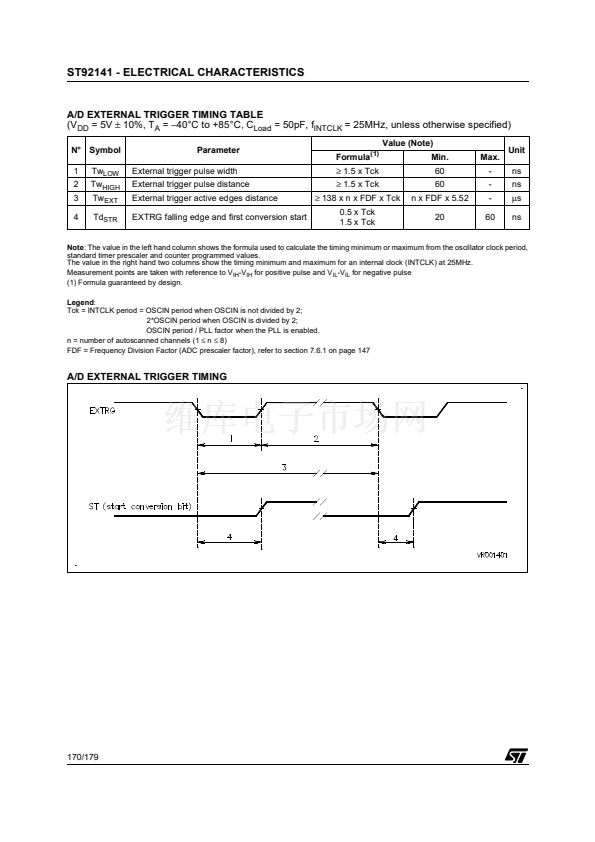

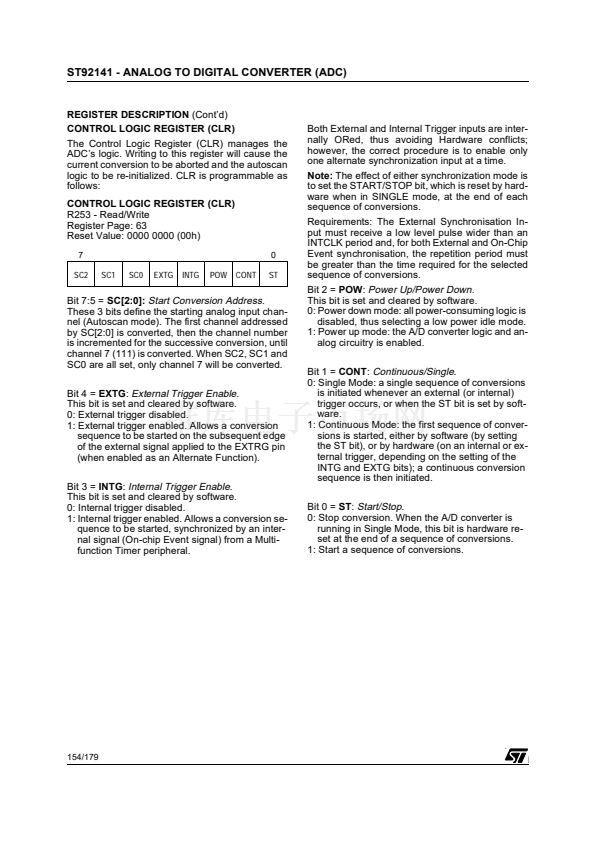

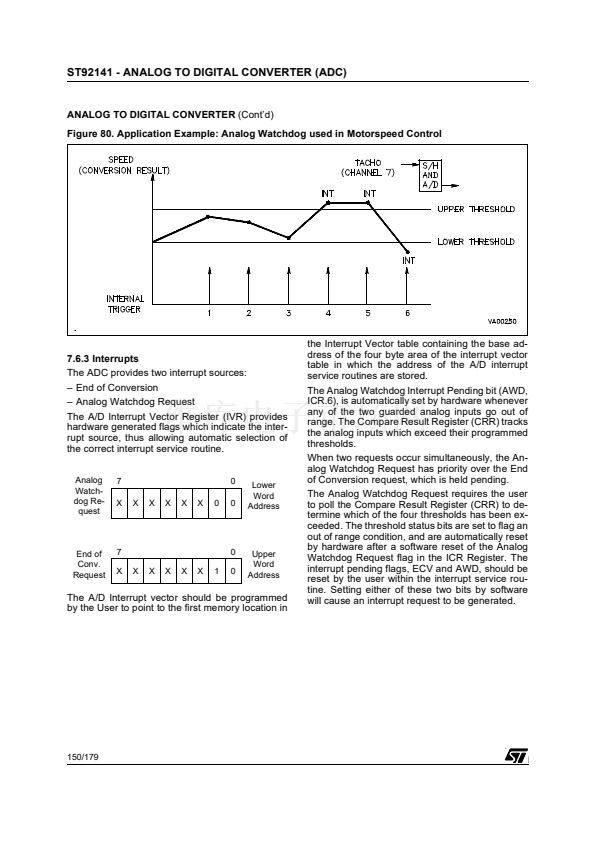

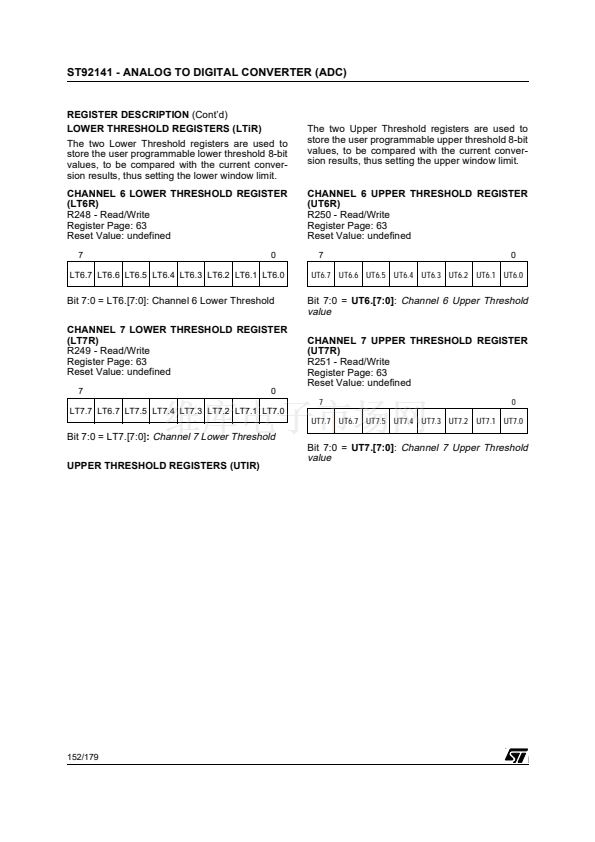

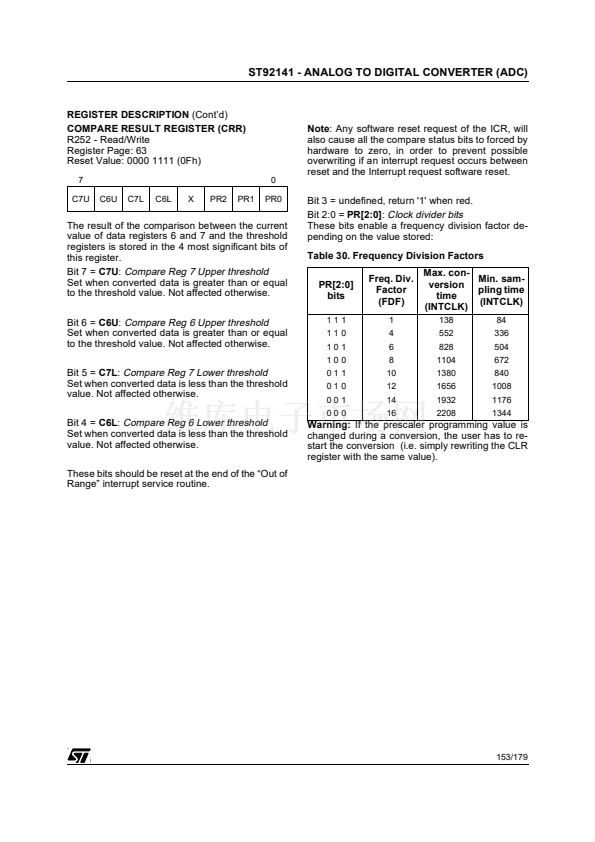

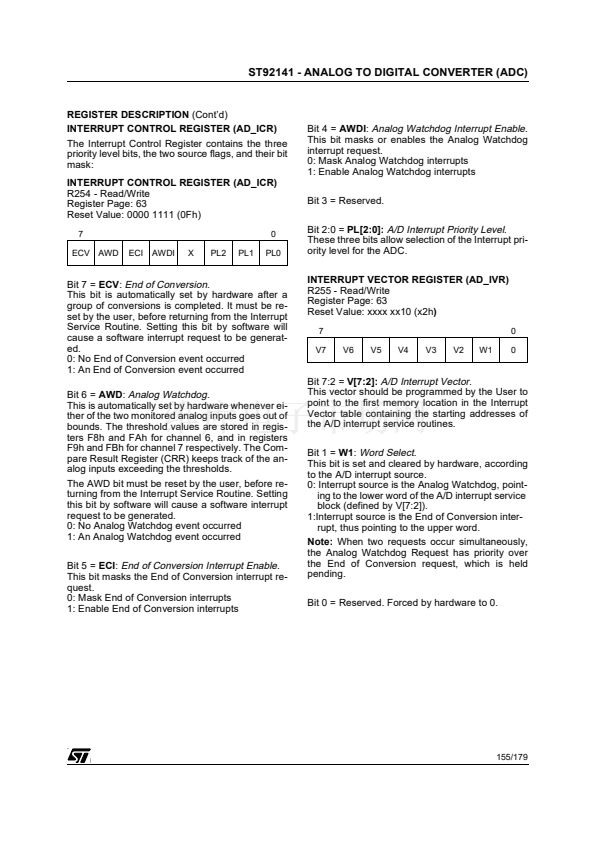

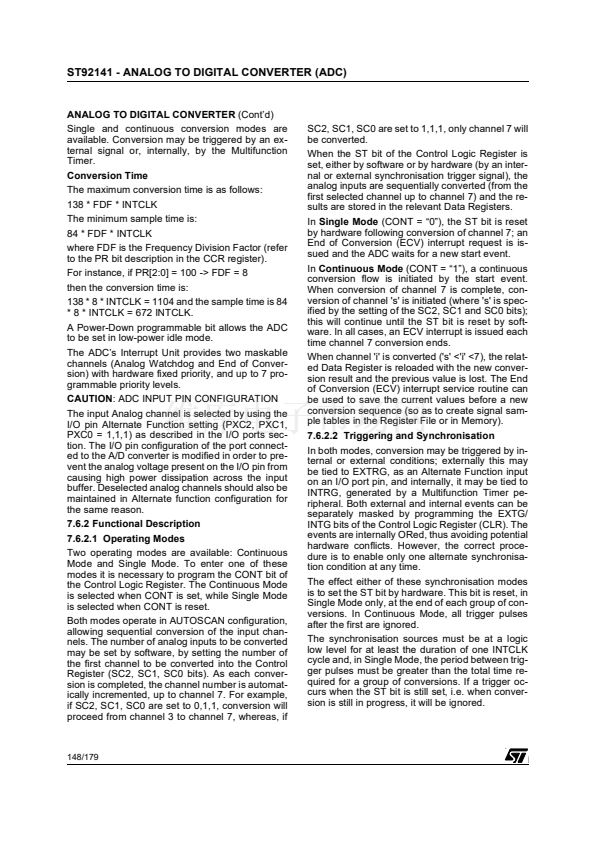

8-bit Analog to Digital Converter allowing up to

6 input channels with autoscan and watchdog

capability

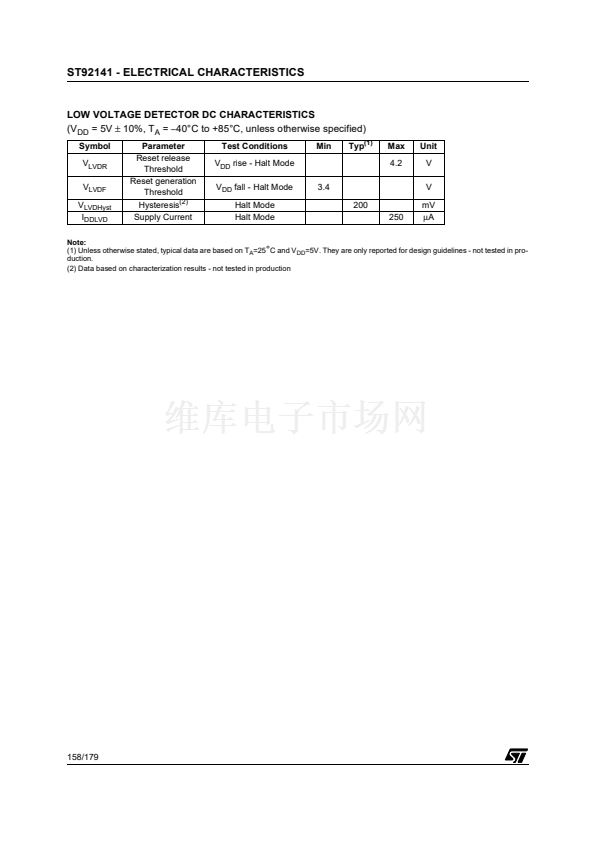

Low Voltage Detector Reset

Rich Instruction Set with 14 Addressing Modes

Division-by-Zero trap generation

Versatile

Development

Tools,

including

Assembler, Linker, C-compiler, Archiver,

Source Level Debugger and Hardware

Emulators with Real-Time Operating System

available from Third Parties

PSDIP32

SO34 Shrink

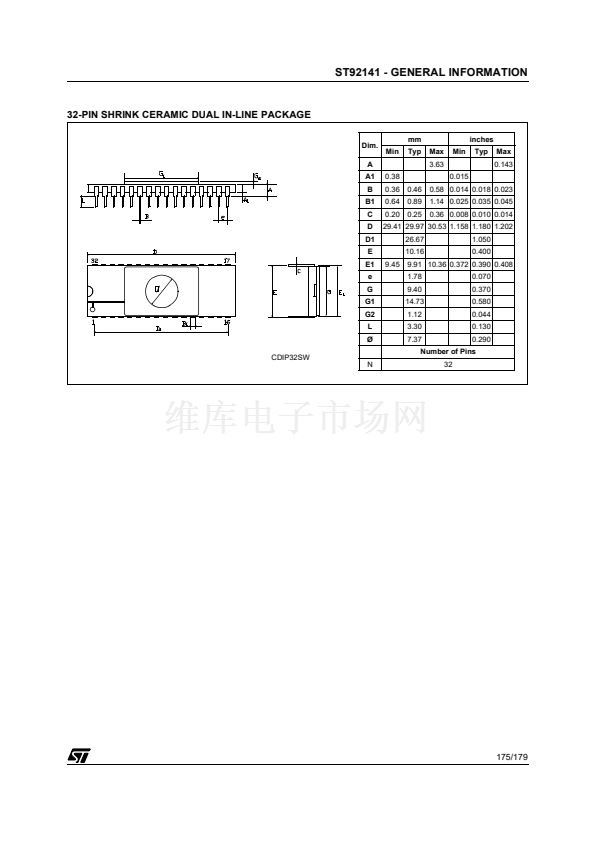

CSDIP32W

DEVICE SUMMARY

DEVICE

ST92P141

ST92E141

ST92T141

Program

Memory

(Bytes)

16K FASTROM

16K EPROM

16K OTP

RAM

(Bytes)

512

512

512

PACKAGE

PSDIP32/

SO34

CSDIP32W

PSDIP32/

SO34

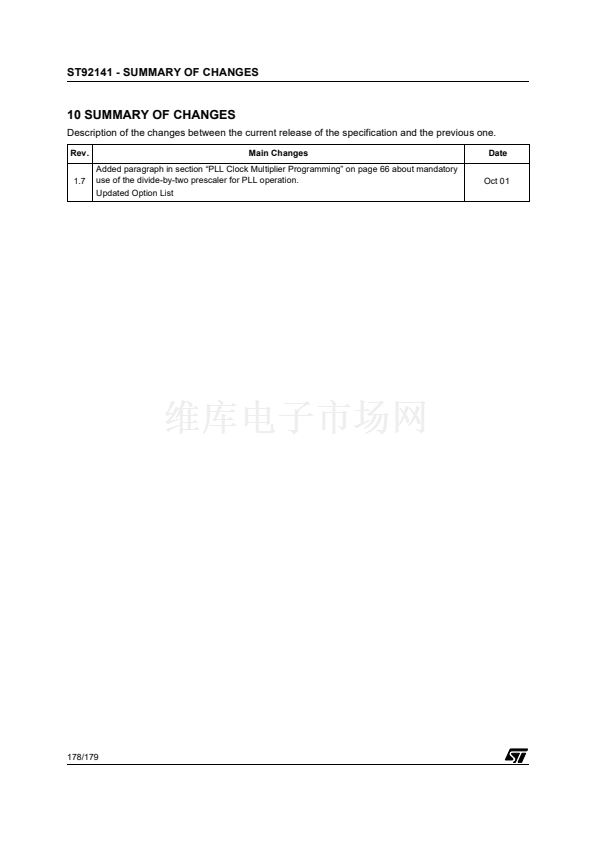

Rev. 1.7

October 2001

1/179
