ST72T251G2 Datasheet

  • ST72T251G2

  • 8-BIT MCU WITH 4 TO 8K ROM/OTP/EPROM. 256 BYTES RAM. ADC. WG...

  • 900.02KB

  • 100頁

  • ETC

掃碼查看芯片數(shù)據手冊

上傳產品規(guī)格書

PDF預覽

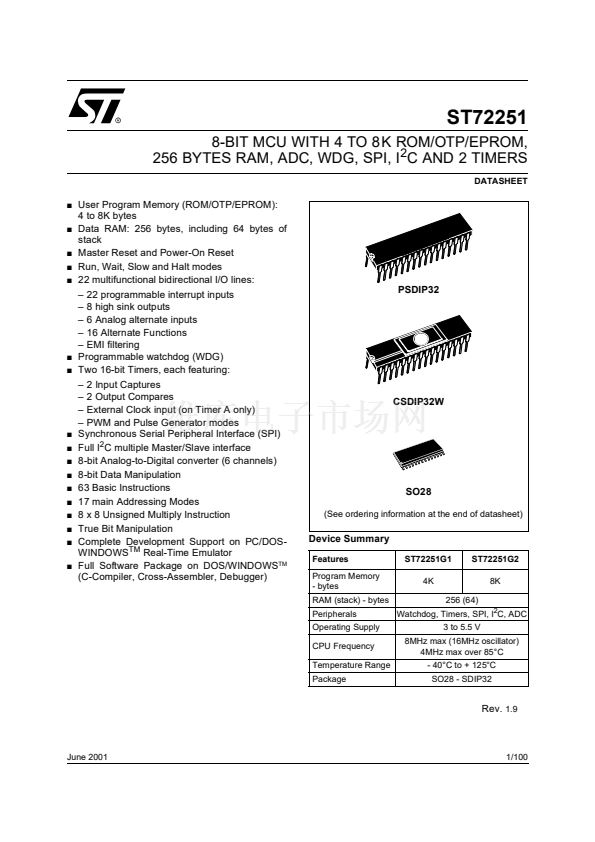

ST72251
8-BIT MCU WITH 4 TO 8K ROM/OTP/EPROM,
256 BYTES RAM, ADC, WDG, SPI, I
2
C AND 2 TIMERS
DATASHEET
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s

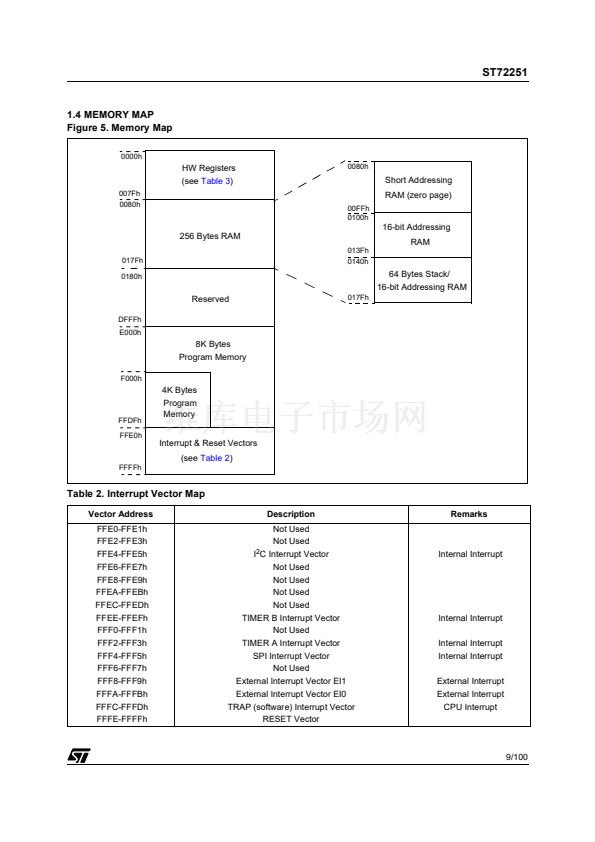

User Program Memory (ROM/OTP/EPROM):
4 to 8K bytes
Data RAM: 256 bytes, including 64 bytes of
stack

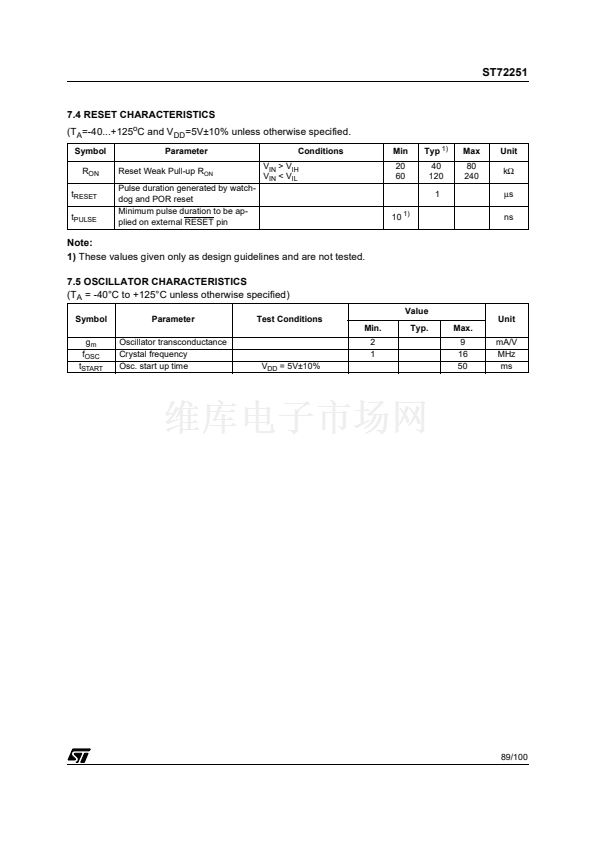

Master Reset and Power-On Reset
Run, Wait, Slow and Halt modes

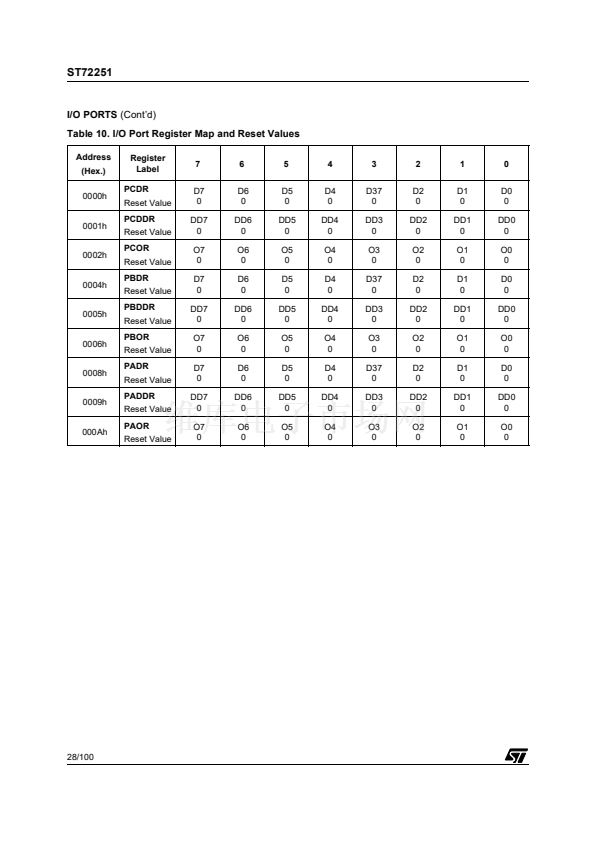

22 multifunctional bidirectional I/O lines:
鈥?22 programmable interrupt inputs
鈥?8 high sink outputs
鈥?6 Analog alternate inputs
鈥?16 Alternate Functions
鈥?EMI filtering

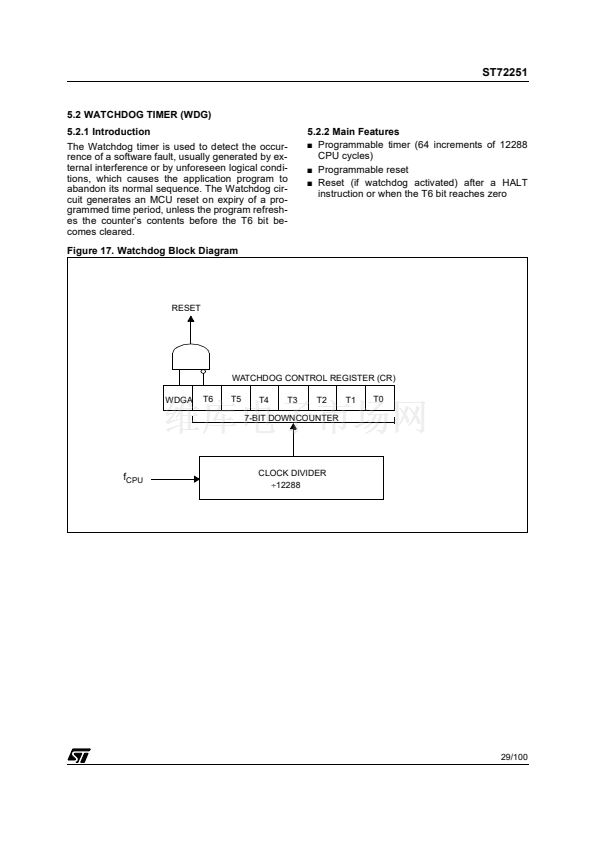

Programmable watchdog (WDG)

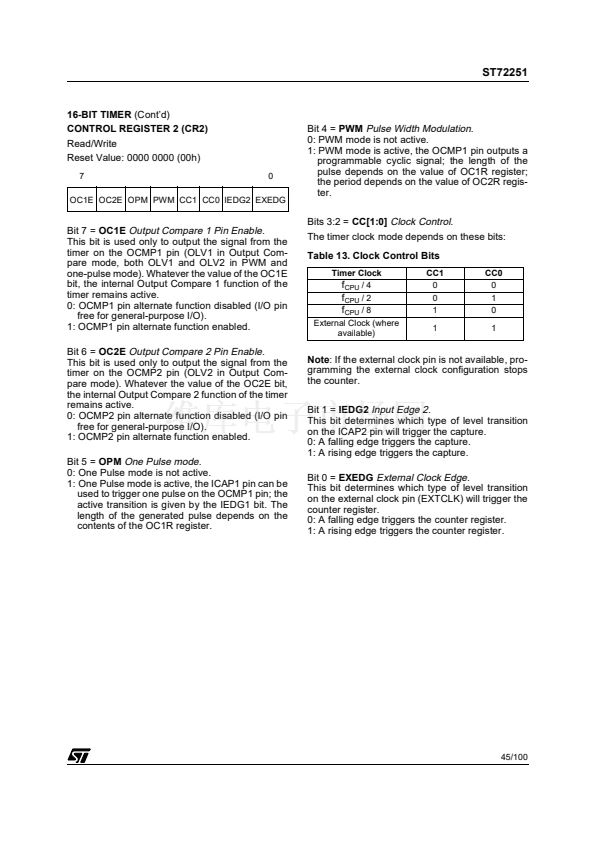

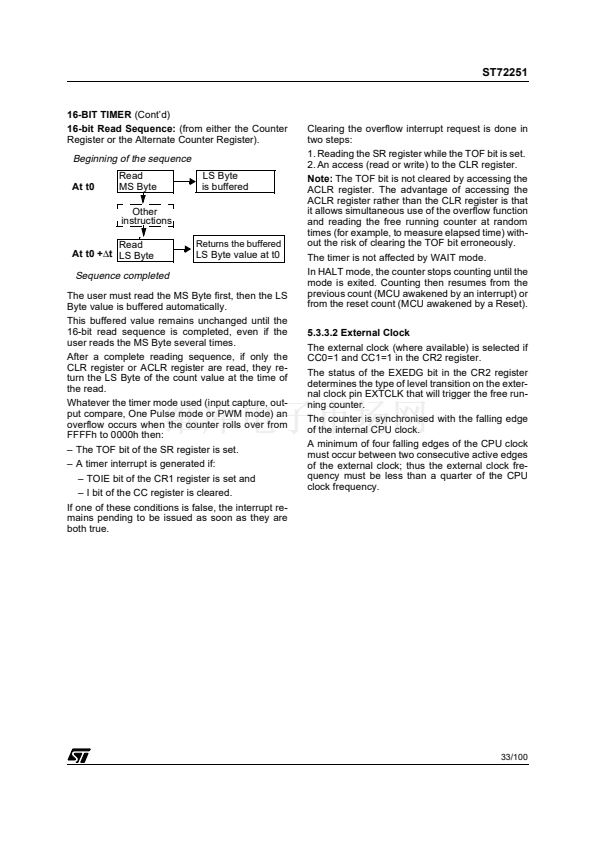

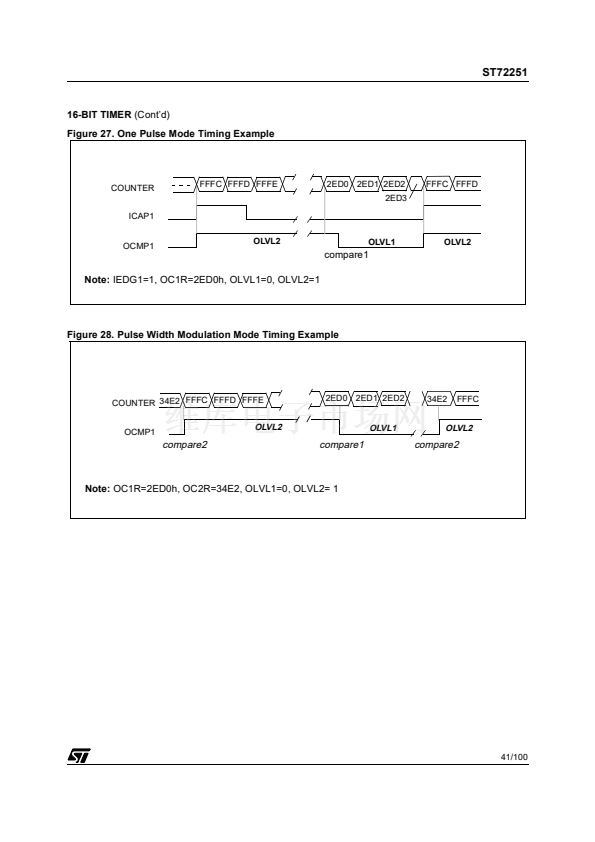

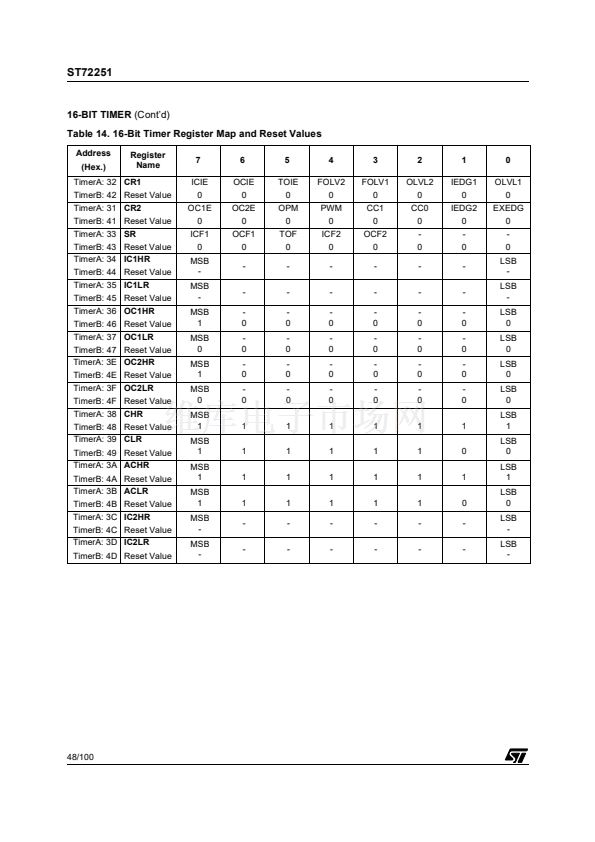

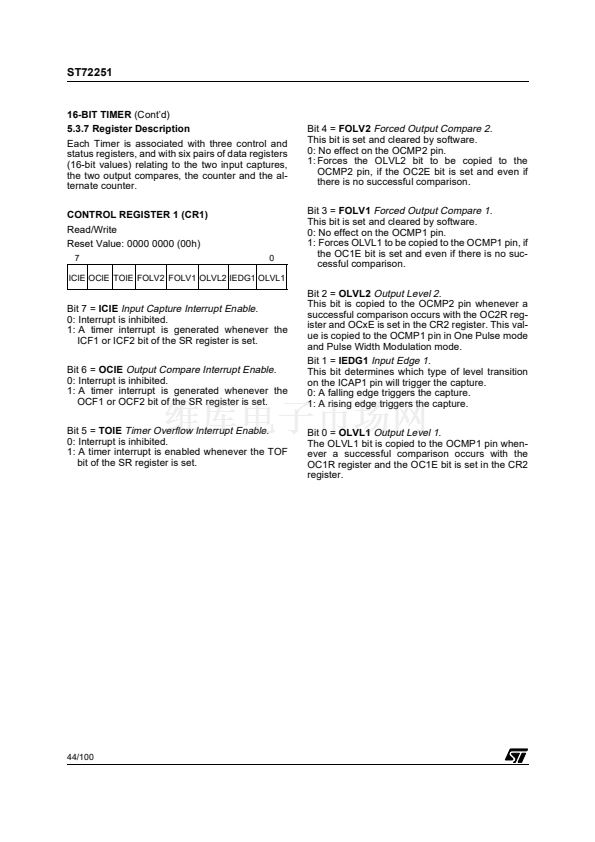

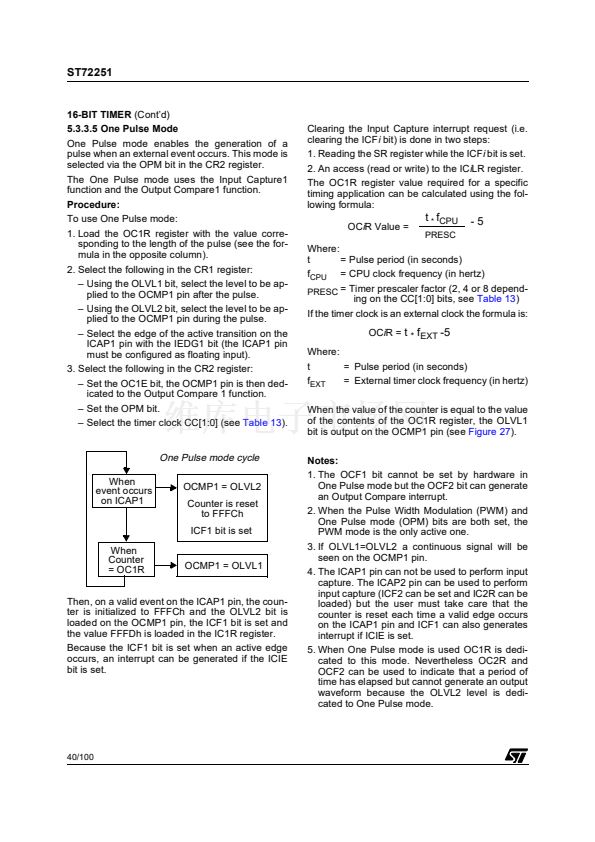

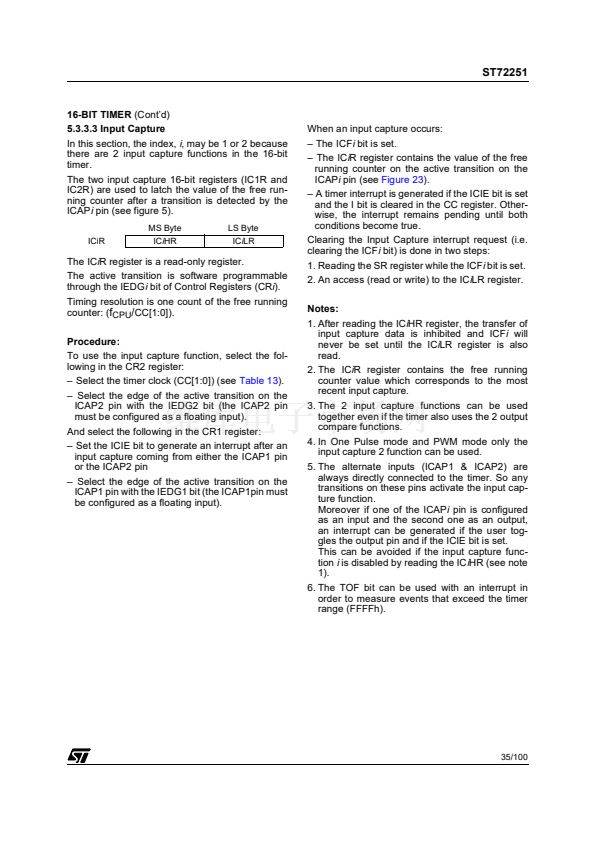

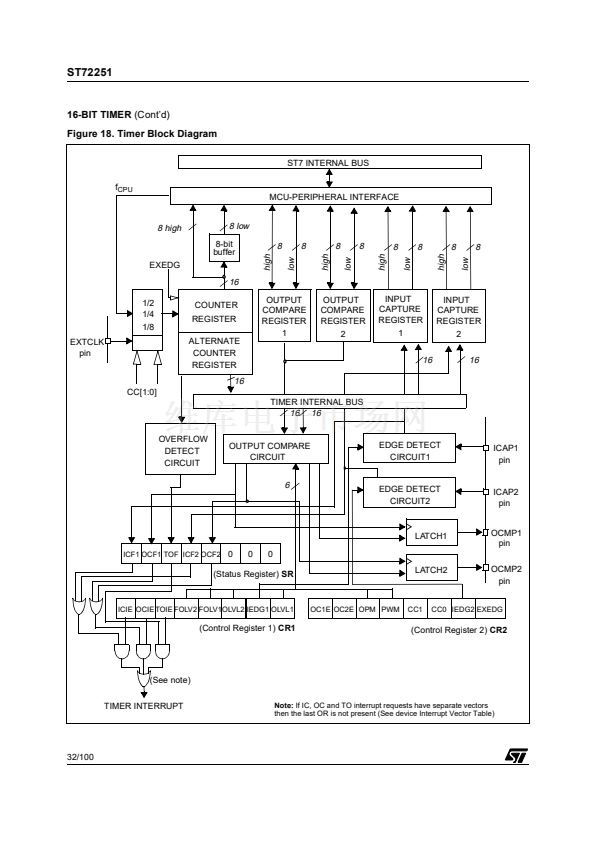

Two 16-bit Timers, each featuring:
鈥?2 Input Captures
鈥?2 Output Compares
鈥?External Clock input (on Timer A only)
鈥?PWM and Pulse Generator modes

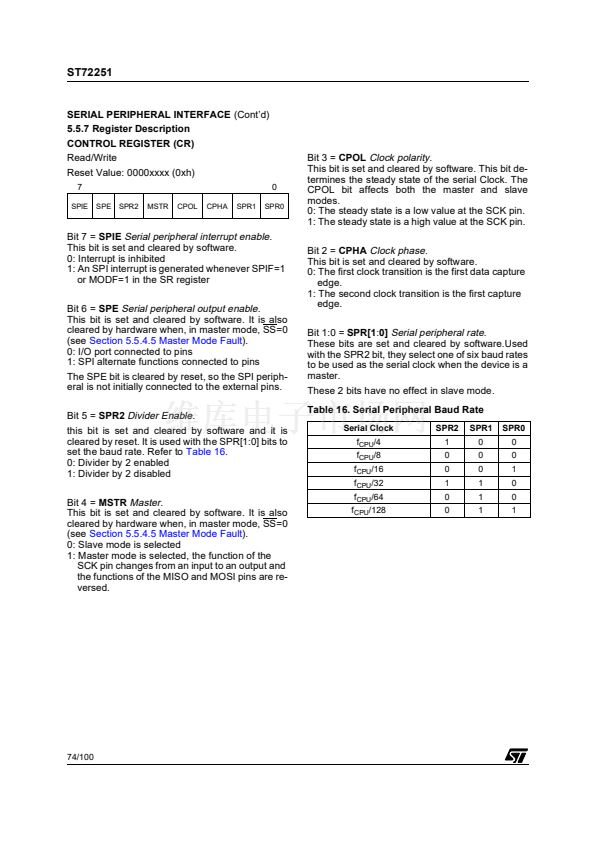

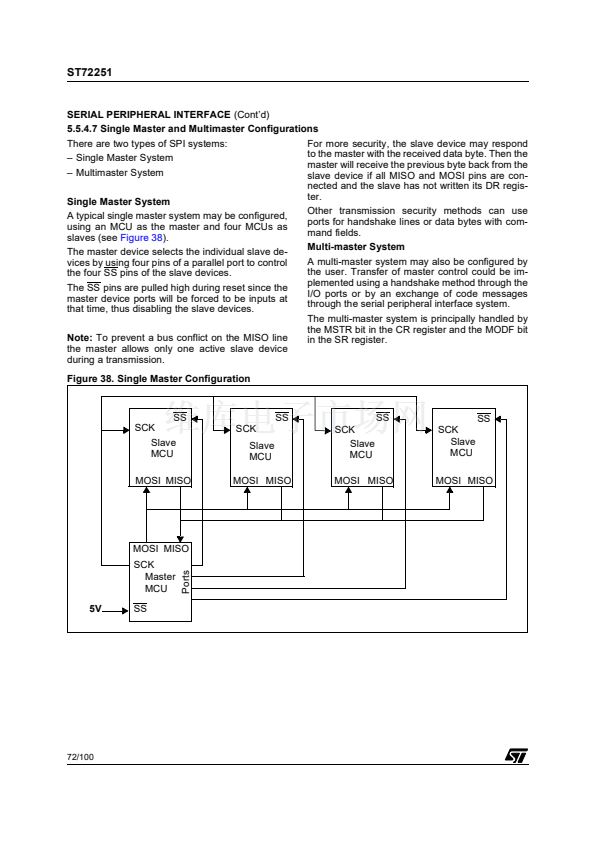

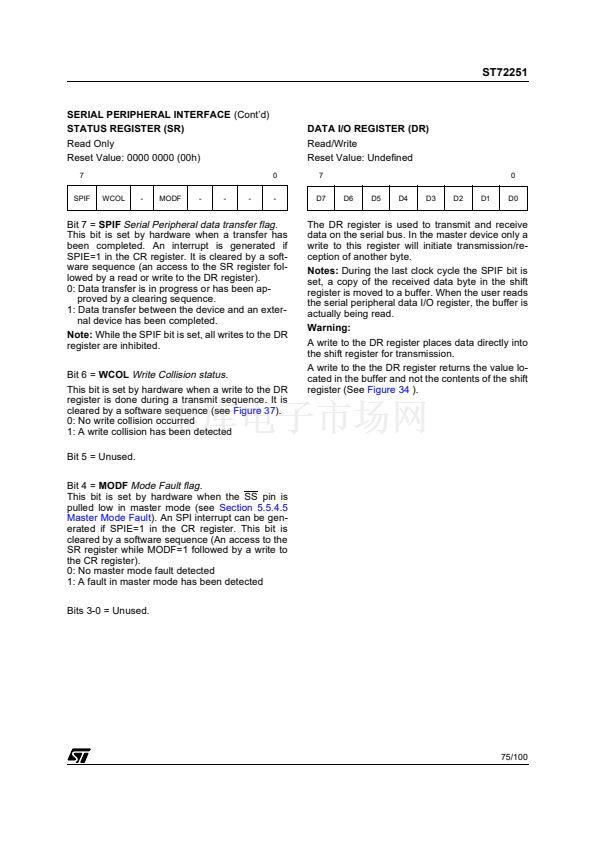

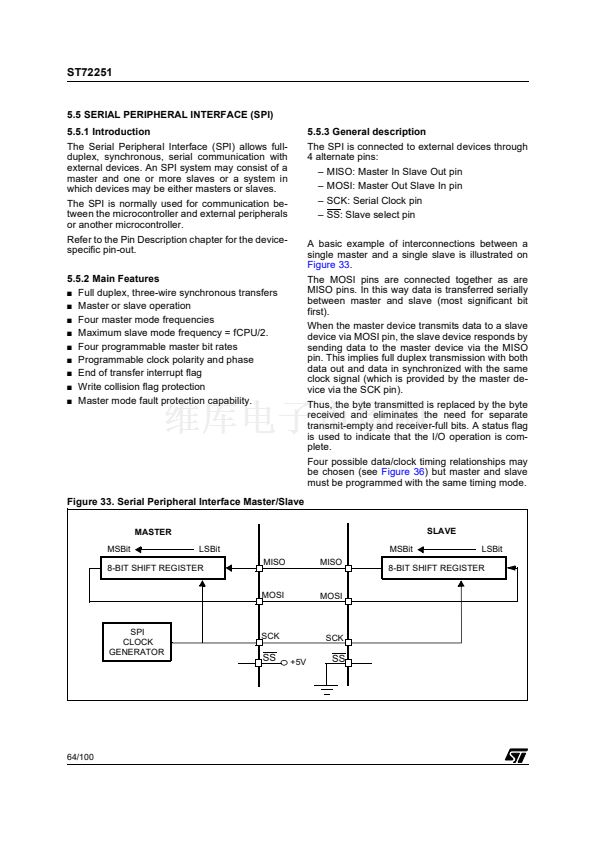

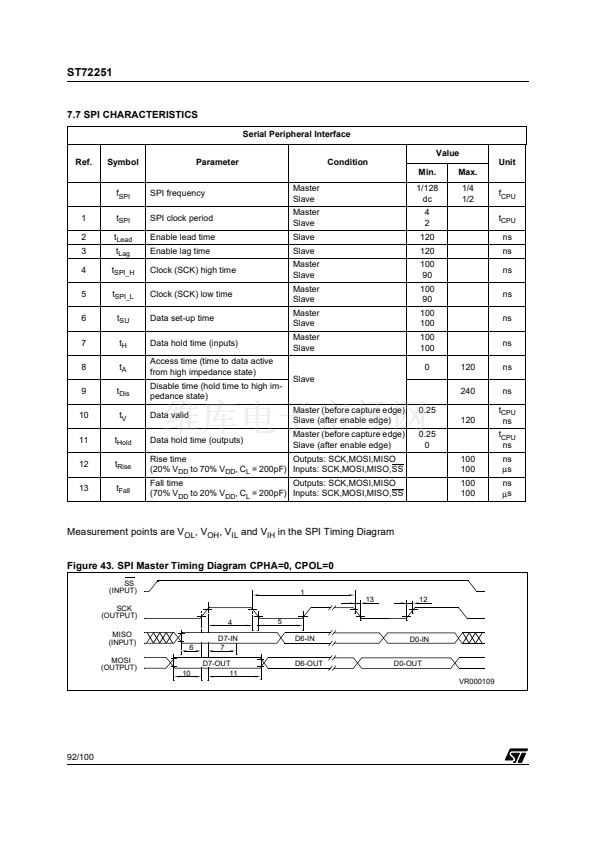

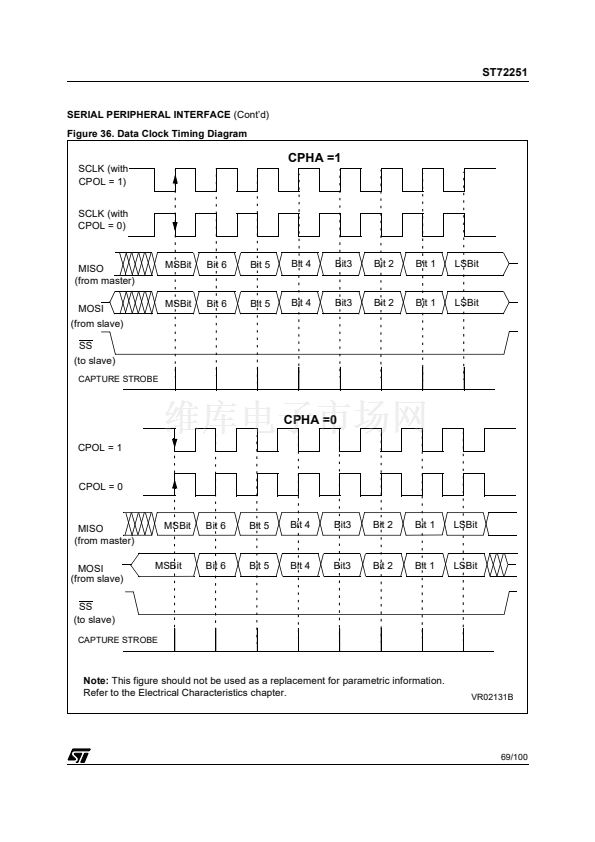

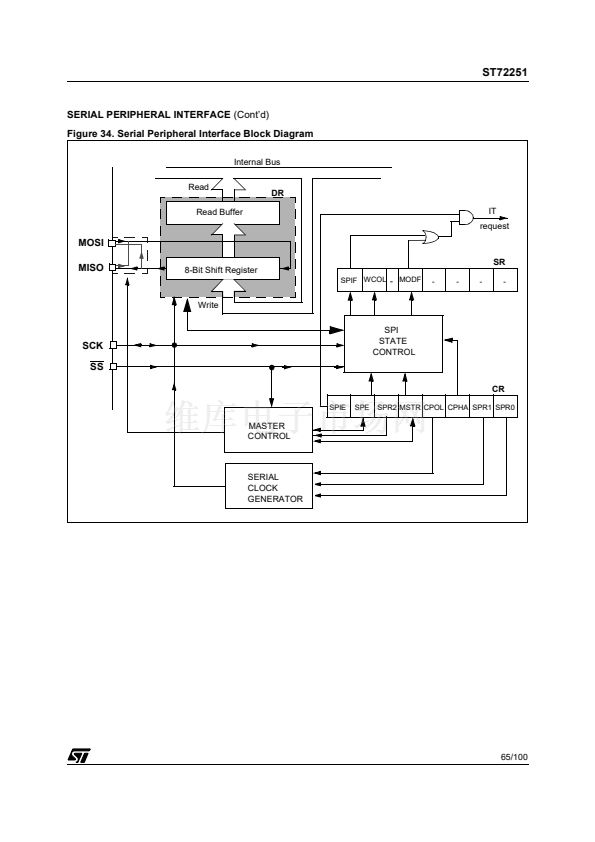

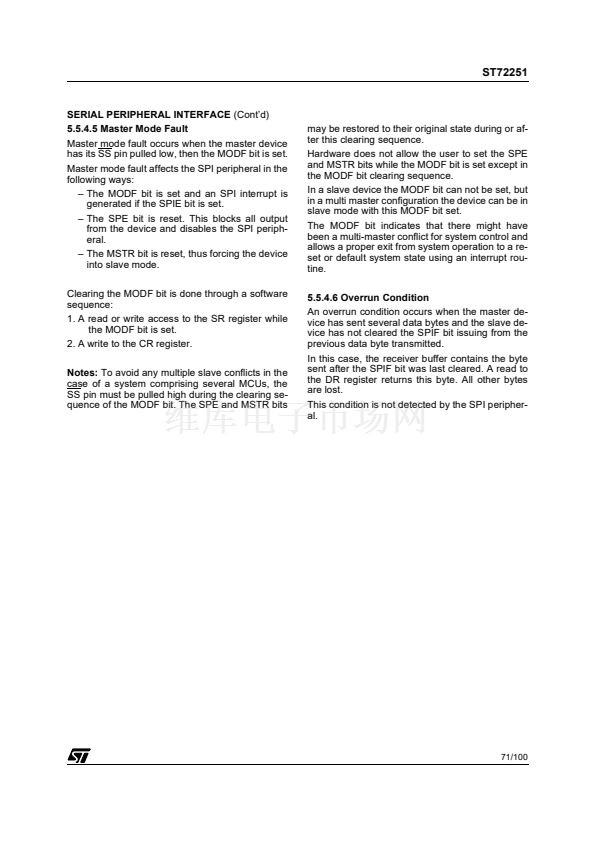

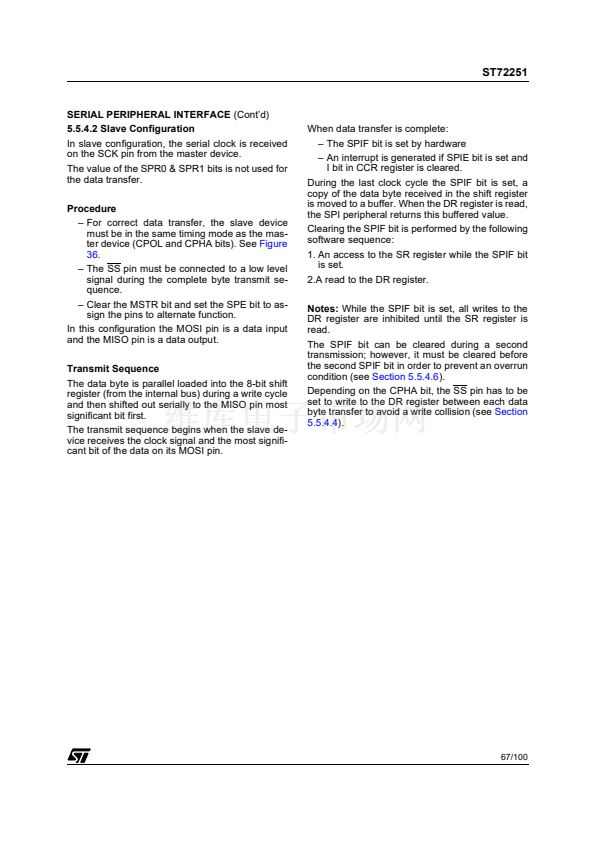

Synchronous Serial Peripheral Interface (SPI)

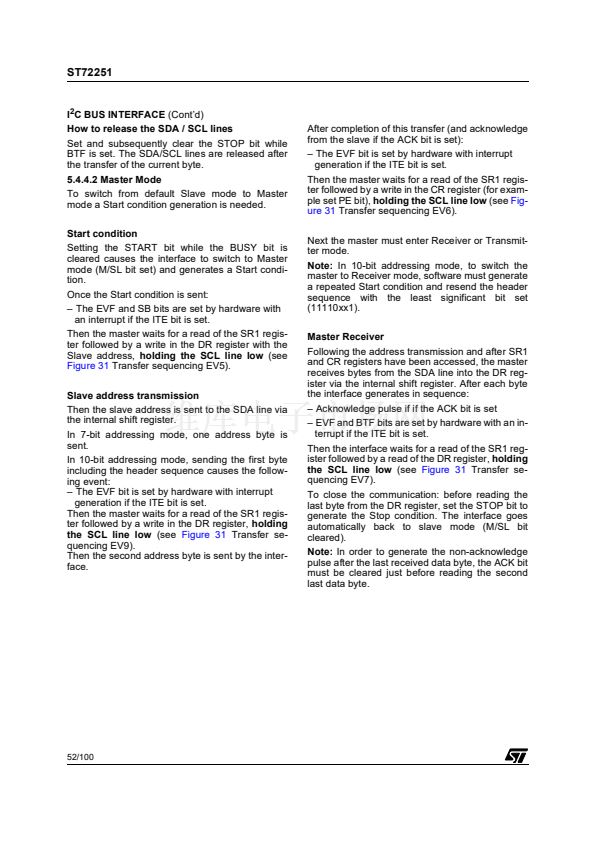

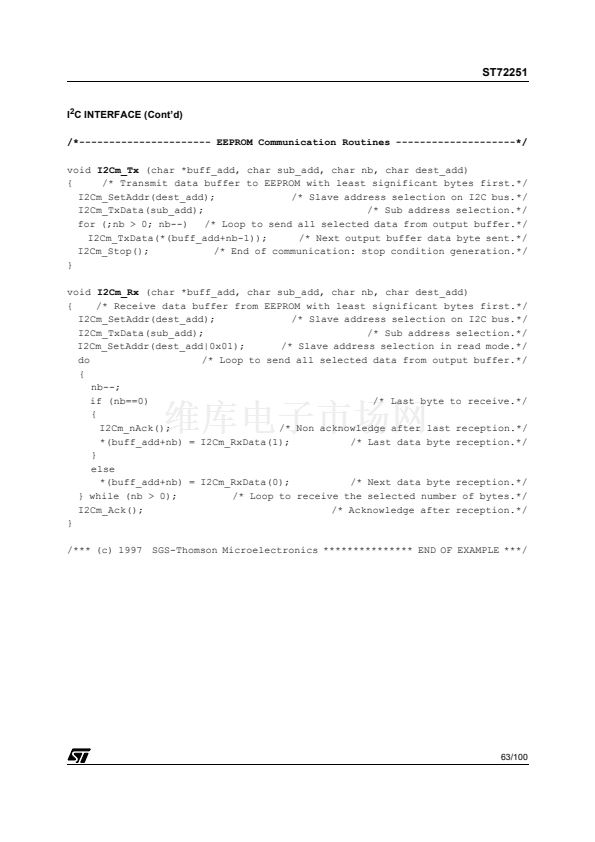

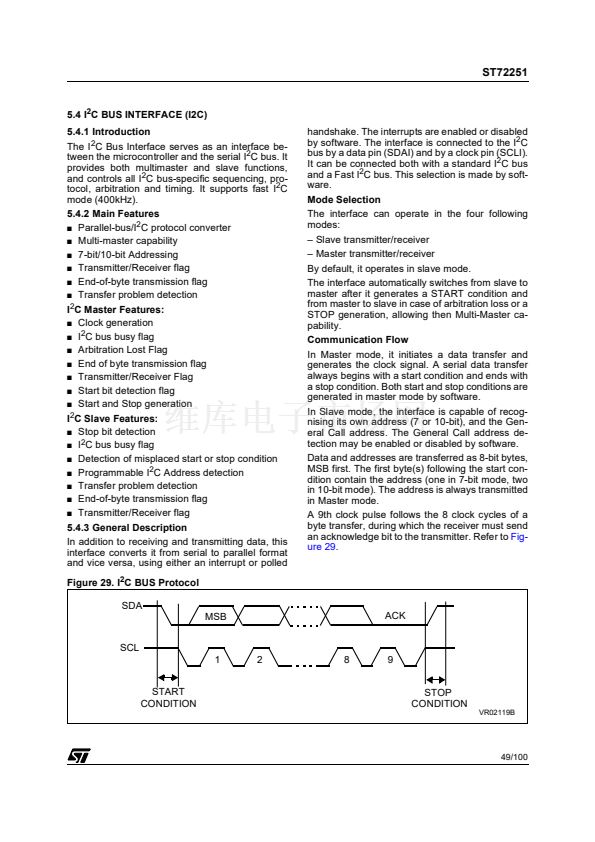

Full I
2
C multiple Master/Slave interface

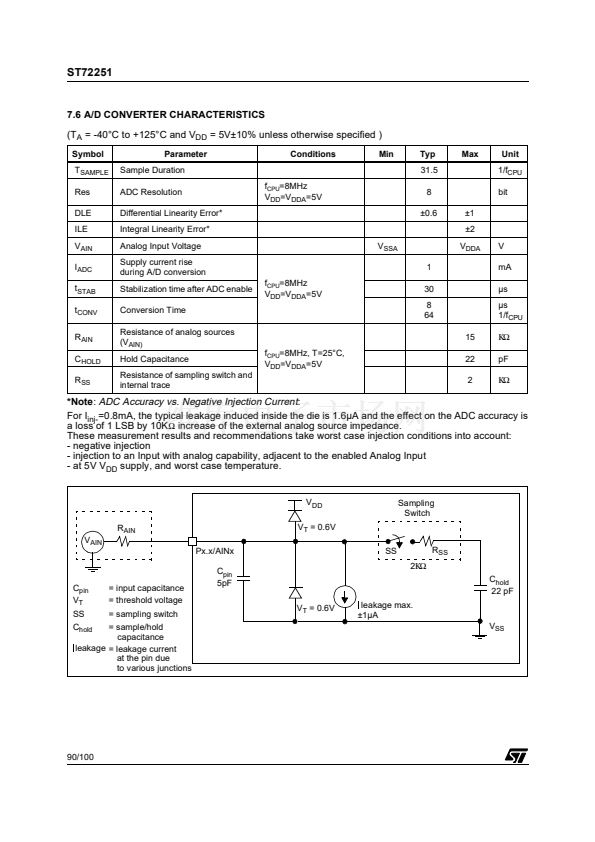

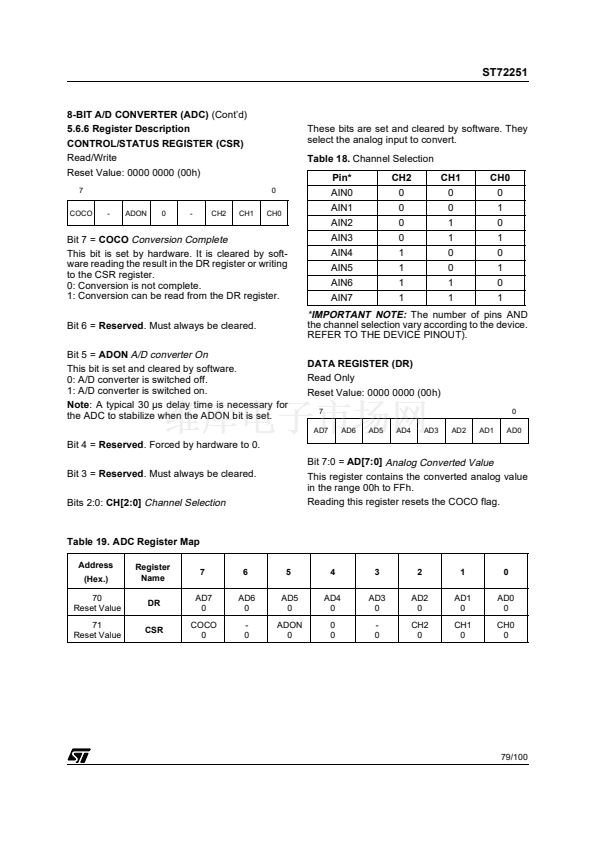

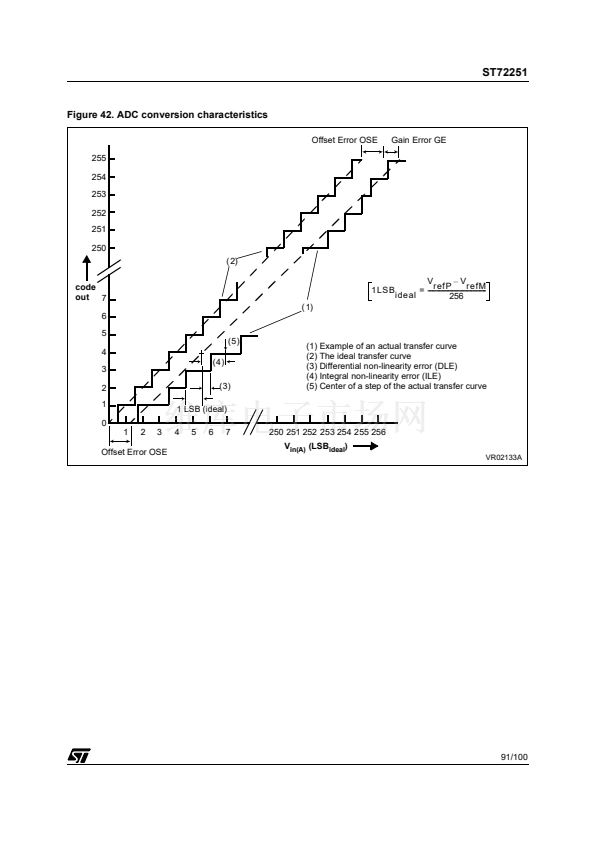

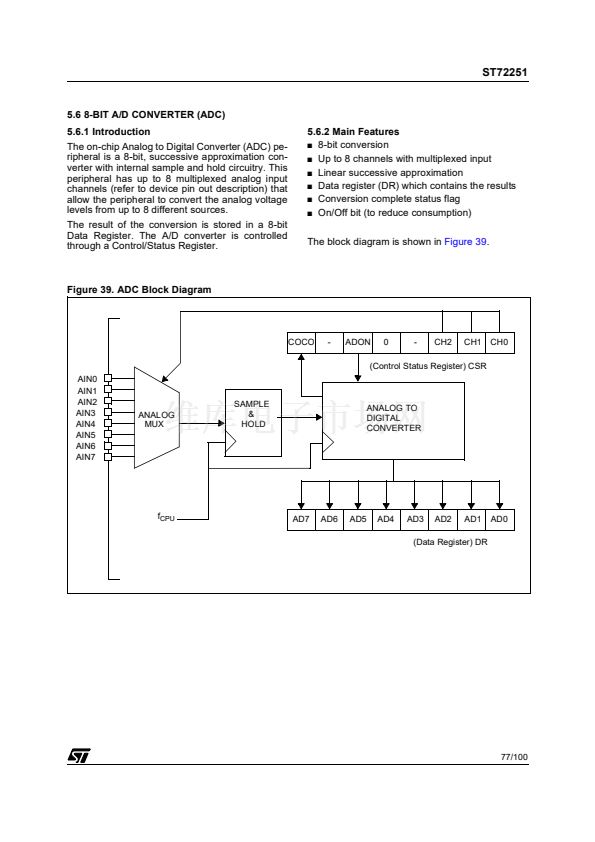

8-bit Analog-to-Digital converter (6 channels)
8-bit Data Manipulation

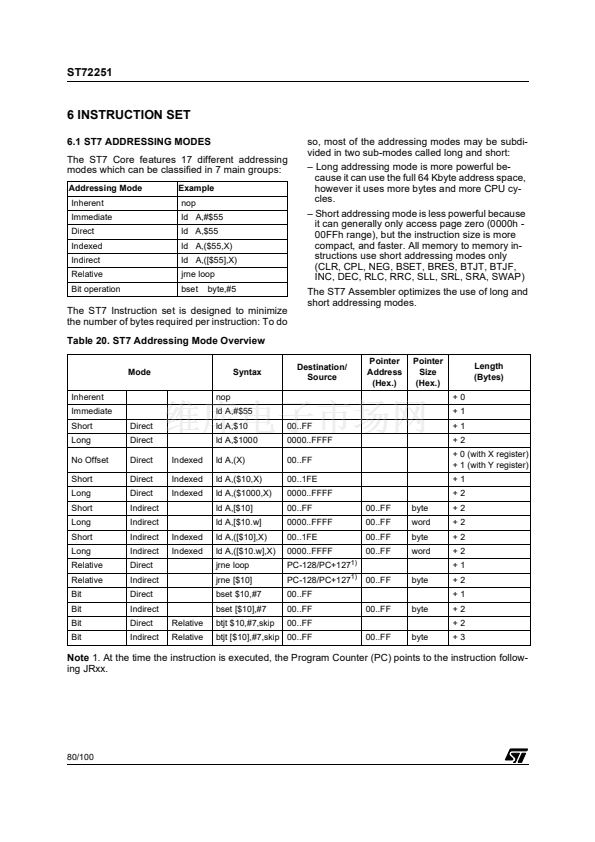

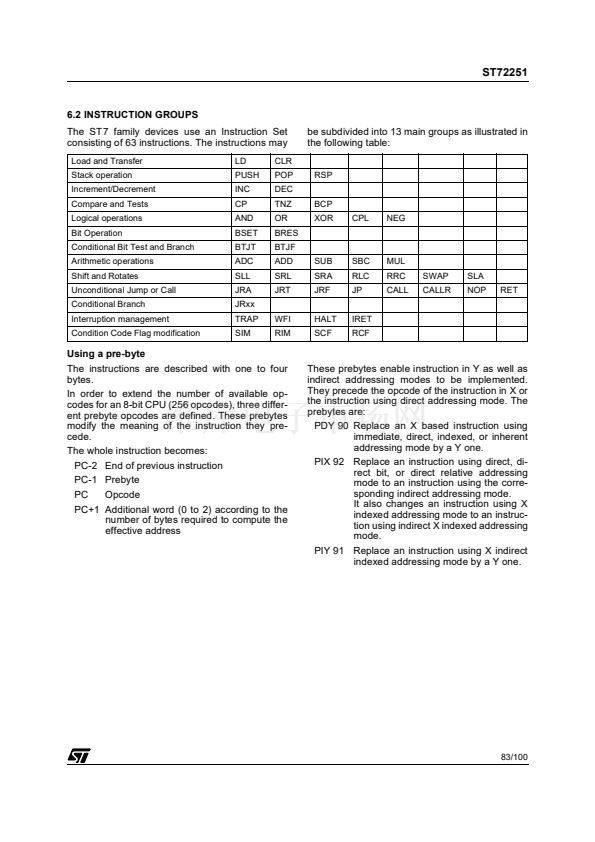

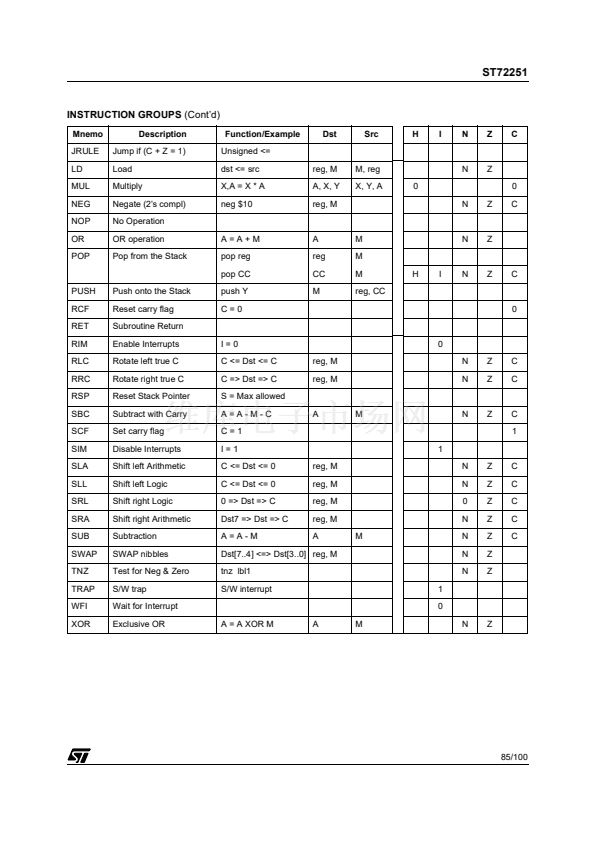

63 Basic Instructions

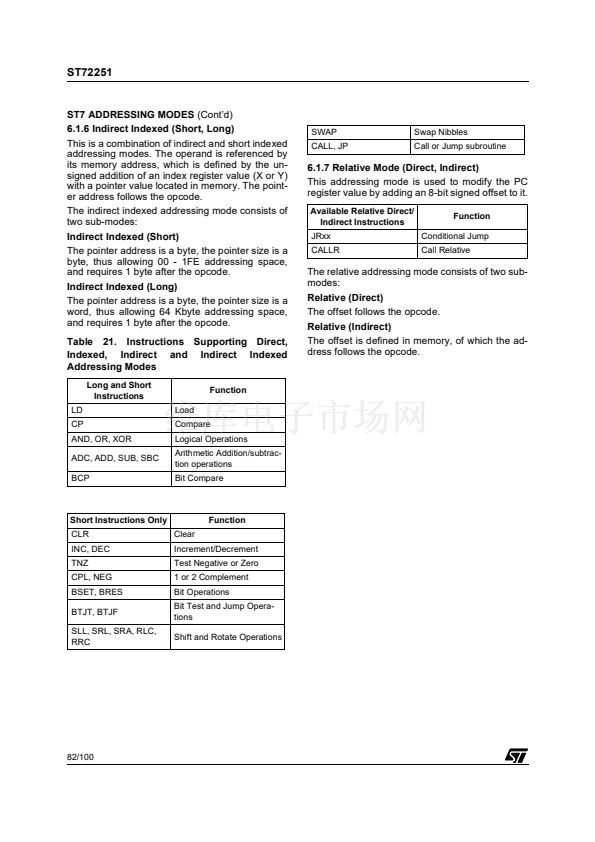

17 main Addressing Modes
8 x 8 Unsigned Multiply Instruction
True Bit Manipulation
Complete Development Support on PC/DOS-
WINDOWS
TM
Real-Time Emulator
Full Software Package on DOS/WINDOWS
TM
(C-Compiler, Cross-Assembler, Debugger)

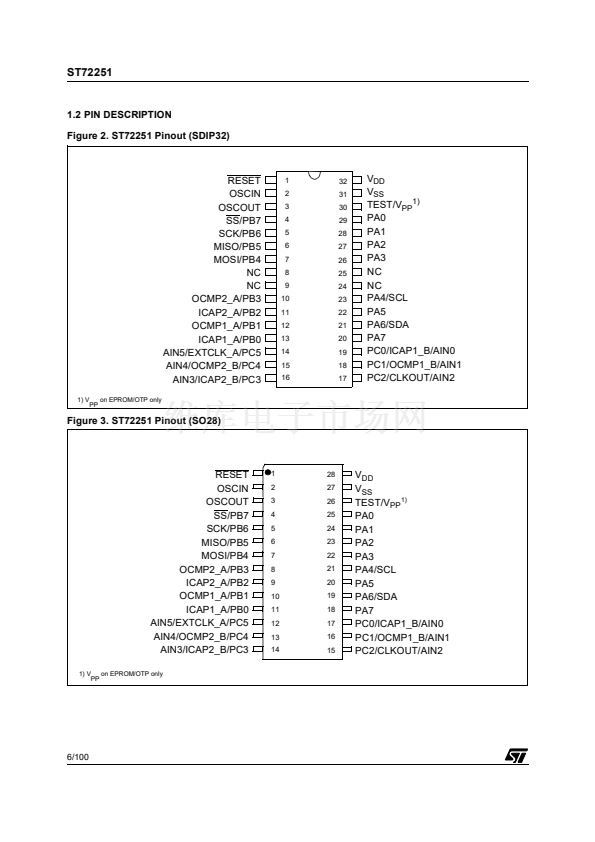

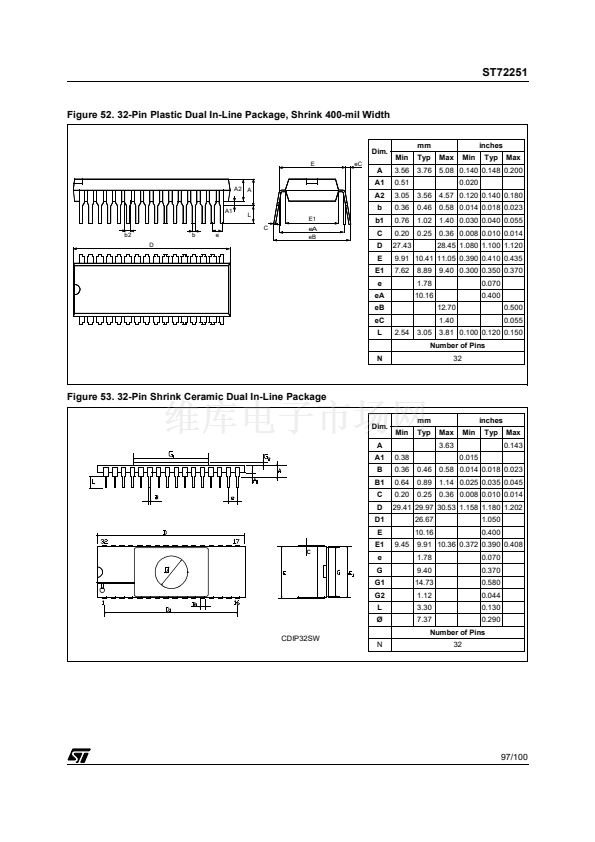

PSDIP32
CSDIP32W
SO28
(See ordering information at the end of datasheet)
Device Summary
Features
Program Memory
- bytes
RAM (stack) - bytes
Peripherals
Operating Supply
CPU Frequency
Temperature Range
Package
ST72251G1
4K
256 (64)
Watchdog, Timers, SPI, I
2
C, ADC

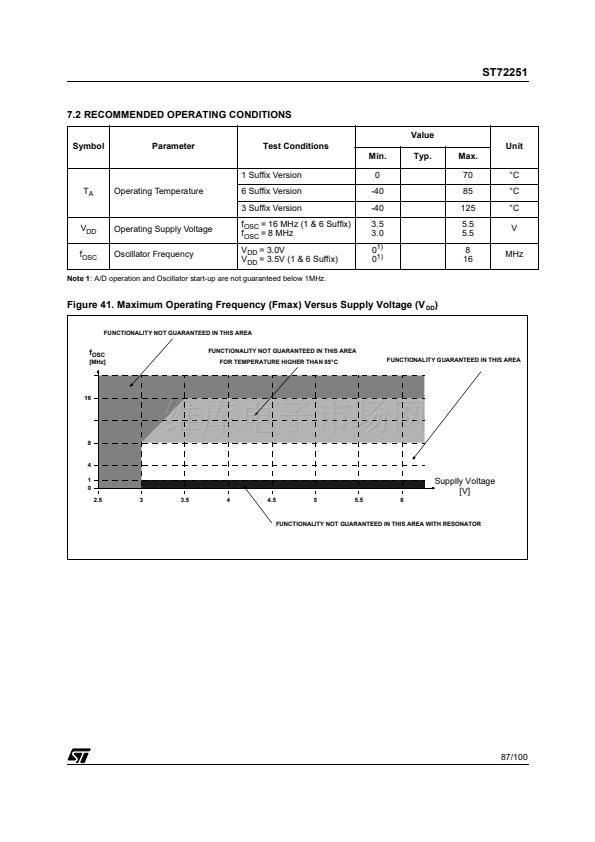

3 to 5.5 V
8MHz max (16MHz oscillator)
4MHz max over 85擄C
- 40擄C to + 125擄C
SO28 - SDIP32
ST72251G2
8K
Rev.
1.9
June 2001
1/100
1
