ST6389 Datasheet

  • ST6389

  • 8-BIT MCUs WITH ON-SCREEN-DISPLAY FOR TV TUNING

  • 717.16KB

  • 82頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

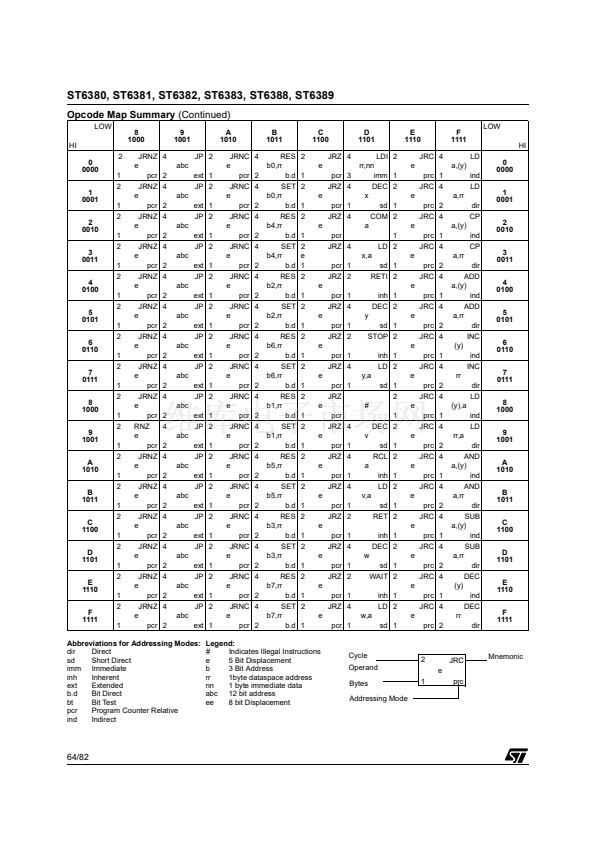

PDF預覽

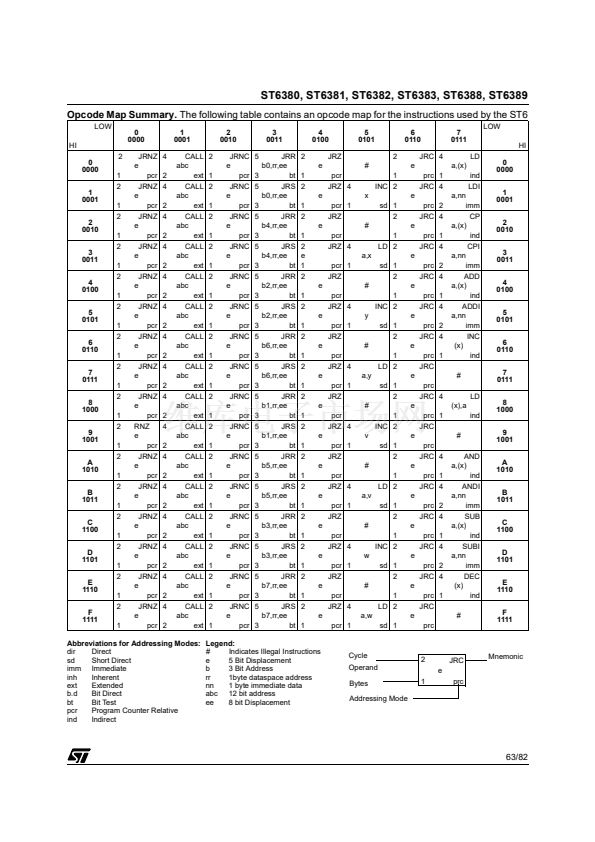

ST6380,ST6381,ST6382,
ST6383,ST6388,ST6389

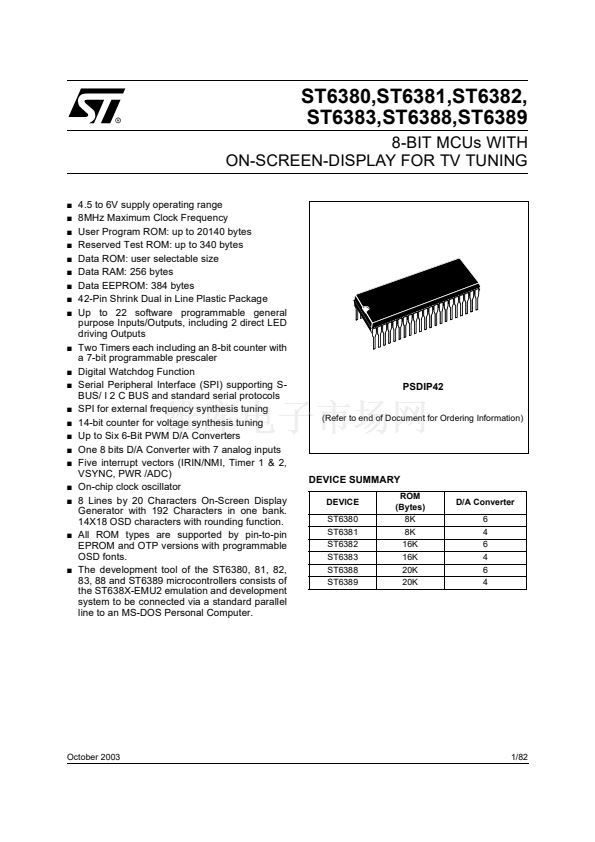

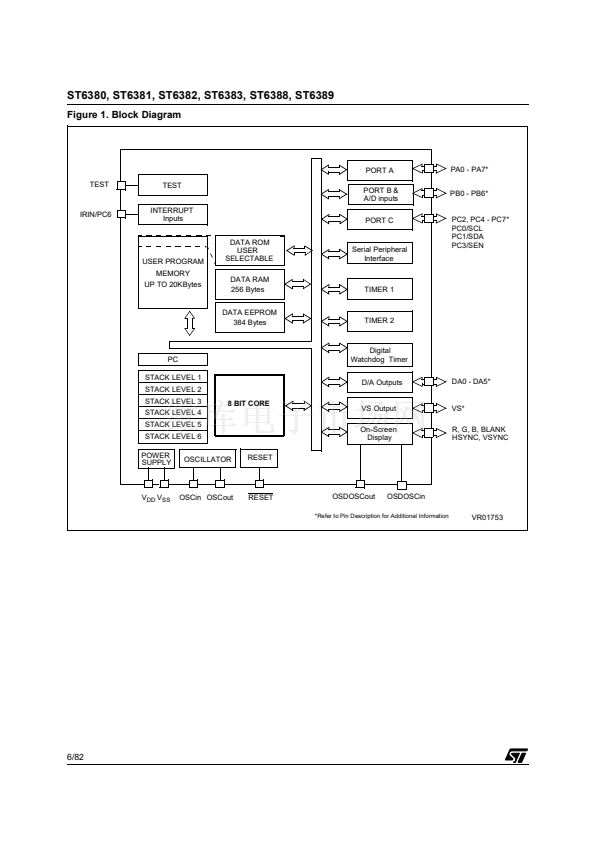

8-BIT MCUs WITH
ON-SCREEN-DISPLAY FOR TV TUNING
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s
s

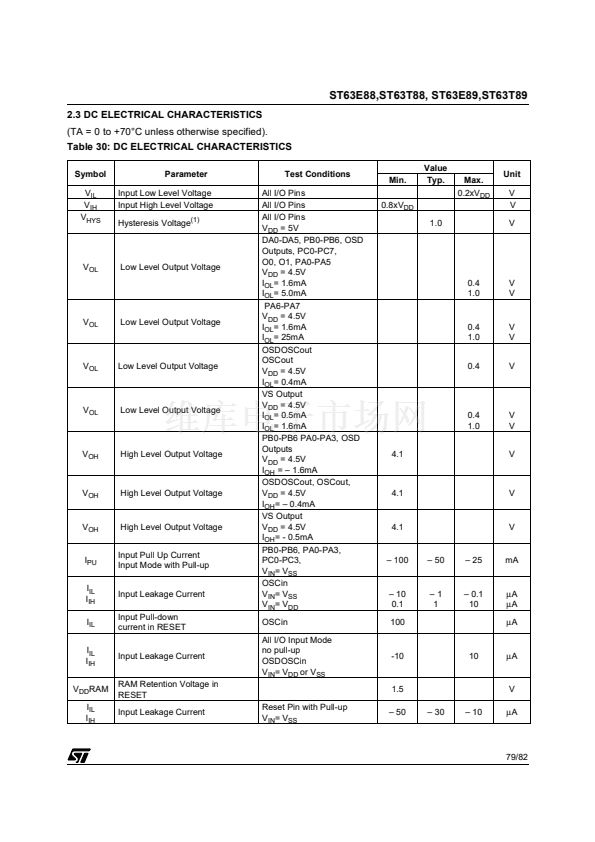

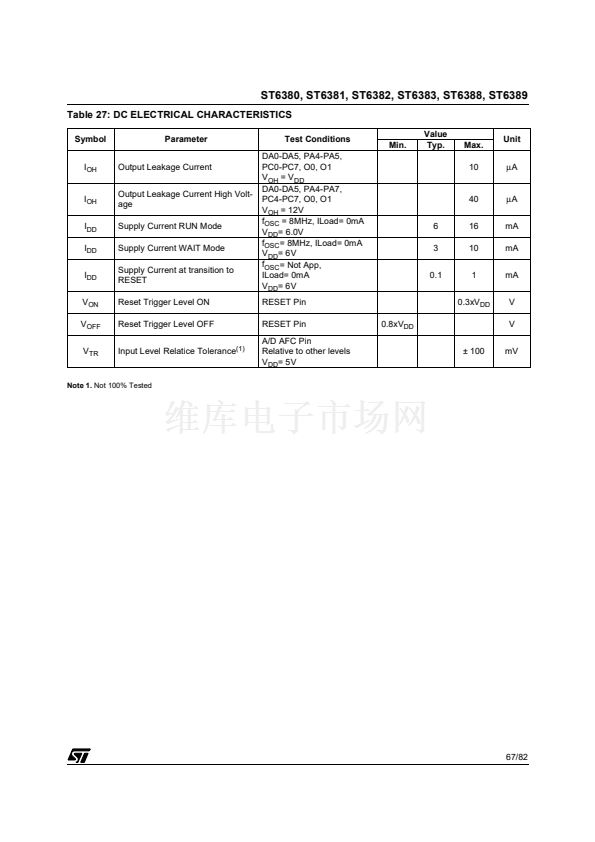

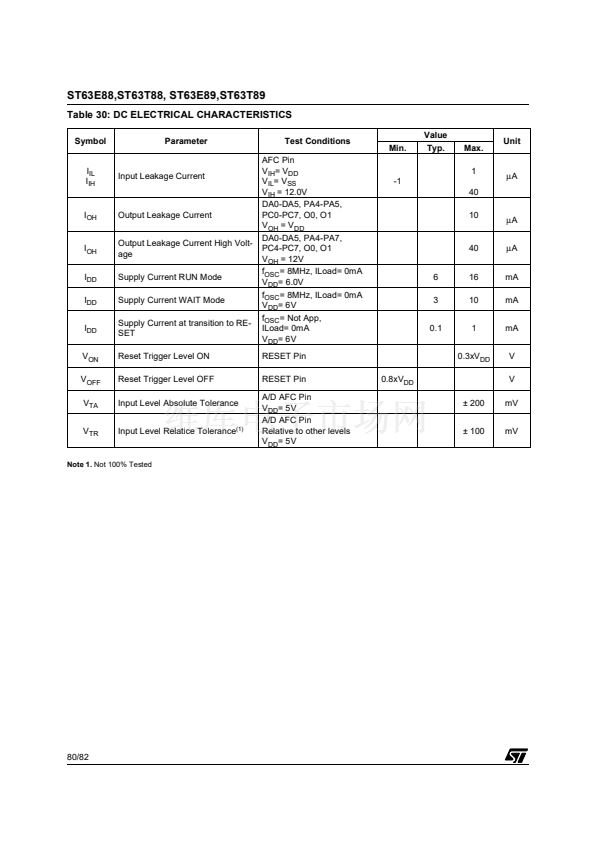

4.5 to 6V supply operating range
8MHz Maximum Clock Frequency

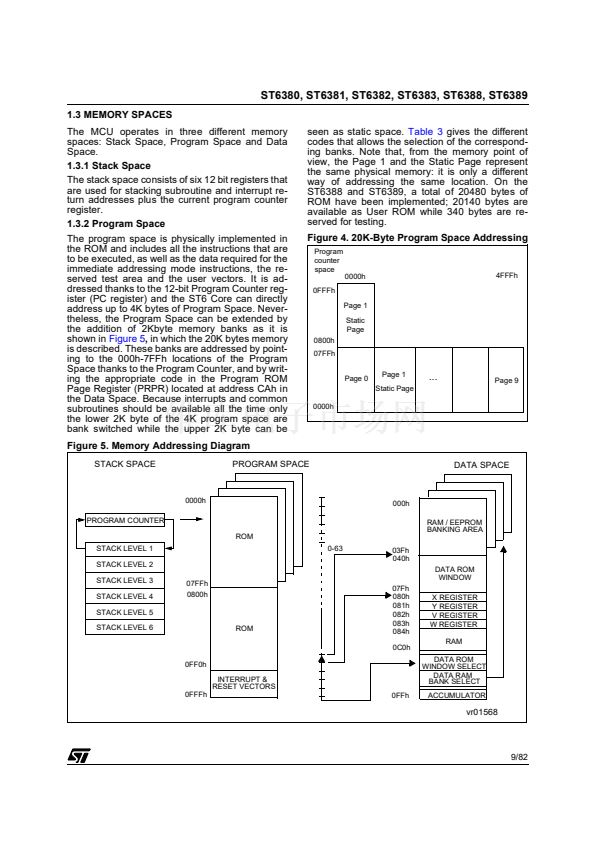

User Program ROM: up to 20140 bytes
Reserved Test ROM: up to 340 bytes
Data ROM: user selectable size
Data RAM: 256 bytes
Data EEPROM: 384 bytes

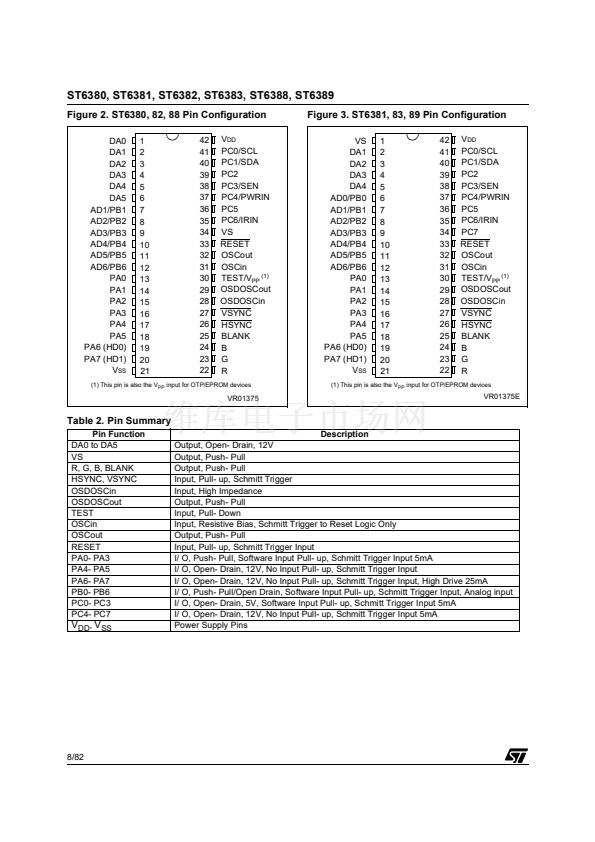

42-Pin Shrink Dual in Line Plastic Package

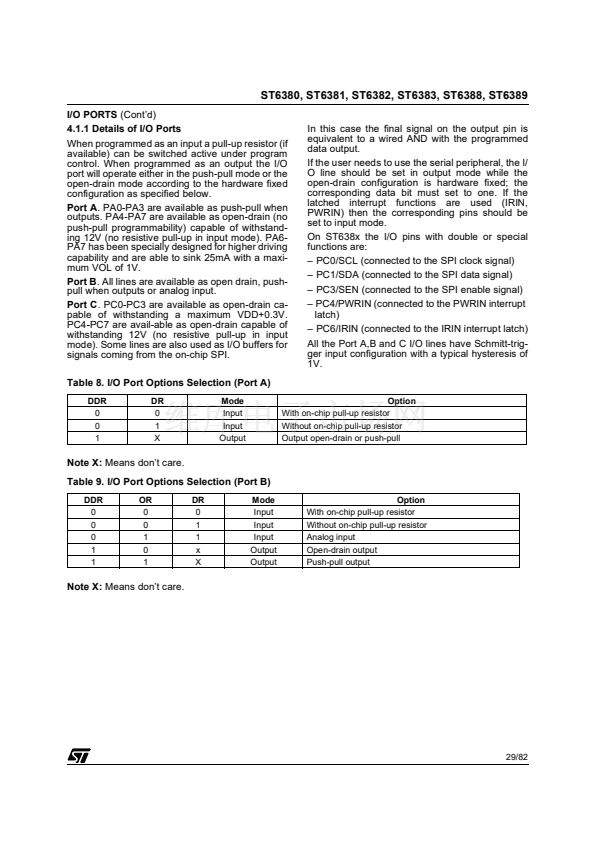

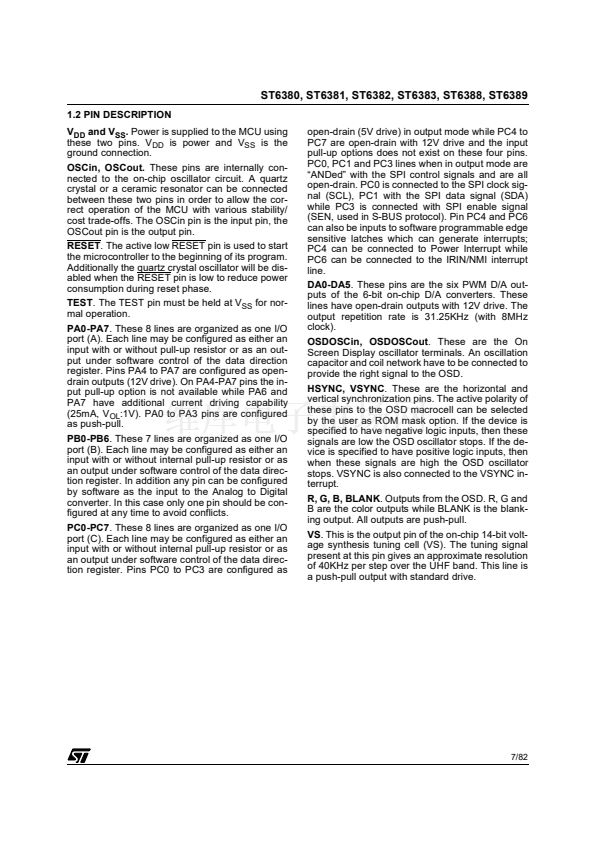

Up to 22 software programmable general
purpose Inputs/Outputs, including 2 direct LED
driving Outputs

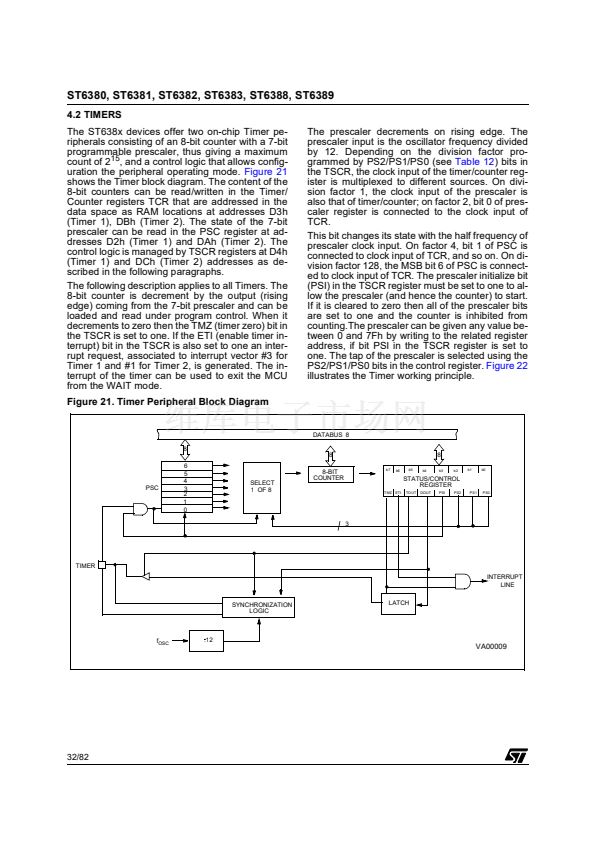

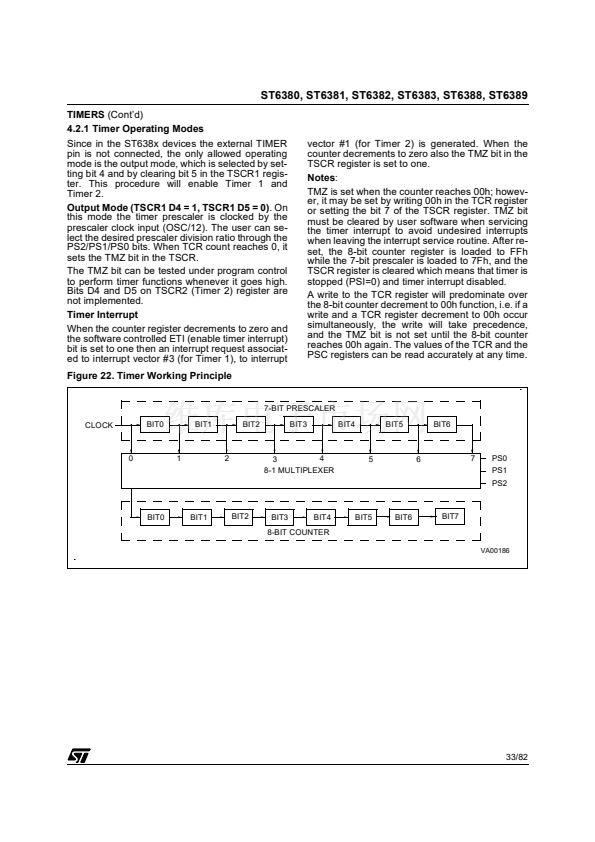

Two Timers each including an 8-bit counter with
a 7-bit programmable prescaler

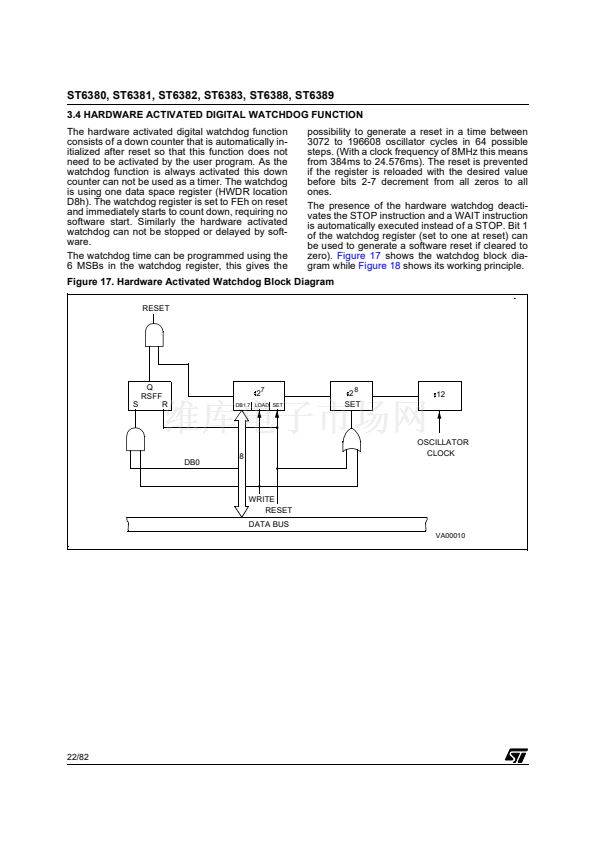

Digital Watchdog Function

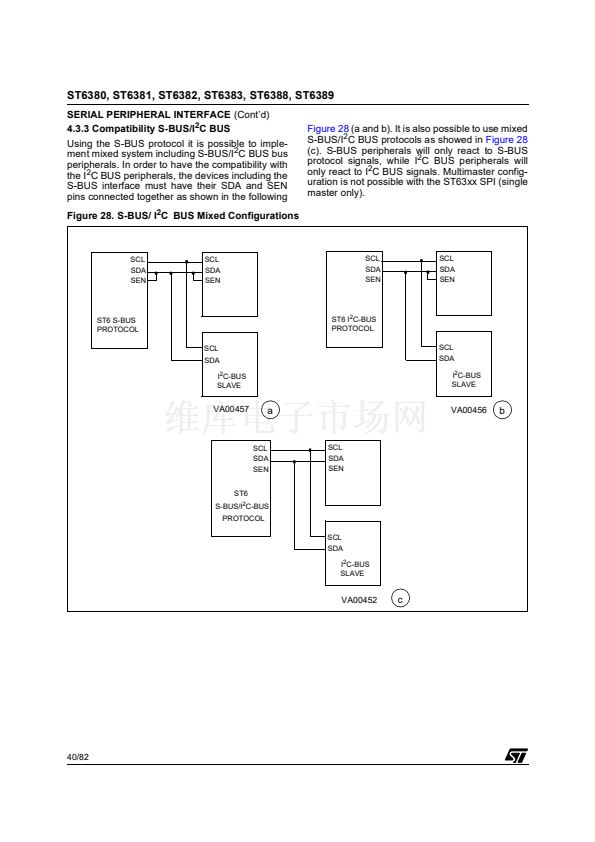

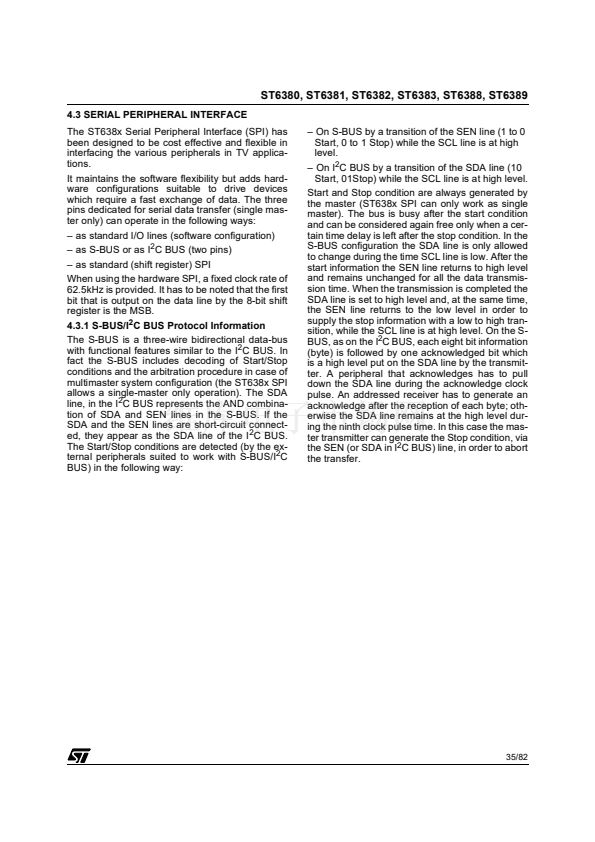

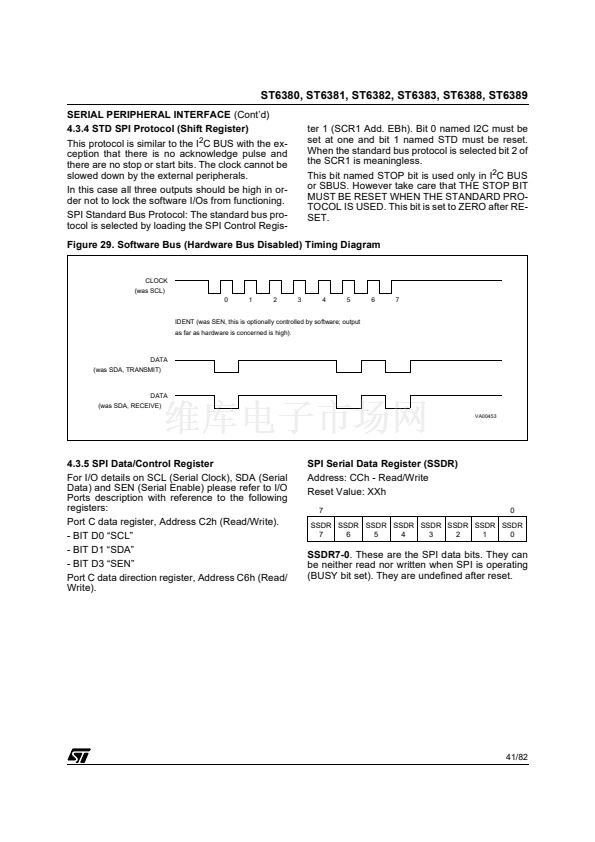

Serial Peripheral Interface (SPI) supporting S-
BUS/ I 2 C BUS and standard serial protocols
SPI for external frequency synthesis tuning

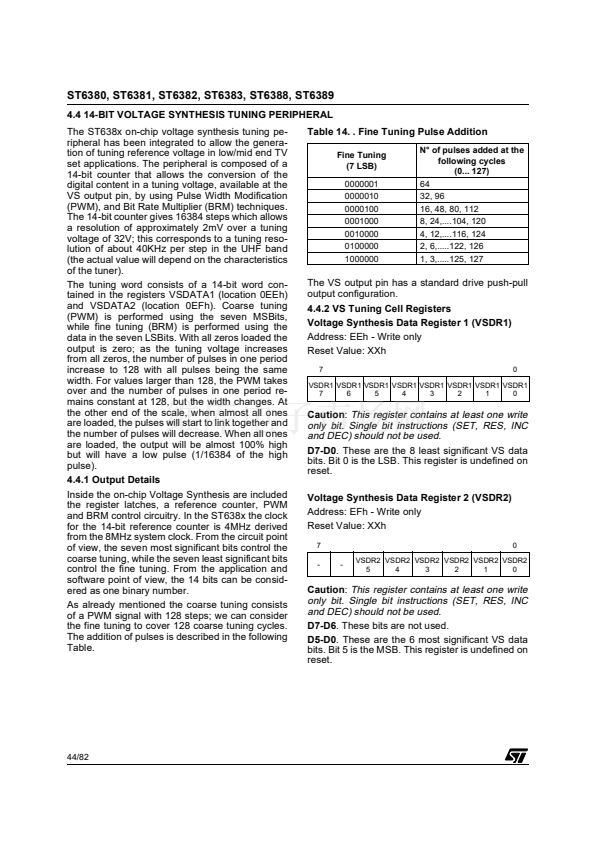

14-bit counter for voltage synthesis tuning

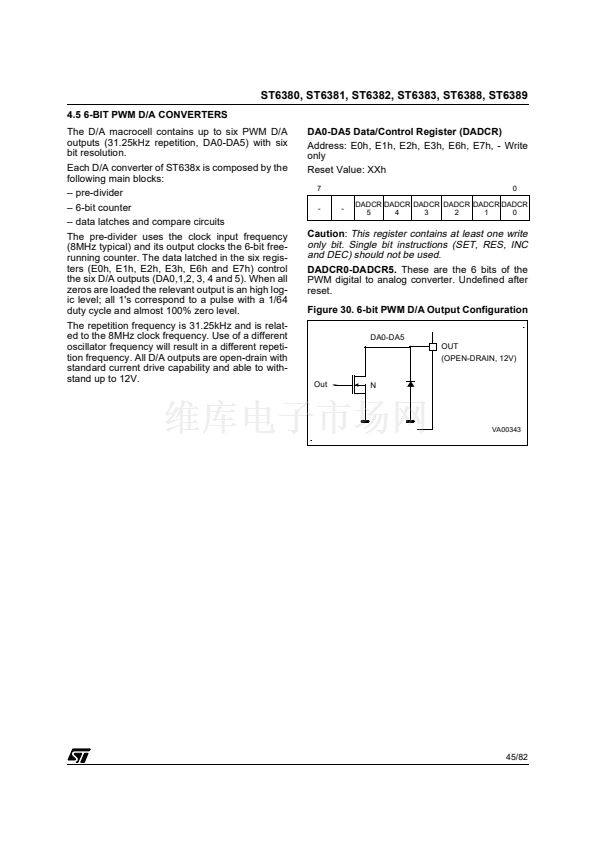

Up to Six 6-Bit PWM D/A Converters
One 8 bits D/A Converter with 7 analog inputs

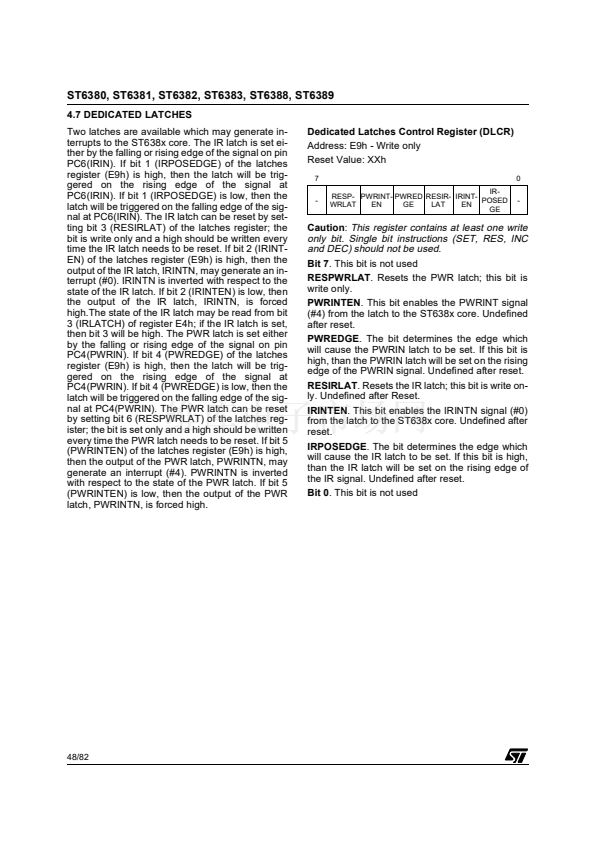

Five interrupt vectors (IRIN/NMI, Timer 1 & 2,
VSYNC, PWR /ADC)
On-chip clock oscillator

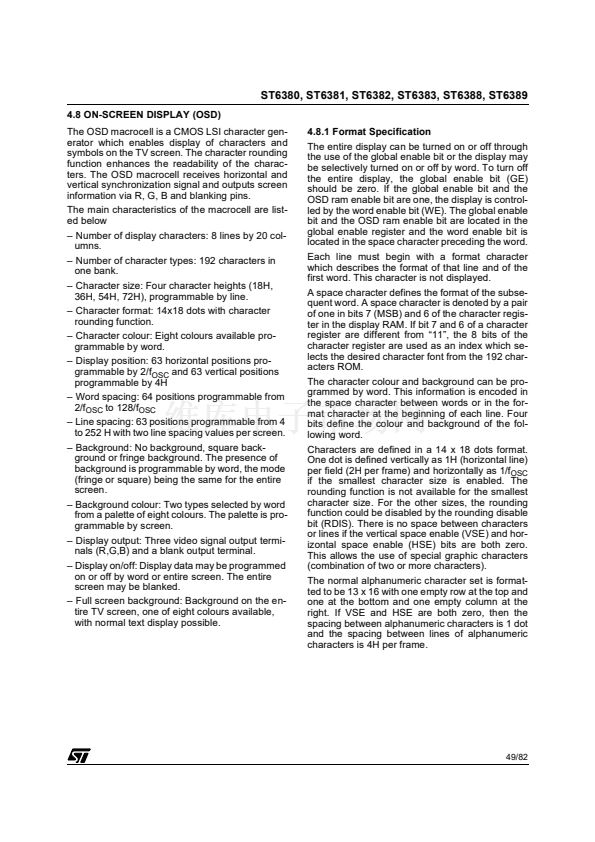

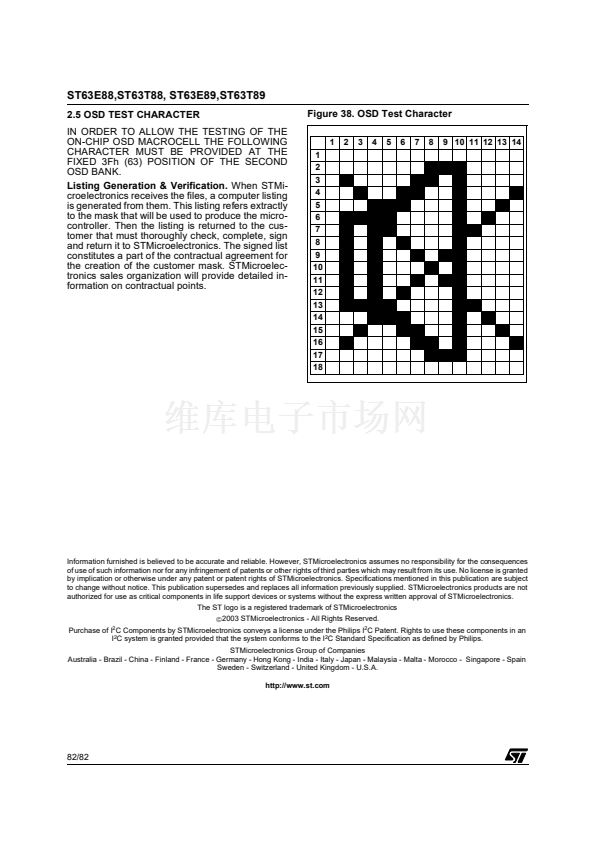

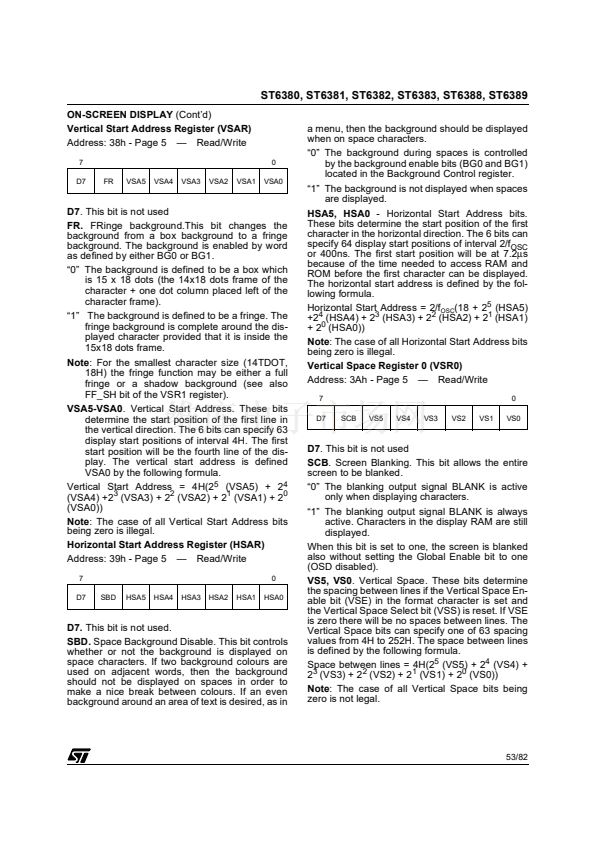

8 Lines by 20 Characters On-Screen Display
Generator with 192 Characters in one bank.
14X18 OSD characters with rounding function.

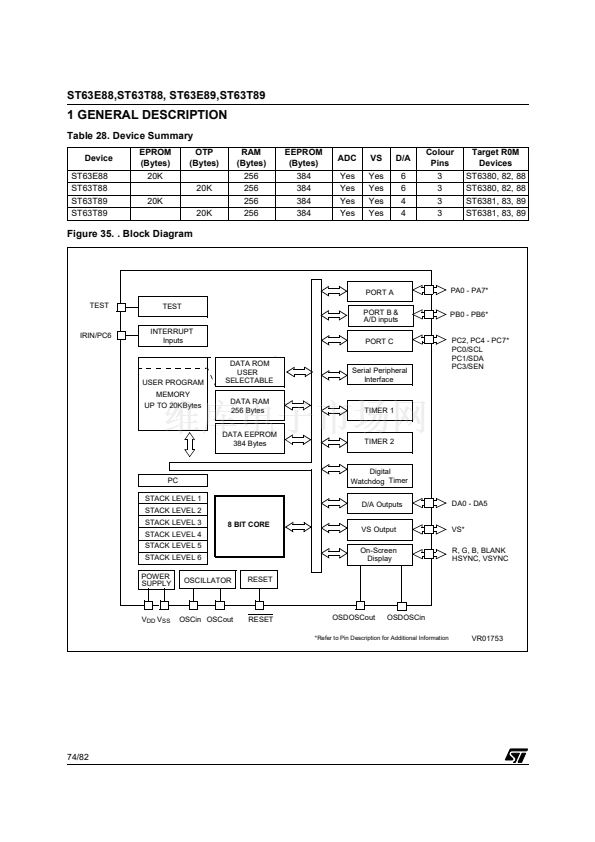

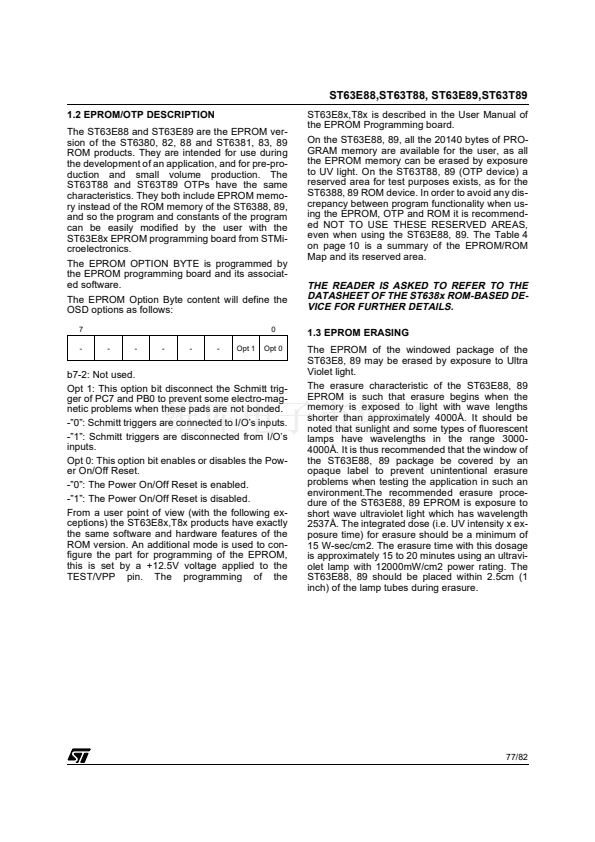

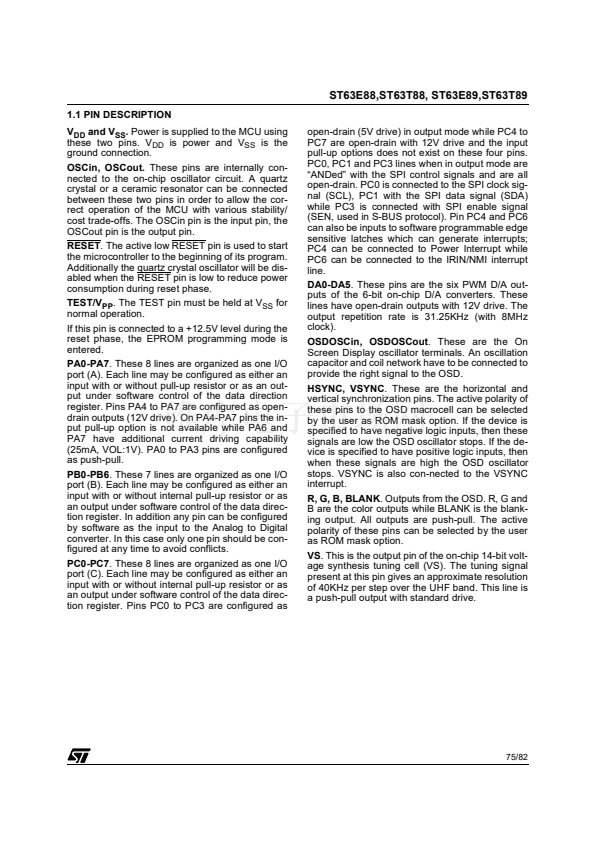

All ROM types are supported by pin-to-pin
EPROM and OTP versions with programmable
OSD fonts.
The development tool of the ST6380, 81, 82,
83, 88 and ST6389 microcontrollers consists of
the ST638X-EMU2 emulation and development
system to be connected via a standard parallel
line to an MS-DOS Personal Computer.

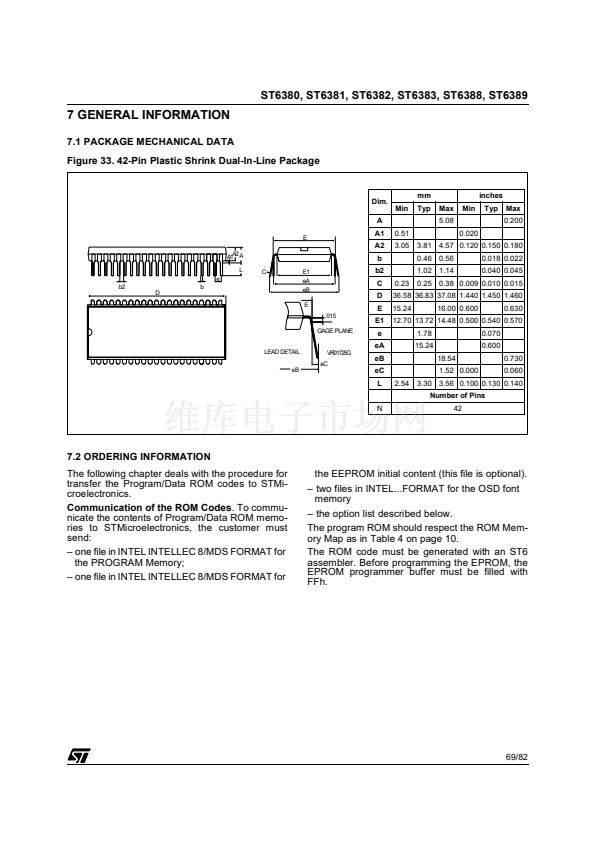

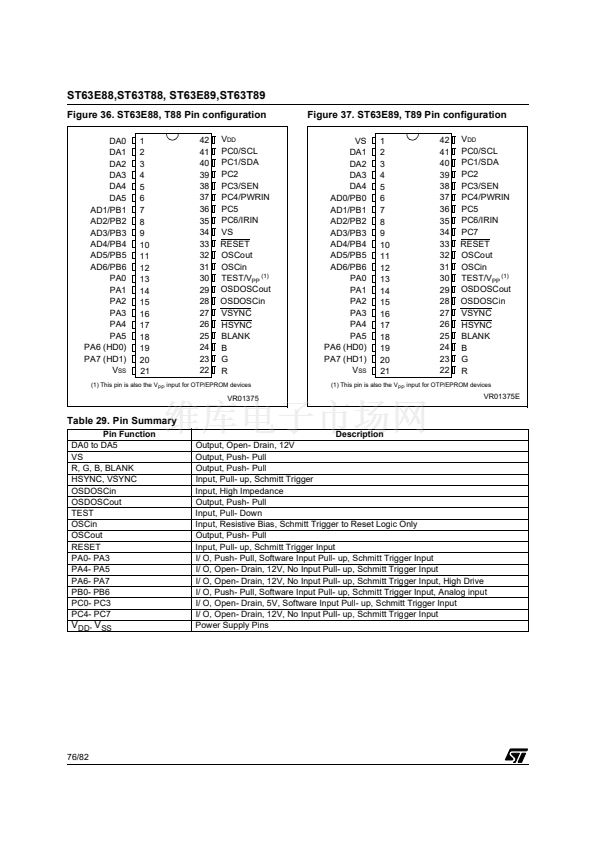

PSDIP42
(Refer to end of Document for Ordering Information)

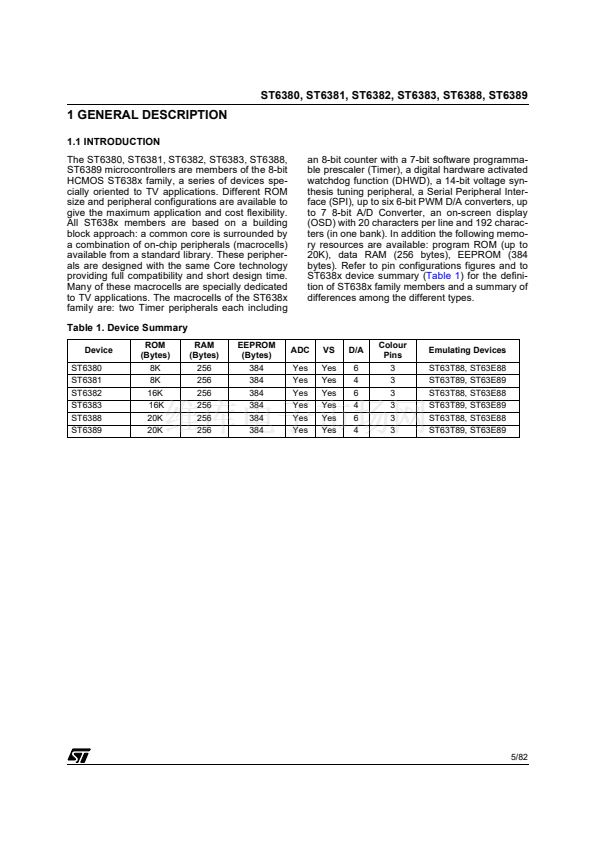

DEVICE SUMMARY
DEVICE
ST6380
ST6381
ST6382
ST6383
ST6388
ST6389
ROM
(Bytes)
8K
8K
16K
16K
20K
20K
D/A Converter
6
4
6
4
6
4
October 2003
1/82
1
