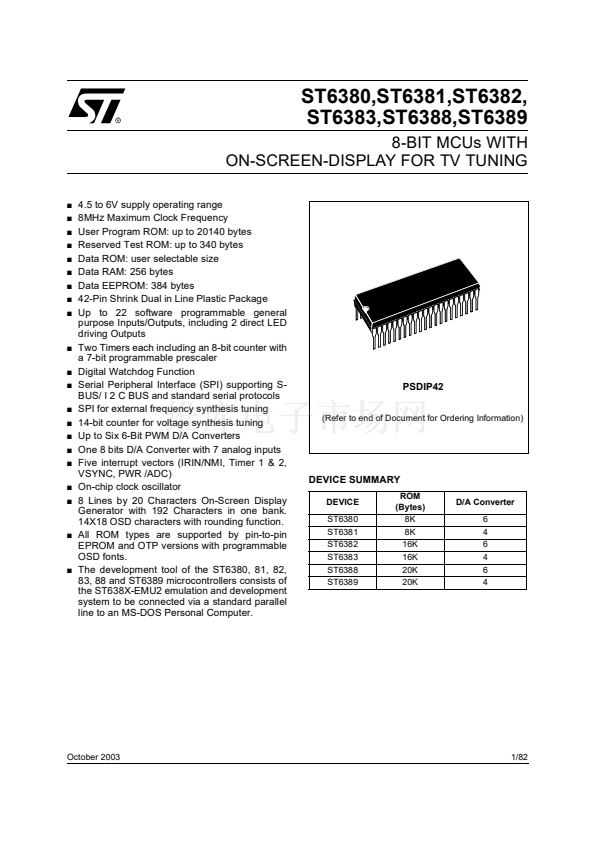

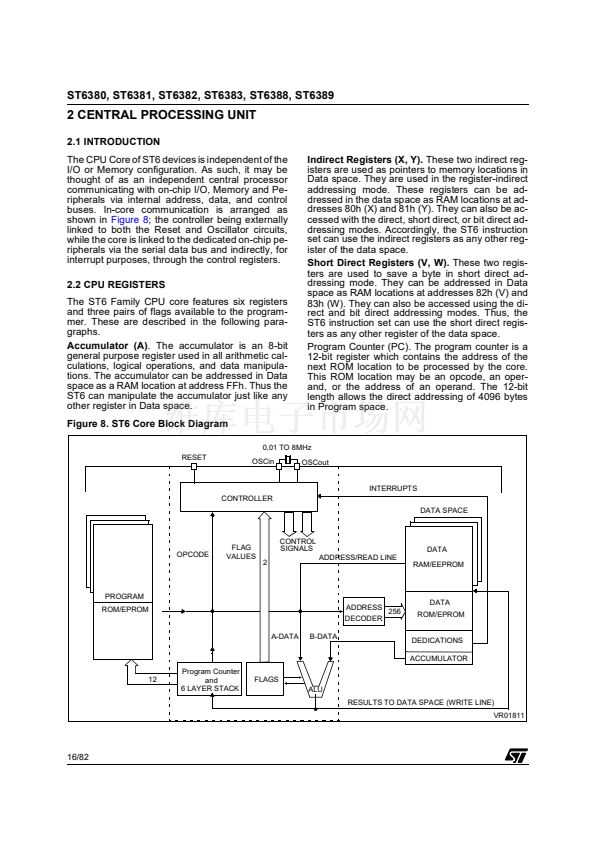

ST6380,ST6381,ST6382,

ST6383,ST6388,ST6389

8-BIT MCUs WITH

ON-SCREEN-DISPLAY FOR TV TUNING

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

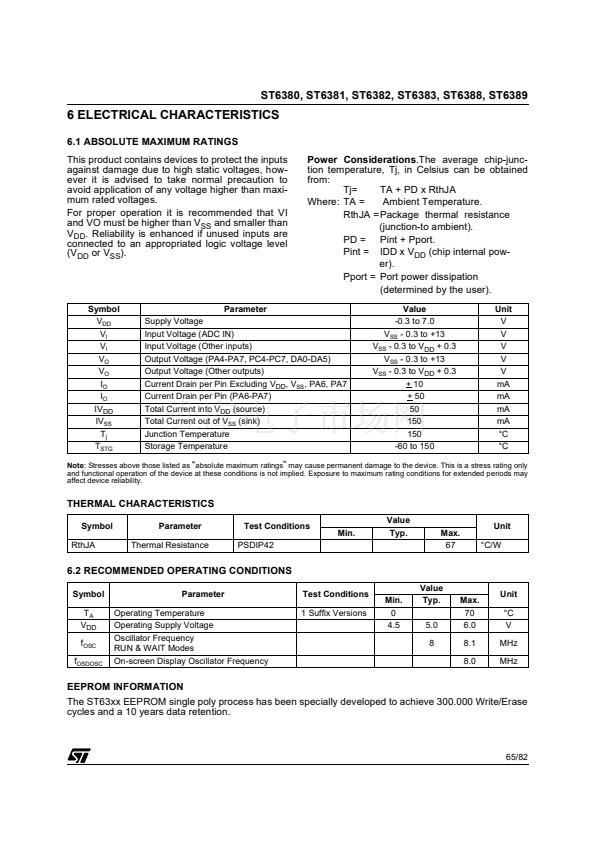

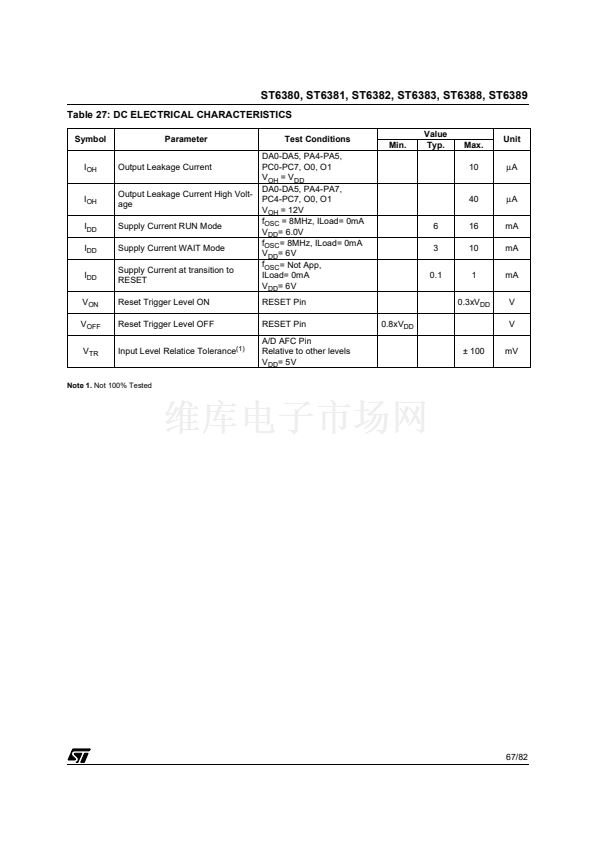

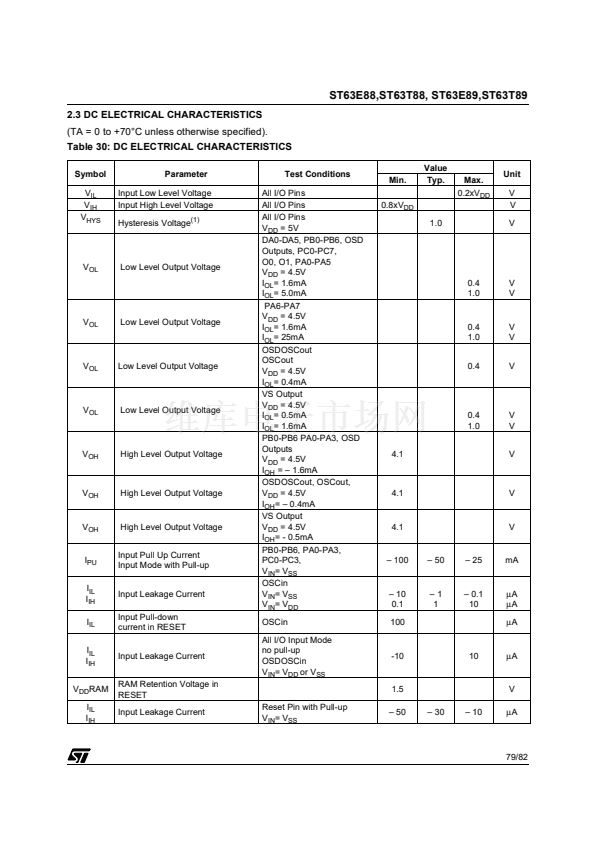

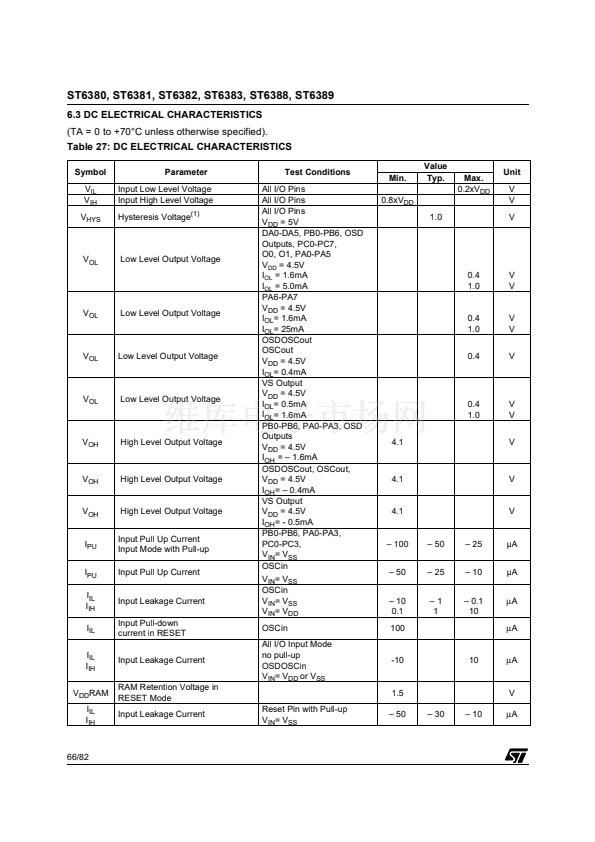

4.5 to 6V supply operating range

8MHz Maximum Clock Frequency

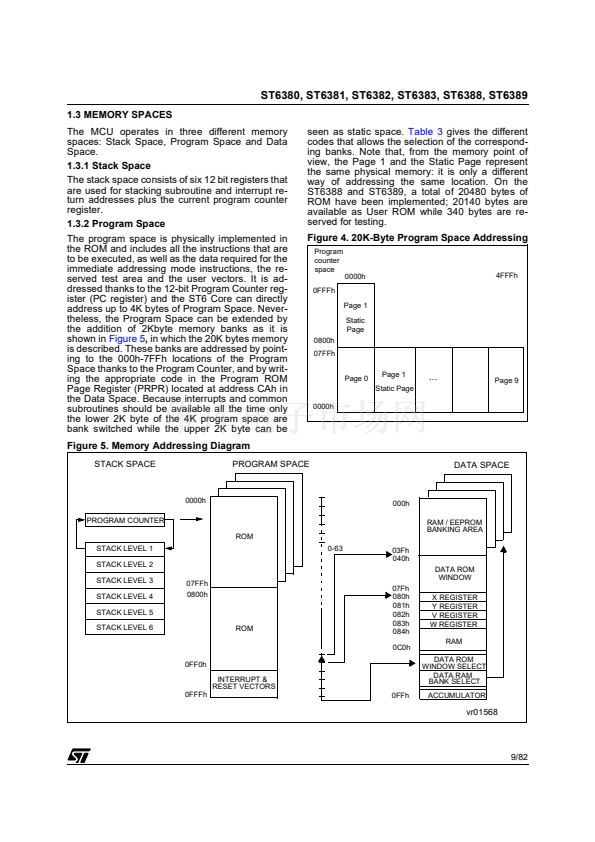

User Program ROM: up to 20140 bytes

Reserved Test ROM: up to 340 bytes

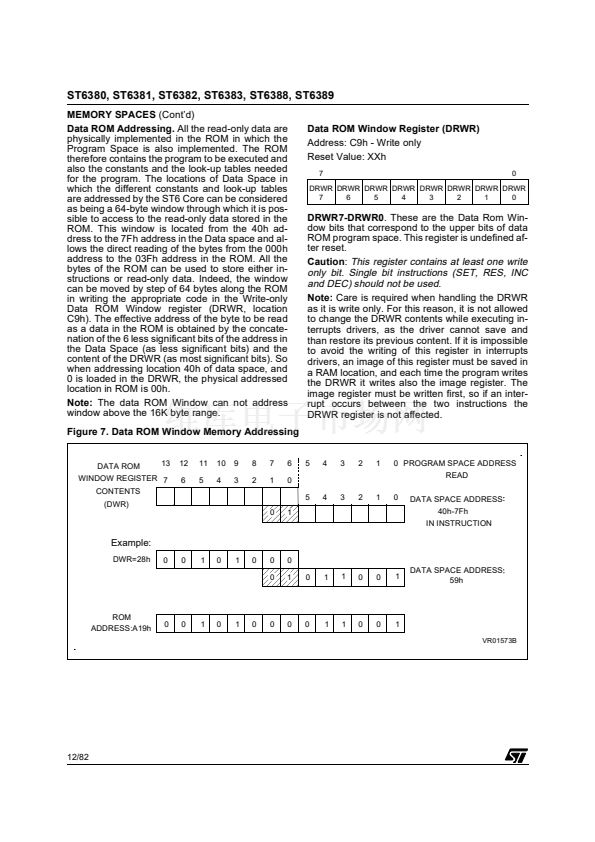

Data ROM: user selectable size

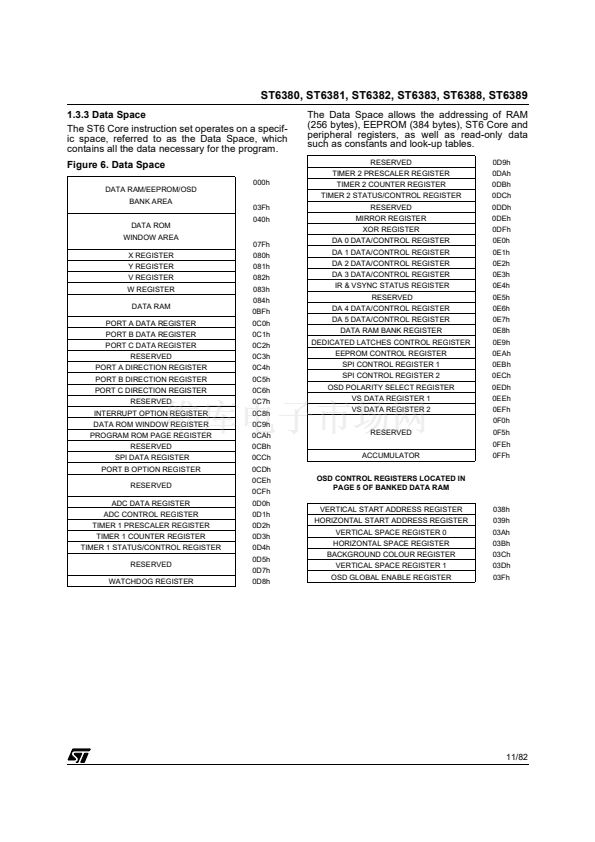

Data RAM: 256 bytes

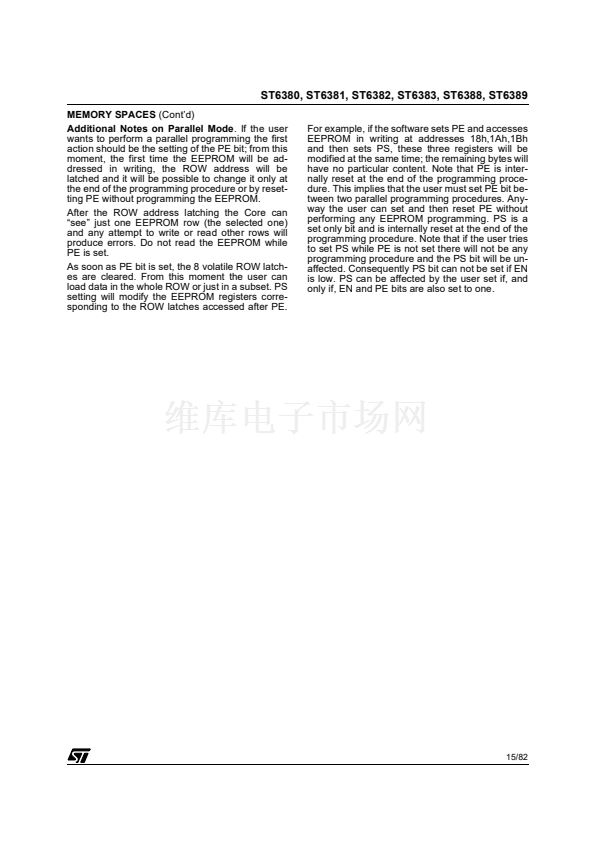

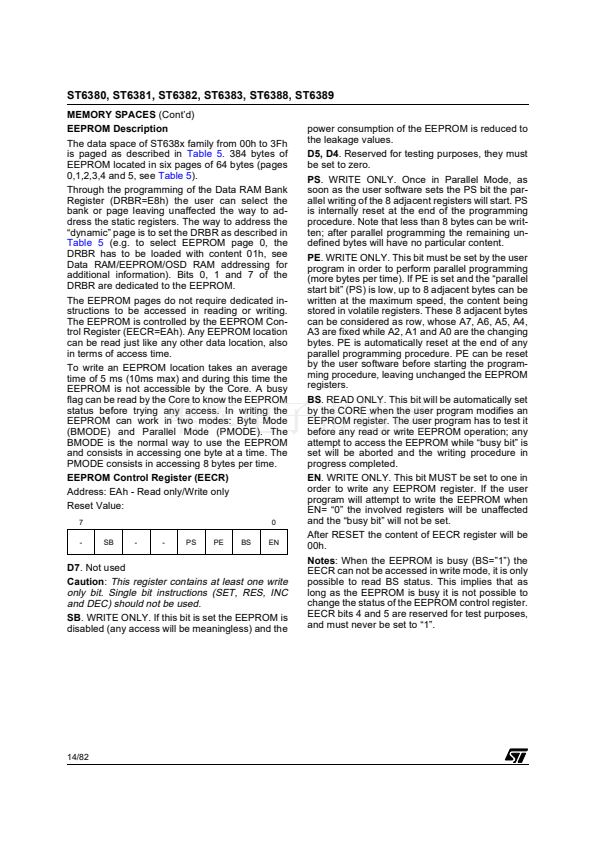

Data EEPROM: 384 bytes

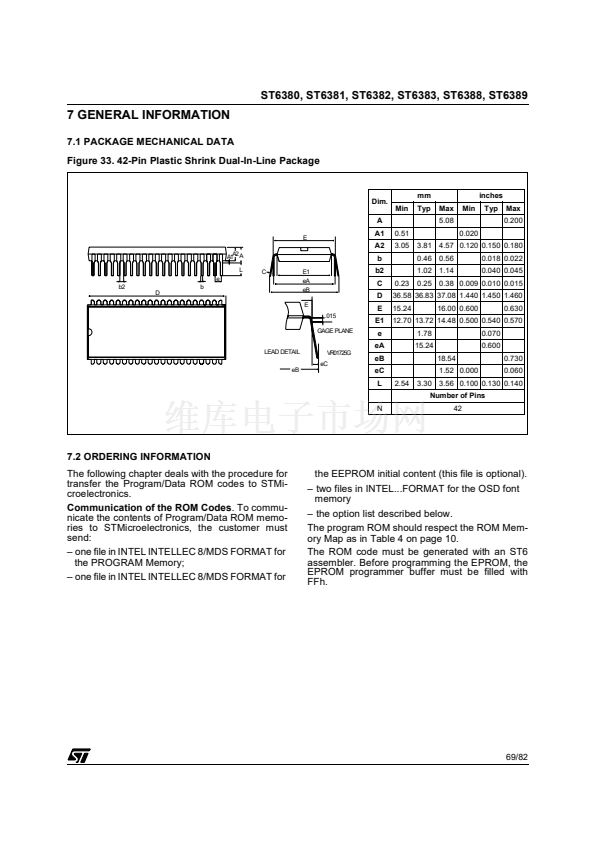

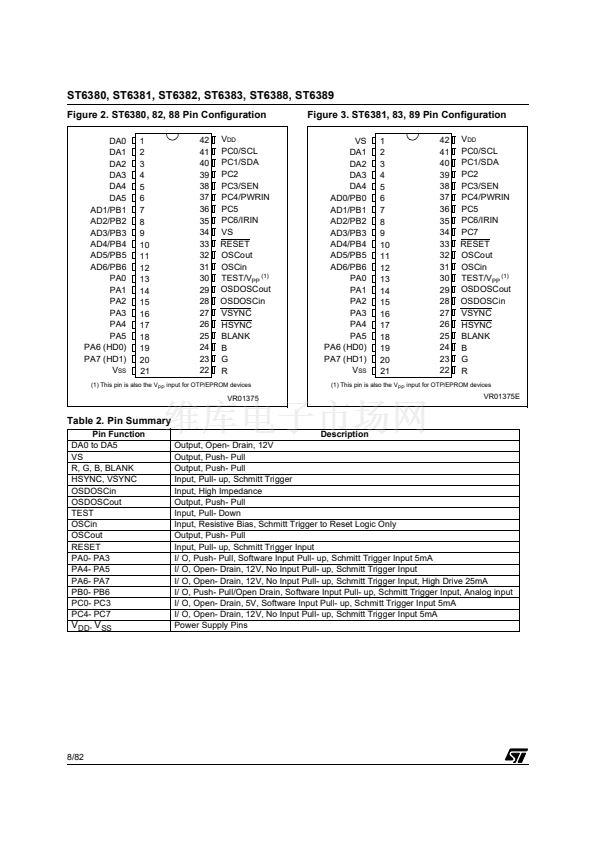

42-Pin Shrink Dual in Line Plastic Package

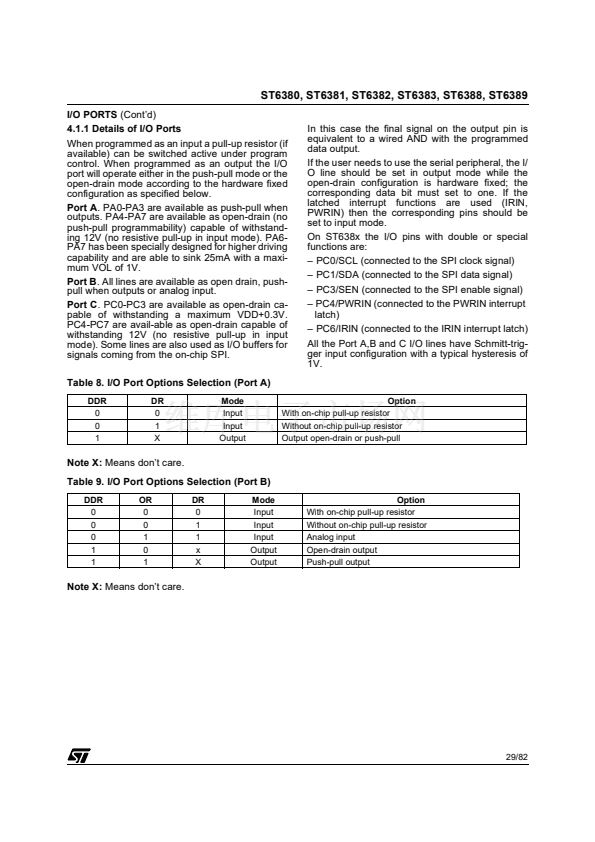

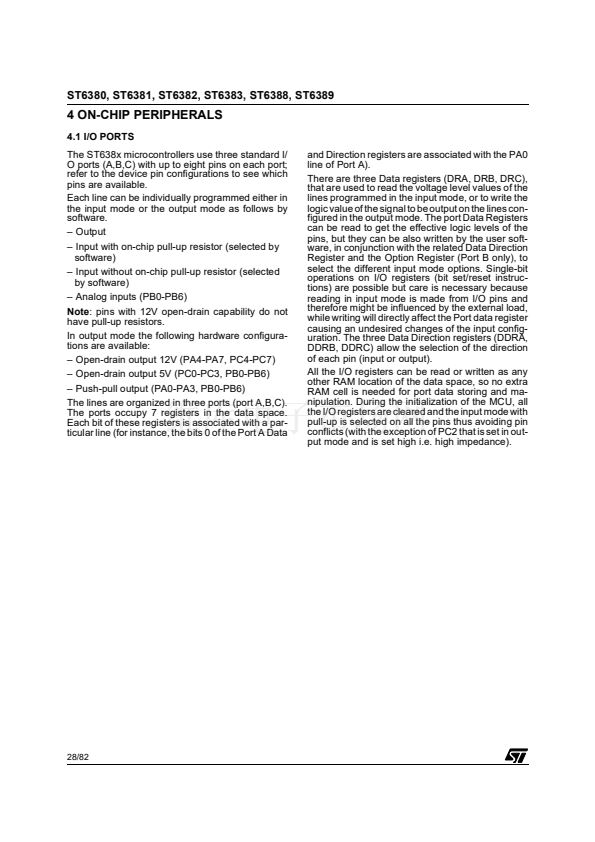

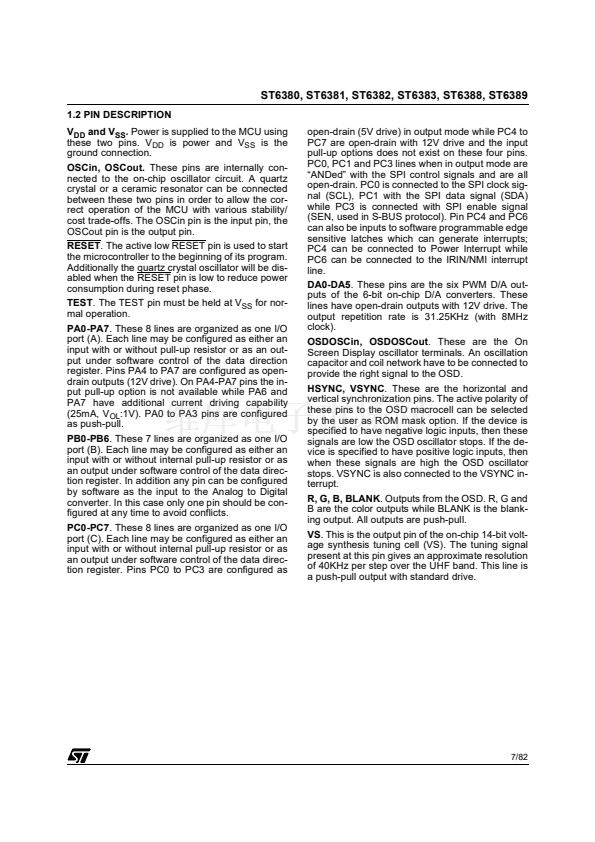

Up to 22 software programmable general

purpose Inputs/Outputs, including 2 direct LED

driving Outputs

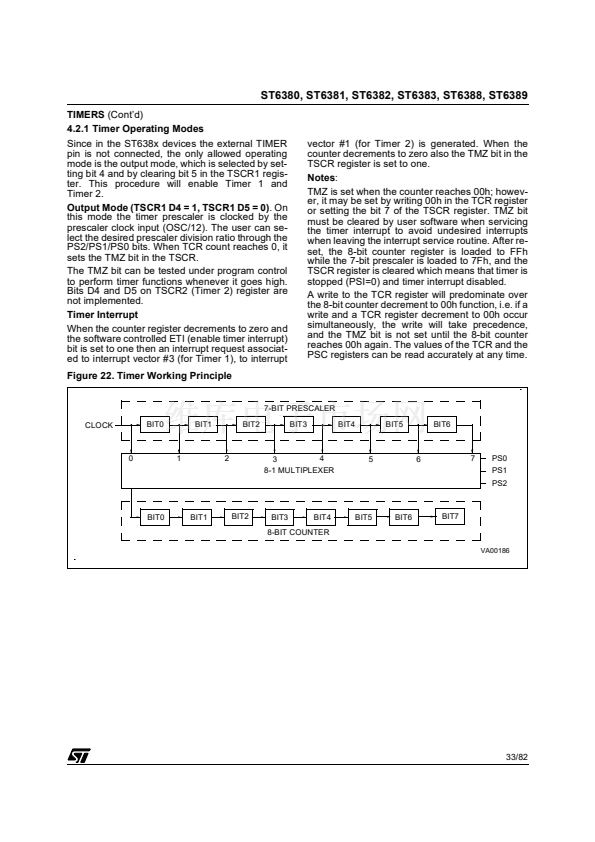

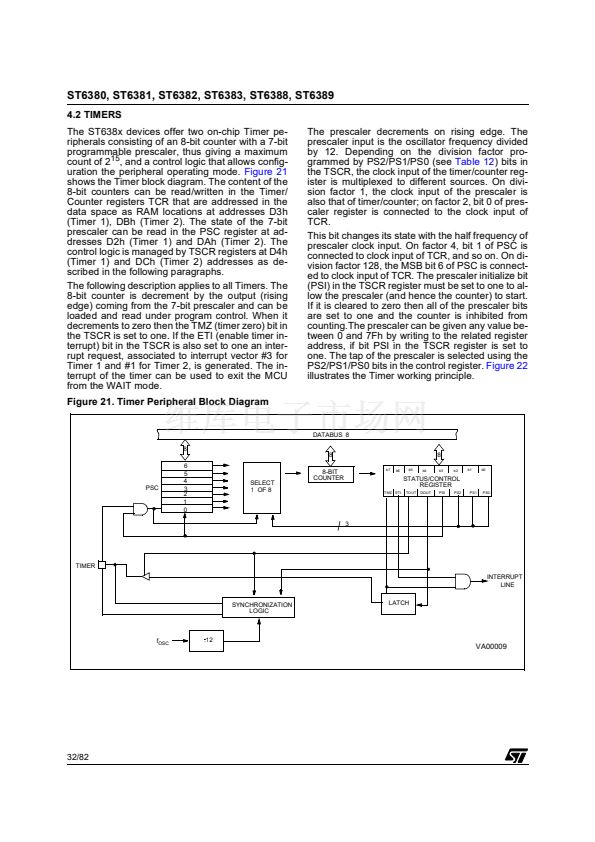

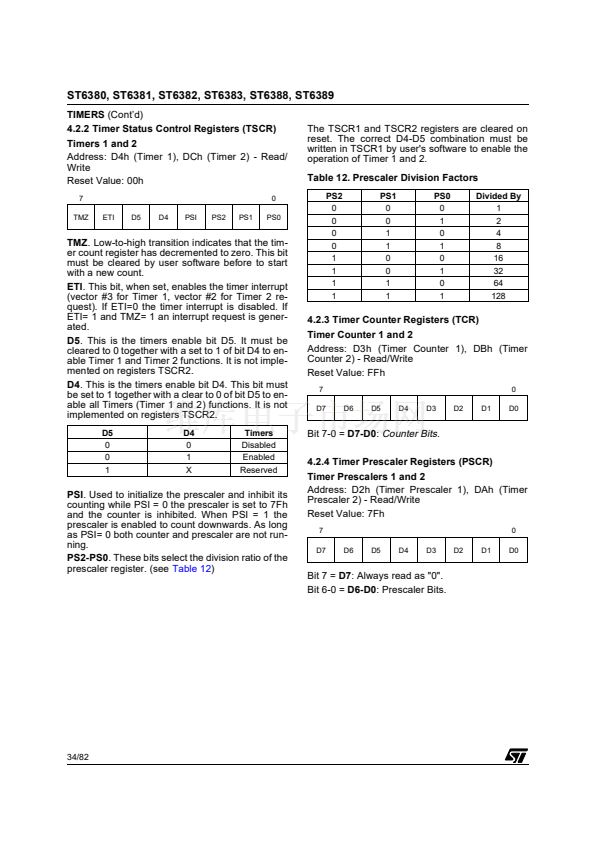

Two Timers each including an 8-bit counter with

a 7-bit programmable prescaler

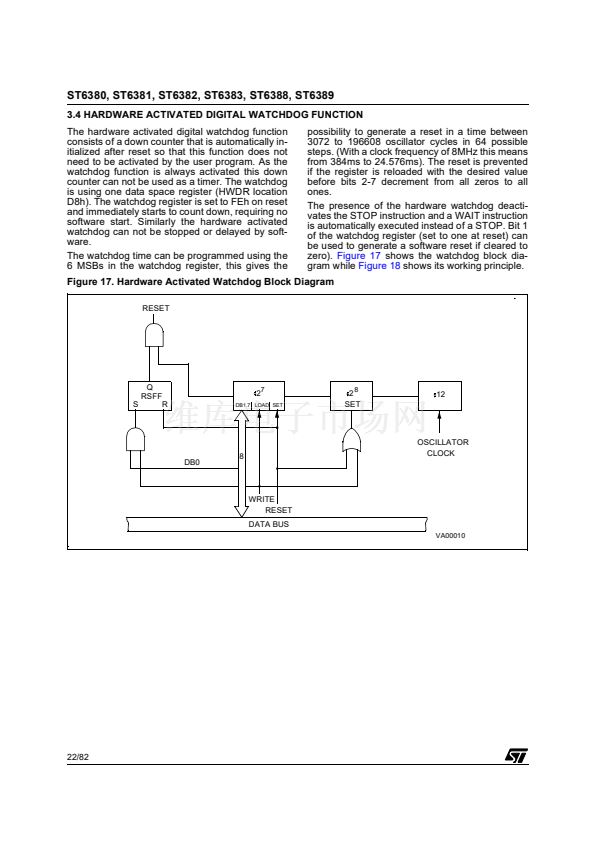

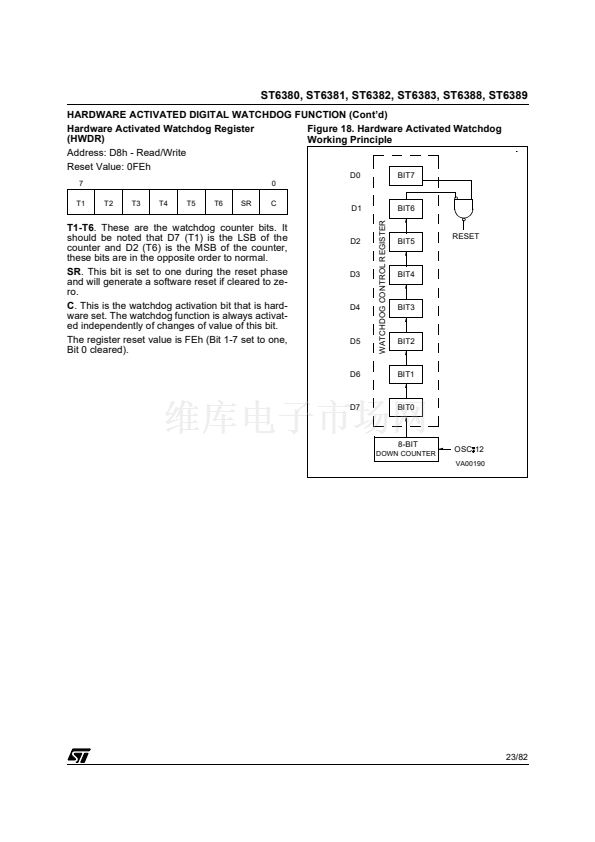

Digital Watchdog Function

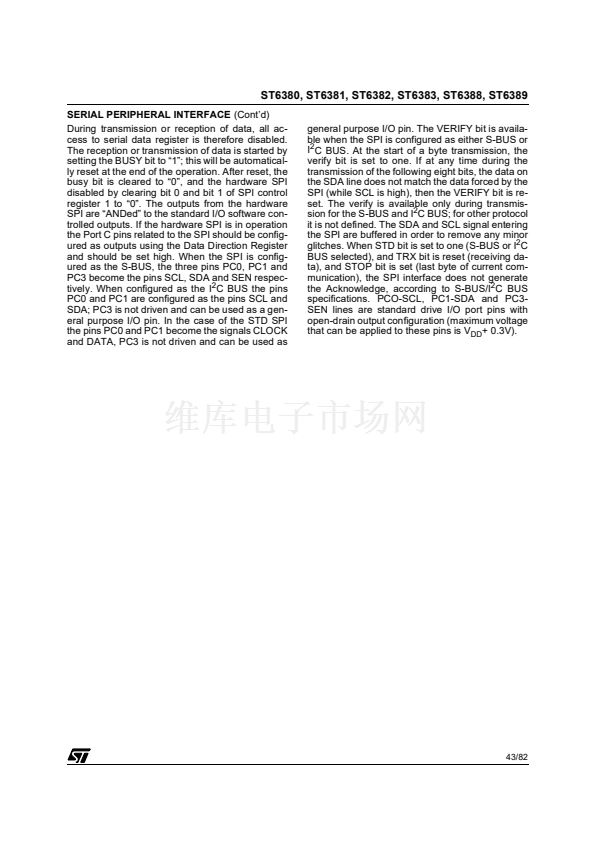

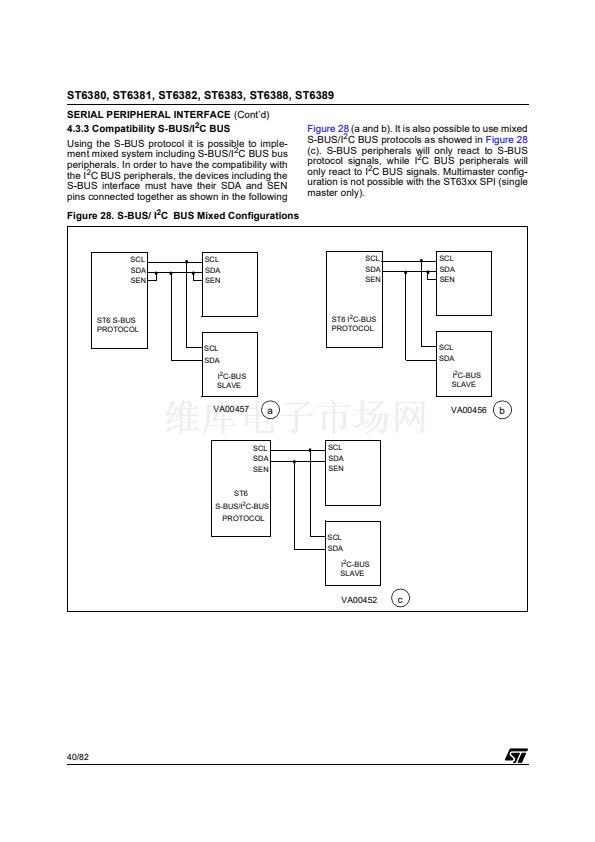

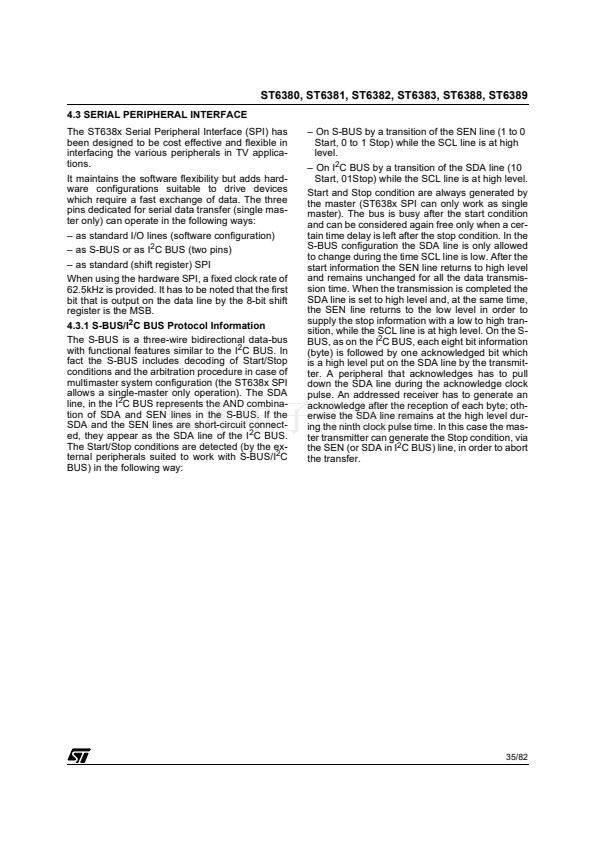

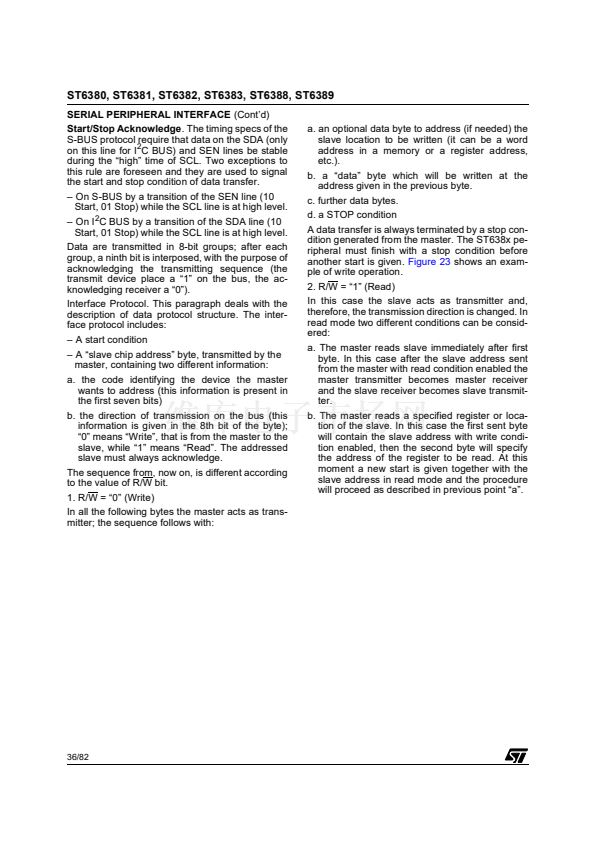

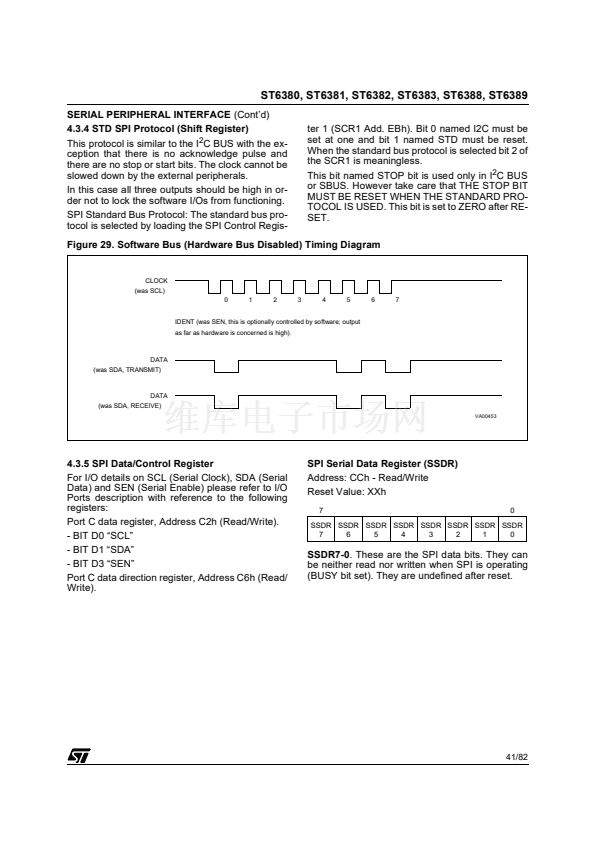

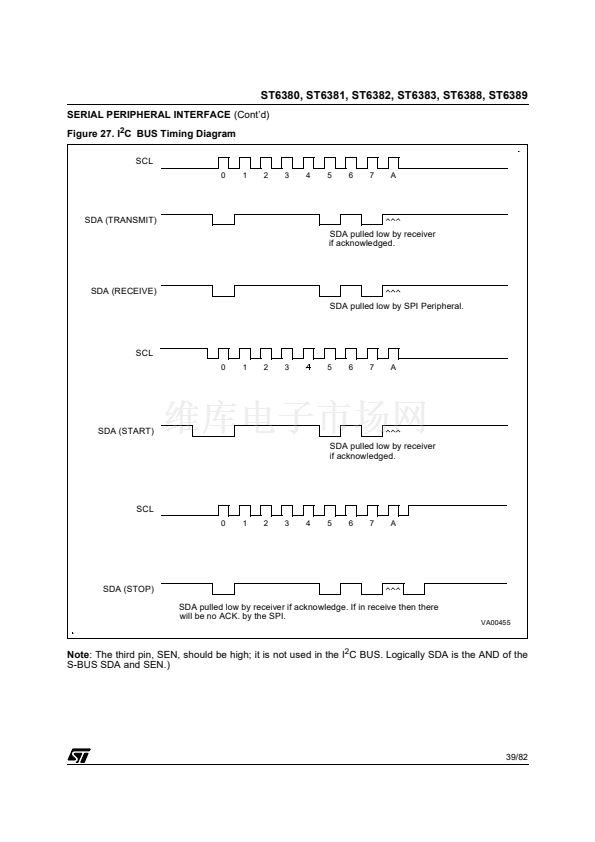

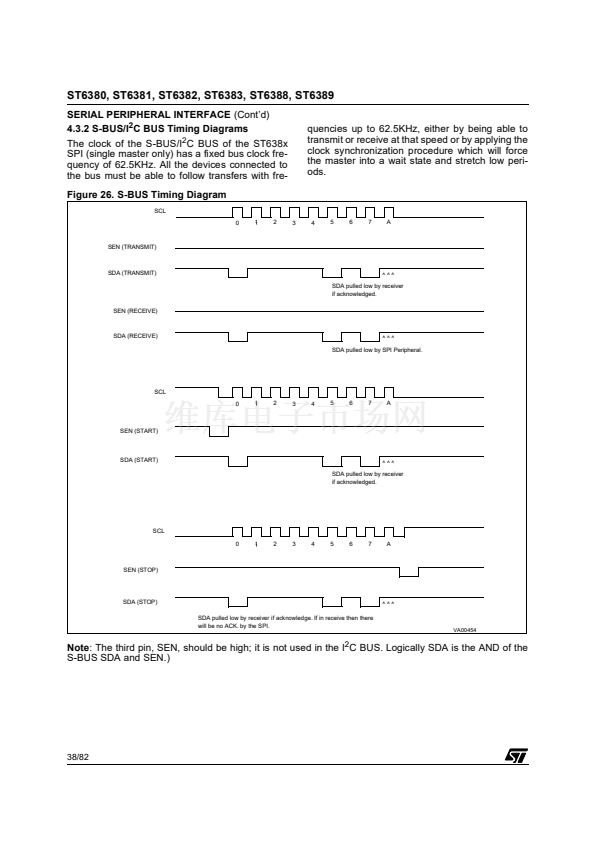

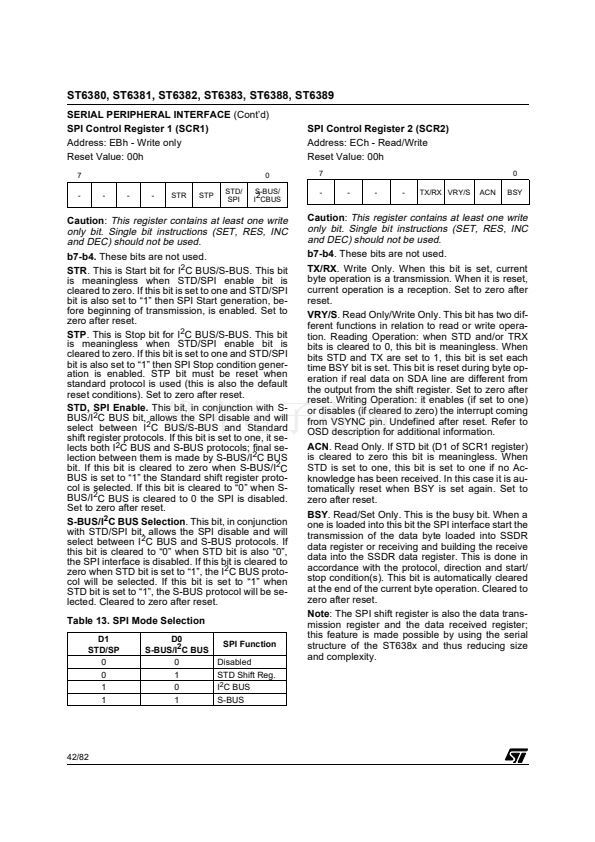

Serial Peripheral Interface (SPI) supporting S-

BUS/ I 2 C BUS and standard serial protocols

SPI for external frequency synthesis tuning

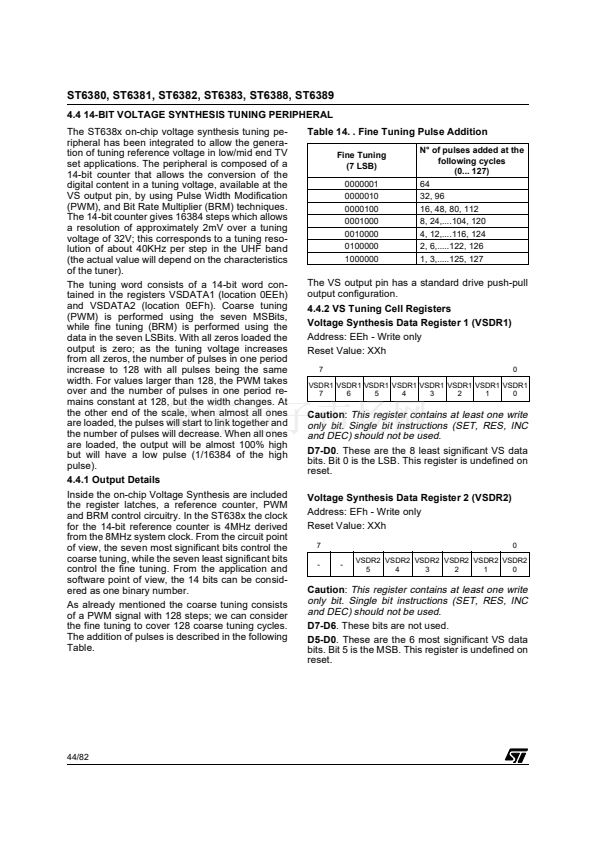

14-bit counter for voltage synthesis tuning

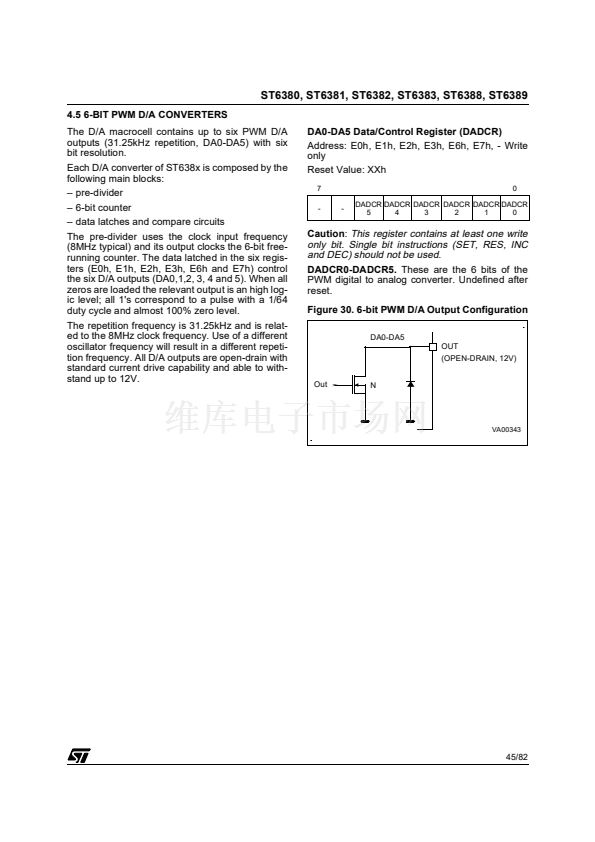

Up to Six 6-Bit PWM D/A Converters

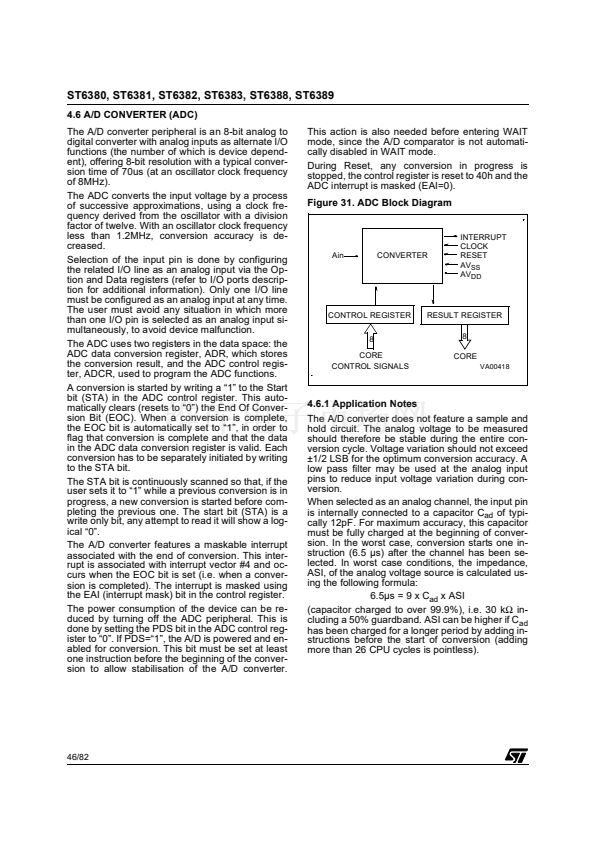

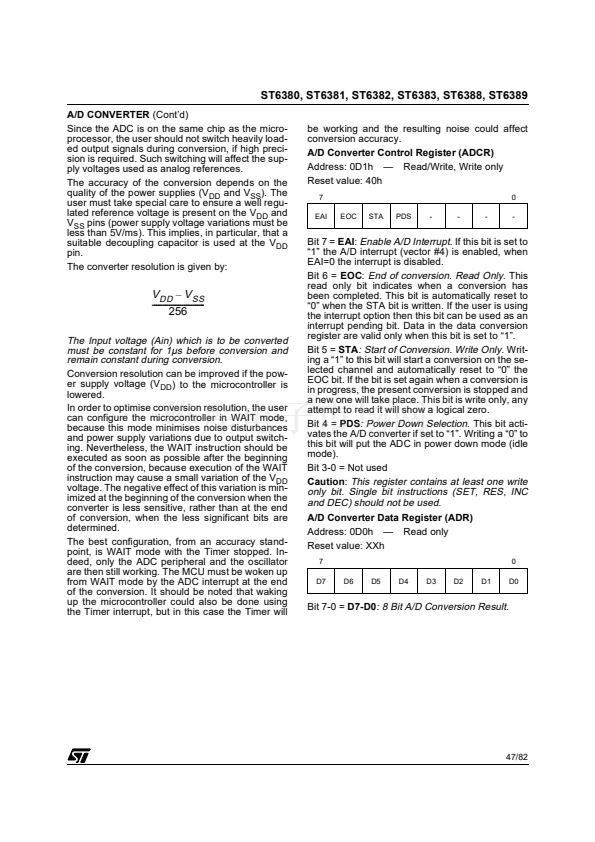

One 8 bits D/A Converter with 7 analog inputs

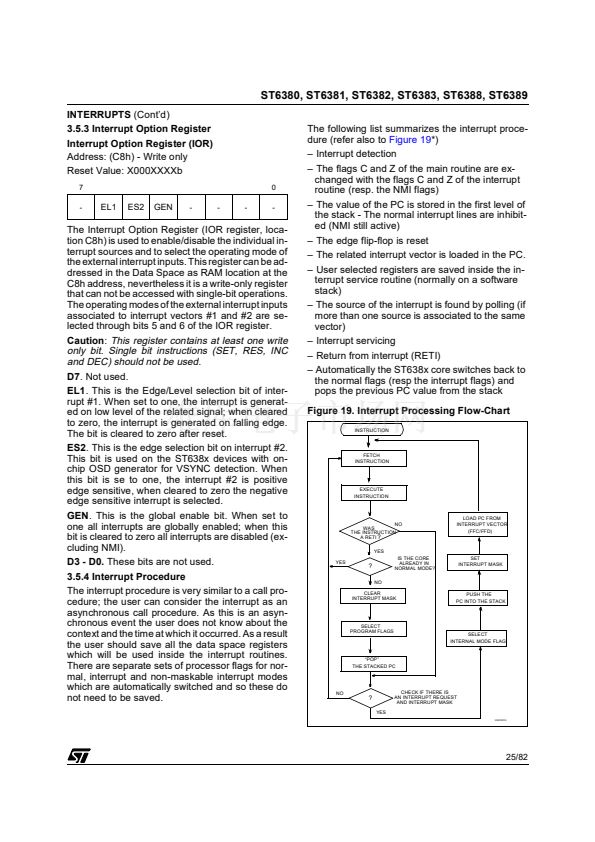

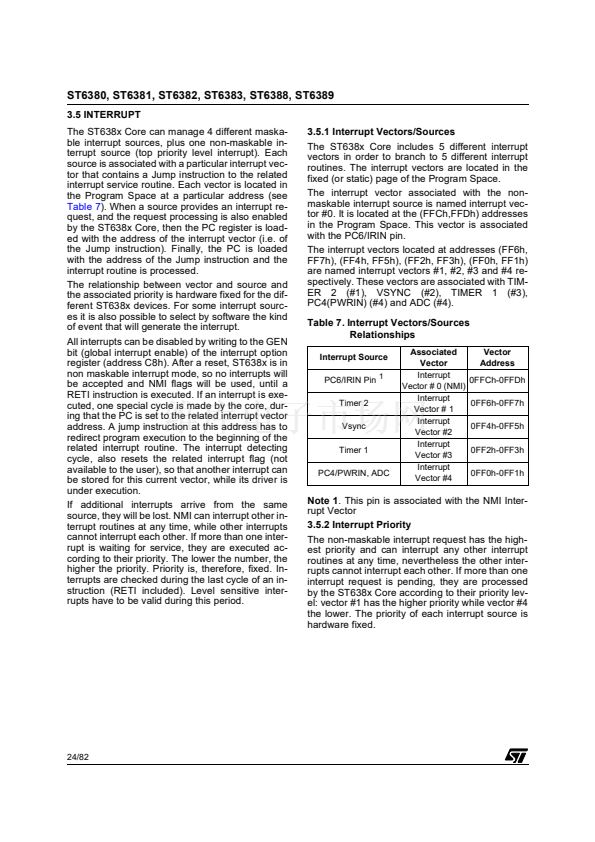

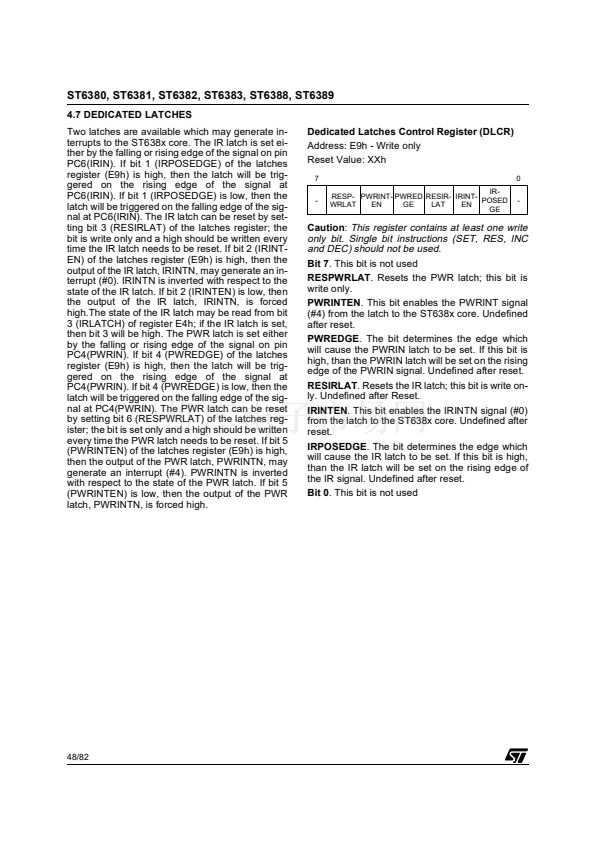

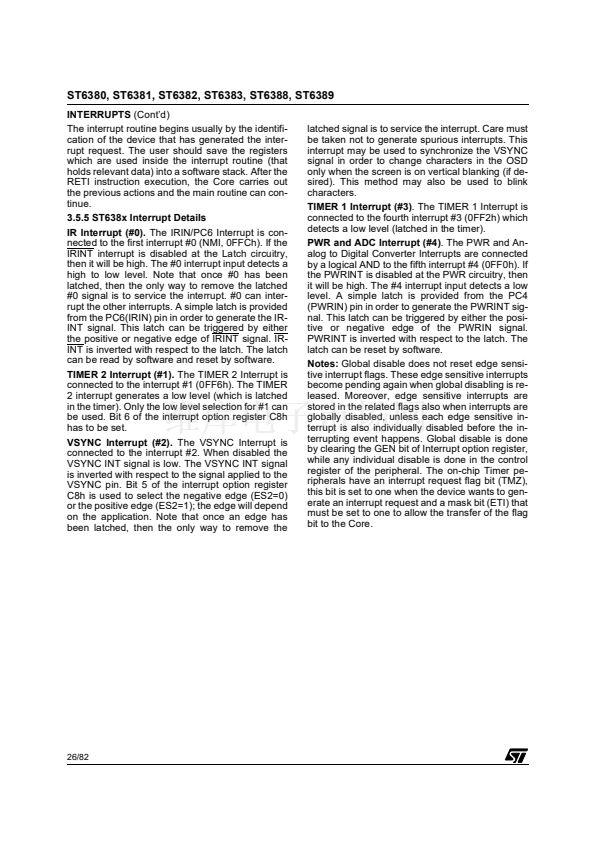

Five interrupt vectors (IRIN/NMI, Timer 1 & 2,

VSYNC, PWR /ADC)

On-chip clock oscillator

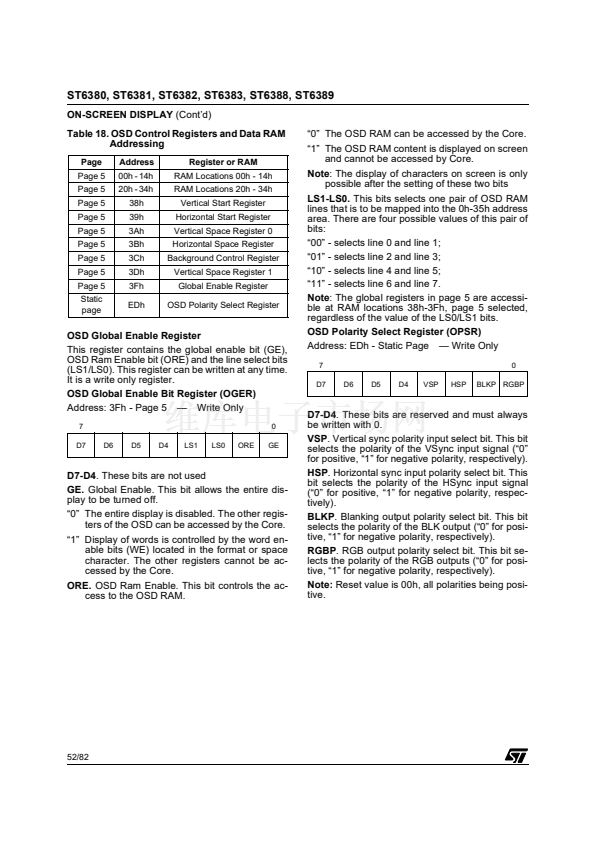

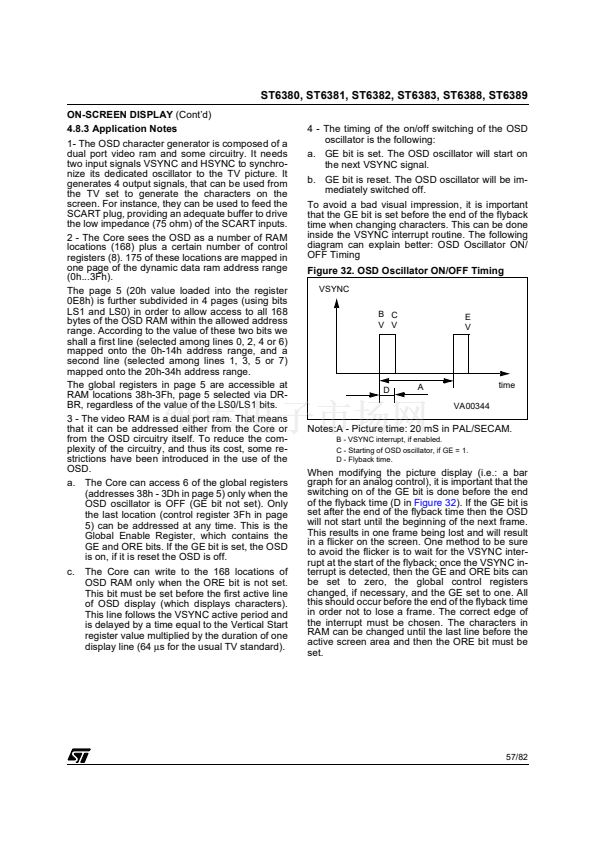

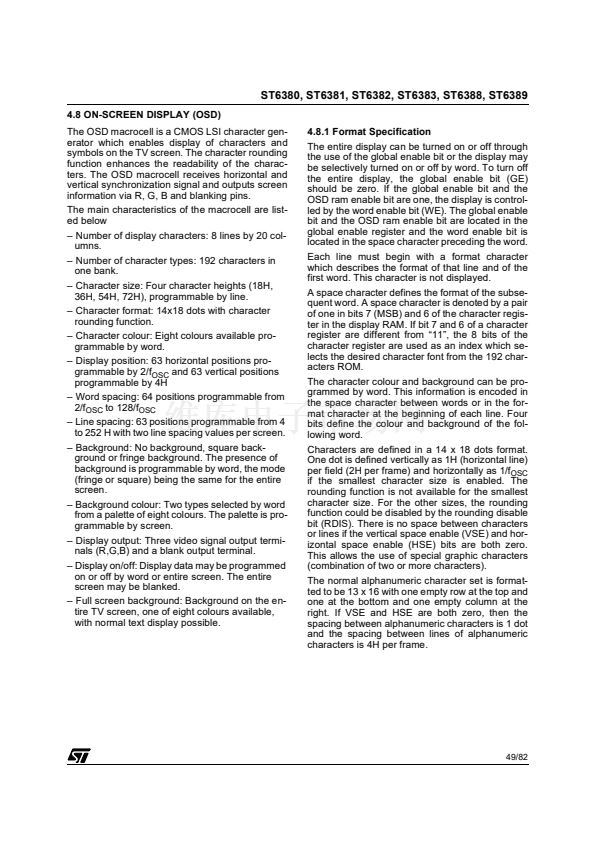

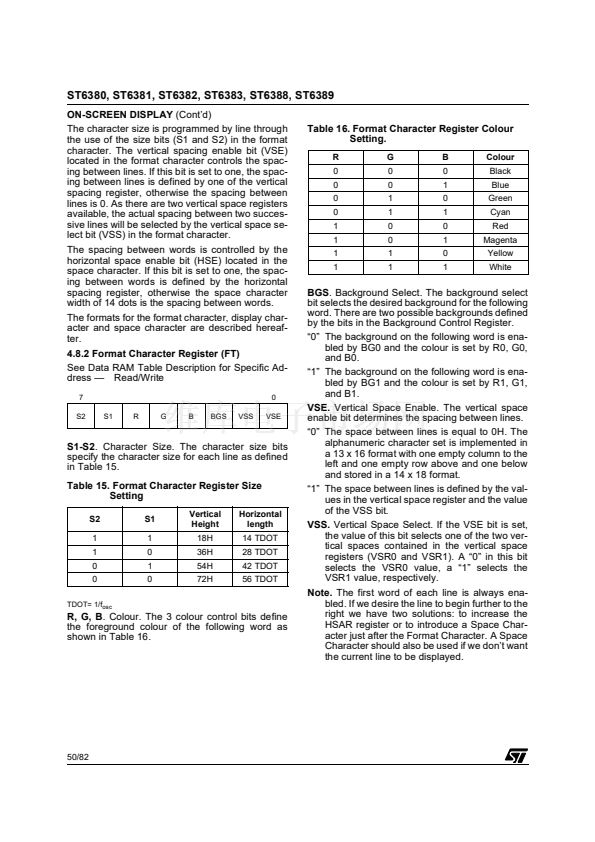

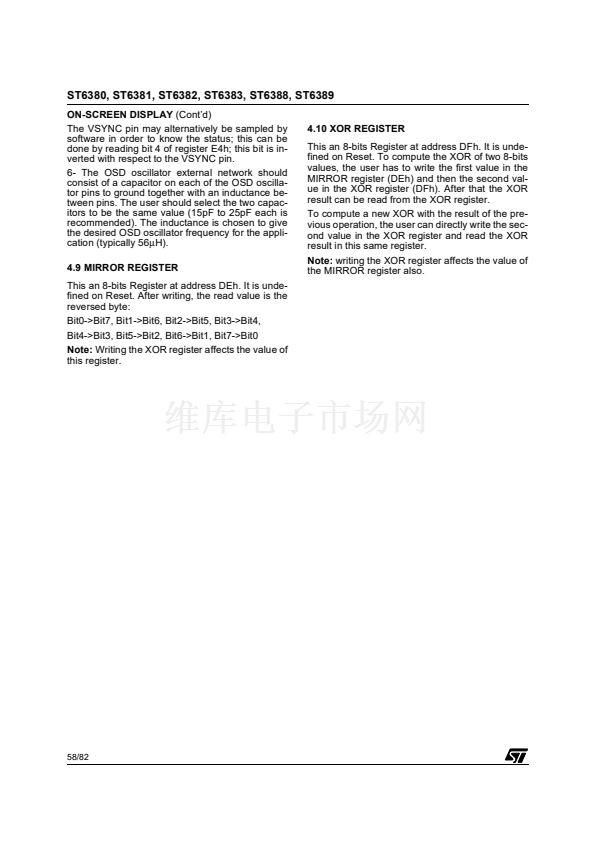

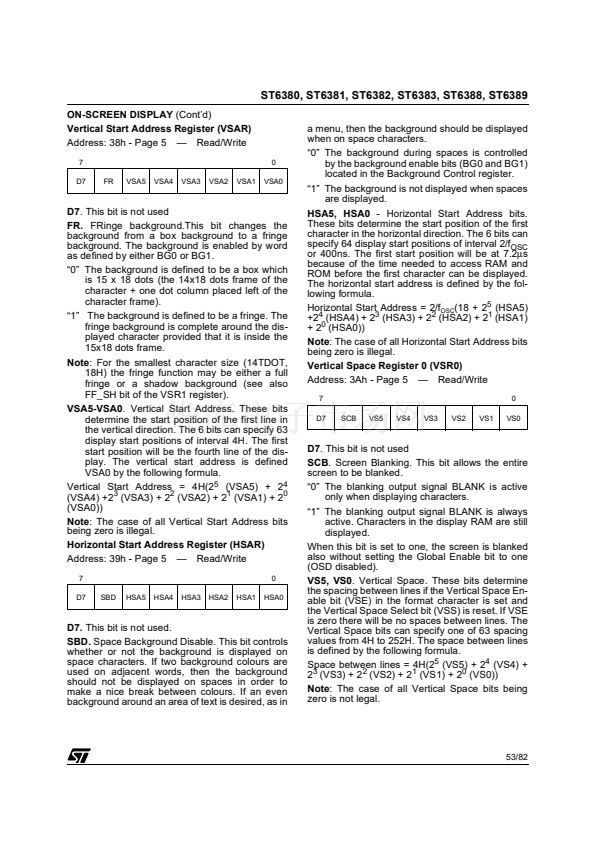

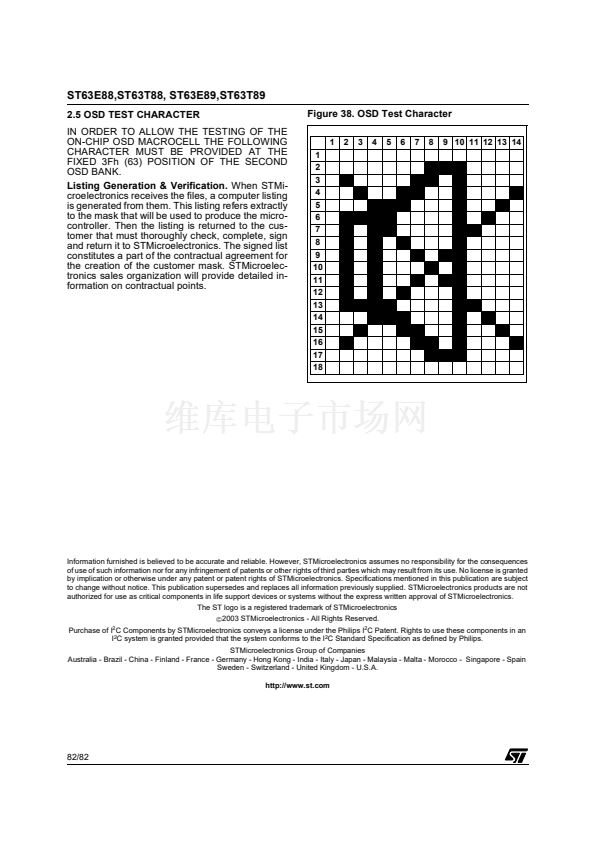

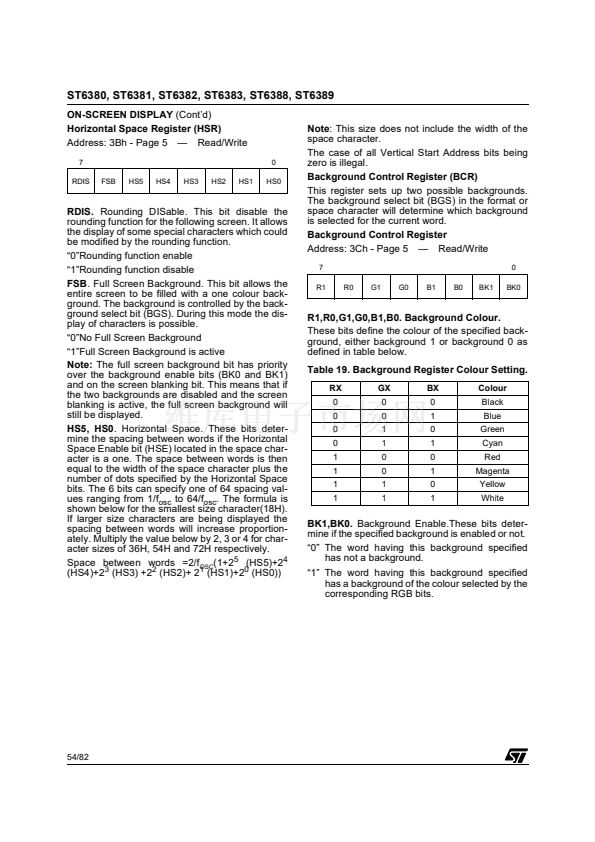

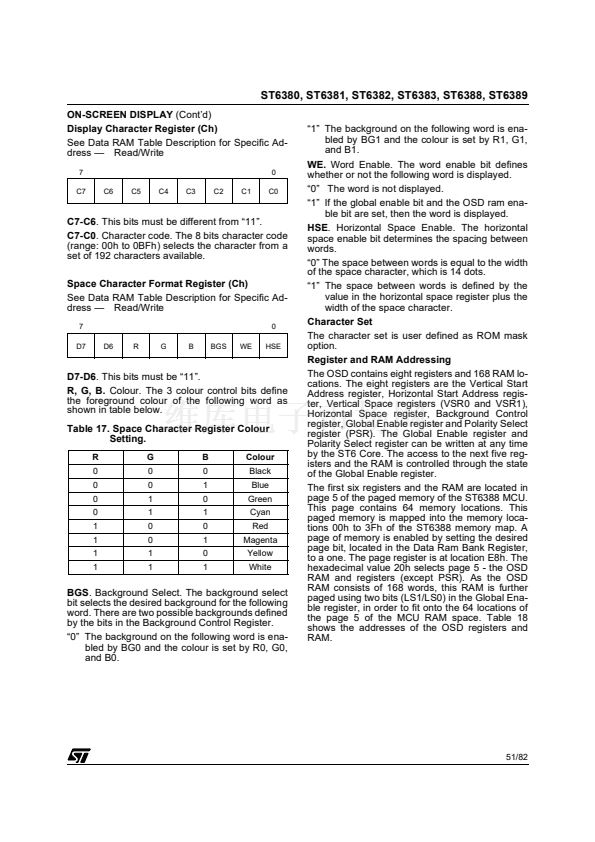

8 Lines by 20 Characters On-Screen Display

Generator with 192 Characters in one bank.

14X18 OSD characters with rounding function.

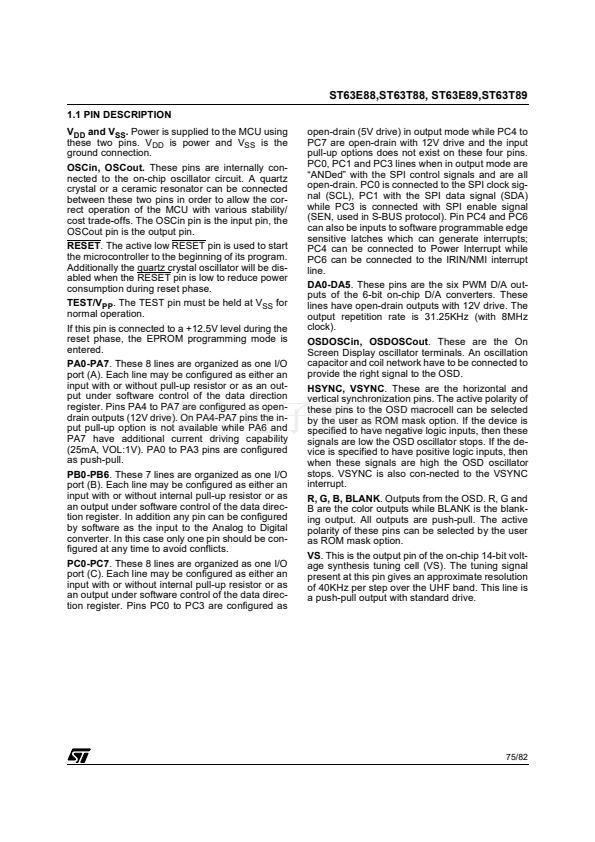

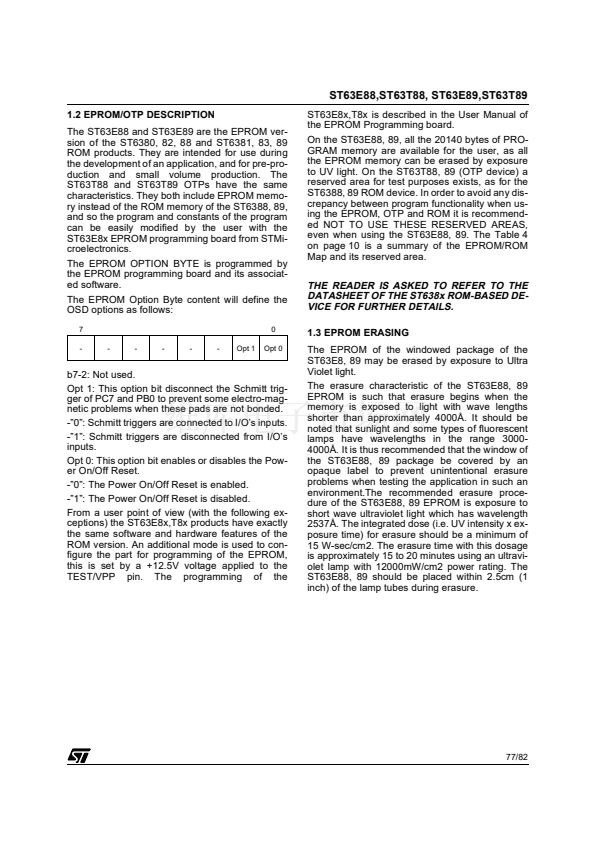

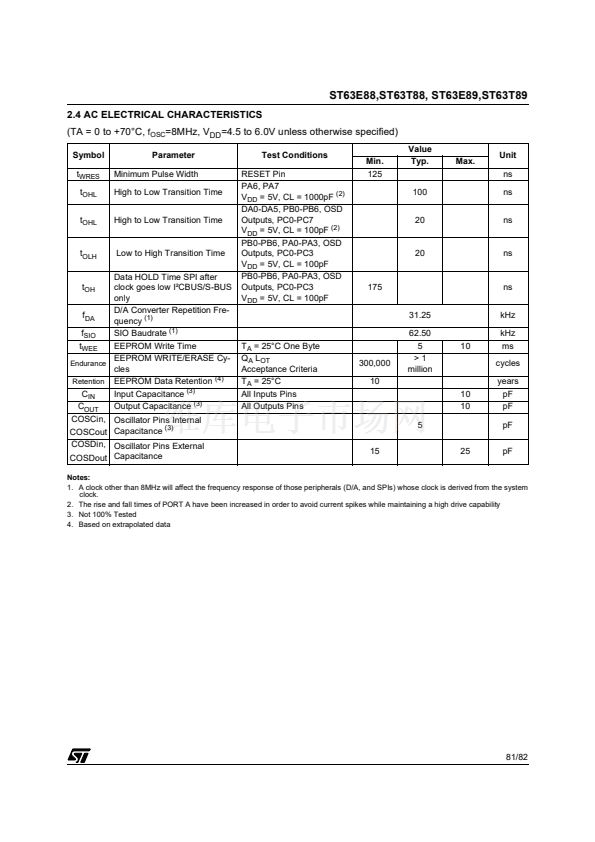

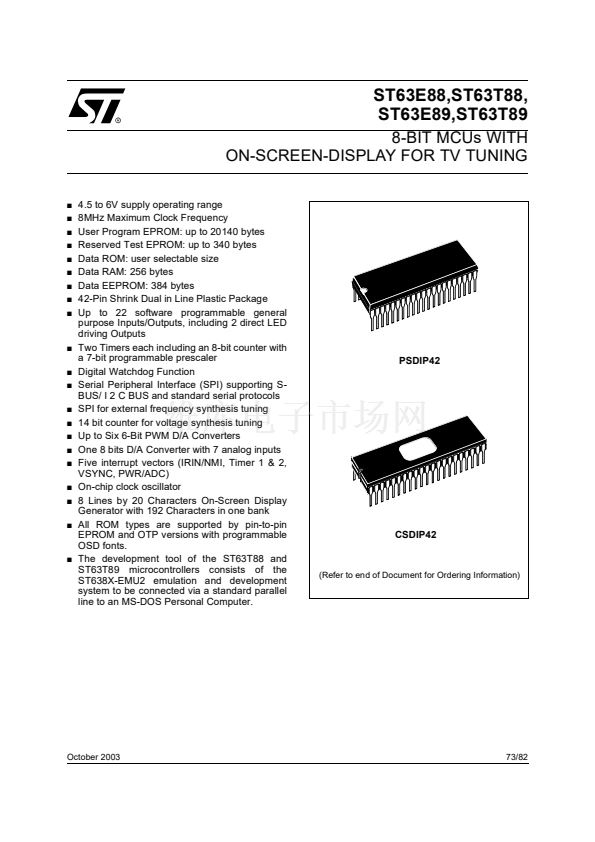

All ROM types are supported by pin-to-pin

EPROM and OTP versions with programmable

OSD fonts.

The development tool of the ST6380, 81, 82,

83, 88 and ST6389 microcontrollers consists of

the ST638X-EMU2 emulation and development

system to be connected via a standard parallel

line to an MS-DOS Personal Computer.

PSDIP42

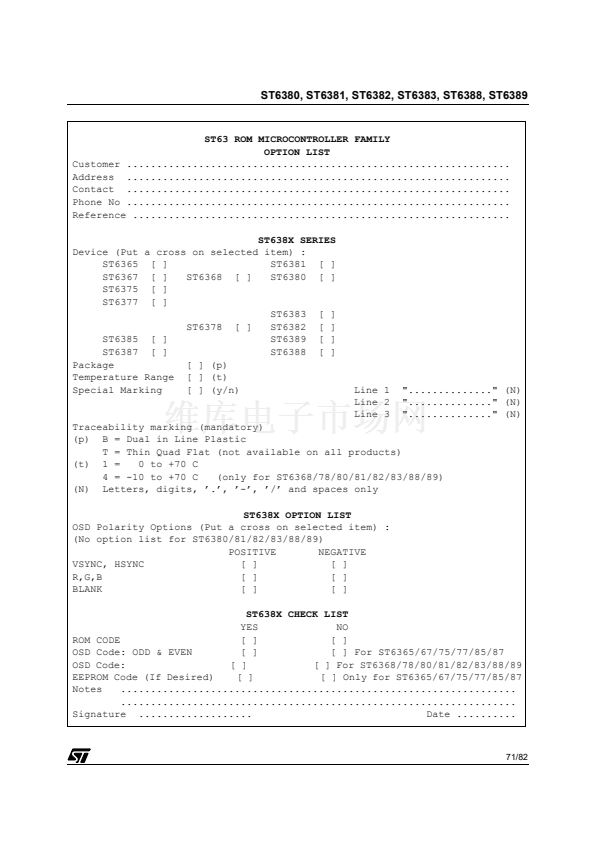

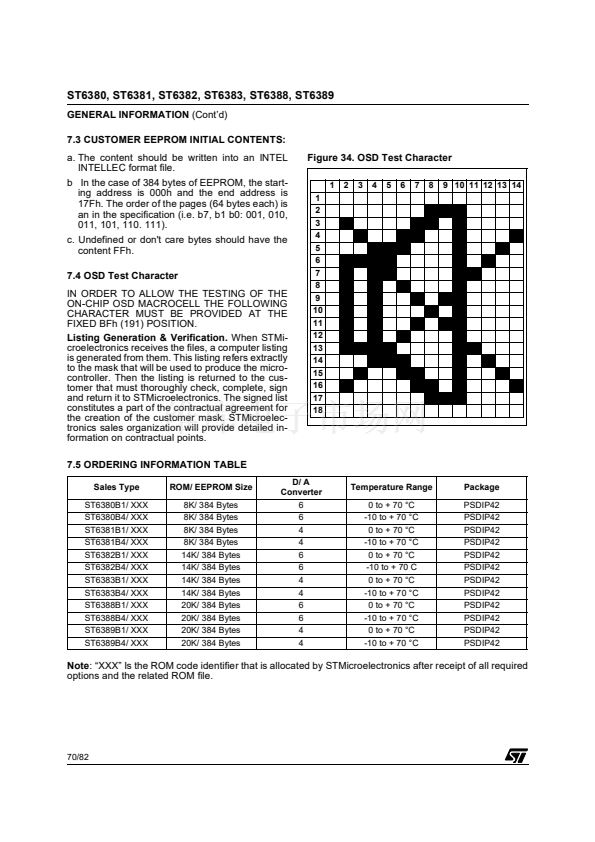

(Refer to end of Document for Ordering Information)

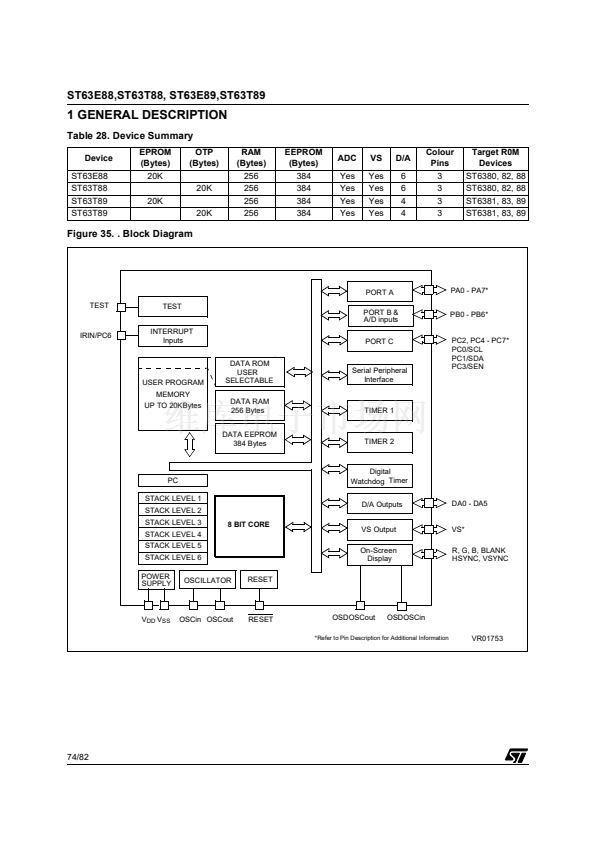

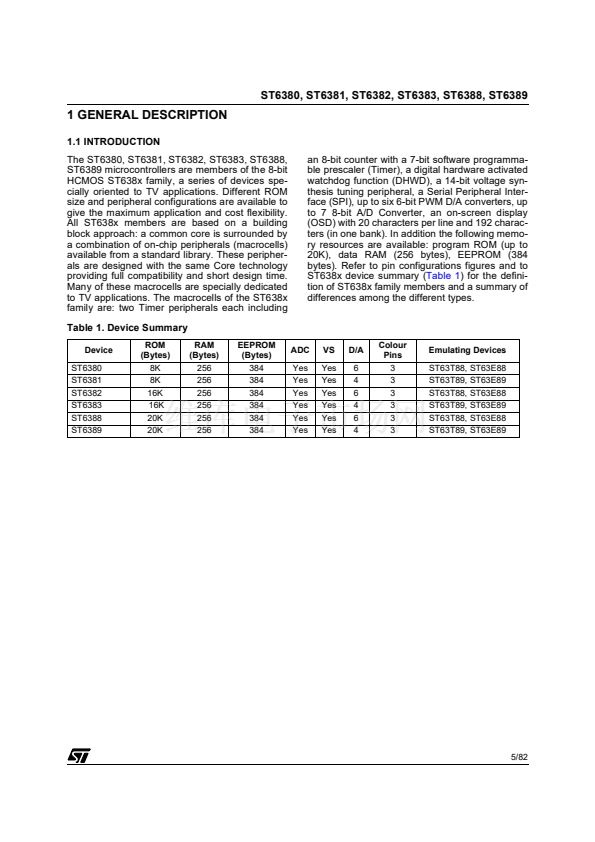

DEVICE SUMMARY

DEVICE

ST6380

ST6381

ST6382

ST6383

ST6388

ST6389

ROM

(Bytes)

8K

8K

16K

16K

20K

20K

D/A Converter

6

4

6

4

6

4

October 2003

1/82

1
