SaRonix
Crystal Clock Oscillator
Technical Data
Frequency Range:
Frequency Stability:
32 MHz to 125 MHz
鹵20, 鹵25, 鹵50 or 鹵100 ppm over all conditions: calibration
tolerance, operating temperature, input voltage change, load
change, aging*, shock and vibration.
*1 year @ +40擄C average ambient operating temperature
0 to +70擄C or -40 to +85擄C
-55 to +125擄C
3.3 & 5V, ACMOS, LVCMOS
ST41xx Series
Temperature Range:
Operating:
Storage:
Supply Voltage:
Recommended Operating:
Supply Current:
ACTUAL SIZE
+5V 鹵5% or 3.3V 鹵10%
50mA typ, 65mA, 35mA max @ 3.3V
Output Drive:
Symmetry:
0 to +70擄C:
-40 to +85擄C:
Rise & Fall Times:
Logic 0:
Logic 1:
Load:
Period Jitter RMS:
ACMOS
TTL
TTL
60+ to 125 MHz 32 to 60 MHz 60+ to 125 MHz
45/55%
45/55%
45/55%
40/60%
45/55%
40/60%
(45/55% @ 3.3V)
2ns max 20% to 80% V
DD
1.5ns max 0.5 to 2.5V
10% V
DD
max or 20% V
DD
max @ 3.3V
80% V
DD
min or 80% V
DD
min @ 3.3V
50鈩?ACMOS or 95鈩?ACMOS @ 3.3V
13ps max 32 to 72 MHz
20ps max 72+ to 125 MHz, 0 to +70擄C
25ps max 72+ to 125 MHz, -40 to +85擄C
ACMOS
32 to 60 MHz
45/55%
45/55%
Description
A crystal controlled, low-current oscilla-
tor providing precise rise and fall times
to drive ACMOS/LVCMOS loads. The
tri-state function enables the output to go
high impedance. Available in either a 14
or an 8 pin DIP compatible, resistance
welded, all metal case. Pin 7 ( or Pin 4 )
is grounded to case to reduce EMI. True

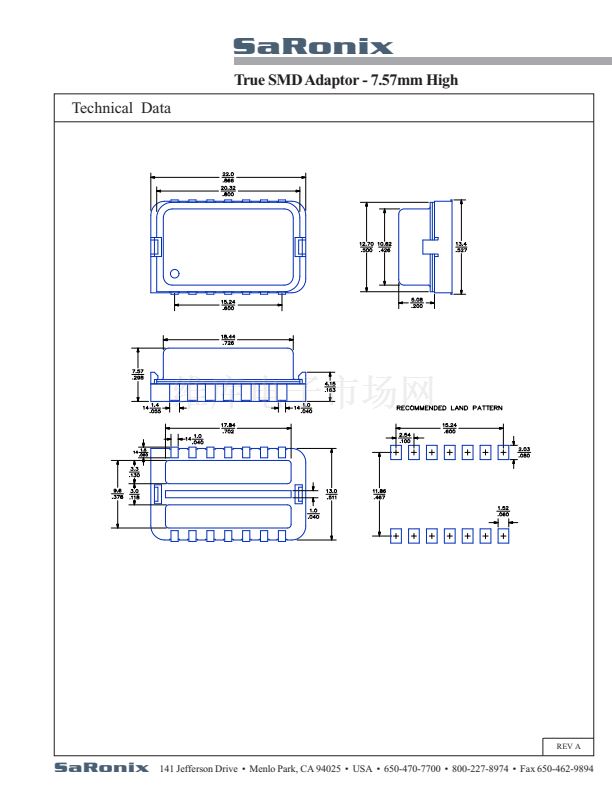

SMD DIL 14 version also available, uti-
lizing new adaptor technology (see sepa-
rate data sheet for package dimensions).
Applications & Features
Fiber Channel
Gigabit Ethernet
HCMOS/ACMOS/LVCMOS MPU's
3.3 or 5V operation
High Drive capability
Tri-State output standard
Short circuit protected output
Plastic SMD available, see ST41xH
Series data sheet.
鈥?Ceramic SMD available, see S19xx
Series data sheet.
鈥?True SMD version available, select
option S in part number builder (see
separate data sheet for package dimen-
sions).
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Mechanical:
Shock:
Solderability:
Terminal Strength:
Vibration:
Solvent Resistance:
Resistance to Soldering Heat:
MIL-STD-883, Method 2002, Condition B
MIL-STD-883, Method 2003
MIL-STD-883, Method 2004, Condition B2
MIL-STD-883, Method 2007, Condition A
MIL-STD-202, Method 215
MIL-STD-202, Method 210, Condition A, B or C
( I or J for Gull Wing or SMD)
Environmental:
Gross Leak Test:
Fine Leak Test:
Thermal Shock:
Moisture Resistance:
Part Numbering Guide
MIL-STD-883,
MIL-STD-883,
MIL-STD-883,
MIL-STD-883,
Method
Method
Method
Method
1014, Condition C
1014, Condition A2
1011, Condition A
1004
ST41 3 0 A 鈥?106.2500 (T)
Series
Type
3 = 3.3V LVCMOS
5 = 5V TTL
6 = 5V ACMOS
Package Style
0 = Full Size, Metal
9 = Half Size, Metal
J = Half Size, Metal, Gull Wing
K = Full Size, Metal, Gull Wing
S = True SMD Adaptor
(see product photo)
Stability Tolerance
AA = 鹵20 ppm, 0 to +70擄C
A = 鹵25 ppm, 0 to +70擄C
B = 鹵50 ppm, 0 to +70擄C
C = 鹵100 ppm, 0 to +70擄C
E = 鹵50 ppm, -40 to +85擄C
F = 鹵100 ppm, -40 to +85擄C
DS-183
REV C
Packing Method
(T) = Tape & Reel for SMD versions
full reel increments only (200pcs)
Blank = Bulk
Frequency
SaRonix
141 Jefferson Drive 鈥?Menlo Park, CA 94025 鈥?USA 鈥?650-470-7700 鈥?800-227-8974 鈥?Fax 650-462-9894
