ST207E

鹵

15KV ESD PROTECTED

5V RS-232 TRANSCEIVER

s

s

s

s

s

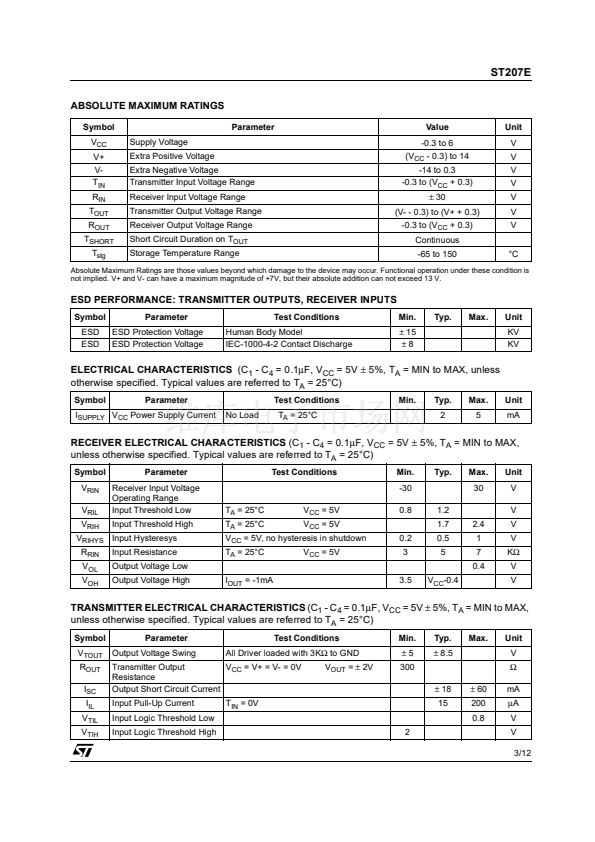

ESD PROTECTION FOR RS-232 I/O PINS:

鹵15

KV HUMAN BODY MODEL

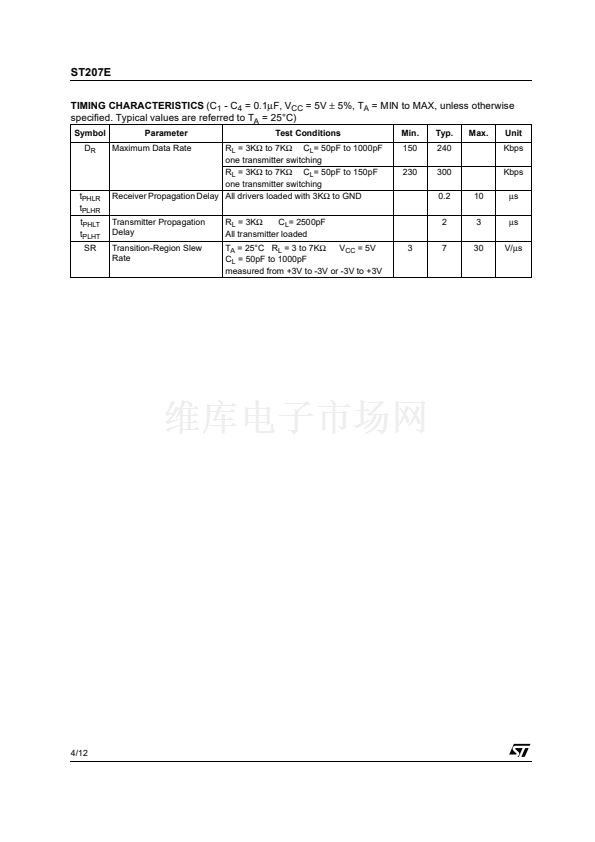

230kbps DATE RATE

GUARANTEED SLEW RATE 3V/碌s (Min)

OPERATES FROM A SINGLE 5V POWER

SUPPLY

PACKAGED IN SO-24, SSO-24 AND

TSSOP24

SOP

DESCRIPTION

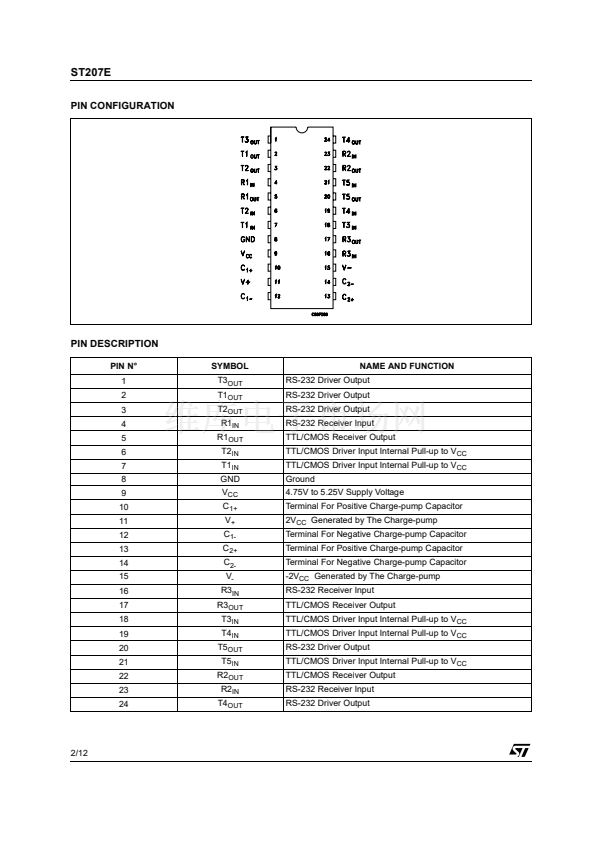

The ST207E is a 5 driver and 3 receiver devices

designed for RS-232 and V.28 communications in

harsh environments. Each transmitter output and

receiver input is protected against

鹵15KV

electrostatic discharge (ESD) shocks. The drivers

and receivers of the ST207E meet all EIA/

TIA-232E and CCITT V.28 specifications at data

rates up to 120Kbps, when loaded in accordance

with the EIA/TIA-232E specification.

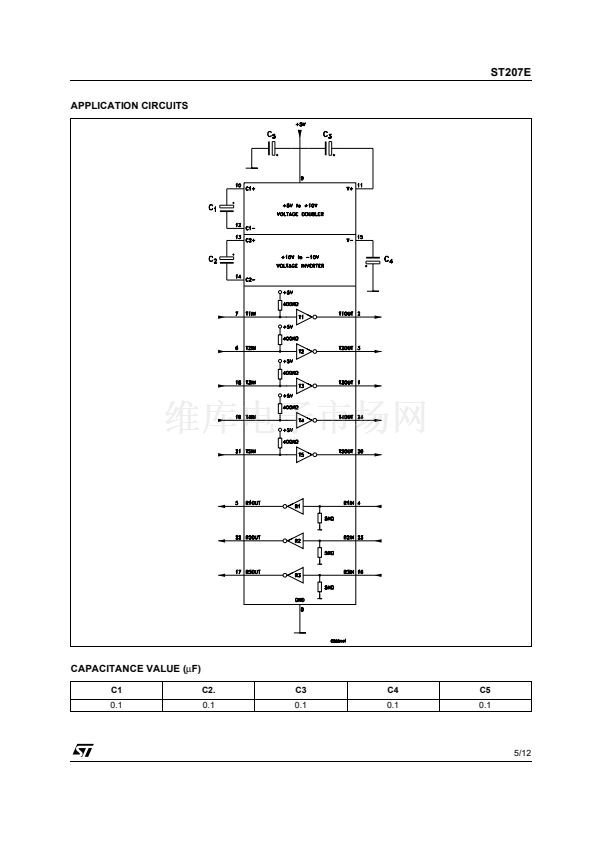

The ST207E operates with four 0.1碌F capacitors.

It came in 24-pin SO and TSSOP packages.

ORDERING CODES

Type

ST207ECD

ST207EBD

ST207EAD

ST207ECDR

ST207EBDR

ST207EADR

ST207ECPR

ST207EBDR

ST207EAPR

ST207ECTR

ST207EBTR

ST207EATR

Temperature

Range

0 to 70 擄C

-40 to 85 擄C

-40 to 125 擄C

0 to 70 擄C

-40 to 85 擄C

-40 to 125 擄C

0 to 70 擄C

-40 to 85 擄C

-40 to 125 擄C

0 to 70 擄C

-40 to 85 擄C

-40 to 125 擄C

Package

SO-24 (Tube)

SO-24 (Tube)

SO-24 (Tube)

SO-24 (Tape & Reel)

SO-24 (Tape & Reel)

SO-24 (Tape & Reel)

SSOP-24 (Tape & Reel)

SSOP-24 (Tape & Reel)

SSOP-24 (Tape & Reel)

TSSOP24 (Tape & Reel)

TSSOP24 (Tape & Reel)

TSSOP24 (Tape & Reel)

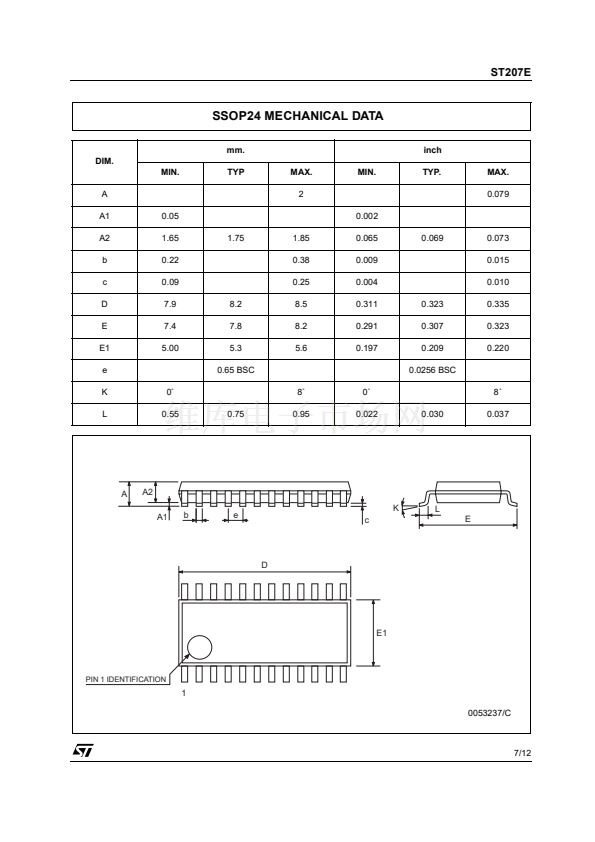

SSOP

TSSOP

Comments

33parts per tube / 25tube per box

33parts per tube / 25tube per box

33parts per tube / 25tube per box

1000 parts per reel

1000 parts per reel

1000 parts per reel

1350 parts per reel

1350 parts per reel

1350 parts per reel

2500 parts per reel

2500 parts per reel

2500 parts per reel

September 2003

1/12
