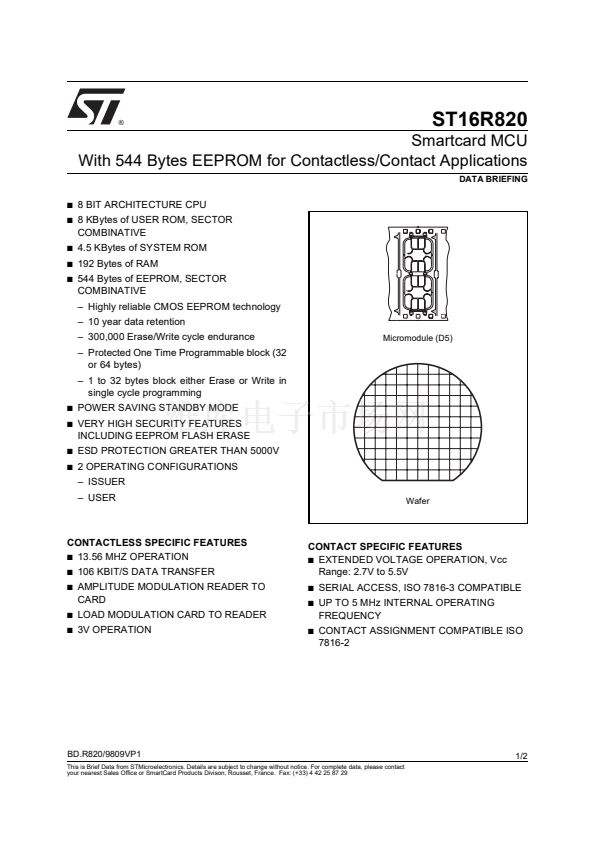

ST16R820
DATA BRIEFING
Smartcard MCU
With 544 Bytes EEPROM for Contactless/Contact Applications
s
s
8 BIT ARCHITECTURE CPU
8 KBytes of USER ROM, SECTOR
COMBINATIVE
4.5 KBytes of SYSTEM ROM
192 Bytes of RAM
544 Bytes of EEPROM, SECTOR
COMBINATIVE
鈥?Highly reliable CMOS EEPROM technology
鈥?10 year data retention
鈥?300,000 Erase/Write cycle endurance
鈥?Protected One Time Programmable block (32
or 64 bytes)
鈥?1 to 32 bytes block either Erase or Write in
single cycle programming
Micromodule (D5)
2
2
2
2
s
s
s
s
s
POWER SAVING STANDBY MODE
VERY HIGH SECURITY FEATURES
INCLUDING EEPROM FLASH ERASE
ESD PROTECTION GREATER THAN 5000V
2 OPERATING CONFIGURATIONS
鈥?ISSUER
鈥?USER
Wafer
s
s
CONTACTLESS SPECIFIC FEATURES
s
13.56 MHZ OPERATION
s
s
106 KBIT/S DATA TRANSFER
AMPLITUDE MODULATION READER TO
CARD
LOAD MODULATION CARD TO READER
3V OPERATION
CONTACT SPECIFIC FEATURES
s
EXTENDED VOLTAGE OPERATION, Vcc
Range: 2.7V to 5.5V
s
s
SERIAL ACCESS, ISO 7816-3 COMPATIBLE
UP TO 5 MHz INTERNAL OPERATING
FREQUENCY
CONTACT ASSIGNMENT COMPATIBLE ISO
7816-2
s
s
s

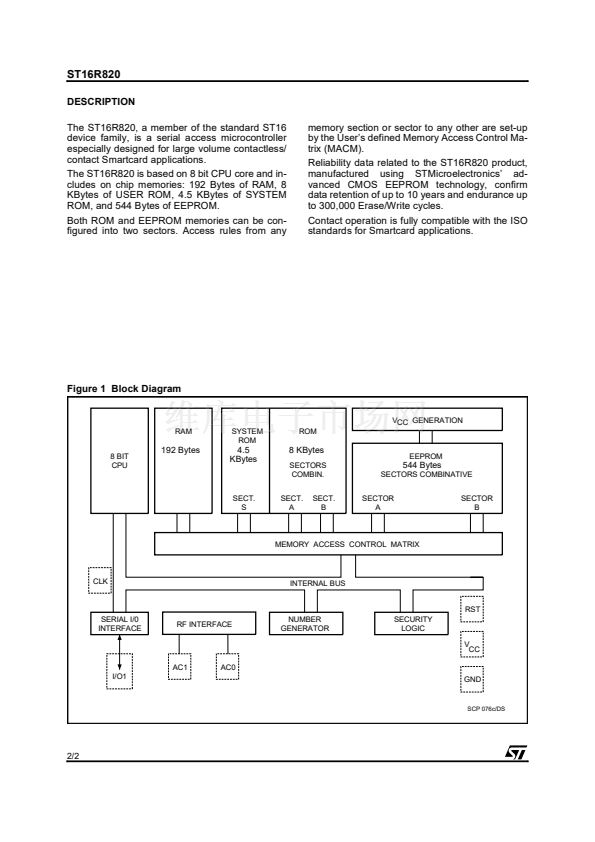

BD.R820/9809VP1
This is Brief Data from STMicroelectronics. Details are subject to change without notice. For complete data, please contact
your nearest Sales Office or SmartCard Products Divison, Rousset, France. Fax: (+33) 4 42 25 87 29
