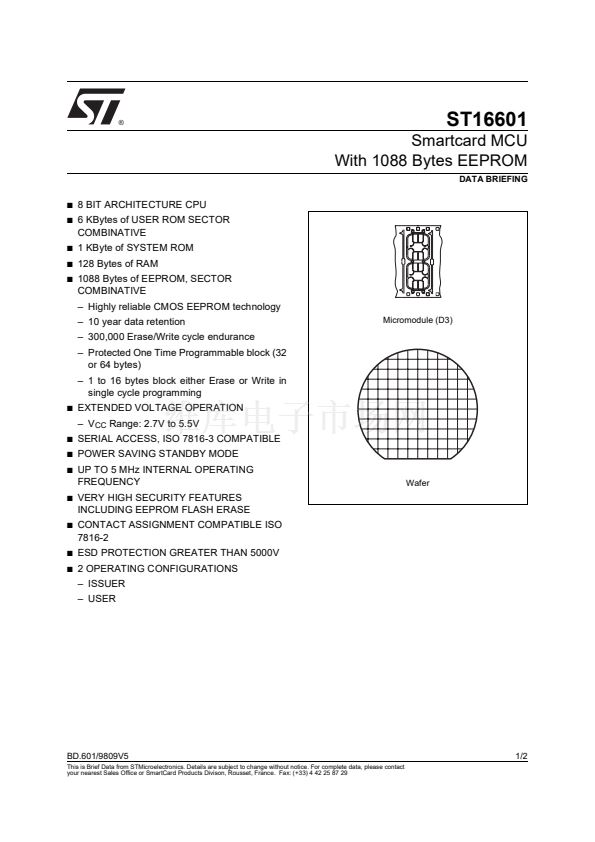

ST16601
Smartcard MCU
With 1088 Bytes EEPROM
DATA BRIEFING
s
s
8 BIT ARCHITECTURE CPU
6 KBytes of USER ROM SECTOR
COMBINATIVE
1 KByte of SYSTEM ROM
128 Bytes of RAM
1088 Bytes of EEPROM, SECTOR
COMBINATIVE
鈥?Highly reliable CMOS EEPROM technology
鈥?10 year data retention
鈥?300,000 Erase/Write cycle endurance
鈥?Protected One Time Programmable block (32
or 64 bytes)
鈥?1 to 16 bytes block either Erase or Write in
single cycle programming
Micromodule (D3)
2
2
2
2
s
s
s
s
EXTENDED VOLTAGE OPERATION
鈥?V
CC
Range: 2.7V to 5.5V
SERIAL ACCESS, ISO 7816-3 COMPATIBLE
POWER SAVING STANDBY MODE
UP TO 5 MHz INTERNAL OPERATING
FREQUENCY
VERY HIGH SECURITY FEATURES
INCLUDING EEPROM FLASH ERASE
CONTACT ASSIGNMENT COMPATIBLE ISO
7816-2
ESD PROTECTION GREATER THAN 5000V
2 OPERATING CONFIGURATIONS
鈥?ISSUER
鈥?USER
Wafer
s
s
s
s
s
s
s
BD.601/9809V5
This is Brief Data from STMicroelectronics. Details are subject to change without notice. For complete data, please contact
your nearest Sales Office or SmartCard Products Divison, Rousset, France. Fax: (+33) 4 42 25 87 29
1/2
