SSQCD0303
Replaceable SSQ/SST with
Integral Clips
SSQ Square Ceramic Surface Mount
Quick Action Fuse
Catalog Number
Ampere Rating
SST Square Ceramic Surface Mount
Slow Blow Fuse
Catalog Number
Ampere Rating
SSQC 250
SSQC 375
These fuse/clip assemblies can efficiently placed in a single
pass. Once reflowed, fuse replacement requires no resoldering.
250mA
375mA
500mA
750mA
1A
1.25A
1.5A
2A
2.5A
3A
3.5A
4A
5A
6.3A
7A
8A
SSTC 375
SSTC 500
SSTC 625
SSTC 750
SSTC 1
SSTC 1.5
SSTC 2
SSTC 2.5
SSTC 3
SSTC 3.5
SSTC 4
SSTC 5
SSTC 7
375mA
500mA
625mA
750mA
1A
1.5A
2A
2.5A
3A
3.5A
4A
5A
7A
SSQC 500
SSQC 750
SSQC 1
SSQC 1.25
SSQC 1.5
SSQC 2
SSQC 2.5
SSQC 3
SSQC 3.5
SSQC 4
SSQC 5
SSQC 6.3
SSQC 7
SSQC 8
Electrical Specifications
Maximum Recommended Fuse Current Rating 8 Amperes,
125 Volts.
Environmental Specifications
Soldering Techniques & Compatibility
Reflow: Industrial standard: 240擄C peak
Operating Temperature
-55擄C to 125擄C
Shock
MIL-STD-202, Method 213, Test Condition I
(100 G鈥檚 peak for 6 milliseconds).
Vibration
MIL-STD-202, Method 201
(10-55 Hz, 0.06 inch, total excursion).
Insulation Resistance
MIL-STD-202, Method 302, Test Condition A
(After Opening) 10,000 ohms minimum.
Solderability
MIL-STD-202, Method 208
Thermal Shock
MIL-STD-202, Method107, Test Condition B
(-65擄C to +125擄C)
Consult manufacturer for other ratings
Physical Specification
Materials
Clip Terminals: Tin Plated Inconel Alloy
Packaging
2,000 fuses in 13 inches dia. reel, 16mm wide tape, 8mm pitch,
per EIA standard 481

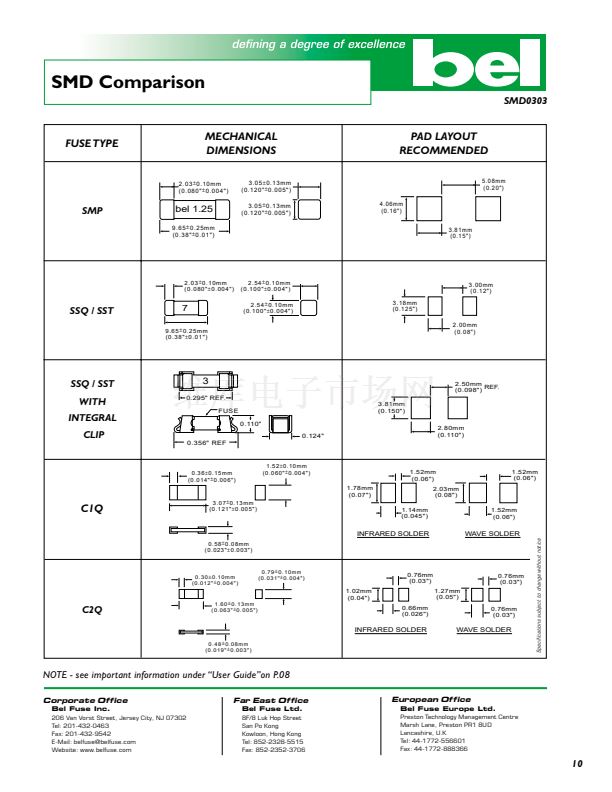

Mechanical Dimensions
SSQC
3
9.15mm
(0.360")
2.49mm
(0.098") REF.
3.81mm
(0.150")
3.33mm
(0.131")
3.30mm
(0.130") REF.
7.49mm
(0.295") REF
.
FUSE
2.79
鹵
0.2mm
(0.110"
鹵
0.08")
9.04
鹵
0.5mm
(0.356"
鹵
0.02")
3.15
鹵
0.10mm
(0.124"
鹵
0.004")
Recommended Pad Layout
ORDERING INFORMATION SEE PAGES 67 & 68
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 鈥?Tel: 201-432-0463 鈥?Fax: 201-432-9542 鈥?E-Mail: belfuse@belfuse.com
Website: www.belfuse.com
09
Specifications subject to change without notice
