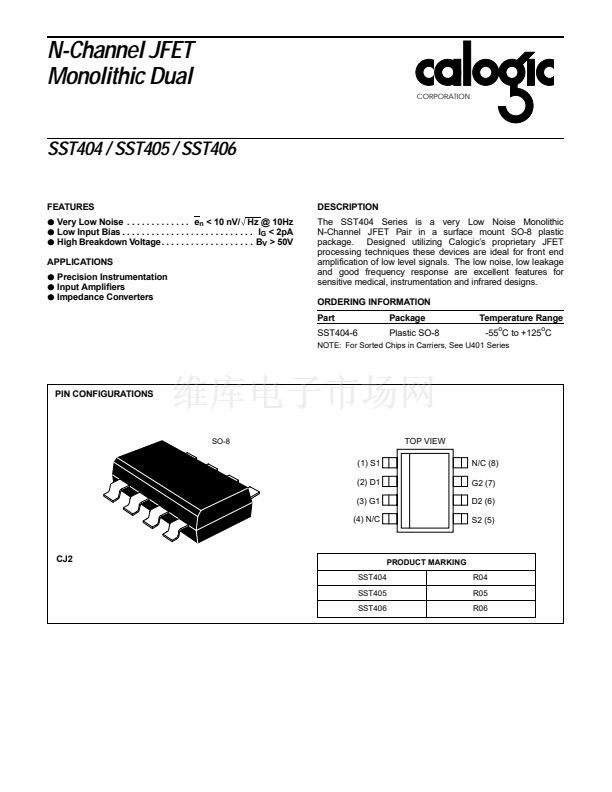

N-Channel JFET
Monolithic Dual
CORPORATION
SST404 / SST405 / SST406
FEATURES
DESCRIPTION
The SST404 Series is a very Low Noise Monolithic
N-Channel JFET Pair in a surface mount SO-8 plastic
package. Designed utilizing Calogic鈥檚 proprietary JFET
processing techniques these devices are ideal for front end
amplification of low level signals. The low noise, low leakage
and good frequency response are excellent features for
sensitive medical, instrumentation and infrared designs.
ORDERING INFORMATION
Part
SST404-6
Package
Plastic SO-8
Temperature Range
-55
o
C to +125
o
C
鈥?/div>
Very Low Noise . . . . . . . . . . . . . e
n
< 10 nV/ Hz @ 10Hz
......
I
鈥?/div>
Low Input Bias . .Voltage.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. B
G
< 2pA
V
> 50V
鈥?/div>
High Breakdown
鈥?/div>
Precision Instrumentation
鈥?/div>
Input Amplifiers
鈥?/div>
Impedance Converters
APPLICATIONS
NOTE: For Sorted Chips in Carriers, See U401 Series
PIN CONFIGURATIONS
SO-8
TOP VIEW
(1) S1
(2) D1
(3) G1
(4) N/C
N/C (8)
G2 (7)
D2 (6)
S2 (5)
CJ2
PRODUCT MARKING
SST404
SST405
SST406
R04
R05
R06
