SST-MELODY-DAP Datasheet

  • SST-MELODY-DAP

  • SST-Melody®:-DAP: Audio Processor Data Sheet (Rev. 0. 10...

  • 520.43KB

  • 24頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

a
FEATURES
16-Bit Fixed-Point Audio Processor (DSP-Based)
Decodes Major Standard Audio Formats Using 16-Bit
Fixed-Point Implementation for Decoding:
MPEG 1 Layer I, II, and III (MP3)
AAC 2-Channel Low Complexity
Microsoft WMA
Speech Codecs: MGSM, G.723.1, and Audible Audio
2 Independent Data Address Generators
Powerful Program Sequencer Provides Zero Overhead
Looping Conditional Instruction Execution Program-
mable 16-Bit Interval Timer with Prescaler 100-Lead
LQFP and 144-Ball Mini-BGA
Supports Postprocessing:
Jazz/Rock/Classic/Pop/Bass
3-Band User Customizable Graphic Equalizer
Supports Major Storage Formats:
SmartMedia Card
DataPlay
SD Card
NAND Flash
Supports DRM (Digital Rights Management) Technologies:
Liquid Audio SP3
Microsoft DRM
DataPlay ContentKey
Audio Processor
廬
SST-Melody -DAP
Supports Standard APIs:
Start Play
Stop Play
Mute Play
Resume Play
Download Song to Flash
Forward to Next Song
Rewind to Previous Song
Delete a Song
Bass/Equalizer
Erase MP3 Flash
Upload Song/Voice from Flash
Rename Flash
Start Record
Stop Record
Report
Get File Information
Seek File
List Number of Songs
Request Song Name
List Number of Voices
Request Voice Note Name
Start Record (G.723.1)
Stop Record (G.723.1)
Start Play (G.723.1)
Stop Play (G.723.1)

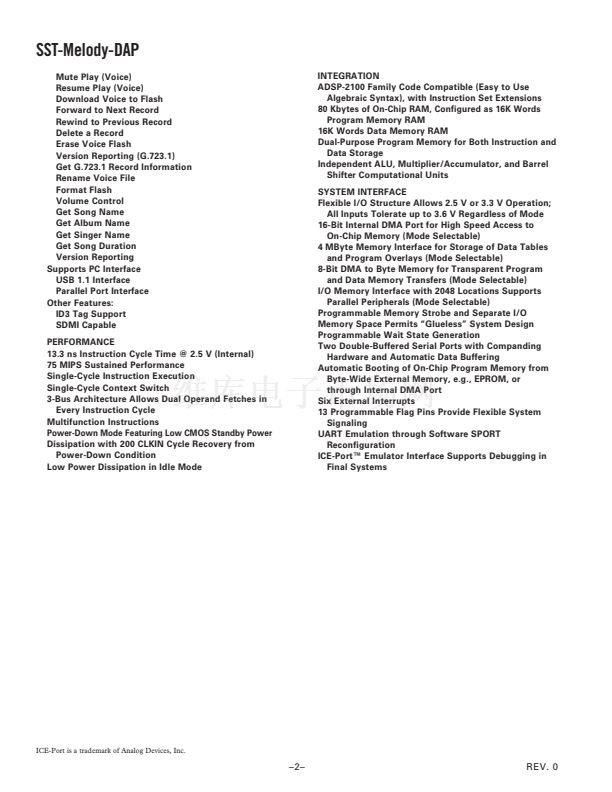

(continued on page 2)
FUNCTIONAL BLOCK DIAGRAM
POWER-DOWN
CONTROL
MEMORY
DATA ADDRESS
GENERATORS
DAG1
DAG2
PROGRAM
MEMORY
16K 24 BIT
DATA
MEMORY
16K 16 BIT
PROGRAMMABLE
I/O
AND
FLAGS
FULL MEMORY MODE
EXTERNAL
ADDRESS
BUS
PROGRAM
SEQUENCER
PROGRAM MEMORY ADDRESS
DATA MEMORY ADDRESS
PROGRAM MEMORY DATA
EXTERNAL
DATABUS
BYTE DMA
CONTROLLER
OR
DATA MEMORY DATA
EXTERNAL
DATABUS
ARITHMETIC UNITS
ALU
MAC
SHIFTER
SERIAL PORTS
SPORT0
SPORT1
TIMER
INTERNAL
DMA
PORT
HOST MODE
ADSP-2100 BASE
ARCHITECTURE
REV. 0
Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties that
may result from its use. No license is granted by implication or otherwise
under any patent or patent rights of Analog Devices.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781/329-4700
www.analog.com
Fax: 781/326-8703
漏 Analog Devices, Inc., 2002
