SSM6K07FU Datasheet

  • SSM6K07FU

  • DC-DC Converters High Speed Switching Applications

  • 194.79KB

  • 6頁

  • TOSHIBA

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

SSM6K07FU
TOSHIBA Field Effect Transistor Silicon N Channel MOS Type
SSM6K07FU
DC-DC Converters
High Speed Switching Applications
路
路
路
Small package
Low on resistance : R
on
= 130 m鈩?max (@V
GS
= 10 V)
: R
on
= 220 m鈩?max (@V
GS
= 4 V)
Low input capacitance : C
iss
= 102 pF typ.
: C
rss
= 22 pF typ.
Unit: mm
Maximum Ratings
(Ta
=
25擄C)
Characteristics
Drain-source voltage
Gate-source voltage
Drain current
DC
Pulse
Symbol
V
DS
V
GSS
I
D
I
DP
P
D
(Note 1)
T
ch
T
stg
Rating
30
鹵20
1.5
3.0
300
150
-55~150
Unit
V
V
A
Drain power dissipation
Channel temperature
Storage temperature range
mW
擄C
擄C
JEDEC
JEITA
TOSHIBA
鈥?/div>
鈥?/div>
2-2J1D

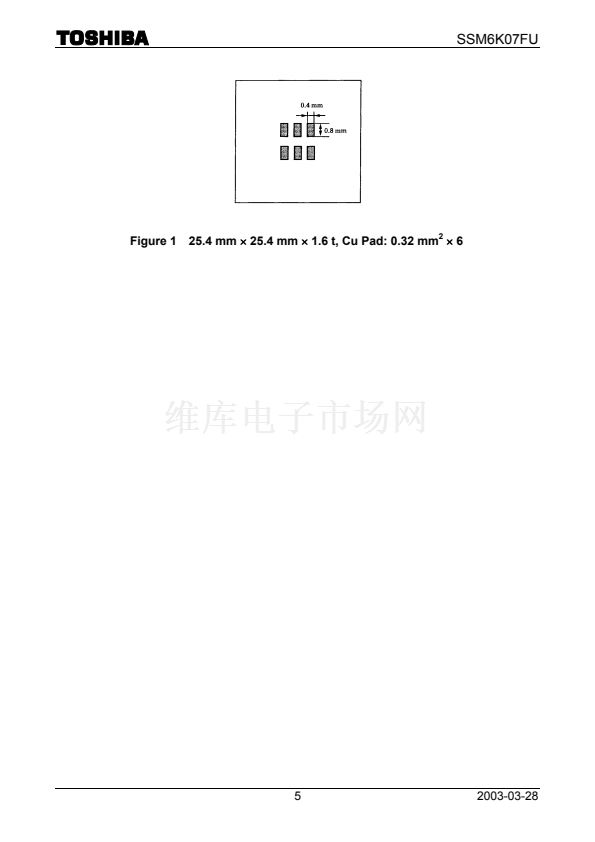

Note 1: Mounted on FR4 board.
(25.4 mm
麓
25.4 mm
麓
1.6 t, Cu pad: 0.32 mm
麓
6)
2
Weight: 6.8 mg (typ.)
Marking
Equivalent Circuit
(top view)
Handling Precaution
When handling individual devices (which are not yet mounting on a circuit board), be sure that the environment
is protected against electrostatic electricity. Operators should wear anti-static clothing, and containers and other
objects that come into direct contact with devices should be made of anti-static materials.
1
2003-03-28
