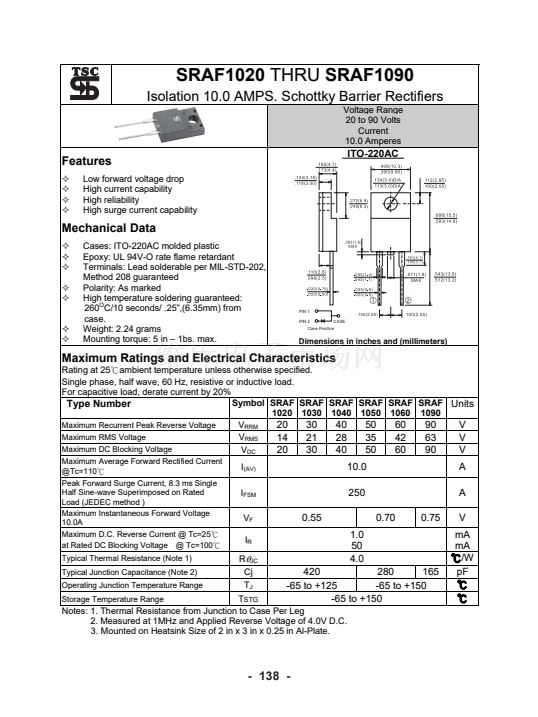

SRAF1020
THRU
SRAF1090
Isolation 10.0 AMPS. Schottky Barrier Rectifiers
Voltage Range
20 to 90 Volts
Current
10.0 Amperes
Features
Low forward voltage drop
High current capability
High reliability
High surge current capability
.124(3.16)
.118(3.00)
ITO-220AC
.185(4.7)
.173(4.4)
.406(10.3)
.390(9.90)
.13 4(3. 4)D IA
. 11 3(3. 0)D IA
. 112 (2. 85)
. 100 (2.5 5)
.2 72( 6. 9)
.2 48( 6. 3)
. 606(1 5.5 )
. 583(1 4.8 )
Mechanical Data
Cases: ITO-220AC molded plastic
Epoxy: UL 94V-O rate flame retardant
Terminals: Lead solderable per MIL-STD-202,
Method 208 guaranteed
Polarity: As marked
High temperature soldering guaranteed:
260
O
C/10 seconds/ .25鈥?(6.35mm) from
case.
Weight: 2.24 grams
Mounting torque: 5 in 鈥?1bs. max.
.0 63 (1 .6 )
MA X
.161(4.1)
.146(3.7)
.110( 2.8)
.0 98(2 .5)
. 071 (1. 8)
MA X
. 543( 13. 8)
. 512( 13. 2)
2
PIN 1
PIN 2
CASE
. 10 0( 2 . 55)
. 100 (2.5 5)
Case Positive
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics
Rating at 25鈩僡mbient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Symbol SRAF SRAF SRAF SRAF SRAF SRAF
Units
Type Number
1020 1030 1040 1050 1060 1090
Maximum Recurrent Peak Reverse Voltage
V
RRM
20
30
40
50
60
90
V
Maximum RMS Voltage
V
RMS
14
21
28
35
42
63
V
Maximum DC Blocking Voltage
V
DC
20
30
40
50
60
90
V
Maximum Average Forward Rectified Current
@Tc=110鈩?/div>
Peak Forward Surge Current, 8.3 ms Single
Half Sine-wave Superimposed on Rated
Load (JEDEC method )
Maximum Instantaneous Forward Voltage
10.0A
Maximum D.C. Reverse Current @ Tc=25鈩?/div>
at Rated DC Blocking Voltage @ Tc=100鈩?/div>
Typical Thermal Resistance (Note 1)
Typical Junction Capacitance (Note 2)
Operating Junction Temperature Range
Storage Temperature Range
I
(AV)
I
FSM
V
F
I
R
R
胃
JC
Cj
T
J
10.0
250
0.55
1.0
50
4.0
420
280
165
-65 to +125
-65 to +150
-65 to +150
0.70
0.75
A
A
V
mA
mA
鈩?W
pF
鈩?/div>
鈩?/div>
T
STG
Notes: 1. Thermal Resistance from Junction to Case Per Leg
2. Measured at 1MHz and Applied Reverse Voltage of 4.0V D.C.
3. Mounted on Heatsink Size of 2 in x 3 in x 0.25 in Al-Plate.
- 138 -
SRAF1030 產(chǎn)品屬性
Taiwan Semiconductor
肖特基（二極管與整流器）
Schottky Diodes
30 V
10 A
200 A
Single
0.55 V
500 uA
- 65 C to + 125 C
Through Hole
ITO-220AC
Tube
2000
