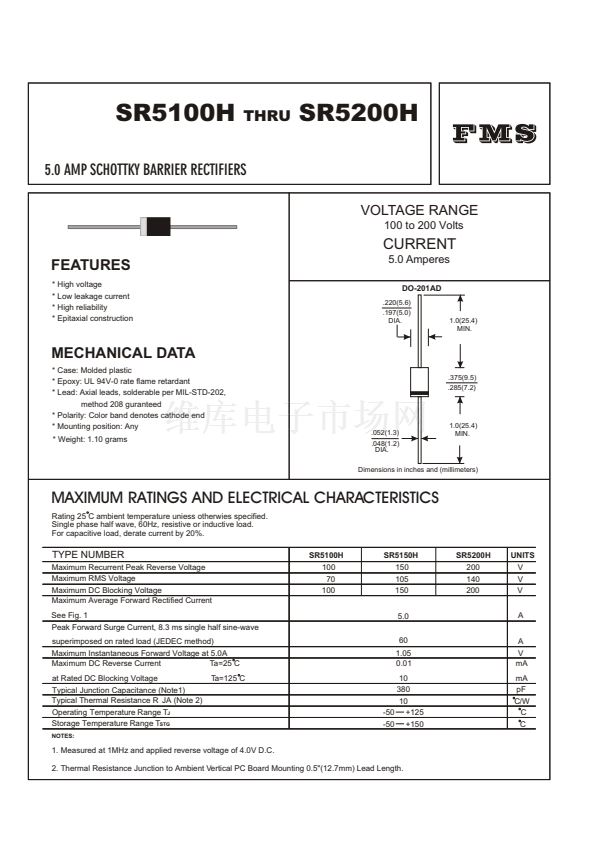

SR5100H
THRU
SR5200H
5.0 AMP SCHOTTKY BARRIER RECTIFIERS
VOLTAGE RANGE
100 to 200 Volts
CURRENT
FEATURES
* High voltage
* Low leakage current
* High reliability
* Epitaxial construction
5.0 Amperes
DO-201AD
.220(5.6)
.197(5.0)
DIA.
1.0(25.4)
MIN.
MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: Axial leads, solderable per MIL-STD-202,
method 208 guranteed
* Polarity: Color band denotes cathode end
* Mounting position: Any
* Weight: 1.10 grams
.375(9.5)
.285(7.2)
.052(1.3)
.048(1.2)
DIA.
1.0(25.4)
MIN.
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25 C ambient temperature uniess otherwies specified.
Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
TYPE NUMBER
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
See Fig. 1
Peak Forward Surge Current, 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Maximum Instantaneous Forward Voltage at 5.0A
Maximum DC Reverse Current
Ta=25 C
at Rated DC Blocking Voltage
Typical Junction Capacitance (Note1)
Typical Thermal Resistance RqJA (Note 2)
Operating Temperature Range T
J
Storage Temperature Range T
STG
NOTES:
SR5100H
100
70
100
SR5150H
150
105
150
5.0
60
1.05
0.01
10
380
10
-50 +125
-50 +150
SR5200H
200
140
200
UNITS
V
V
V
A
A
V
mA
mA
pF
C/W
C
C
Ta=125 C
1. Measured at 1MHz and applied reverse voltage of 4.0V D.C.
2. Thermal Resistance Junction to Ambient Vertical PC Board Mounting 0.5"(12.7mm) Lead Length.
