WTE
POWER SEMICONDUCTORS
SR3150
Pb
3.0A HIGH VOLTAGE SURFACE MOUNT SCHOTTKY BARRIER DIODE
Features
!"
Schottky Barrier Chip
!"
!"
!"
!"
!"
!"
Ideally Suited for Automatic Assembly
Low Power Loss, High Efficiency
Surge Overload Rating to 100A Peak
For Use in Low Voltage Application
Guard Ring Die Construction
Plastic Case Material has UL Flammability
Classification Rating 94V-O
B
D
A
F
C
H
G
E
Mechanical Data
!"
Case: SMB/DO-214AA, Molded Plastic
!"
Terminals: Solder Plated, Solderable
per MIL-STD-750, Method 2026
!"
Polarity: Cathode Band or Cathode Notch
!"

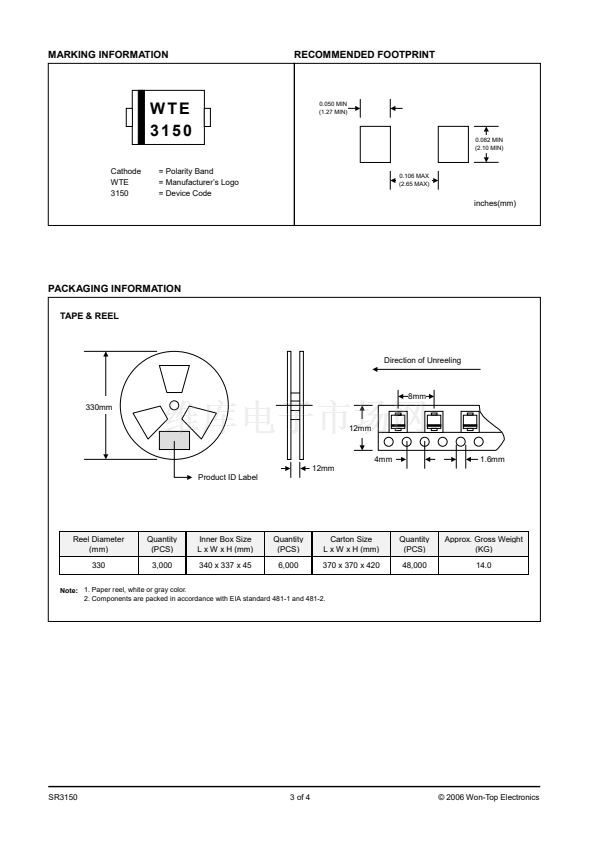

Marking: Device Code
!"
Weight: 0.093 grams (approx.)
!"
Lead Free: For RoHS / Lead Free Version,
Add 鈥?LF鈥?Suffix to Part Number, See Page 4
SMB/DO-214AA
Dim
Min
Max
A
3.30
3.94
B
4.06
4.70
C
1.91
2.11
D
0.152
0.305
E
5.08
5.59
F
2.13
2.44
G
0.051
0.203
H
0.76
1.27
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
@T
L
= 75擄C
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
@T
A
=25擄C unless otherwise specified
SR3150
Unit
150
105
3.0
V
V
A
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave superimposed on
rated load (JEDEC Method)
Forward Voltage
Peak Reverse Current
At Rated DC Blocking Voltage
@I
F
= 3.0A
@T
A
= 25擄C
@T
A
= 100擄C
I
FSM
V
FM
I
RM
R
胃JL
R
胃JA
T
j
T
STG
100
0.92
0.5
20
20
75
-65 to +125
-65 to +150
A
V
mA
擄C/W
擄C
擄C
Typical Thermal Resistance (Note 1)
Operating Temperature Range
Storage Temperature Range
Note: 1. Mounted on P.C. Board with 14mm
2
copper pad area.
SR3150
1 of 4
漏 2006 Won-Top Electronics
