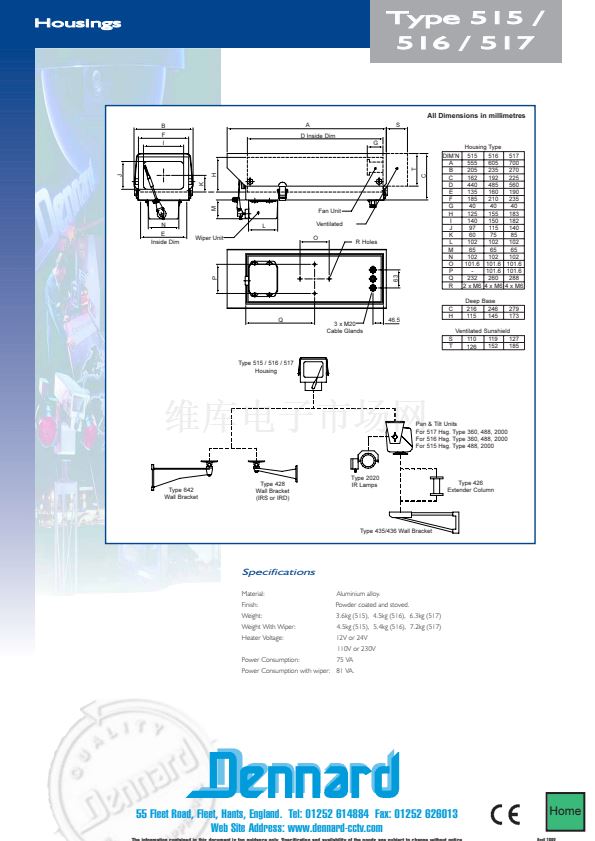

Type 515 /
516 / 517
Housings
Description
Type 515, 516 & 517
The type 515, 516, 517 range of environmental camera housings
are designed to accommodate a wide range of camera / lens
combinations and to provide protection to BS.EN 60529 Level IP
65 (no water ingress). Insulated camera platforms with longitudinal
adjustment are supplied as standard, plus window heater,
thermostat, three cable glands and full sunshield.
Self parking wipers, 5 and 25 Litre washers are available and can be
retro fitted.
The housings are constructed from aluminium alloy, powder coated
and stoved with stainless steel fittings.
Deep base versions are offered to allow telemetry receivers, relay
interface units or cable termination trays to be fitted under the
camera.
The Ventilated sunshield option has a fan fitted to the sunshield and
allows the camera housing to be kept at a constant 1.5 / 2擄C above
the ambient air temperature.
Features
聦
A range of build options available.
聧
Constructed from aluminium alloy sheet.
聨
Powder coated and stoved.
聫
Weatherproof BS.EN 60529 Level IP 65 (no water ingress)
聬
Window heater and thermostat.
聭
Horizontally adjustable insulated camera platform.
聮
Available Voltages
-
230V, 110V, 24V, 12V
聯(lián)
Three latch cover retention.
Build Options
/W
/WW
/L
/F
/DB
/VS
Wiper.
Window Wash.
Vandal Proof Security Locks.
Internal Circulation Fan.
Deep Base.
Ventilated Sunshield.
