STR-241
VHS Time Lapse Video Cassette Recorder
4 record speeds available
Audio recording and playback: 2H(3H),LI2H,L24H hour mode
OSD functions : recording mode, date, time
Built-in time / date generator
Field / frame recording function
Alarm recording function: 2H(3H) of recording time mode,
and AUTO and TAPE END functions for recording time between 5 and 30 minutes.
Timer recording (15 programs/1 week), repeat recording, and series recording functions.
Record lock function for avoiding unintended operation
Four-head helical scanning system
Model
General(color system NTSC/PAL)
Power Requirements
Power Consumption
Operating Temperature
Operating Humidity

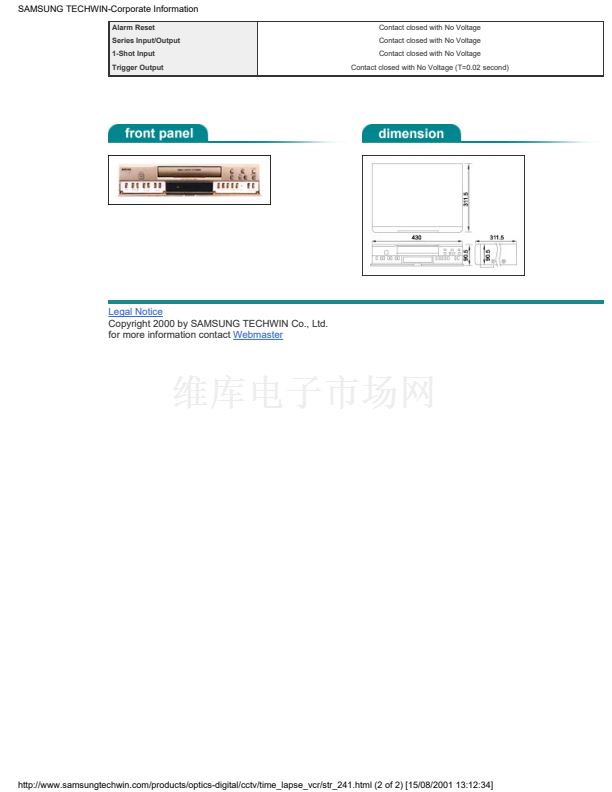

Dimension
Weight
Tape Speed
REC/PB Time
FF/REW Time
Using Tape
Video
Recording System
Input
Output
Horizontal Resolution
Audio
Audio Recording Mode
Input (RCA jack)
Output(RCA jack)
S/N Ratio
Frequency Response
Connector
Alarm Input
Alarm Output
STR-241N
AC120V, 60HZ
16W
5oC~40oC (41oF~104oF)
80%, max.
STR-241P
AC 230V, 50HZ
430(W) x 90.5(H) x 311.5(D) mm (16.9" x 3.6" x 12.3")
4.3kg (9.5lb)
33.35mm/sec (2-hour mode)
2, L12, L24,36
Approx.5min
12.7mm (1/2") VHS Tape
Double azimuth Rotary
Four -head Helical Scanning System
1.0Vp-p,75
1.0Vp-p,75
Unbalanced (BNC Type)
Unbalanced (BNC Type)
23.39mm/sec (3-hour mode)
3, L12, L24
More than 220TV Line (Color), More than 300TV Line (B/W)
2(3), L12and L24-hour mode
-8dBm
-8dBm
More than 43dB
50 - 10,000 Hz
-8 3dBm
Contact closed with No Voltage
+5V
