SPX2732T-5.0 Datasheet

  • SPX2732T-5.0

  • 3A High Current Low Dropout Voltage Regulator Adjustable & F...

  • 9頁

  • SIPEX

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

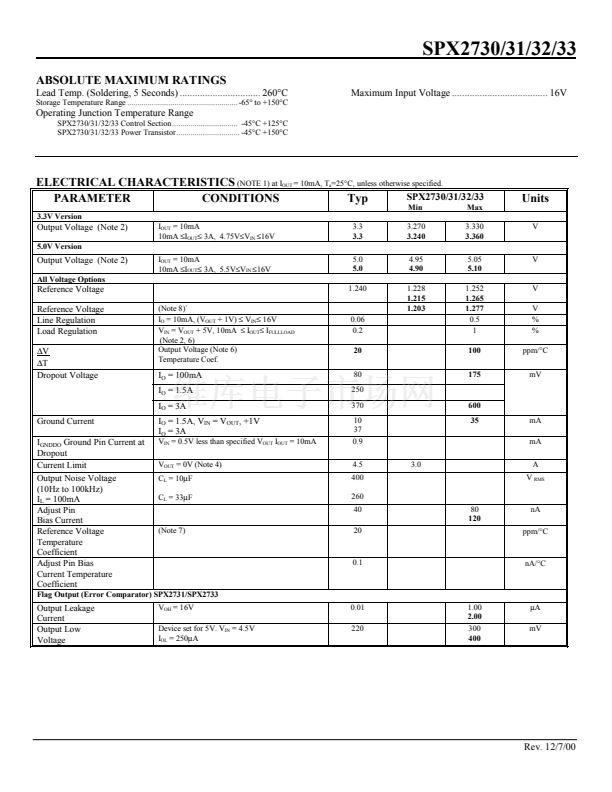

SPX2730/31/32/33
3A High Current Low Dropout Voltage Regulator
Adjustable & Fixed Output,
Fast Response
(ADVANCED INFORMATION)
FEATURES
鈥?/div>
Adjustable Output Down To 1.2V
鈥?/div>
1% output accuracy @ 3.3V, 5.0V
鈥?/div>
Output Current of 3A
鈥?/div>
Low Dropout Voltage 370mV(Typ.) @ 3A.
鈥?/div>
Extremely Tight Load And Line Regulation
鈥?/div>
Extremely Fast Transient Response
鈥?/div>
Standard 3-Terminal Low Cost TO-220, TO-263
鈥?/div>
Reverse-battery and 鈥淟oad Dump鈥?Protection
鈥?/div>
Zero Current Shutdown Mode (5-Pin Versions)
鈥?/div>
Error Flag Signal Output Out-of Regulation (5-Pin Versions)
APPLICATIONS
鈥?/div>
Powering VGA & Sound Card
鈥?/div>
Power PC餂汼upplies
鈥?/div>
SMPS Post-Regulator
鈥?/div>
High Efficiency 鈥淕reen鈥?Computer Systems
鈥?/div>
High Efficiency Linear Power Supplies
鈥?/div>
Portable Instrumentation
鈥?/div>
Constant Current Regulators
鈥?/div>
Adjustable Power Supplies
鈥?/div>
Battery charger
PRODUCT DESCRIPTION
The SPX2730/31/32/33 is a 3A high accuracy, low dropout voltage regulator (370mV(Typ)@ 3A). The SPX2730/31/32/33 is
designed for low voltage application that requires lower dropout voltage and faster transient response. This device is an excellent
choice for use in powering low voltage microprocessor that require a lower dropout, faster transient response to regulate from +2.5V
to 3.8V supplies and as a post regulator for switching supplies applications.
The SPX2730/31/32/33 offers full protection against over-current faults, reversed input polarity, reversed load insertion, and positive
and negative transient voltage. On-Chip trimming adjusts the reference voltage to 1%. Features such as enable pin, Error flag pin are
also included in the 5-pin package.
The SPX2730/31/32/33 are offered in 3 & 5 pin TO-220 & TO-263 packages compatible with other 3 terminal regulators.
PIN CONNECTIONS
TO-220-3 (U)
TO-263-3 (T)
TO-263-5 (T)
SPX2731
1) ENABLE
2) INPUT
3) GND
4) OUTPUT
5) FLAG
TO-220-5 (U)
SPX2730
1
2
3
SPX2731/32/33
SPX2732
1) ENABLE
2) INPUT
3) GND
4) OUTPUT
5) ADJUST
SPX2733
1) FLAG
2) INPUT
3) GND
4) OUTPUT
5) ADJUST
SPX2730
1
2
3
SPX2731/32/33
SPX2731
1) ENABLE
2) INPUT
3) GND
4) OUTPUT
5) FLAG
SPX2732
1) ENABLE
2) INPUT
3) GND
4) OUTPUT
5) ADJUST
SPX2733
1) FLAG
2) INPUT
3) GND
4) OUTPUT
5) ADJUST
1 2 3 4 5
1 2 3 4 5
Top View
Top View
Front View
Front View
Rev. 12/7/00
