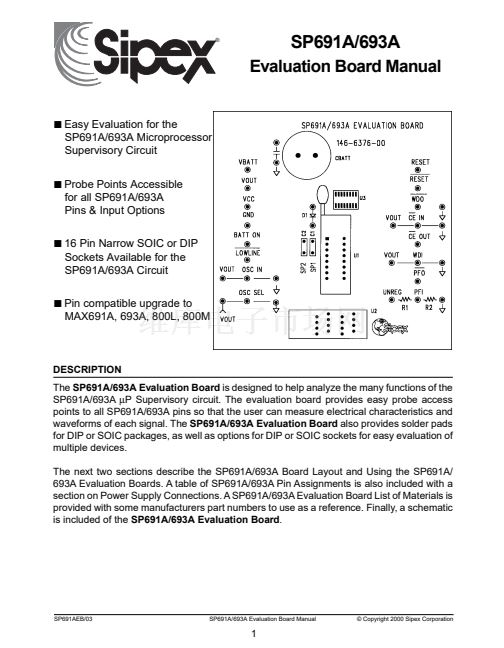

SP691A/693A
Evaluation Board Manual
s
Easy Evaluation for the
SP691A/693A Microprocessor
Supervisory Circuit
s
Probe Points Accessible
for all SP691A/693A
Pins & Input Options
s
16 Pin Narrow SOIC or DIP
Sockets Available for the
SP691A/693A Circuit
s
Pin compatible upgrade to
MAX691A, 693A, 800L, 800M
DESCRIPTION
The
SP691A/693A Evaluation Board
is designed to help analyze the many functions of the
SP691A/693A
碌P
Supervisory circuit. The evaluation board provides easy probe access
points to all SP691A/693A pins so that the user can measure electrical characteristics and
waveforms of each signal. The
SP691A/693A Evaluation Board
also provides solder pads
for DIP or SOIC packages, as well as options for DIP or SOIC sockets for easy evaluation of
multiple devices.

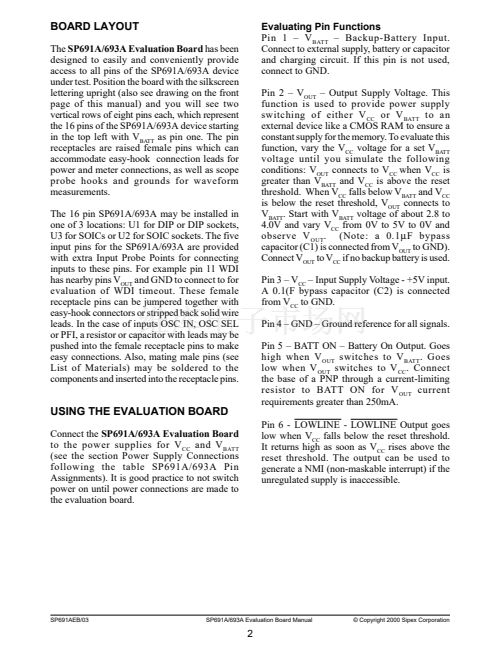

The next two sections describe the SP691A/693A Board Layout and Using the SP691A/

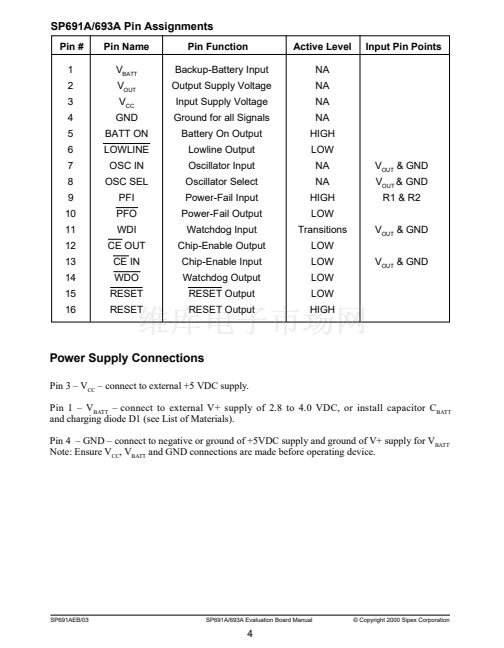

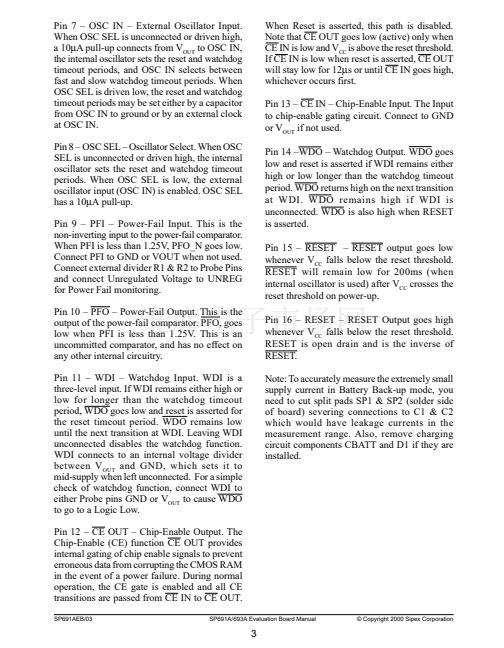

693A Evaluation Boards. A table of SP691A/693A Pin Assignments is also included with a

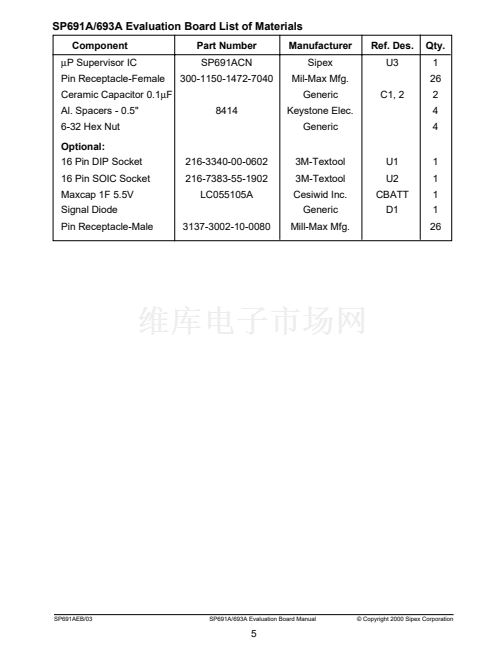

section on Power Supply Connections. A SP691A/693A Evaluation Board List of Materials is
provided with some manufacturers part numbers to use as a reference. Finally, a schematic

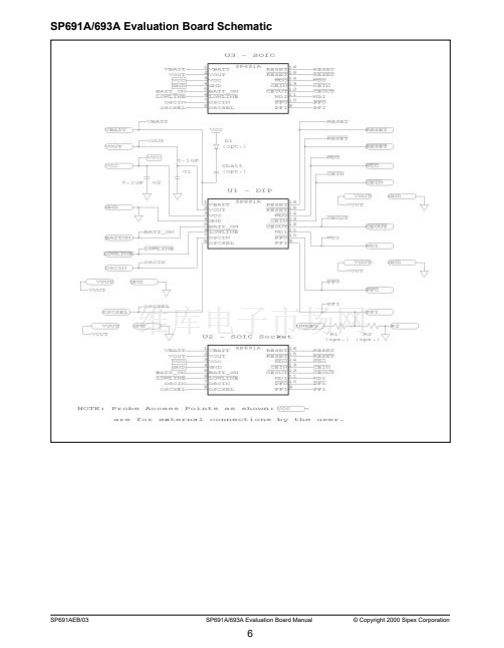

is included of the
SP691A/693A Evaluation Board.
SP691AEB/03
SP691A/693A Evaluation Board Manual
漏 Copyright 2000 Sipex Corporation
1
