SP682CU/TR Datasheet

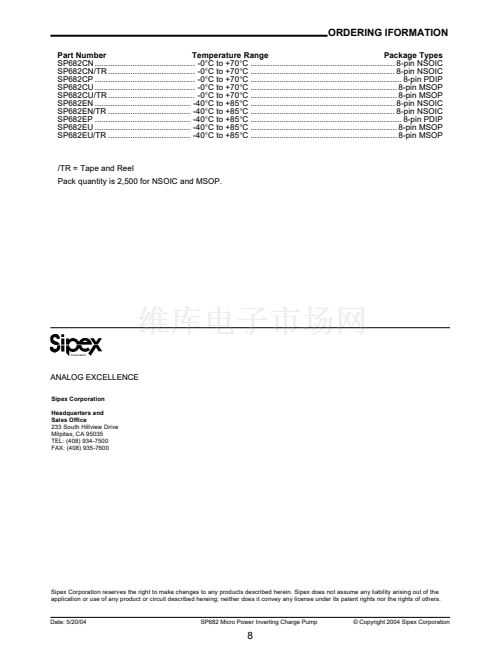

  • SP682CU/TR

  • Micro Power Inverting Charge Pump

  • 68.44KB

  • 8頁

  • SIPEX

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

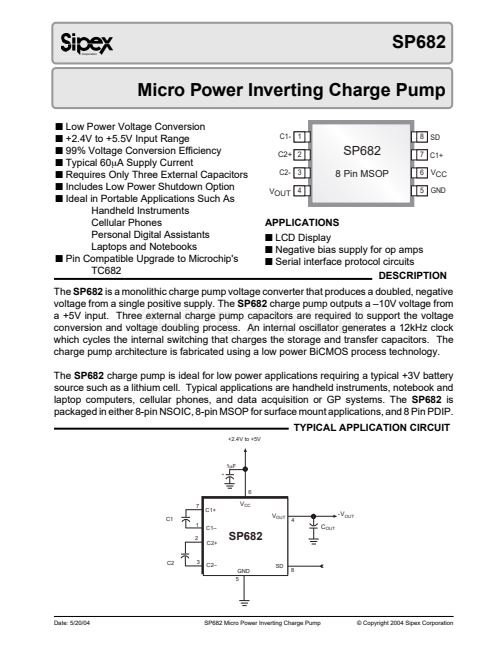

SP682
Corporation
Micro Power Inverting Charge Pump
鈻?/div>

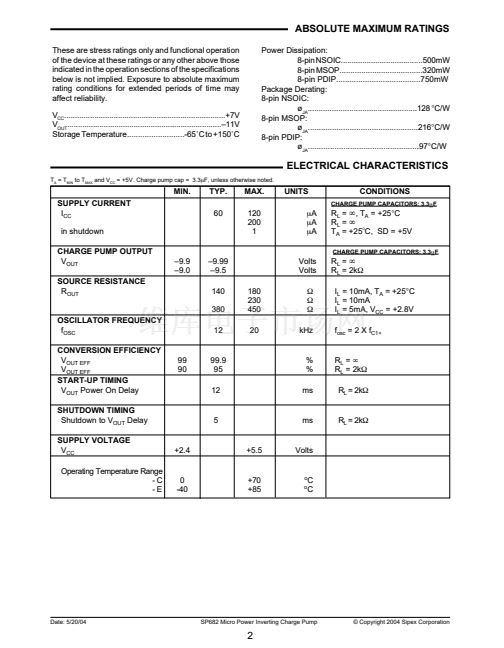

Low Power Voltage Conversion
鈻?/div>
+2.4V to +5.5V Input Range
鈻?/div>
99% Voltage Conversion Efficiency
鈻?/div>
Typical 60碌A(chǔ) Supply Current
鈻?/div>
Requires Only Three External Capacitors
鈻?/div>
Includes Low Power Shutdown Option
鈻?/div>
Ideal in Portable Applications Such As
Handheld Instruments
Cellular Phones
Personal Digital Assistants
Laptops and Notebooks
鈻?/div>
Pin Compatible Upgrade to Microchip's
TC682
C1-
1
C2+
2
C2-
3
VOUT
4
8
SD
SP682
8 Pin MSOP
7
C1+
6
VCC
5
GND
APPLICATIONS
鈻?/div>
LCD Display
鈻?/div>
Negative bias supply for op amps
鈻?/div>
Serial interface protocol circuits

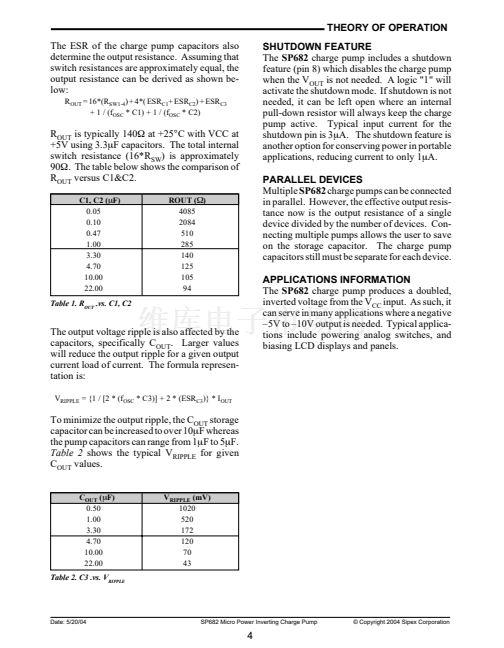

DESCRIPTION
The
SP682
is a monolithic charge pump voltage converter that produces a doubled, negative
voltage from a single positive supply. The
SP682
charge pump outputs a 鈥?0V voltage from
a +5V input. Three external charge pump capacitors are required to support the voltage

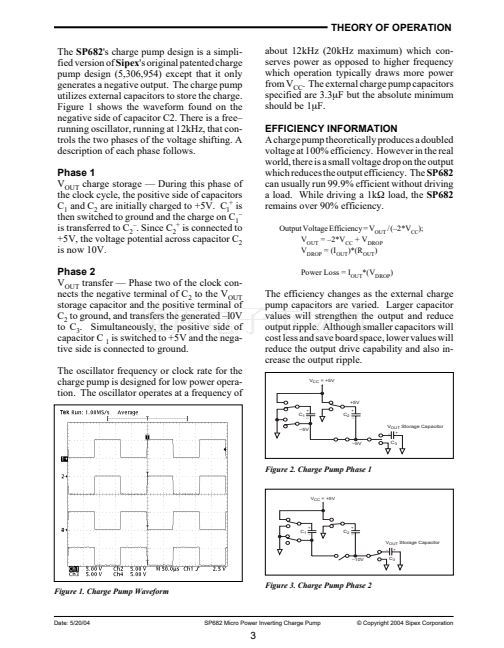

conversion and voltage doubling process. An internal oscillator generates a 12kHz clock
which cycles the internal switching that charges the storage and transfer capacitors. The
charge pump architecture is fabricated using a low power BiCMOS process technology.
The
SP682
charge pump is ideal for low power applications requiring a typical +3V battery
source such as a lithium cell. Typical applications are handheld instruments, notebook and
laptop computers, cellular phones, and data acquisition or GP systems. The
SP682
is

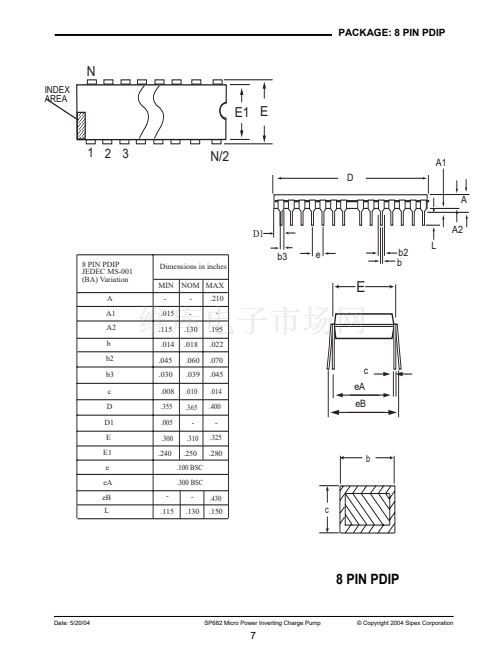

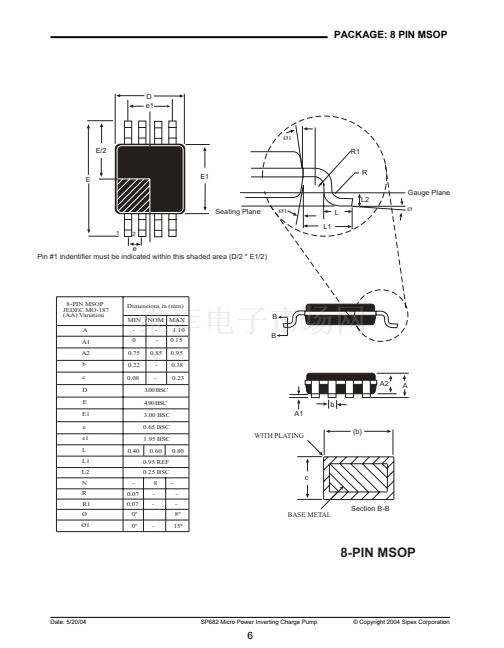

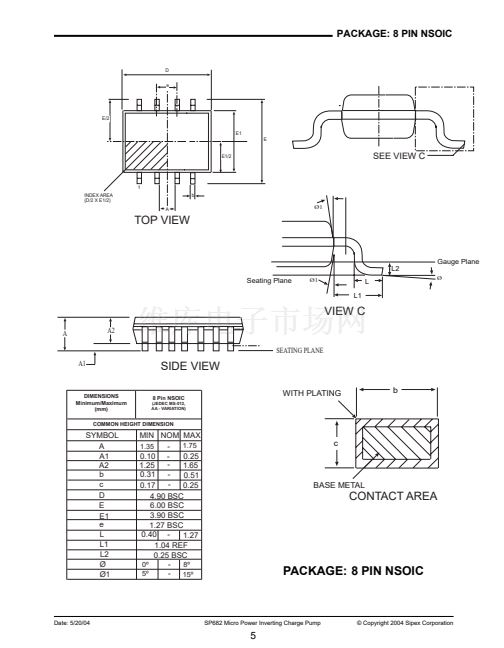

packaged in either 8-pin NSOIC, 8-pin MSOP for surface mount applications, and 8 Pin PDIP.
TYPICAL APPLICATION CIRCUIT
+2.4V to +5V
1碌F
+
6
7
C1
1
2
C1鈥?/div>
C2+
C1+
V
CC
V
OUT
4
-
V
OUT
C
OUT
SP682
SD
GND
5
8
C2
3
C2鈥?/div>
Date: 5/20/04
SP682 Micro Power Inverting Charge Pump
漏 Copyright 2004 Sipex Corporation
1
