SP3508
Evaluation Board Manual

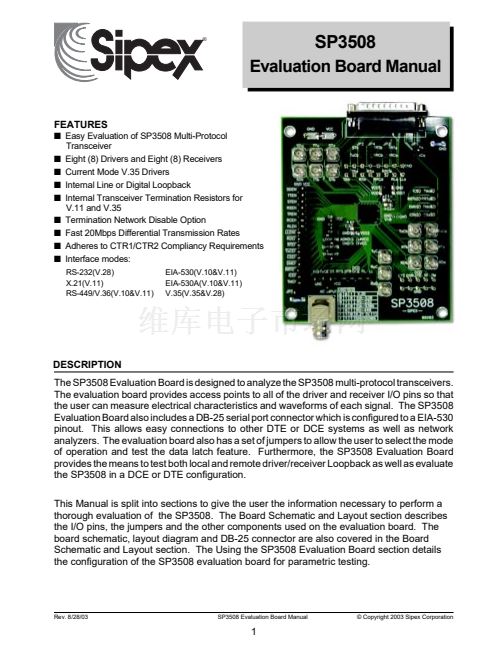

FEATURES
鈻?/div>
Easy Evaluation of SP3508 Multi-Protocol
Transceiver
鈻?/div>
Eight (8) Drivers and Eight (8) Receivers
鈻?/div>
Current Mode V.35 Drivers
鈻?/div>
Internal Line or Digital Loopback
鈻?/div>
Internal Transceiver Termination Resistors for
V.11 and V.35
鈻?/div>
Termination Network Disable Option
鈻?/div>
Fast 20Mbps Differential Transmission Rates
鈻?/div>
Adheres to CTR1/CTR2 Compliancy Requirements
鈻?/div>

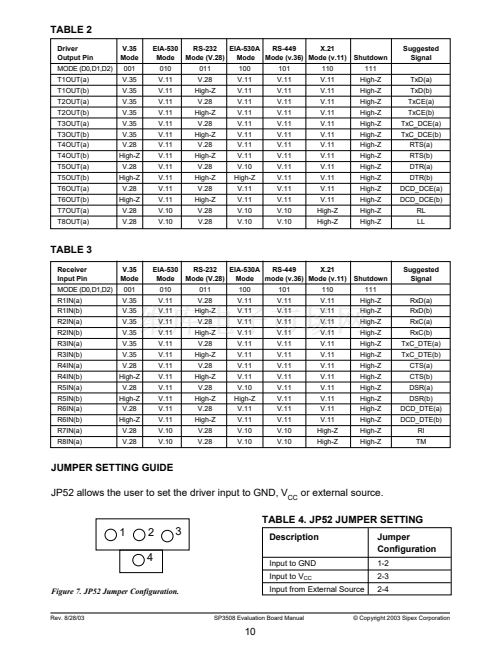

Interface modes:
RS-232(V.28)
X.21(V.11)
RS-449/V.36(V.10&V.11)
EIA-530(V.10&V.11)
EIA-530A(V.10&V.11)
V.35(V.35&V.28)
DESCRIPTION
The SP3508 Evaluation Board is designed to analyze the SP3508 multi-protocol transceivers.

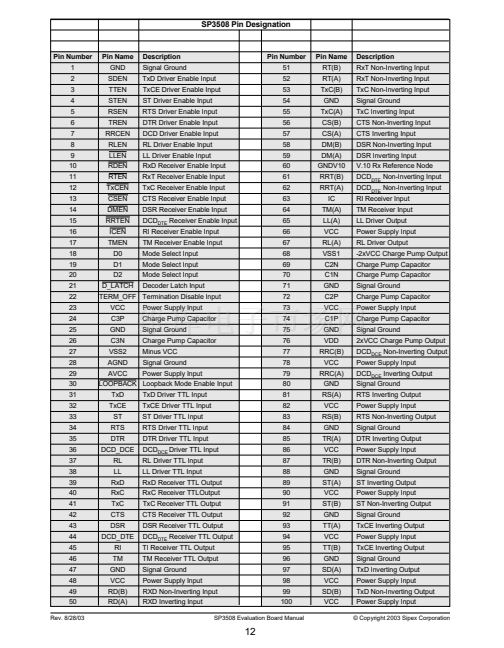

The evaluation board provides access points to all of the driver and receiver I/O pins so that
the user can measure electrical characteristics and waveforms of each signal. The SP3508
Evaluation Board also includes a DB-25 serial port connector which is configured to a EIA-530
pinout. This allows easy connections to other DTE or DCE systems as well as network

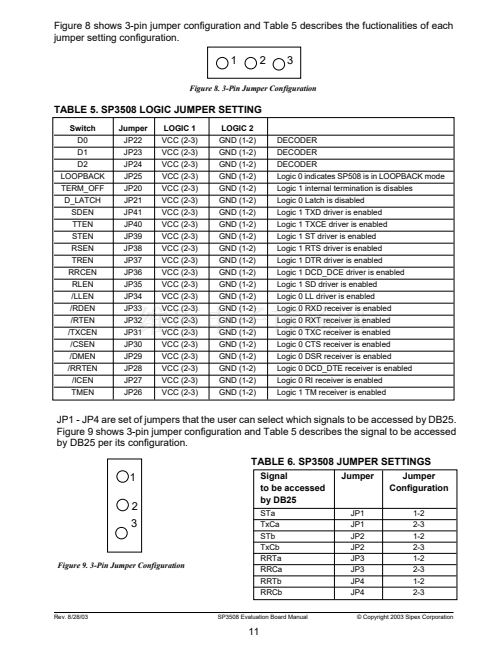

analyzers. The evaluation board also has a set of jumpers to allow the user to select the mode
of operation and test the data latch feature. Furthermore, the SP3508 Evaluation Board
provides the means to test both local and remote driver/receiver Loopback as well as evaluate
the SP3508 in a DCE or DTE configuration.
This Manual is split into sections to give the user the information necessary to perform a

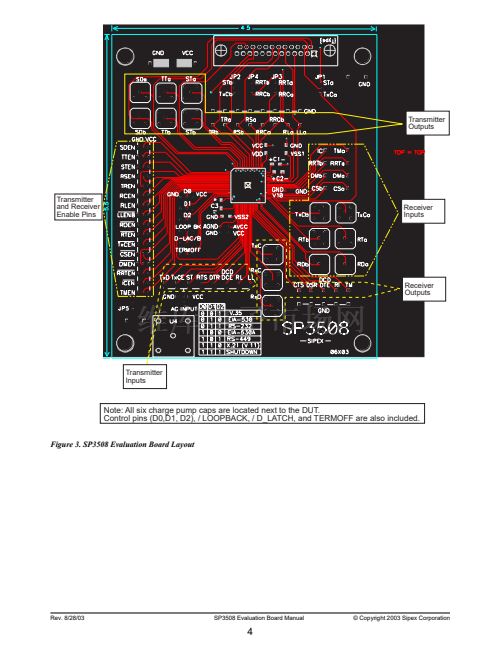

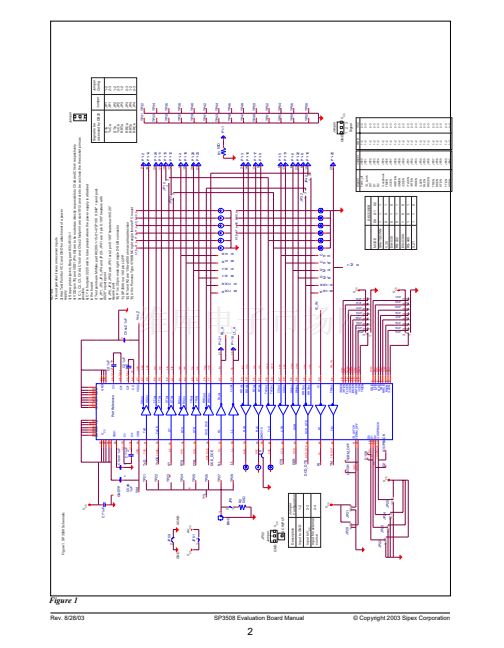

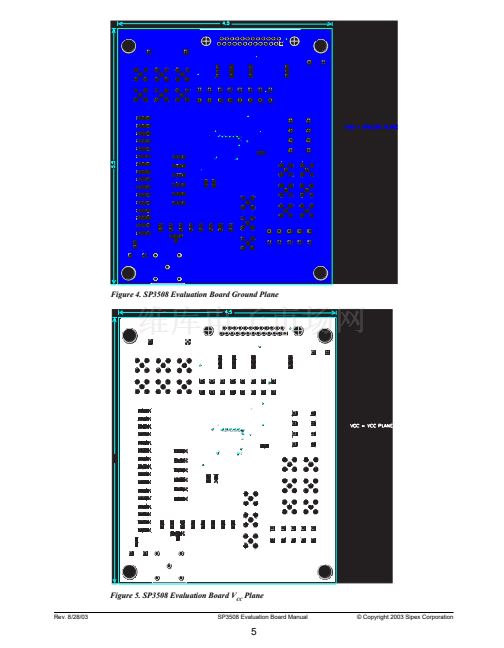

thorough evaluation of the SP3508. The Board Schematic and Layout section describes
the I/O pins, the jumpers and the other components used on the evaluation board. The
board schematic, layout diagram and DB-25 connector are also covered in the Board
Schematic and Layout section. The Using the SP3508 Evaluation Board section details
the configuration of the SP3508 evaluation board for parametric testing.
Rev. 8/28/03
SP3508 Evaluation Board Manual
漏 Copyright 2003 Sipex Corporation
1
