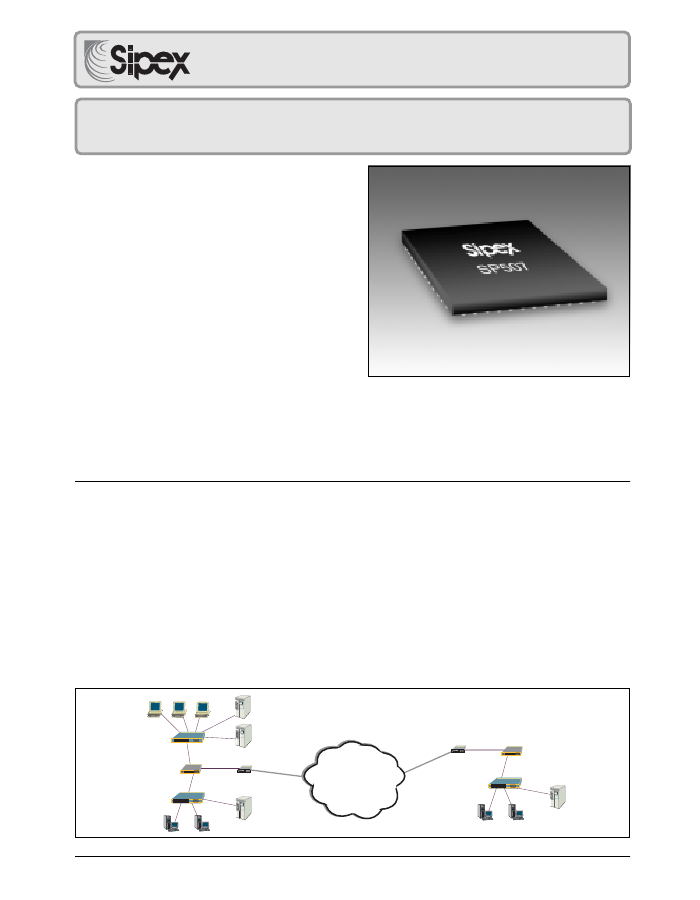

SP507

+5V, Single Chip WAN Multi-Mode Serial Transceiver

鈻?/div>

Interface Modes Supported:

鉁?/div>

RS-232

(V.28)

鉁?/div>

X.21/RS-422

(V.11)

鉁?/div>

EIA-530

(V.10 & V.11)

鉁?/div>

EIA-530A

(V.10 & V.11)

鉁?/div>

RS-449

(V.10 & V.11)

鉁?/div>

V.35

(V.35 & V.28)

鈻?/div>

Software Selectable Protocols

鈻?/div>

Highest Differential Transmission Rates

available at

over 20Mbps

鈻?/div>

+5V Only Operation

鈻?/div>

Seven (7) Drivers and Seven (7) Receivers

鈻?/div>

Driver and Receiver Tri-state Control

鈻?/div>

Internal Transceiver Termination Resistors for

V.11 and V.35 Protocols

鈻?/div>

Improved ESD Tolerance for Analog I/Os

鈻?/div>

Compliant to NET1/2 and TBR2 Physical Layer

Requirements

鈻?/div>

Used in WAN Serial Ports in Routers Switches,

DSU/CSU's and other Access Devices

鈻?/div>

Available in 132-Lead Small Scale Ball Grid

Array and 80-Lead MQFP

DESCRIPTION

The

SP507

is a monolithic IC that supports seven (7) popular serial interface standards for

DTE/DCE connectivity. The seven (7) drivers and seven (7) receivers transmit and receive

signals at over 20Mbps. The

SP507

requires no additional external components for compliant

operation for all seven (7) modes of operation. All necessary termination is integrated within

the

SP507

and is switchable when V.35 drivers, V.35 receivers, and V.11 receivers are used.

The

SP507

can operate as either a DTE or DCE.

Additional features include a latch enable pin with the driver and receiver address decoder.

Tri-state ability for the driver and receiver outputs is controlled by supplying a 3-bit word into

the address decoder. Four (4) drivers and four (4) receivers in the

SP507

include separate

enable pins for added convenience.

V.35

EIA-530

WAN

Rev: A Date:1/27/04

SP507 Multi鈥揗ode Serial Transceiver
